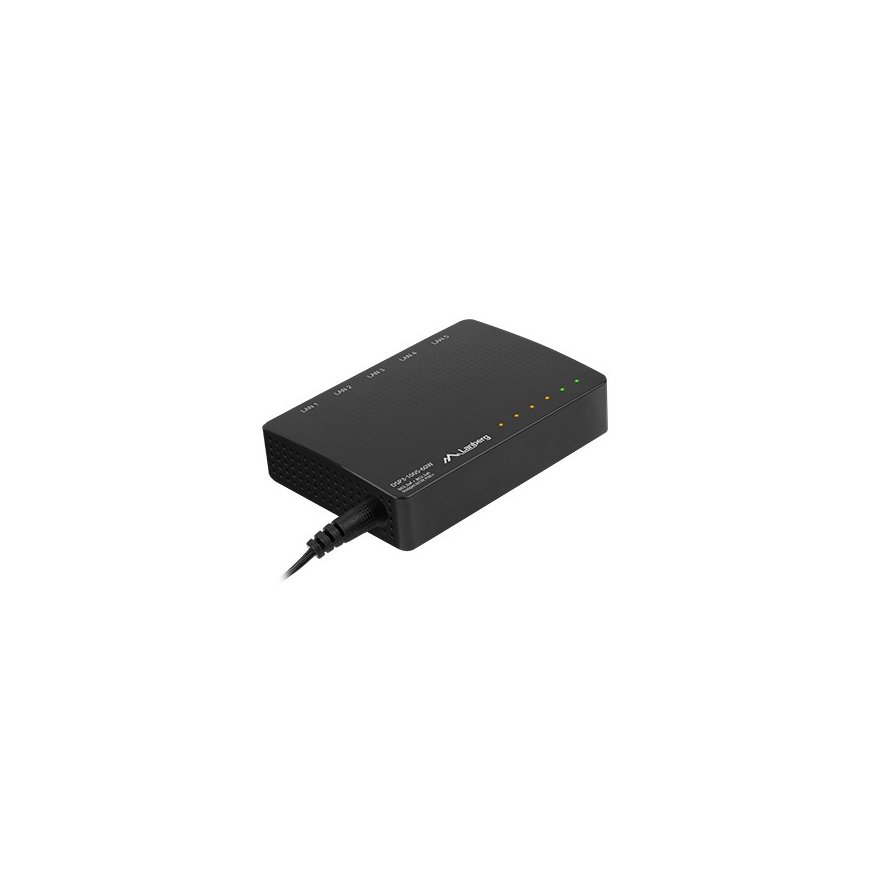

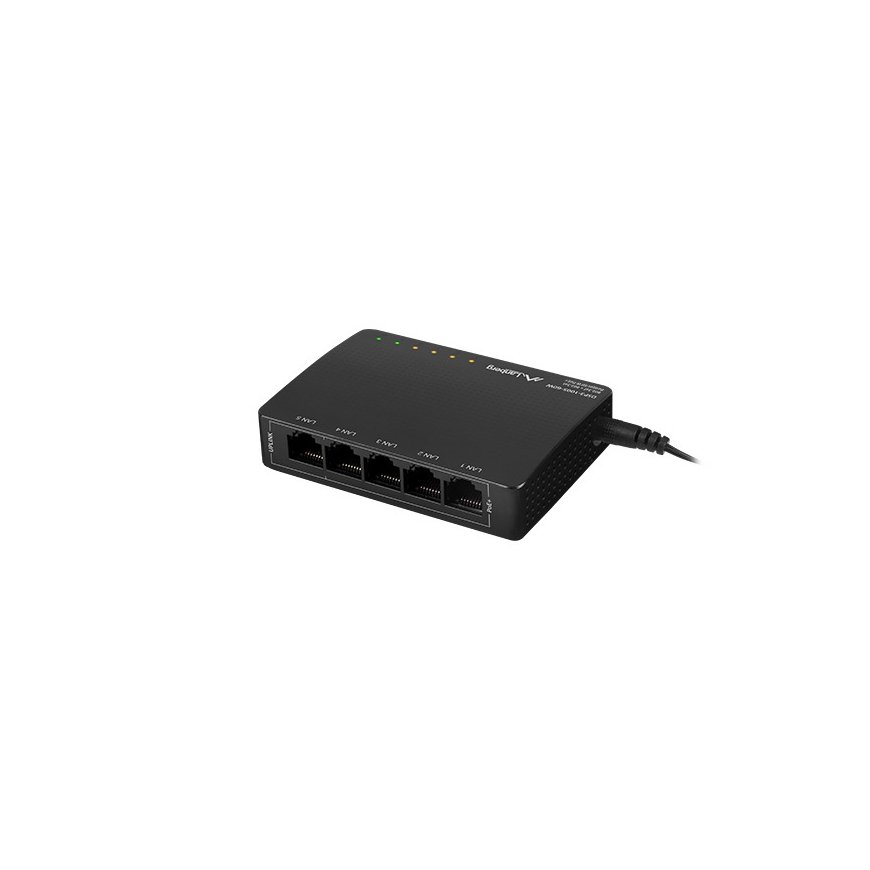

Lanberg DSP3-1005-60W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

32,54 €
32,39 €
909735

DSP3-1005-60W

5901969427790

Shipping 3-5 b.d.

Quantity
You are interested in this product?
(Read terms of service)
Lanberg DSP3-1005-60W is an unmanaged, compact, desktop PoE+ switch with 5 Gigabit Ethernet ports, including 4 PoE ports with a 60W PoE budget for powered end-devices. This convenient active networking product operates using Plug-and-Play technology. DSP3-1005-60W provides switching support for 5 RJ-45 10/100/1000 Mbps ports with automatic connection negotiation and MDI-MDIX support.

DSP3 is characterized by the use of an external power adapter enabling the switch to operate in PoE/PoE+ mode compatible with IEEE 802.3af and IEEE 802.3at standards. This Lanberg's switch model is ideally suited for home use because of its compact size (just like the DSP2 version) and silent, passive cooling. The black color scheme and the elegant slim case makes the device fit into almost any room. The device is suitable for office applications, including SOHO and SMEs. Without a doubt, this switch can also be used for IP, CCTV surveillance, alarm and security systems, and IT environments. Performance-wise, the product meets the user-requirements of this segment. Main features:

- Intelligent RJ-45 port disconnection functionality after exceeding the PoE budget. Whenever, the PoE load is exceeded (e.g. through a device connected to port #1), the switch will start disconnecting the PoE+ ports, starting from the highest numbering, until the combined values do not exceed the available budget, while maintaining the operation of the other ports intact. Port(s) that will be disconnected will be continuously switched off and on as a result.
- Automatic recognition and adjustment to the type of network cable (straight or crossed), eliminates the need for only one type of cabling, as well as Uplink ports, while reducing unnecessary costs.
- Half-duplex and full-duplex support mode for inter-device connections. Flow control allows you to control the data traffic, thus avoiding port congestion if one of the receiving devices cannot receive enough data.

Lanberg switch is a reliable combination of high quality, automation, and various functionalities to ensure that the device operates without excessive user intervention.
Network
Networking standards IEEE 802.3ab, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3i
Flow control support Yes
Ethernet LAN data rates 10, 1000
Auto MDI/MDI-X Yes
Full duplex Yes
Security
MAC address table 2000 entries
Design
LED indicators Power, LAN, Activity, Link, PoE
Product colour Black
Housing material Plastic
Wall mountable Yes
International Protection (IP) code IP20
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power over Ethernet (PoE) Yes
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 0 - 85%
Weight & dimensions
Width 65.7 mm
Depth 93 mm
Height 22.3 mm
Weight 540 g
Other features
Input current 1.12 A
Rack mounting No
Certificates
Certification CE, RoHS
