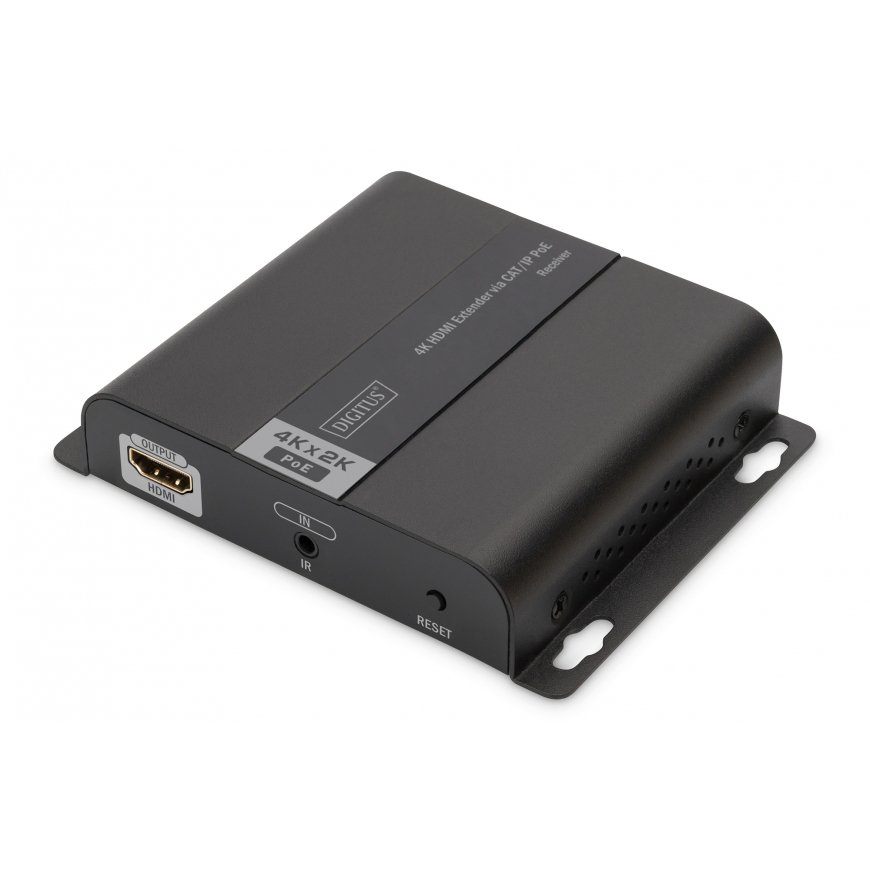

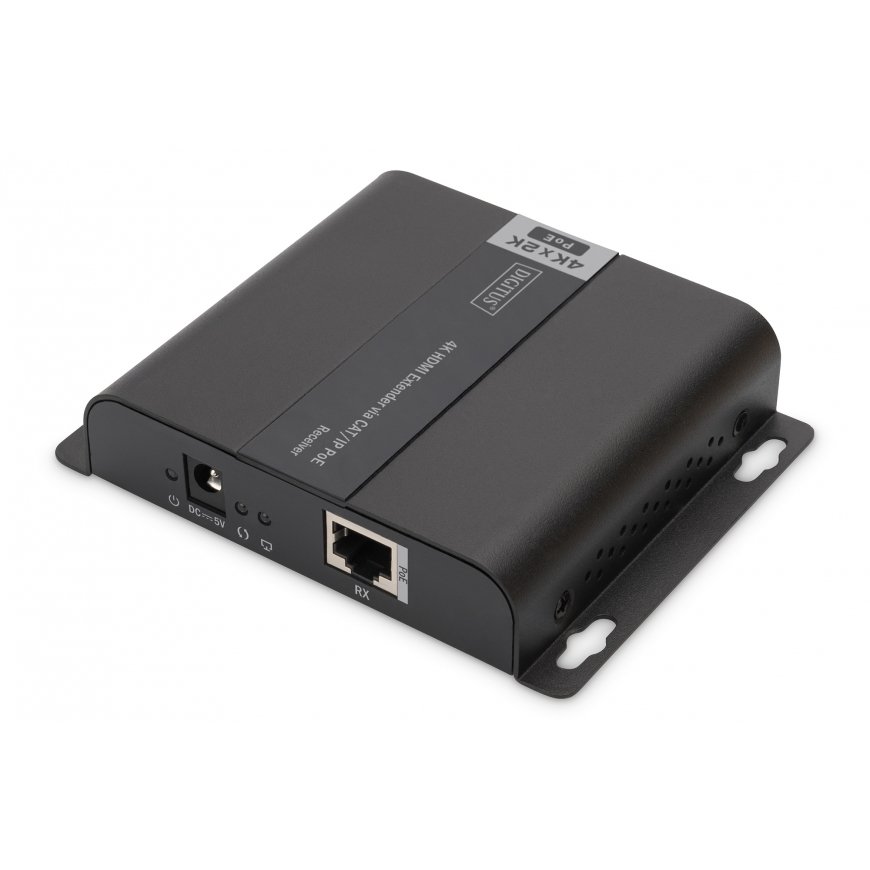

Digitus 4K HDMI Extender via CAT/IP (receiver unit), PoE
156,30 €
Monthly payment from 4.92 €
909621 DS-55125
4016032455219
2026-08-05
You are interested in this product?
- Use additional receiver units (DS-55125) and your existing network infrastructure or additional PoE switches to display video contents on up to 253 screens (point-to-multipoint connection)
- Power supply through PoE switch - no external power supply required
- Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
- Supports 4K (30 Hz), 3840 x 2160p resolution
- HDMI bandwidth: 10.2 Gbit/s (max.)
- HDCP version: 1.4
The 4K HDMI extender set (DS-55124) contains a transmitter unit and a receiver unit. The units do not require external power supply, they are powered by an additional PoE switch. Additional PoE switches or the existing infrastructure allows the HDMI signal to be extended over an unlimited distance (IP connection). Additional receiver units (DS-55125) allow video contents to be displayed on up to 253 screens. Use your existing network infrastructure or additional PoE switches (point-to-multipoint connection) for this purpose. 4K video contents can be displayed at a distance of up to 120 meters with a single point-to-point connection (power supply required). Put displays and TVs wherever you like, no matter where the output source is.
Logistics data | |
| Country of origin | China |
| Master (outer) case gross weight | 8.5 kg |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case volume | 43092 cm³ |
| Master (outer) case width | 270 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 420 mm |
| UK Trade Tariff code | 85176200 |
Features | |
| Power over Ethernet (PoE) | Yes |
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP version | 1.4 |
| Maximum transfer distance | 120 m |
| Supported video modes | 720p, 1080p, 480i, 480p, 1080i, 2160p, 576i, 576p |
Packaging data | |
| Package height | 80 mm |
| Package width | 149 mm |
| Package weight | 410 g |
| Package depth | 200 mm |
| Package volume | 2384 cm³ |
Weight & dimensions | |
| Weight | 280 g |
| Depth | 119 mm |
| Height | 24 mm |
| Width | 94 mm |
Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
Technical details | |
| Material | Metal |
Packaging content | |
| Manual | Yes |
