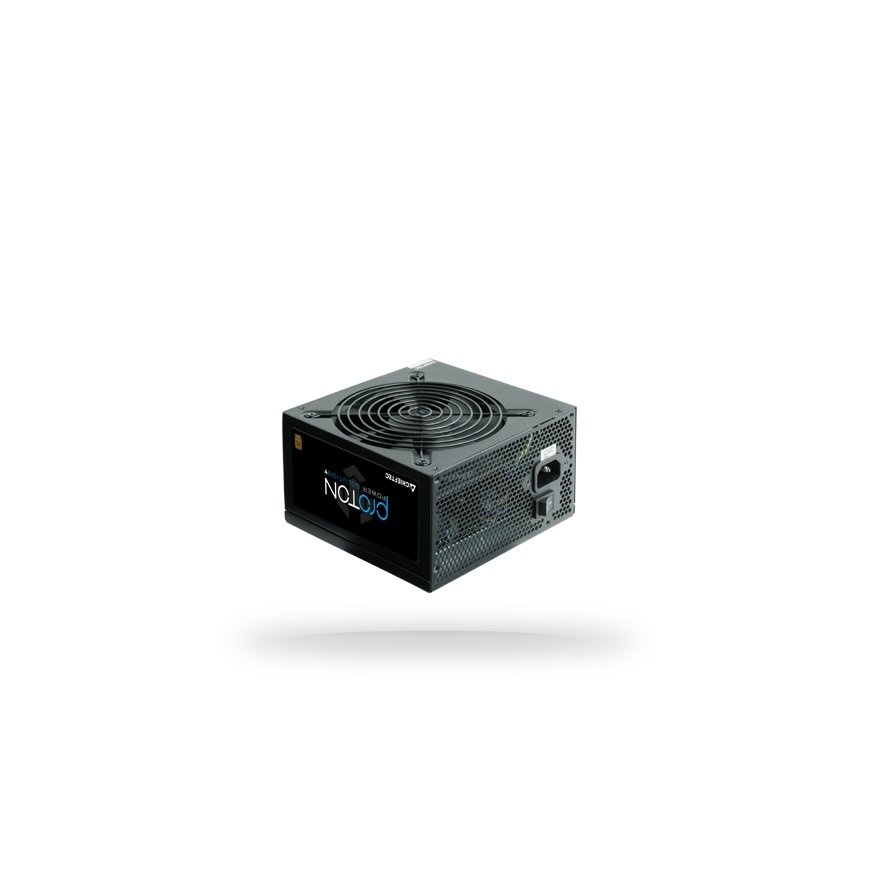

Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black

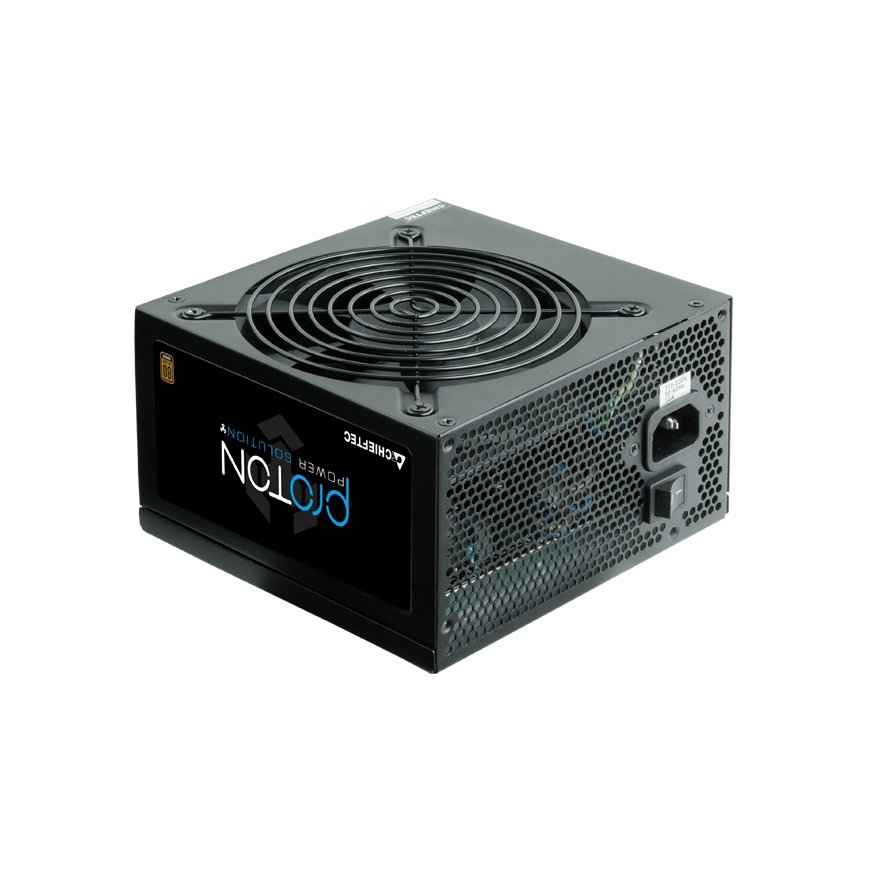

Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black – 2

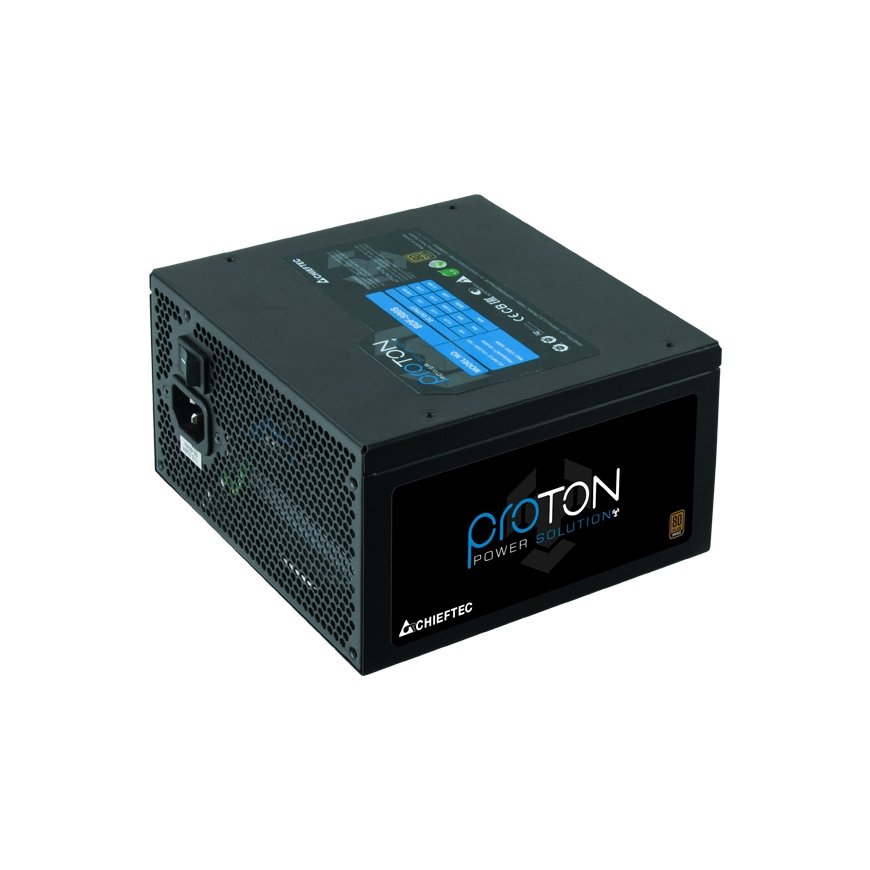

Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black – 3

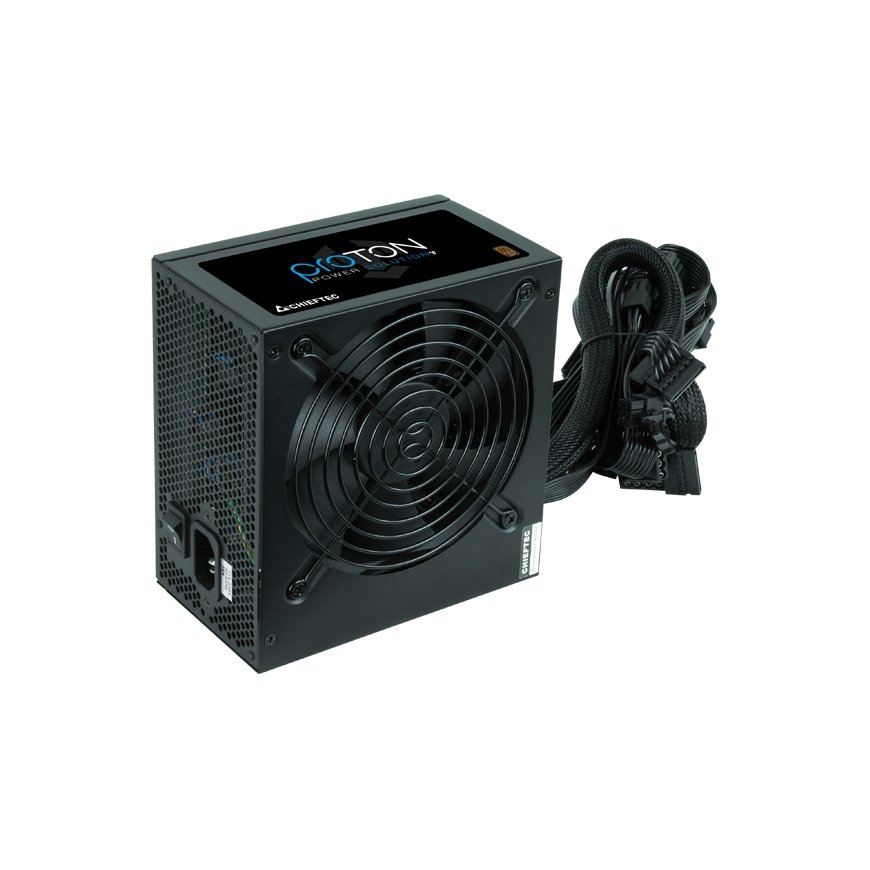

Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black – 4

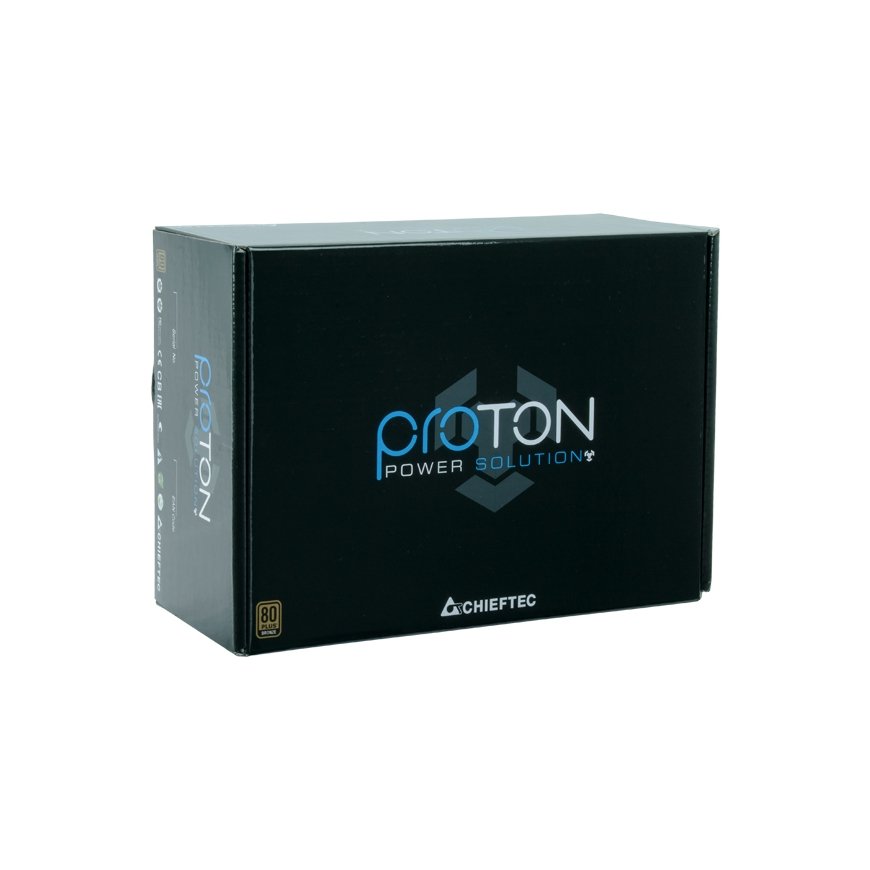

Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black – 5
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black

53.98 €
Monthly payment from 2,29 €
488408

BDF-500S

4710713231269

Shipping 2-3 b.d.

You are interested in this product?
(Read terms of service)

All about the product

With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.
Power
Efficiency 85%
Power protection features Overload, Over voltage, Short circuit, Under voltage
Power factor 0.9
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 90 W
Combined power (+5V) 90 W
Max output current (+3.3V) 18 A
Max output current (+12V) 41.68 A
Max output current (+5V) 18 A
Max output current (+5Vsb) 2.5 A
Max output current (-12V) 0.3 A
AC input voltage 115 - 230 V
AC input frequency 50 - 60 Hz
Total power 500 W
Performance
ATX version 2.3
Purpose PC
80 PLUS certification 80 PLUS Bronze
Power supply unit (PSU) form factor PS/2
Design
Product colour Black
Number of fans 1 fan(s)
Fan diameter 12 cm
Fan location Top
Cooling type Active
On/off switch Yes
Ports & interfaces
Number of SATA power connectors 6
Peripheral (Molex) power connectors (4-pin) 2
CPU power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 2
Motherboard power connector 24-pin ATX
Cabling type Non-Modular
Weight & dimensions
Width 150 mm
Depth 140 mm
Height 87 mm
Packaging data
Manual Yes
Package type Box
Other features
Warranty card Yes
Logistics data
Harmonized System (HS) code 84733020
