Chieftec Smart GPS-500A8 power supply unit 500 W 20+4 pin ATX ATX Black
41.11 €
Monthly payment from 1,96 €
488311 GPS-500A8
4710713239531
Shipping 2-3 b.d.
You are interested in this product?
All about the product

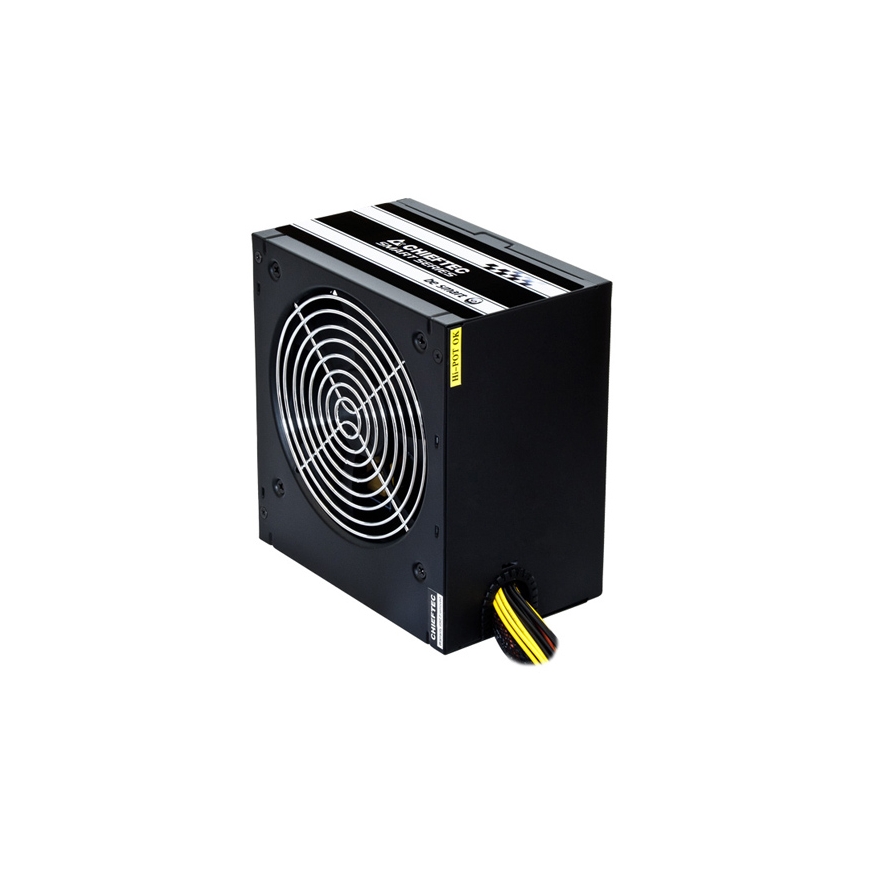

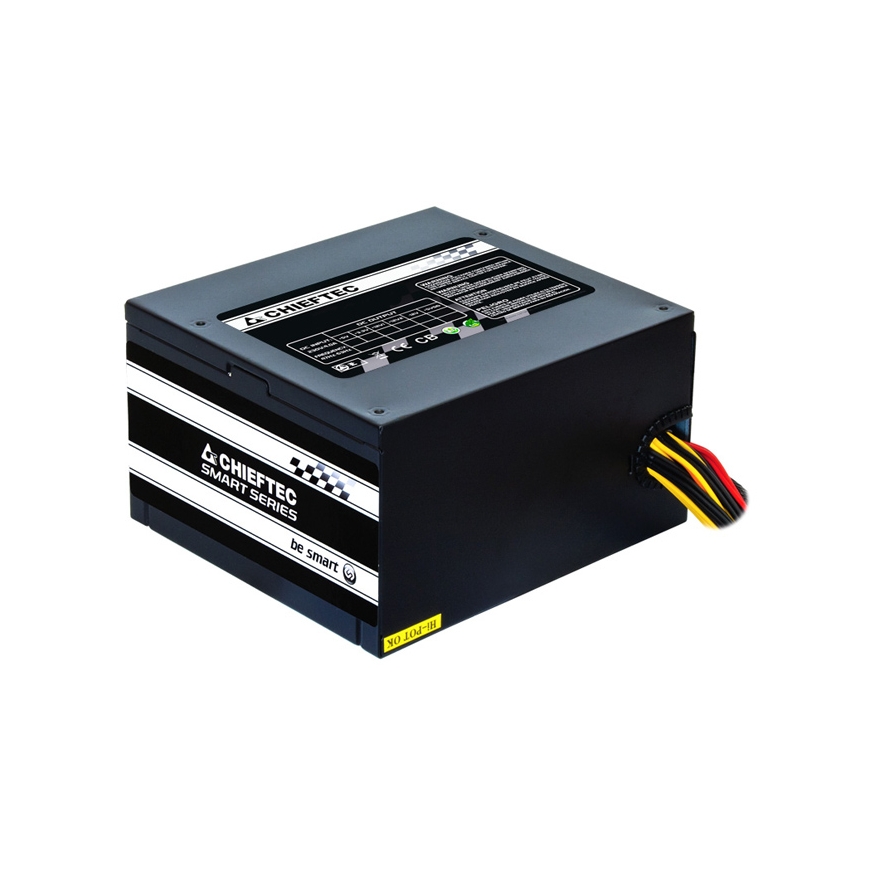

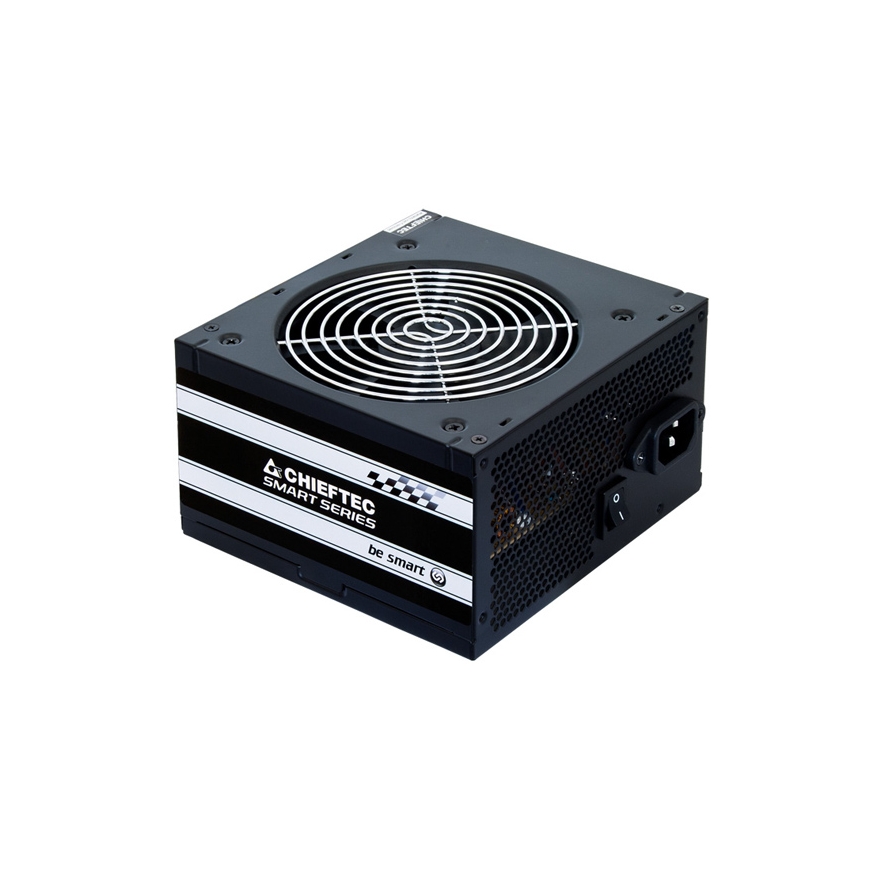

The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.Power | |
| Efficiency | 80% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 408 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 12.5 A |
| Max output current (+5V) | 19 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 230 V |
| AC input frequency | 47 - 63 Hz |
| Max output current (+12V1) | 24 A |
| Max output current (+12V2) | 21 A |
| Total power | 500 W |
Performance | |
| ATX version | 2.3 |
| Purpose | PC |
| 80 PLUS certification | No |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Fan diameter | 12 cm |
| Cooling type | Active |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
