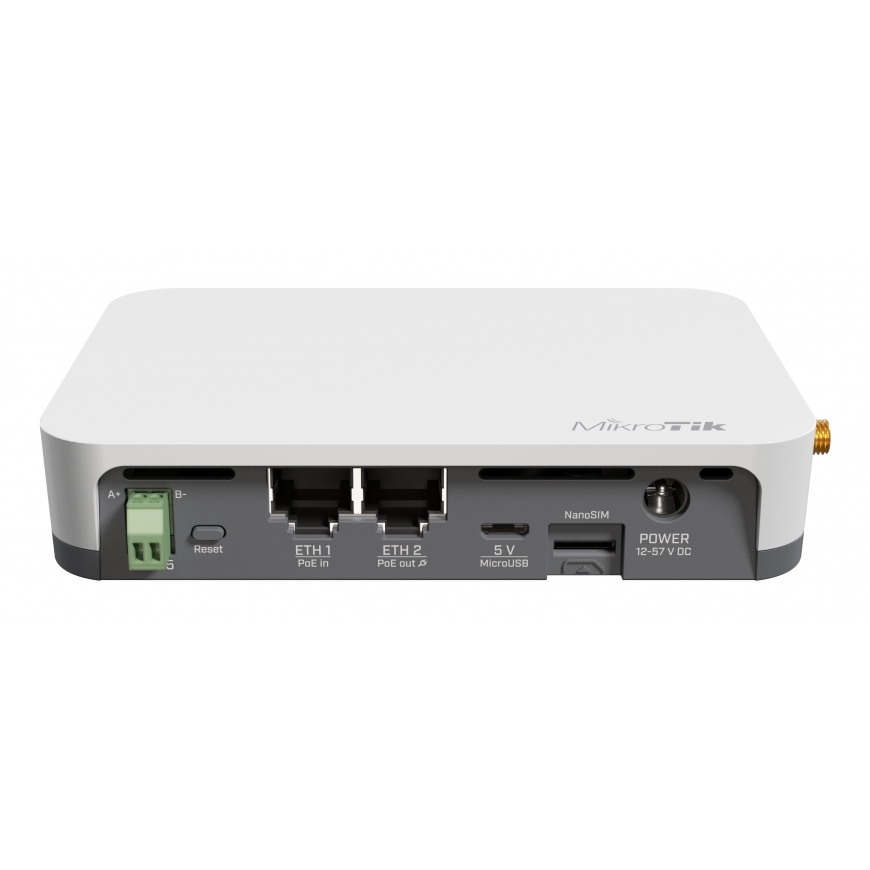

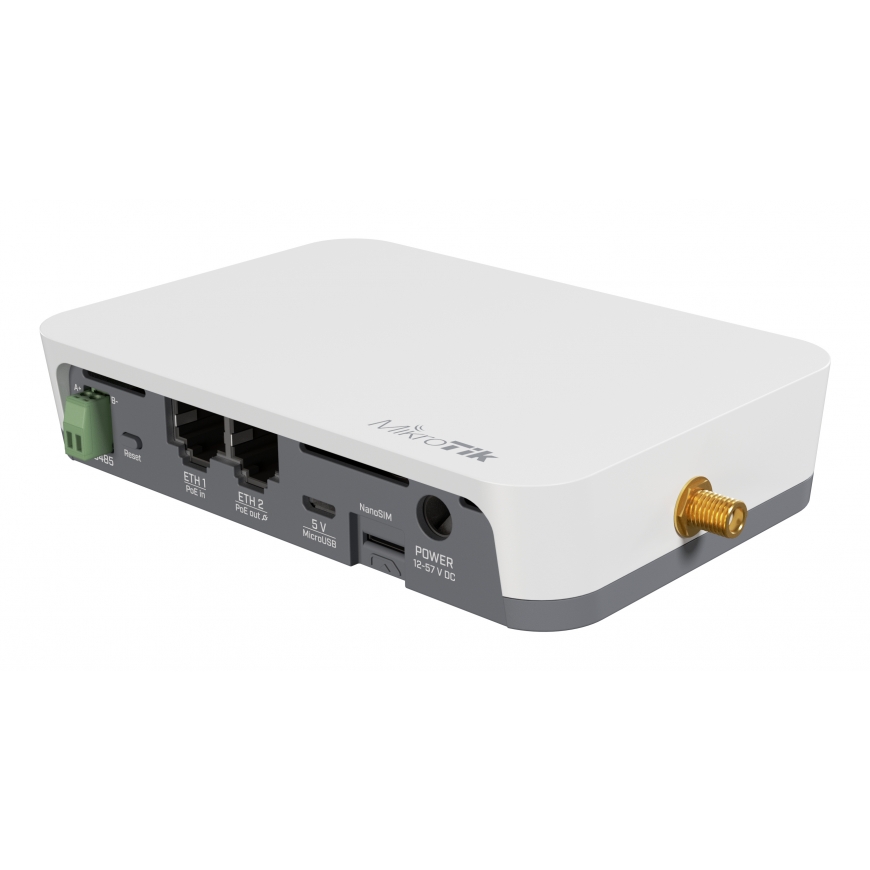

Mikrotik KNOT LR8G gateway/controller 100 Mbit/s
178,99 €
Monthly payment from 5.51 €
4254732 RB924IR-2ND-BT5&BG770A&R11E-LR8G
4752224009869
2026-07-29
You are interested in this product?
Whether you’re tracking high-value assets across a hospital, managing a vending machine in a shopping mall, or monitoring sensors in an agricultural field – the KNOT LR8G ties everything together and keeps everything connected.
Key Features & Upgrades
- Concurrent GPS and LTE CAT-M
Track assets in motion with precise GPS while maintaining a live LTE CAT-M1 connection. Ideal for mobile units like service vehicles, containers, or roaming field equipment.
- Versatile Powering
Choose from PoE-in, DC jack, or MicroUSB – including PoE-out on Ether2 for powering other devices.
- SMA Female Connectors for All Main Interfaces
Easy antenna setup for LTE, GPS, and LoRa®.
- Improved 868 MHz LoRa® Reception
Enhanced sensitivity for stronger signal and longer range, even in interference-heavy environments.
- Lower Price, Same Reliability
Cost-effective for large-scale deployments without sacrificing performance.
- Powered by RouterOS v7
– for full control, custom scripting, and advanced routing features.
At just 6W consumption and small footprint (122 × 87 × 26 mm), the KNOT LR8G is perfect for deployments where space, power, and budget are limited – but performance can’t be.
WAN connection | |
| SIM card slot | Yes |
Wireless LAN features | |
| Wi-Fi band | Single-band (2.4 GHz) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
Network | |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 100 Mbit/s |
Mobile network | |
| SIM card type | NanoSIM |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
Design | |
| Product colour | White |
| International Protection (IP) code | IP20 |
Antenna | |
| Antenna gain level (max) | 1.5 dBi |
Features | |
| Built-in processor | Yes |
| Processor frequency | 650 MHz |
| Mean time between failures (MTBF) | 200000 h |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Processor model | QCA9531 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Power | |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
Weight & dimensions | |
| Width | 122 mm |
| Depth | 87 mm |
| Height | 26 mm |
Other features | |
| WLAN data transfer rates supported | 300 Mbit/s |
| Compatible operating systems | RouterOS |
| Frequency band | 2.4 GHz |
Certificates | |
| Certification | IC |
Technical details | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
Packaging content | |
| AC adapter included | Yes |
| Cables included | OTG |
| Quick start guide | Yes |
Sustainability | |
| Sustainability compliance | Yes |
