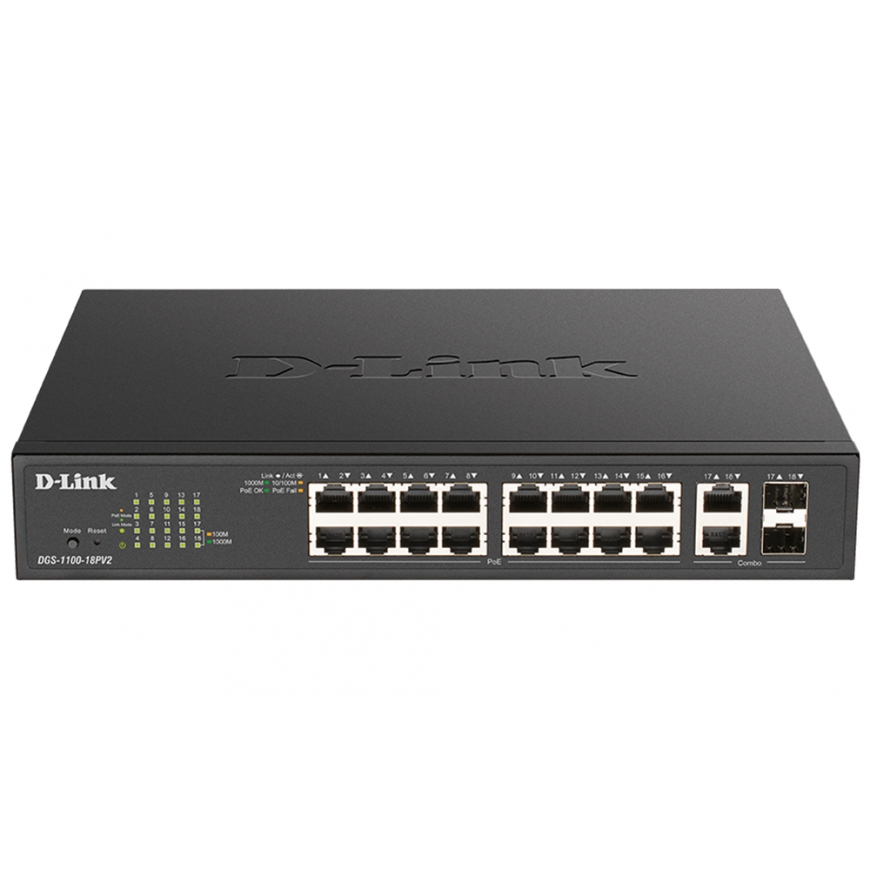

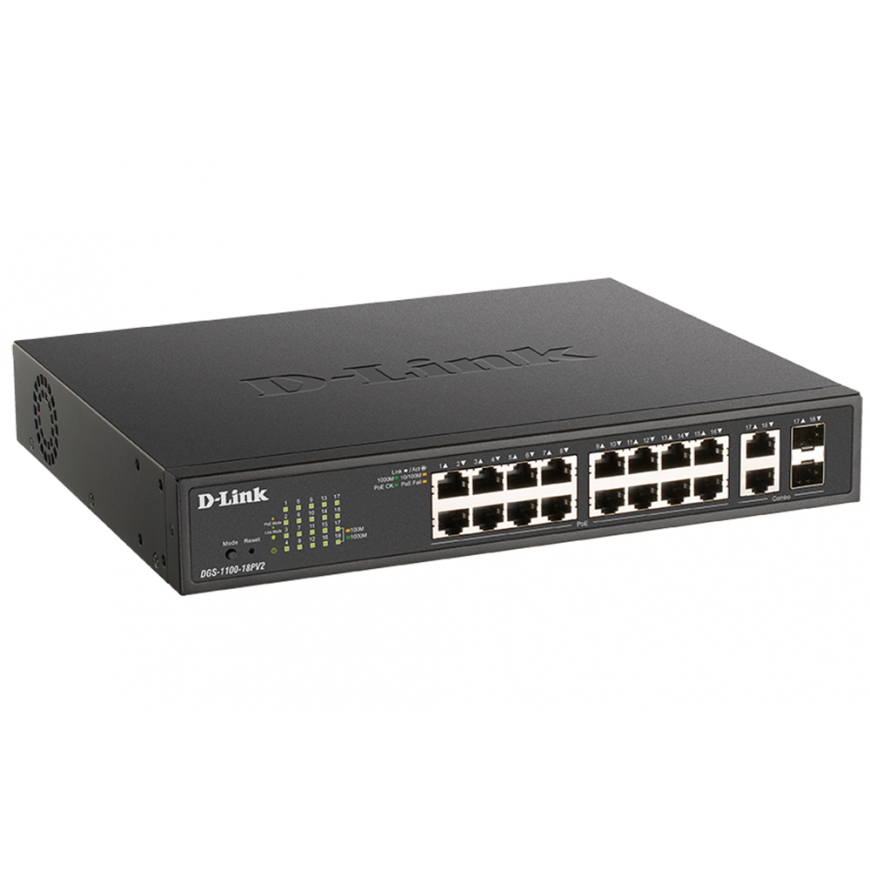

D-Link DGS-1100-18PV2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
259,00 €
Monthly payment from 7.57 €
4244551 DGS-1100-18PV2
0790069453366
2026-07-30
You are interested in this product?
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.
Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.
VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
PD Alive Actively Mitigates Downtime
Round-the-clock surveillance footage is vital. If you have Cameras attached to your network,
you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the Switch can automatically reset them and get them back online. No need to turn them on and off again in the middle
of the night.
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3bt |
| Flow control support | Yes |
| Ethernet LAN data rates | 10, 100, 1000 |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Number of VLANs | 4094 |
Management features | |
| Quality of Service (QoS) support | Yes |
Security | |
| IGMP snooping | Yes |
Design | |
| Product colour | Black |
Features | |
| Electromagnetic compatibility | FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI |
| Heat dissipation | 125.2 BTU/h |
| Mean time between failures (MTBF) | 343695 h |
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
| Width | 280 mm |
| Depth | 230 mm |
| Height | 44 mm |
| Weight | 2.1 kg |
Other features | |
| Form factor | 1U |
| Rack mounting | Yes |
Certificates | |
| Certification | cUL, UL, LVD, CB, BSMI |
Technical details | |
| Compliance certificates | RoHS |
