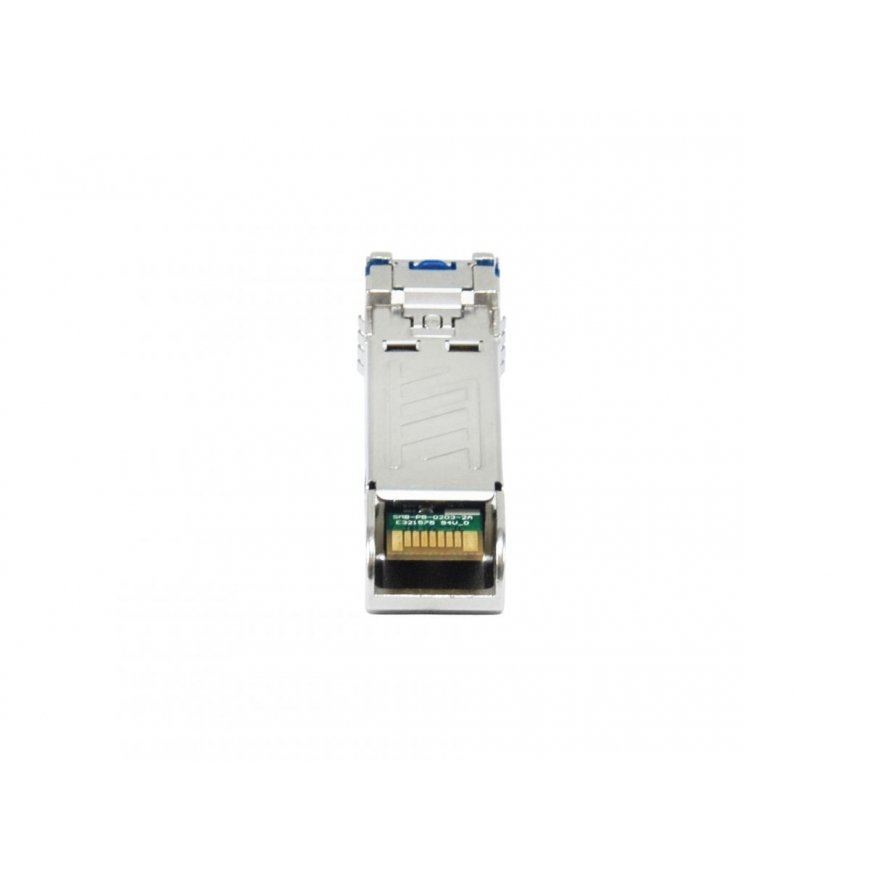

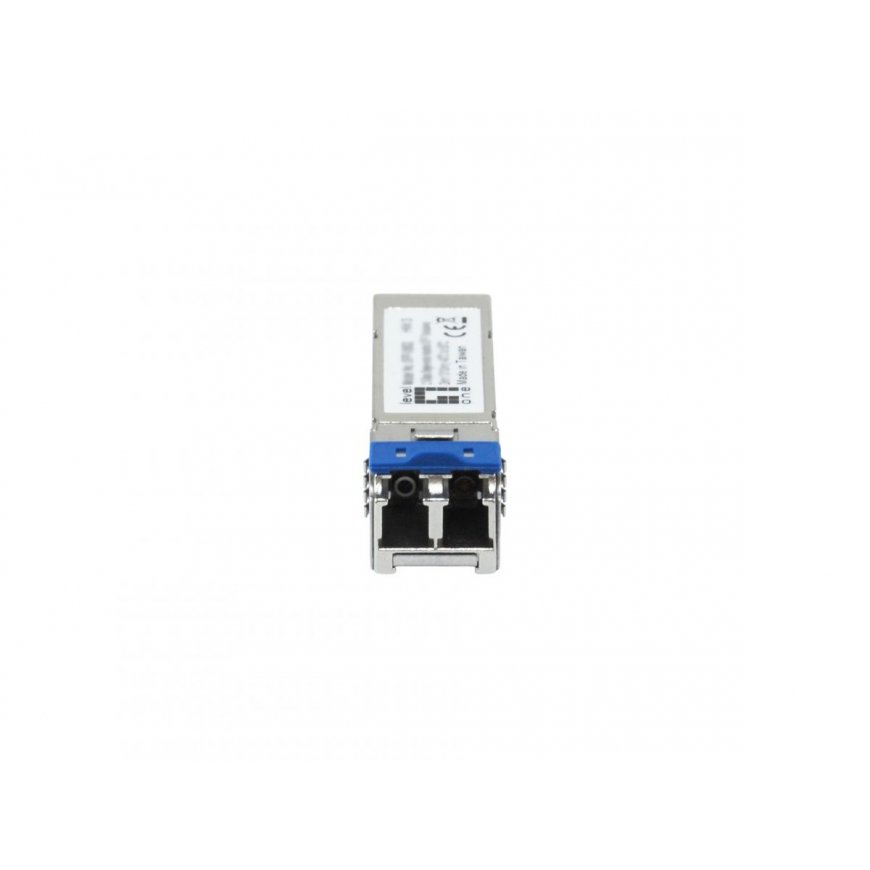

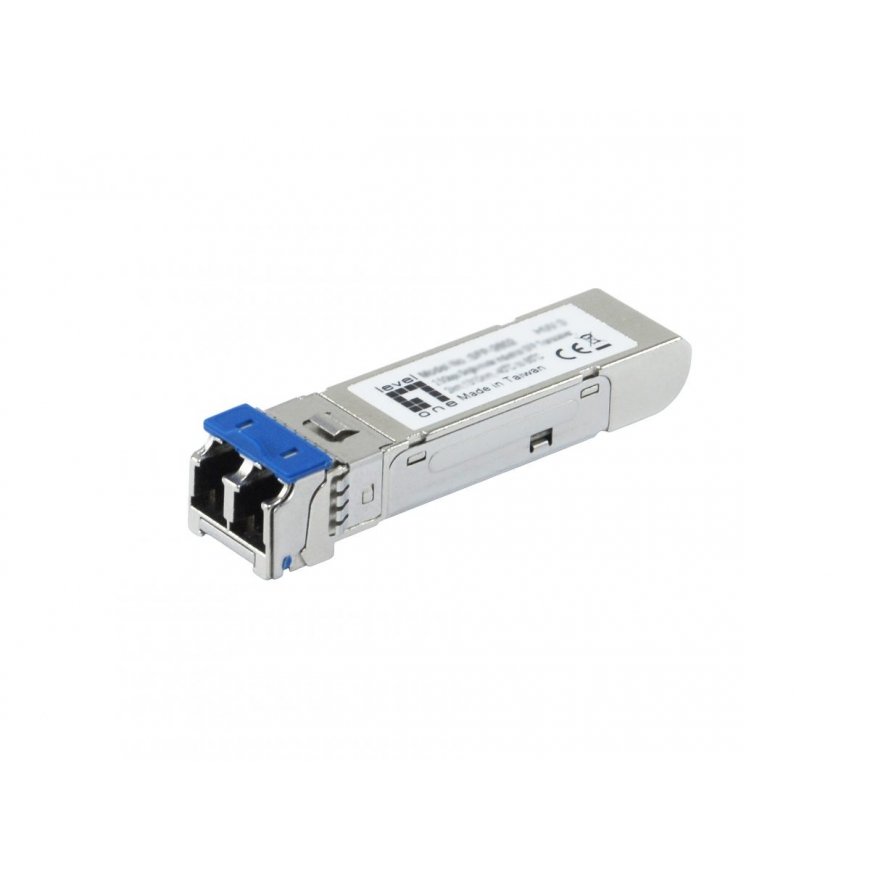

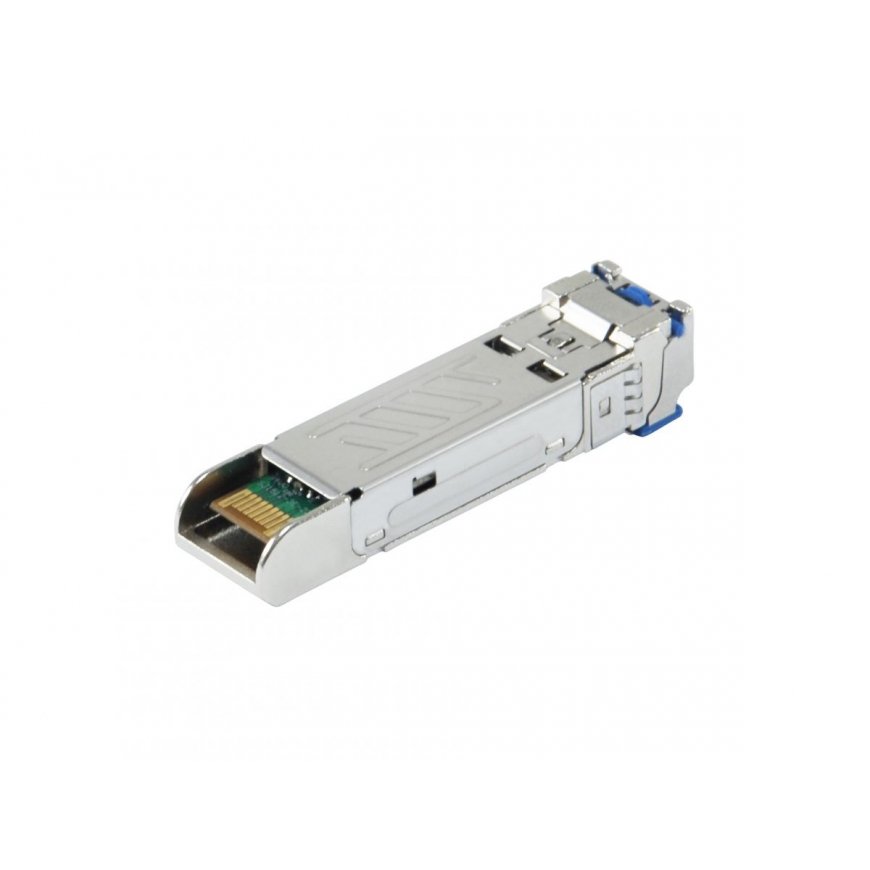

LevelOne SFP-2504 network transceiver module Fiber optic 2500 Mbit/s 1310 nm
88,99 €
Monthly payment from 3.19 €
3970366 SFP-2504
4015867240021
2026-08-05
You are interested in this product?
| Product colour | Silver |
| Form factor | SFP |
| Weight | 15.5 g |
| Width | 55.9 mm |
| Depth | 13.4 mm |
| Height | 13 mm |
| Quantity per pack | 1 pc(s) |
| Plug and Play | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Power consumption (typical) | 1 W |
| Maximum data transfer rate | 2500 Mbit/s |
| Storage relative humidity (H-H) | 5 - 85% |
| Copper ethernet cabling technology | 2.5GBASE |
| Hot-swap | Yes |
| Interface type | SFP |
| Wavelength | 1310 nm |
| Maximum transfer distance | 40000 m |
| Fiber optic connector | LC |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -2 dBmW |
| Tx power (max) | 3 dBmW |
| Compliance certificates | CE; RoHS; Federal Communications Commission (FCC); UL; TÜV mark; CB |
