LevelOne SFP-2601 network transceiver module Fiber optic 2500 Mbit/s 850 nm
LevelOne SFP-2601 network transceiver module Fiber optic 2500 Mbit/s 850 nm
LevelOne SFP-2601 network transceiver module Fiber optic 2500 Mbit/s 850 nm
LevelOne SFP-2601 network transceiver module Fiber optic 2500 Mbit/s 850 nm

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

LevelOne SFP-2601 network transceiver module Fiber optic 2500 Mbit/s 850 nm

49,00 €
Monthly payment from 2.16
3941021

SFP-2601

4015867240052

2026-08-06

Quantity
You are interested in this product?
(Read terms of service)

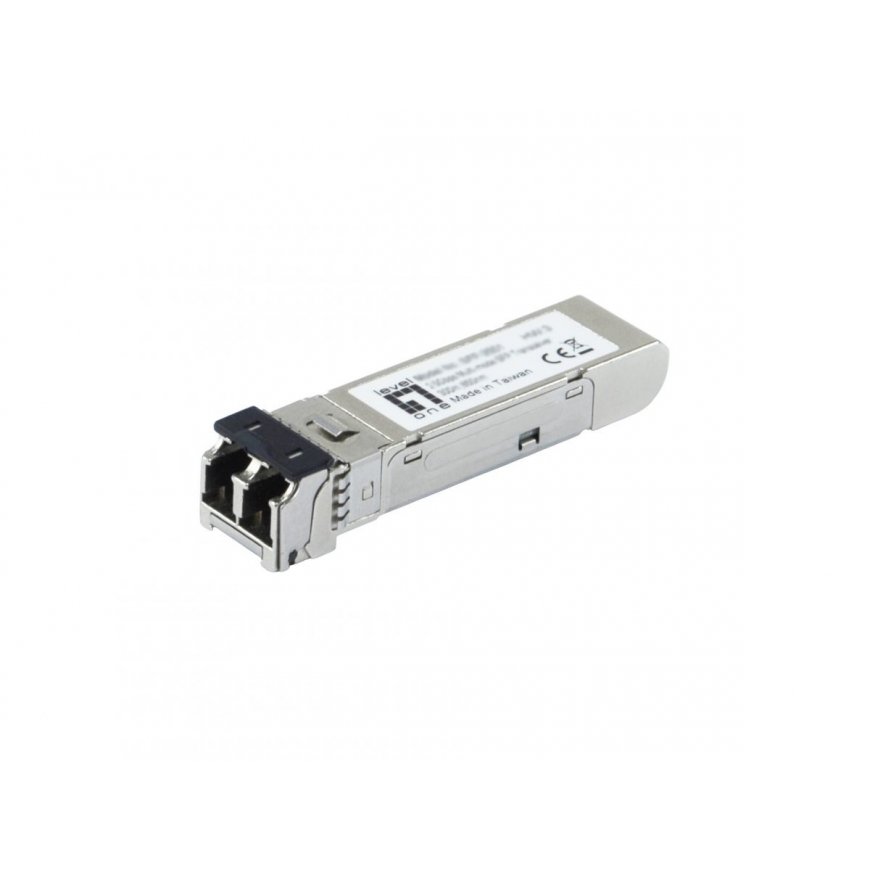

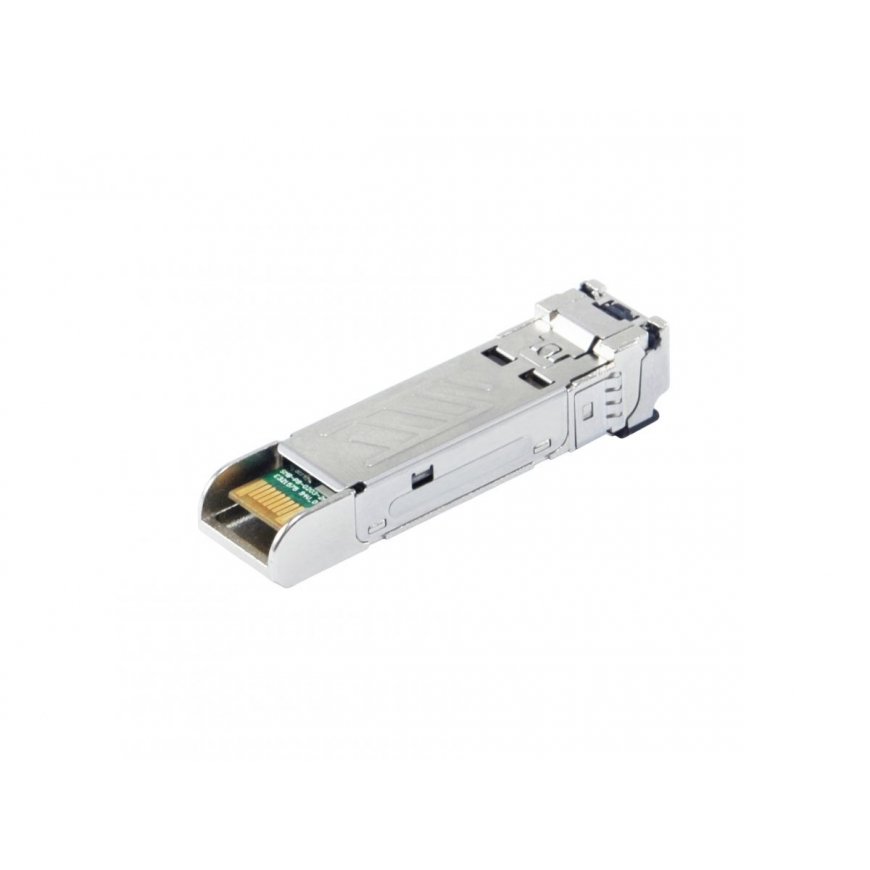

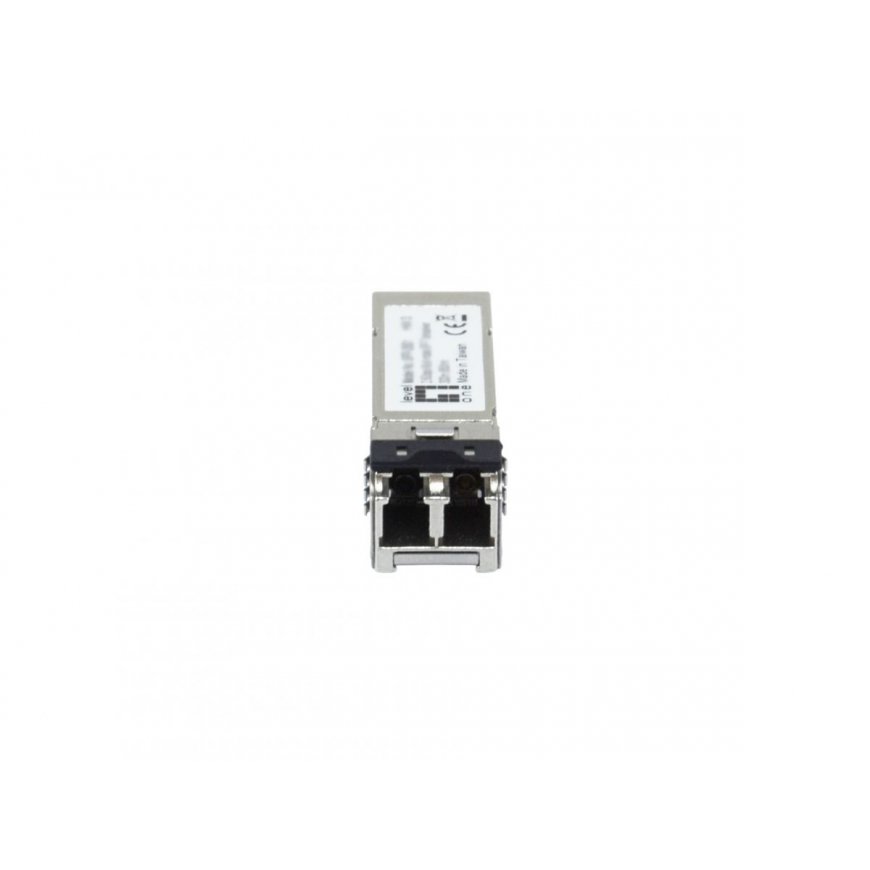

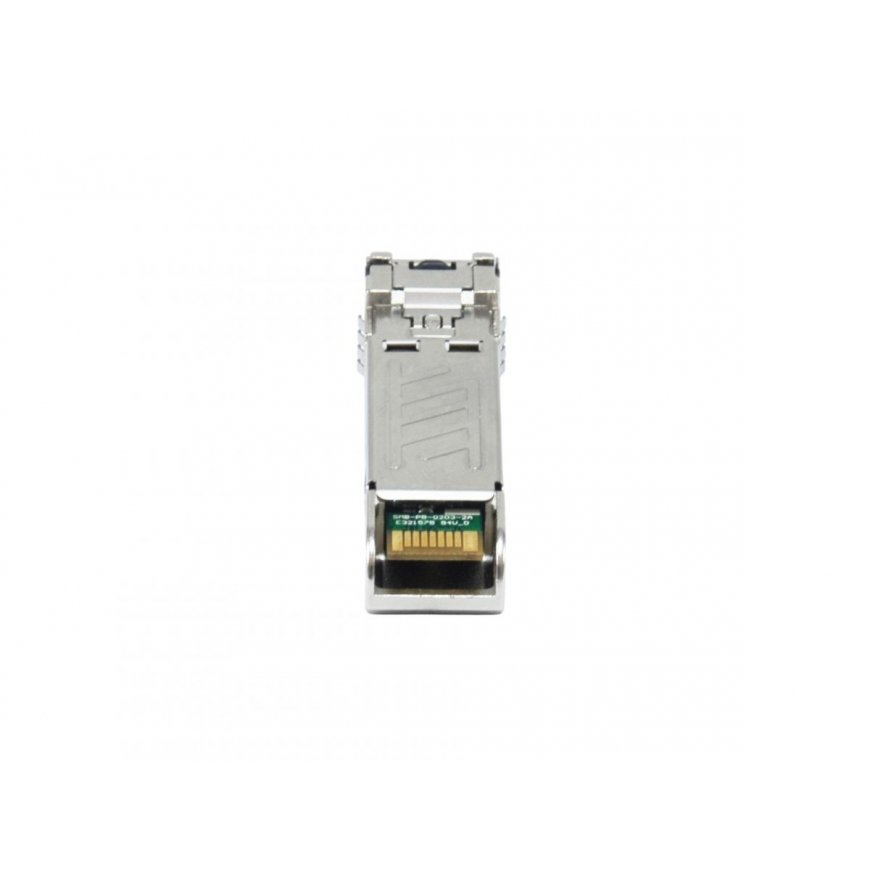

The levelOne SFP-2601 is a high performance and cost-effective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 2.5 Gbps data transfer rate on a single duplex fiber core. For use with 50 and 125 micron fiber cables, it can reach a distance of up to 550 meters. The SFP-2601 transceiver operates using a wavelength of 850nm with a VCSEL Laser Diode light source and has an LC port. This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.
Product colourSilver
Form factorSFP
Weight15.5 g
Width55.9 mm
Depth13.4 mm
Height13 mm
Quantity per pack1 pc(s)
Plug and PlayYes
Operating temperature (T-T)-40 - 85 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 85%
Power consumption (typical)1 W
Maximum data transfer rate2500 Mbit/s
Storage relative humidity (H-H)5 - 85%
Copper ethernet cabling technology2.5GBASE
Hot-swapYes
Interface typeSFP
Wavelength850 nm
Maximum transfer distance300 m
Fiber optic connectorLC
SFP transceiver typeFiber optic
Digital Diagnostics Monitoring (DDM)Yes
Multi-mode fiber (MMF) supportedYes
Fiber cable diameters supported (core/cladding)50/125 µm
Tx power (min)-9 dBmW
Tx power (max)-3 dBmW
Compliance certificatesCE; RoHS; Federal Communications Commission (FCC); UL; TÜV mark; CB
