LevelOne SFP-2602 network transceiver module Fiber optic 2500 Mbit/s 1310 nm
LevelOne SFP-2602 network transceiver module Fiber optic 2500 Mbit/s 1310 nm
LevelOne SFP-2602 network transceiver module Fiber optic 2500 Mbit/s 1310 nm
LevelOne SFP-2602 network transceiver module Fiber optic 2500 Mbit/s 1310 nm

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

LevelOne SFP-2602 network transceiver module Fiber optic 2500 Mbit/s 1310 nm

69,01 €
Monthly payment from 2.68
3939695

SFP-2602

4015867240069

2026-08-06

Quantity
You are interested in this product?
(Read terms of service)

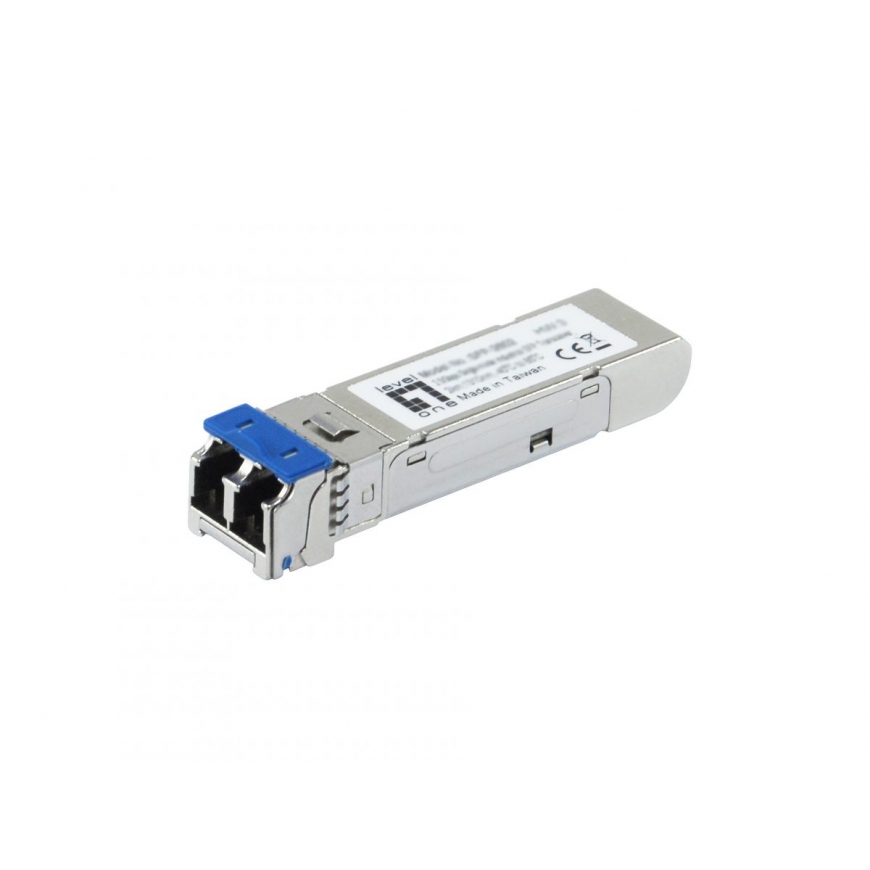

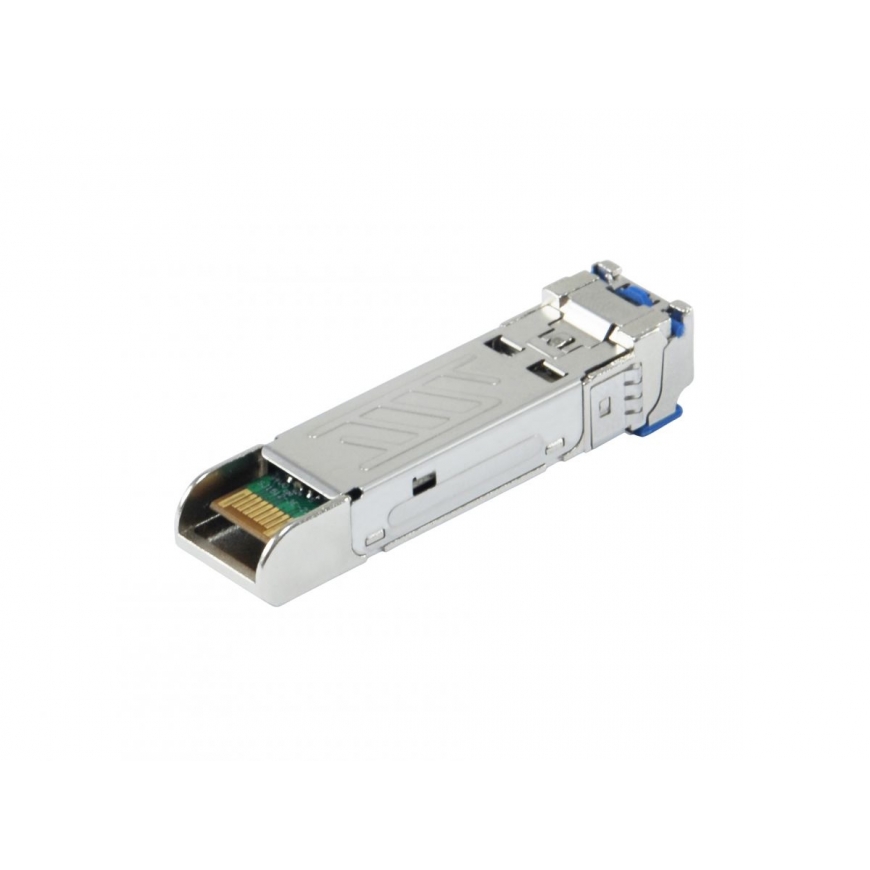

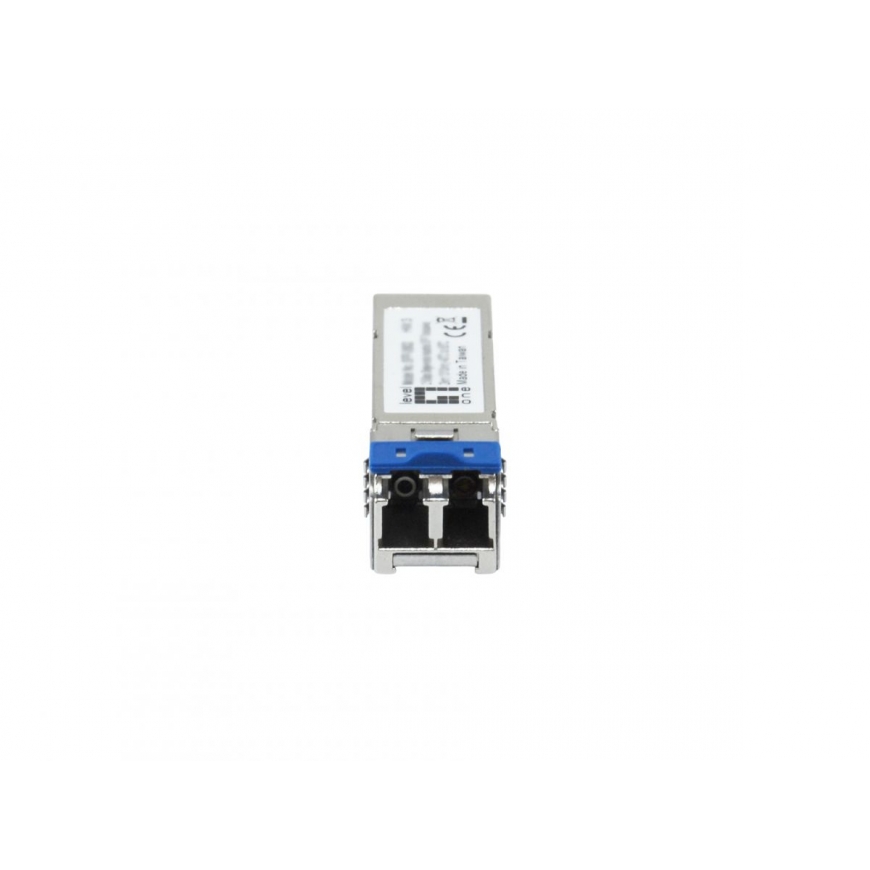

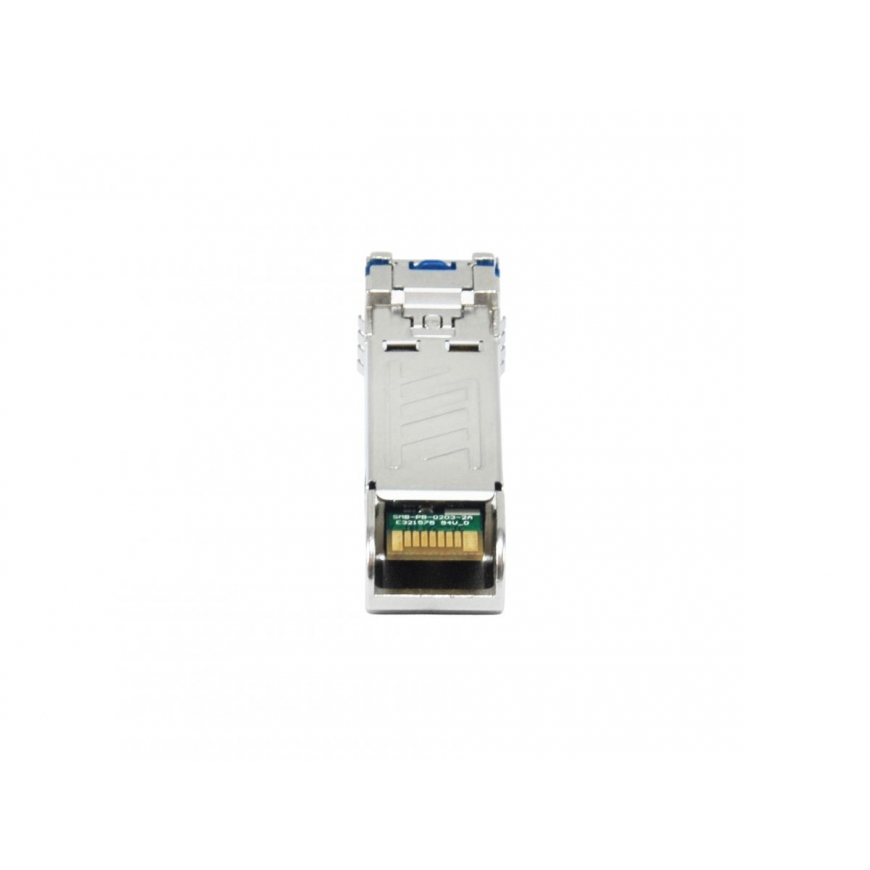

The levelOne SFP-2602 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 2.5 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 9 and 125 micron fiber cables, it can reach a distance of up to 2km. The SFP-2602 transceiver operates using a wavelength of 1310nm with a Fabry-Perot(FP) Laser Diode light source and has an LC port.

This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.
Product colourSilver
Form factorSFP
Weight15.5 g
Width55.9 mm
Depth13.4 mm
Height13 mm
Quantity per pack1 pc(s)
Plug and PlayYes
Operating temperature (T-T)-40 - 85 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 85%
Power consumption (typical)1 W
Maximum data transfer rate2500 Mbit/s
Storage relative humidity (H-H)5 - 85%
Copper ethernet cabling technology2.5GBASE
Hot-swapYes
Interface typeSFP
Wavelength1310 nm
Maximum transfer distance2000 m
Fiber optic connectorLC
SFP transceiver typeFiber optic
Single-mode fiber (SMF) supportedYes
Digital Diagnostics Monitoring (DDM)Yes
Fiber cable diameters supported (core/cladding)9/125 µm
Tx power (min)-9 dBmW
Tx power (max)-3 dBmW
Compliance certificatesCE; RoHS; Federal Communications Commission (FCC); UL; TÜV mark; CB
