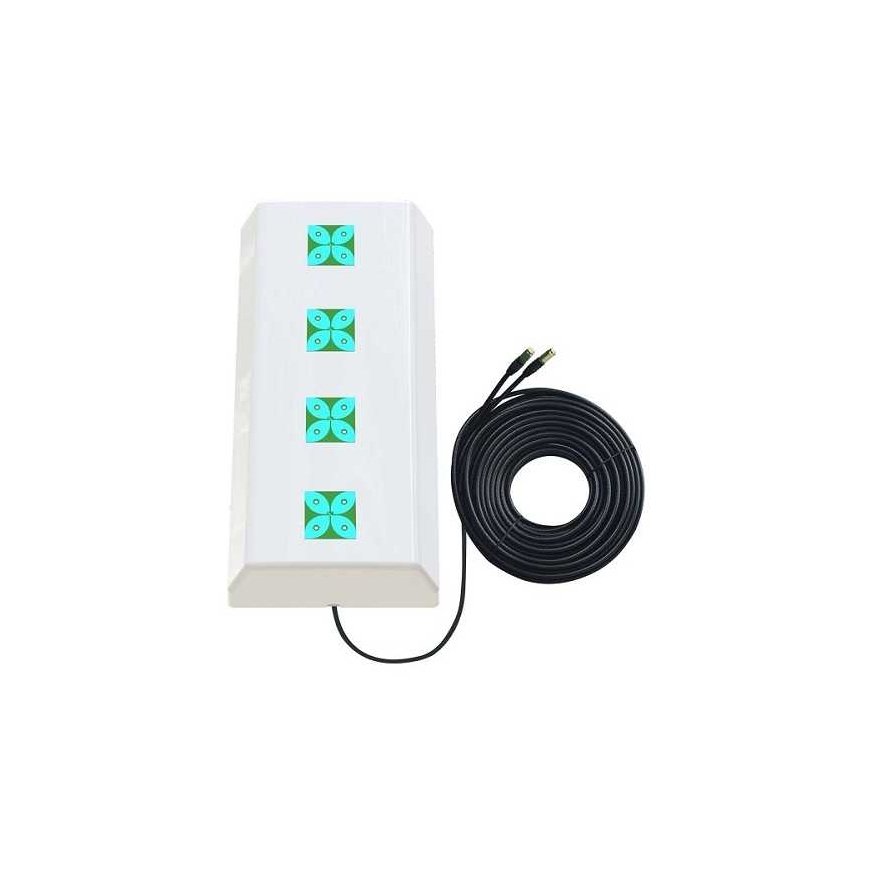

Hismart 5G / LTE / CBRS 2x2MIMO antenna, 1.7-3.8GHz, 2x 14dBi

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Hismart 5G / LTE / CBRS 2x2MIMO antenna, 1.7-3.8GHz, 2x 14dBi

59,00 €
Monthly payment from 2.42
3856180

TV992256

9990000992256

Shipping 2-4 days

Quantity
You are interested in this product?
(Read terms of service)

LTE/5G/CBRS 2x2 MIMO antenna, 1710-2690MHz / 3300-3800MHz, 2x 14dBi, SMA-Male connector


Features:
Dual-polarization panel design antenna, 1710-2690MHz / 3300-3800MHz, 2x 14dBi.
Application: LTE, 3G/4G/5G, CBRS, mobile networks, DAS (Distributed Antenna Systems), Wi-Fi IEEE802.11b/g/n.
With 2x 15m long cables.
Lightning protection DC grounding.


Technical specification:
Frequency: 1710-2690MHz / 3300-3800MHz.
Gain: 2x 14 dBi.
VSWR: <2.
Impedance: 50 ohms.
Max. power per port: 50W.
Connector: 2x SMA-male.
Cables: 2x RG58 copper.
Cable length: about 15m.

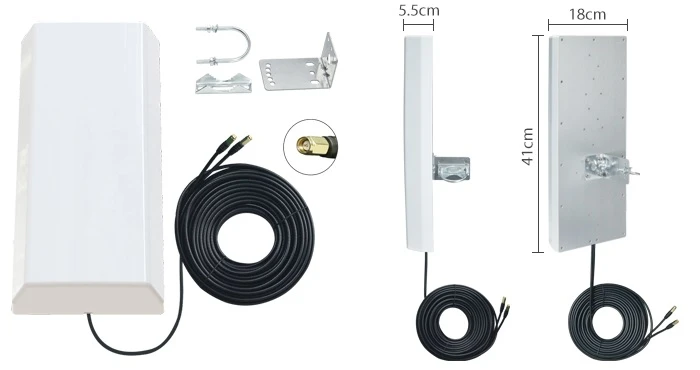

Mounting: on a pole with a diameter of 30-50mm.
Material: PC, ABS.
Dimensions: 410 x 180 x 55 mm.
Polarization: dual polarization +/-45°.
Color: white.
Weight: 1.5kg.
Operating temperature: -40°C~ +70°C.
Operating humidity: up to 95%RH.


Warranty: 24 months.
