TST OPTICAL REFLECTOMETER (OTDR) WITH CCTV TESTER CS-R7-80H
829,00 €
Monthly payment from 22.25 €
3829058 CS-R7-80H
5902887089084
2026-07-28
You are interested in this product?
The optical reflector (OTDR) with a multifunctional camera tester AHD, HD-CVI, HD-TVI, IP has many additional features required for the installation of CCTV and fiber optic systems.
| Optical reflector (OTDR) : | Optical wavelength : 1610 nm Dynamic range : 28 dB Wide measurement range ≤ 100 km Measurement error : ± (1 m + 5×10 -5 × distance + sampling interval) Connections : FC / SC Measurement duration : 5 s, 10 s, 15 s, 30 s, 1 min, 2 min, 3 min |
| Optical power measurement : | Optical power measurement in fiber optic networks (ST and SC adapters) Optical wavelength : 850, 1300, 1310, 1490, 1550, 1625 nm Range : -70 ... +10 dBm |
| VLS (VFL) - visual fiber optic cable fault locator : | Laser LD, 650 nm, 10 mW Range 8 km |
| Video standard : | AHD - 8 Mpx , HD-CVI - 8 Mpx , HD-TVI - 8 Mpx , TCP/IP - 8 Mpx , CVBS - PAL / NTSC |

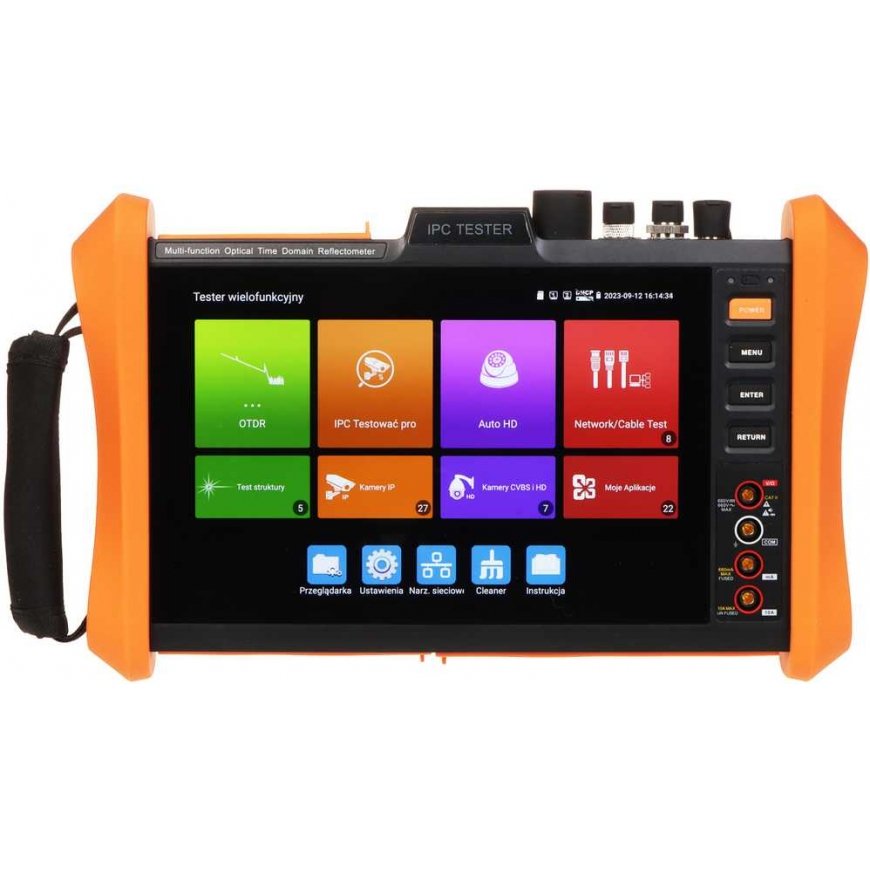

| Display : | 8 " IPS - capacitive touch screen, 1920 x 1200 px |

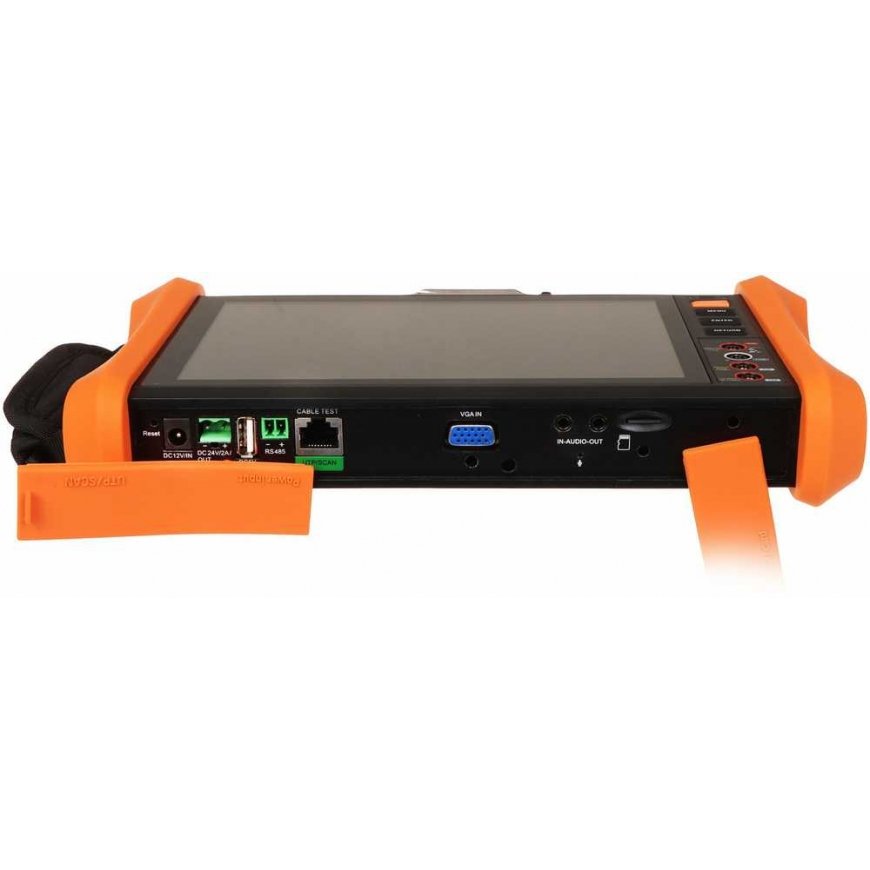

| Video input : | 1 pcs. AHD / HD-CVI / HD-TVI / CVBS - BNC socket, 1 pcs. HDMI , 60 fps , 4K 1 pcs. VGA |
| Video output : | - |
| LAN port : | 2 pcs. - Collaboration with cameras in PoE switches |
| Audio input : | 1 pcs. Mini Jack |
| Audio output : | 1 pcs. Mini Jack |
| Video signal level meter : | - |
| Video signal generator : | - |
| Serial ports : | RS-485 |
| Protocols : | Over 30 protocols RS485 support : Pelco-D , Pelco-P , YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MOLYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(M-B), SAMSUNG SPD, Siemens, Cohu, MINKING B01, ALEC |
| Transmission speed : | 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 b/s |
| Twisted pair or telephone line test : | UTP or telephone cables terminated with RJ-45 connector connection test |
| RS-485, line test : | Data testing from the controlling device (commands displayed in hexadecimal) |
| Wi-Fi module : | ✔ |
| Cable identification in the cable bundle : | ✔ |
| Audio test : | ✔ |
| Digital multimeter : | Measurement : voltage, current, resistance, continuity test, diode test, capacitance |
| TDR reflectometer : | Locating and determining the point of cable break or short circuit, 180 m (max) |
| Acts as a power source : | 5 V DC / 2 A USB port 12 V DC / 3 A 24 V DC / 2 A 48 V (PoE, LAN), 24 W |
| Battery power : | 7.4 Li-Ion battery 7800 mAh 12 V DC / 2 A (included - power supply) |
| Estimated battery life : | max. 10 hours |
| Service : | Graphic menu – touch control and buttons |
| Selected features : | Optical reflector (OTDR) AHD camera tester HD-CVI camera tester HD-TVI camera tester PAL/NTSC camera tester IP camera tester - Video compression methods used : H.265 , H.264 , MJPEG IP camera discovery and monitoring, compliant with Onvif Control of PTZ (speed dome) cameras Viewing images from IP cameras with the help of built-in applications - DH test tool, Hik test tool, UNV Test Tool, HuaWei Tool, TP-Link tool EZView Built-in web browser - Google Chrome Connection maintenance LAN IP address scanner PING - connection testing using ICMP packets Built-in switch port discovery Twisted pair cable tester Cable tracer program - easy to identify wires in a messy bundle Collaboration with cameras in PoE switches PoE power meter DC 5V / 12V / 24V / 48V power supply TDR reflectometer Optical power meter VLS (VFL) - visual fiber optic cable fault locator RS-485 serial port data analysis Digital Multimeter - digital multimeter Audio test Hotspot - Wi-Fi Record playback Installed VLC Media Player application - the ability to play multimedia files in many popular formats (.mp3, .mp4, .avi, .mpeg, etc.) Calculator Installed Quickoffice package - creation and reading of text documents .docx, spreadsheets .xlsx, and multimedia .pptx Integrated flashlight Android 9 |
| Operating temperature : | -10 °C ... 50 °C |
| Permissible relative humidity : | 30 % ... 90 % |
| Weight : | 1.24 kg |
| Dimensions : | 273 x 170 x 48 mm |
| Supported languages : | Polish, English, Bulgarian, Czech, French, Greek, Spanish, German, Portuguese, Russian, Turkish, Italian |
| Warranty : | 2 years |
