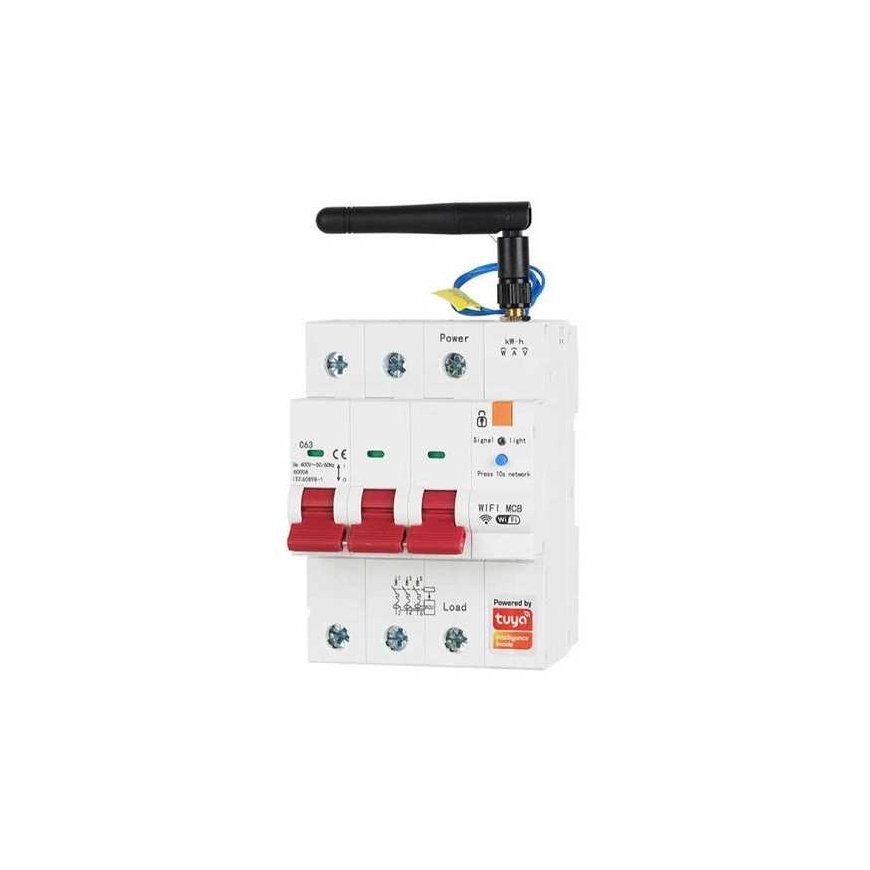

TUYA smart switch, 3P, Wi-Fi, RS485, 63A

TUYA smart 3 contact switch, Wi-Fi, RS485, 63A

TUYA smart 3 contact switch for electrical devices, supporting remote control via Wi-Fi 2.4GHz through the TuyaSmart or SmartLife app; RS485; mountable on DIN rail; designed for various household appliances. Includes 2 Wi-Fi antennas. Has energy monitoring function.


Features:
Smart Wi-Fi automatic switch with a maximum current of 63A designed for use in both home and industrial settings. This device not only provides protection against overload and short circuit but also allows remote control of electrical circuits and monitoring of energy consumption.
The smart switch is easy to attach to a DIN rail and can be controlled remotely from a smart device using the TuyaSmart or SmartLife mobile app (Android, iOS).
Voice control supports Google Assistant and Amazon Alexa.
The electricity meter function allows monitoring and controlling energy consumption.
Through the app, you can monitor voltage, power, temperature, and energy consumption in real-time, set device shutdown when a specified consumption limit is reached.
Home equipment energy consumption data can be downloaded for accounting.
With remote control, you can turn the circuit on or off from anywhere.
Various scenario creation and management are supported: you can program devices or their groups to turn on/off under certain conditions (e.g., leaving home scenario: turn off lights, water heater, TV, air conditioner, etc.).
Automatic on/off: you can set timers for connected devices, schedules, cyclic on/off modes, or delays according to your needs.
Safety features: built-in protection against overload, short circuit, overvoltage, ground leakage, high temperature, and other electrical disturbances.
Mechanical safety lock prevents the device from being turned on or accessed while maintenance, repair, or other hazardous procedures are ongoing.
Features easy installation and management.
With RS485 communication interface, it can be integrated into building management or industrial systems.
The device has a Wi-Fi signal LED indicator, a button for network detection, mechanical locking, and an on/off handle.
Areas of application: in residential homes, offices, industrial facilities, farms, automated systems.
This switch can be paired with various other products to complement smart home scenarios.


Technical specifications:
Number of contacts: 3P.
Rated voltage: AC 400 V.
Current: max. 63A.
Frequency: 50/60Hz.
Breaking capacity: up to 6kA.
Wi-Fi frequency: 2.4 GHz.
Wi-Fi standards: 802.11b/g/n.
RS485 interface: yes.
Control methods: manual / automatic.
Protection against overload / high temperature / short circuit / overvoltage / leakage.
Works with Amazon Alexa & Google Assistant.
App: TuyaSmart / SmartLife (Android, IOS).
Operating temperature: -25°C~+70°C (max.).
Mechanical lifespan: > 10000 times.
Electrical lifespan: > 6000 times.
Housing material: PC V0 (flame resistant).
Installation: on DIN rail, 35mm.
Certifications: CE, RoHS, IEC60898-1.
Dimensions: 71x74x100mm.
Weight: 415 g.
Color: white.
Includes 2x Wi-Fi antennas and RS485 adapter.


Warranty: 24 months.
