Product Description

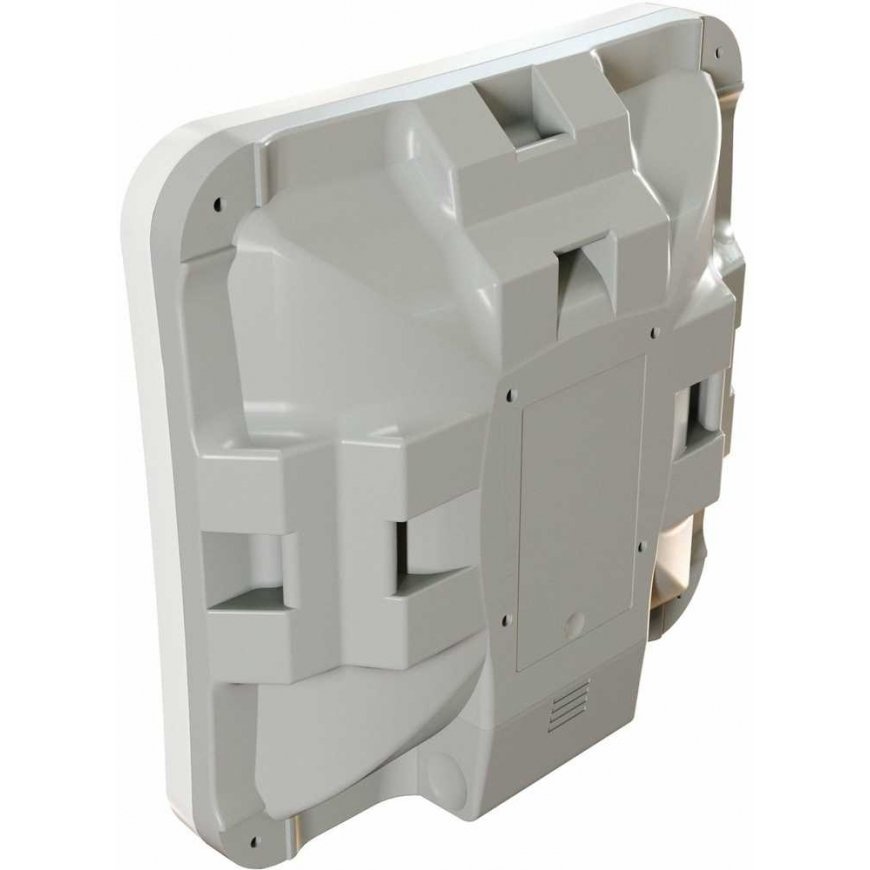

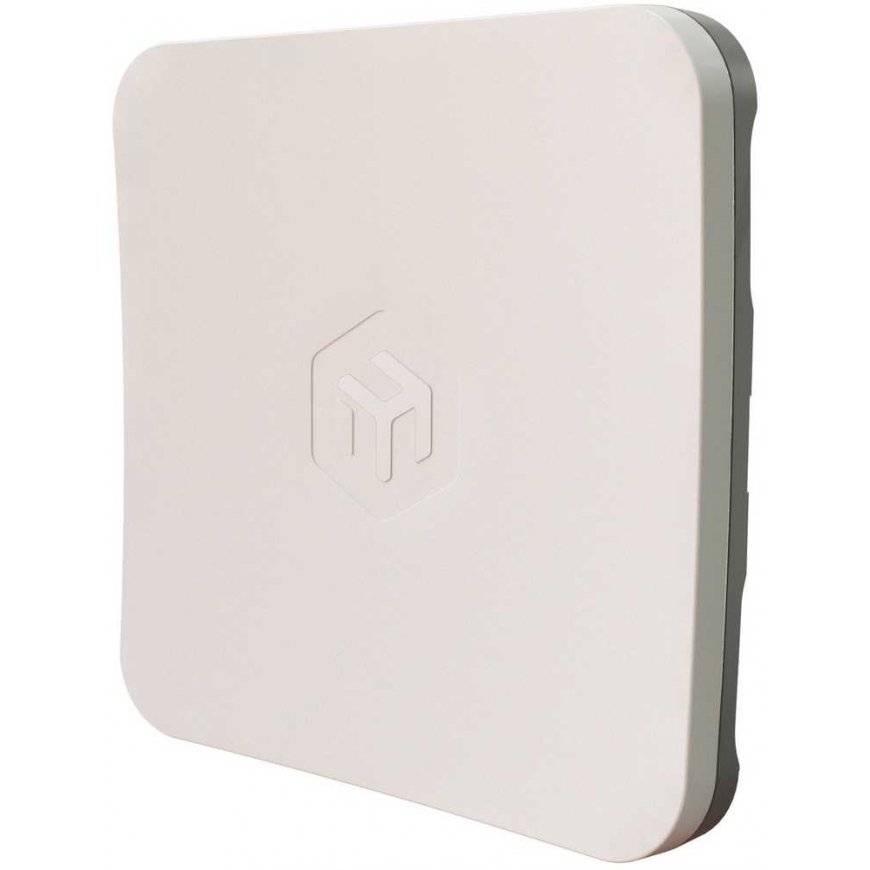

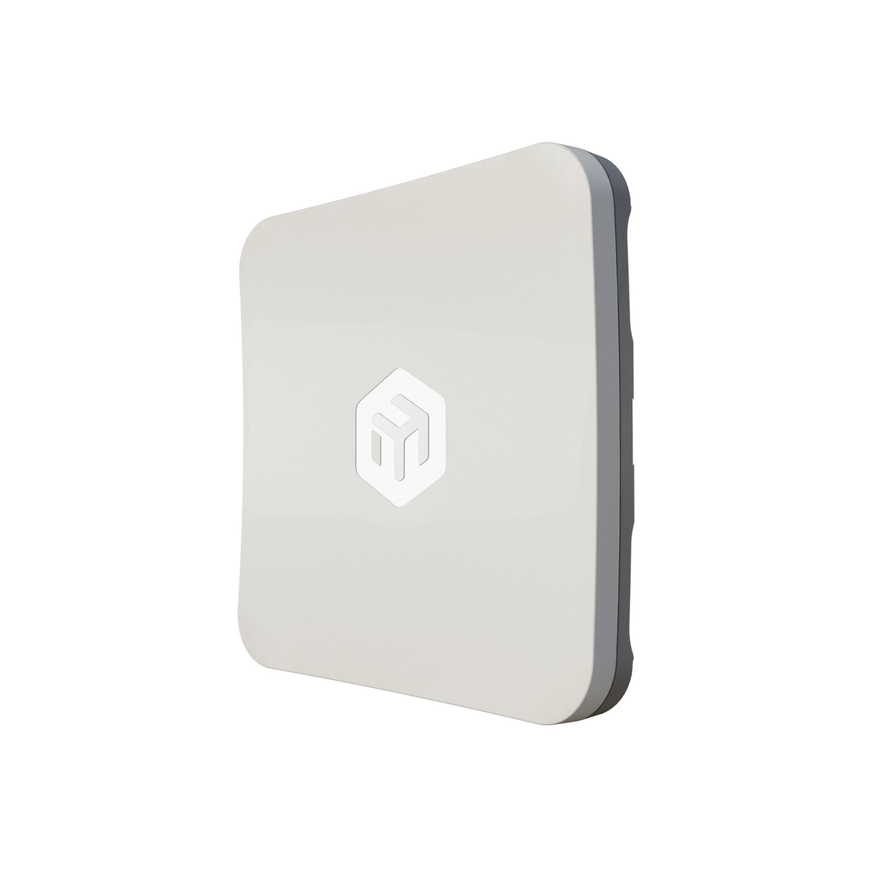

Meet the "SXTsq 5 ax" – the first outdoor CPE from "MikroTik" with "Wi-Fi 6", combining advanced wireless technology with the proven and compact "SXTsq" design. Despite the upgrade to "Wi-Fi 6" and a modern dual-core ARM-based processor, the price of this device remains the same as our previous "Wi-Fi 5" model, making it one of the most affordable and robust CPEs on the market. The housing is designed to withstand various unexpected weather conditions and features holes for direct hose clamp mounting in three different mounting positions, including a horizontal railing support – ideal for installation on poles and columns on roofs or towers. Tested up to 3 km in urban environments with significant interference. Built on the proven architecture of previous SXT models – can ensure more than 10 km of direct visibility.

Technical Specifications

Wireless Features

• Transmission Power [dBm]: 25
• Wireless Frequencies: 5 GHz
• WiFi Standards: 802.11ax, 802.11ac, 802.11n, 802.11a
• Beam Angle in Elevation Plane (-6dB) [°]: 23
• Beam Angle in Azimuth Plane (-6dB) [°]: 23
• Antenna Type: Integrated
• Antenna Gain [dBi]: 16

Connections and Interfaces

• LAN Speed: (1) 10/100/1000 Mbps
• Gigabit LAN: Yes

Power Supply

• Power over PoE: 12 .. 28 V DC
• Power Supply Type: PoE
• PoE Types: PoE-In (only)
• Max. Power Consumption [W]: 6

Physical Characteristics

• Design: Outdoor
• Operating Temperature [°C]: -40 to 70
• Width [mm]: 129
• Height [mm]: 129
• Depth [mm]: 34

Hardware

• CPU: Dual-core IPQ-5010 800 MHz
• CPU Frequency [MHz]: 800
• CPU Core Count: 2
• Internal Memory [MB]: 128
• RAM [MB]: 256

Software

• Operating System: RouterOS - L4
• Default IP Address: 192.168.88.1
• Default Username and Password: admin / -
