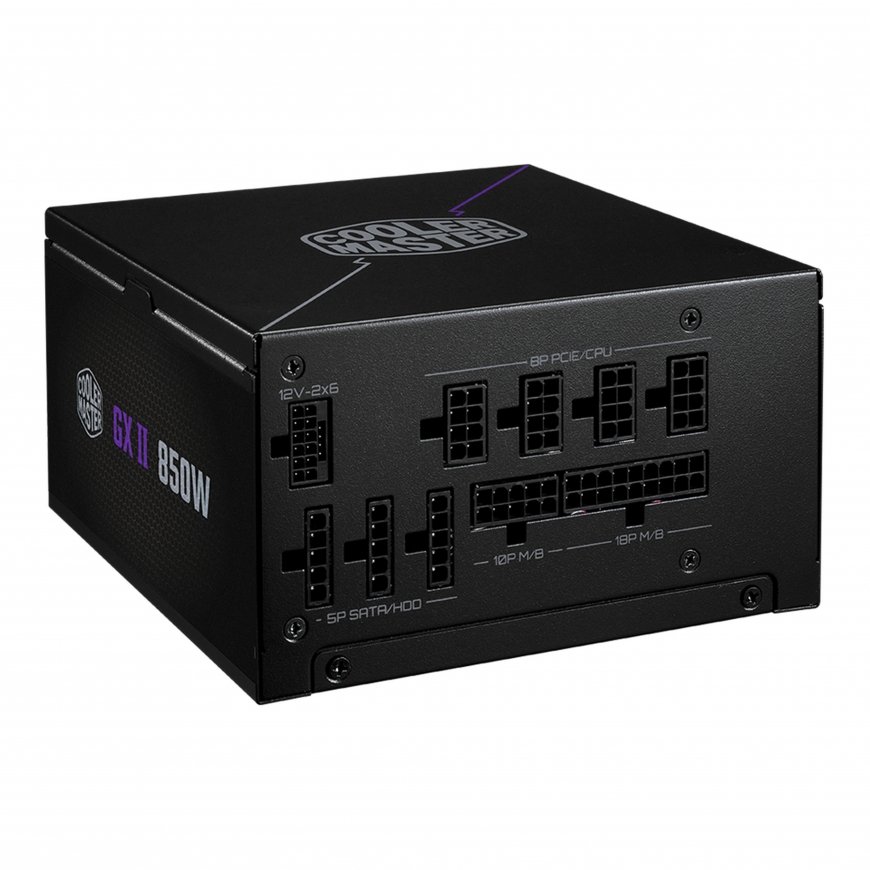

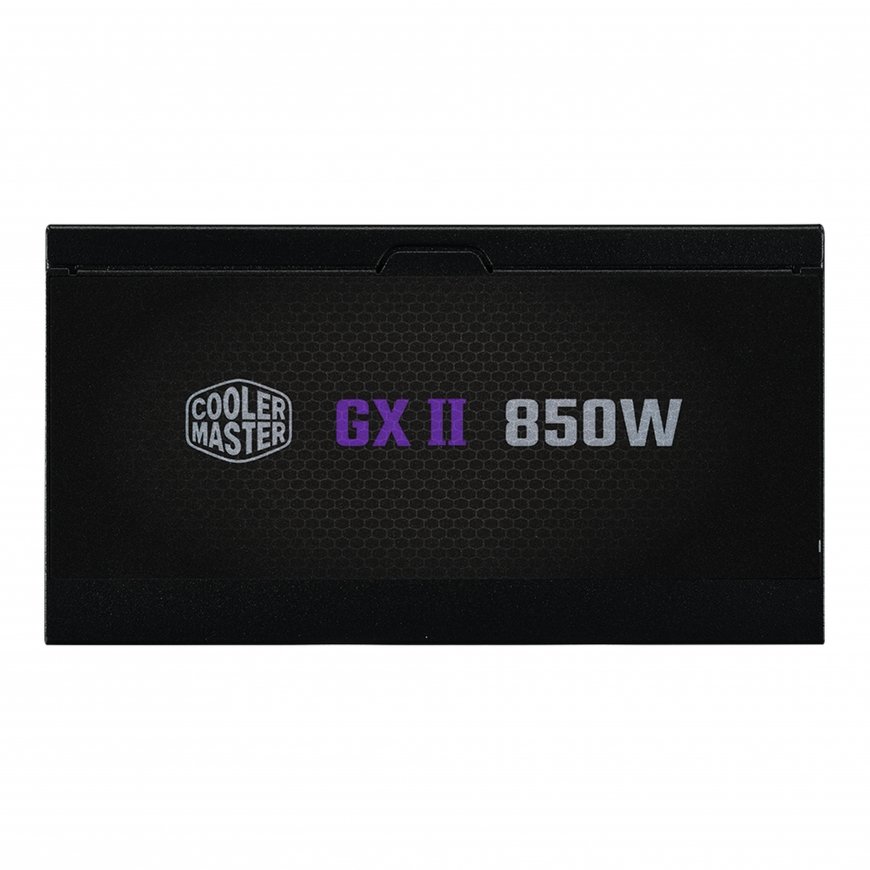

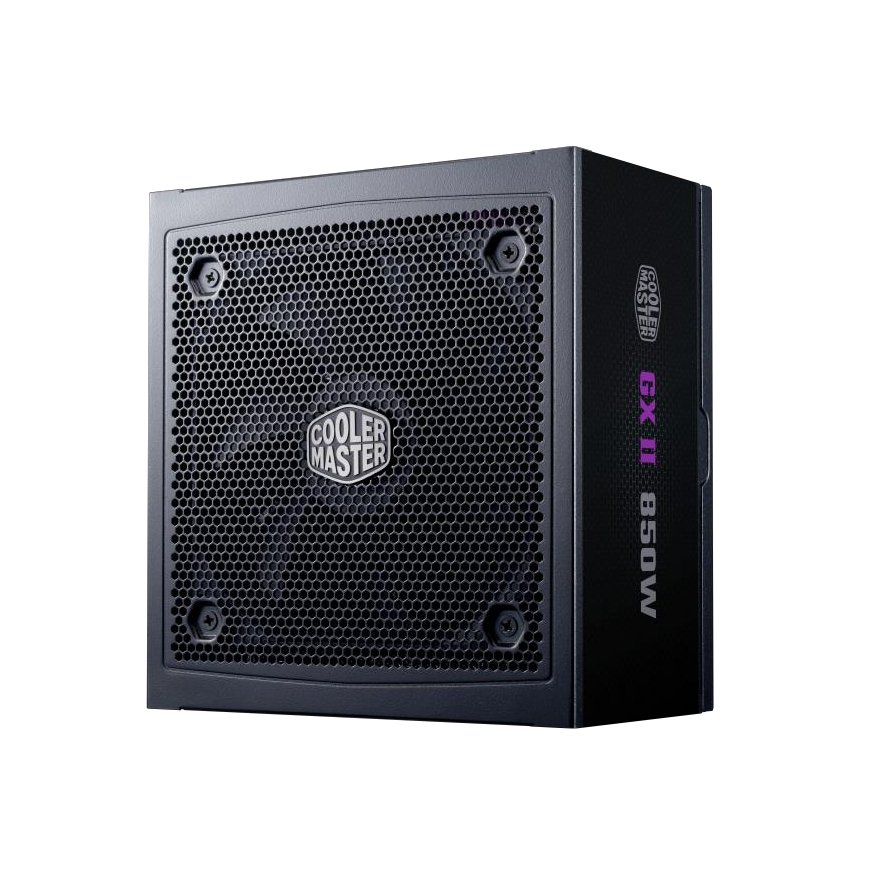

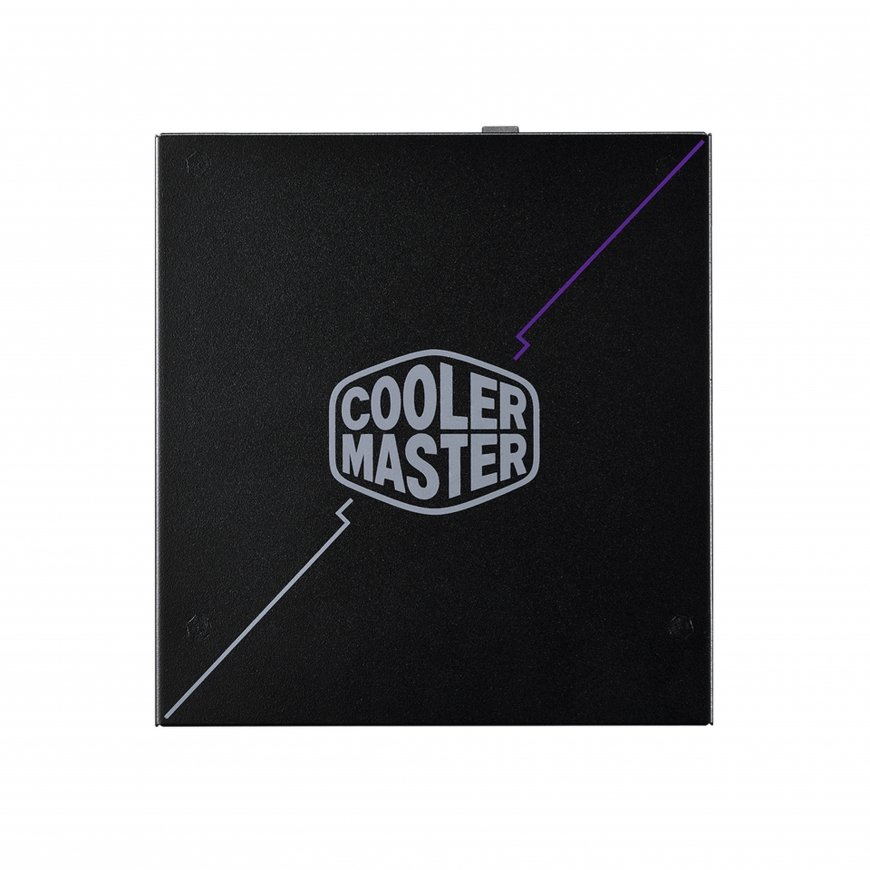

Cooler Master GX II Gold 850 ATX 3.1
159,01 €
Monthly payment from 4.99 €
3806907 MPX-8503-AFAG-2EBEU
4719512150832, 0884102123153
Goods will arrive at the Tallinn warehouse on 15.07.26
You are interested in this product?
The GX II Gold brings a new standard of durability and efficiency to Cooler Master’s lineup of power supply units combined with ATX 3.1 support.
ATX 3.1 Support & a Durable 90-degree 12V-2x6 Cable
Includes ATX 3.1 support and a 90-degree 12V-2x6 PCIe 5.1 connector featuring higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.
Certified Efficiency
The GX II Gold is certified to achieve more than 90% efficiency at typical loads.
Silent Fan Performance with a ZERO-RPM Mode
A zero-RPM default mode automatically turns the fan on when your PC reaches a specific temperature.
Separated Thermal Technologies
Separated thermal technologies provide improved thermal performance and a large, high-quality Japanese capacitor features reduced ripple noise and enhanced reliability.

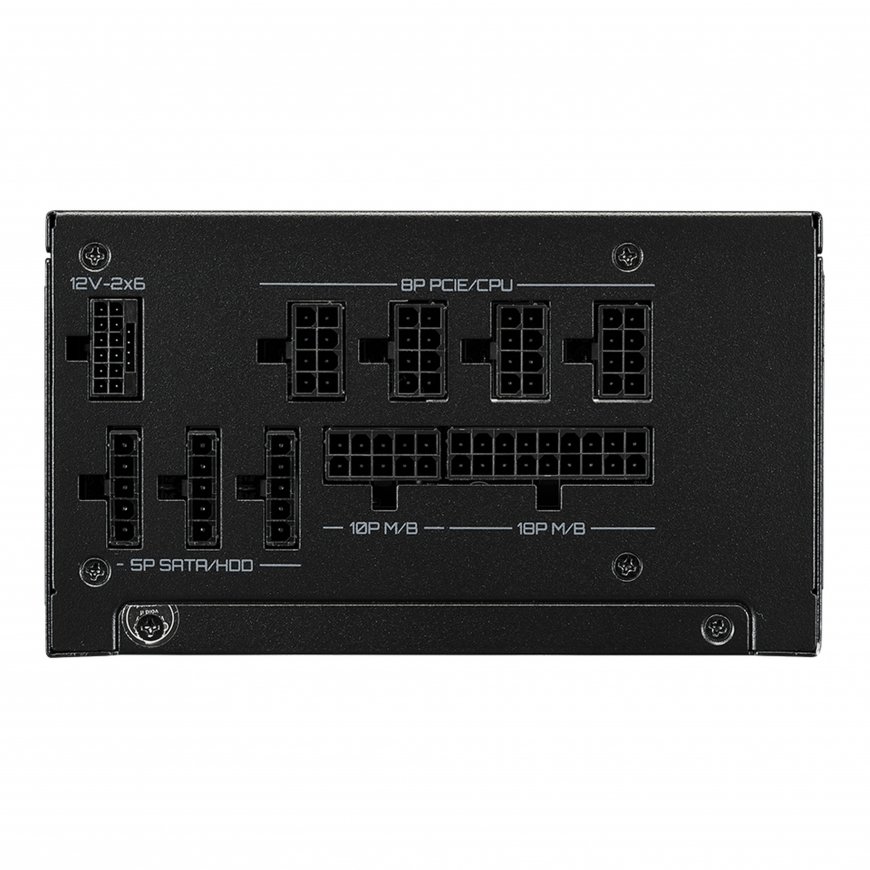

Fully Modular Cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
Power | |
| Hold time | 16 ms |
| Efficiency | 90% |
| Input current | 5 - 10 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage, Surge & inrush |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Good signal delay range | 100 - 150 ms |
| Total power | 850 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | HDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan speed | 0 - 2500 RPM |
| Cooling type | Active |
Ports & interfaces | |
| Number of SATA power connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 500, 620, 740, 860 |
| Peripheral (Molex) power cable length | 500, 620, 740, 860 |
| PCI Express power cable length | 62 cm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 650 mm |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
| Weight | 2.61 kg |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 3 kg |
| Package height | 125 mm |
| Package width | 195 mm |
| Package depth | 320 mm |
Other features | |
| EPS cable length | 60 cm |
Logistics data | |
| Master (outer) cases per pallet | 24 pc(s) |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 231 mm |
| Products per master (outer) case | 4 pc(s) |
Certificates | |
| Certification | ErP 2014 Lot 3 |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC), UKCA, EAC, BSMI, RCM, cTUVus, KC, CCC, BIS, China Compulsory Certification (CCC) |
