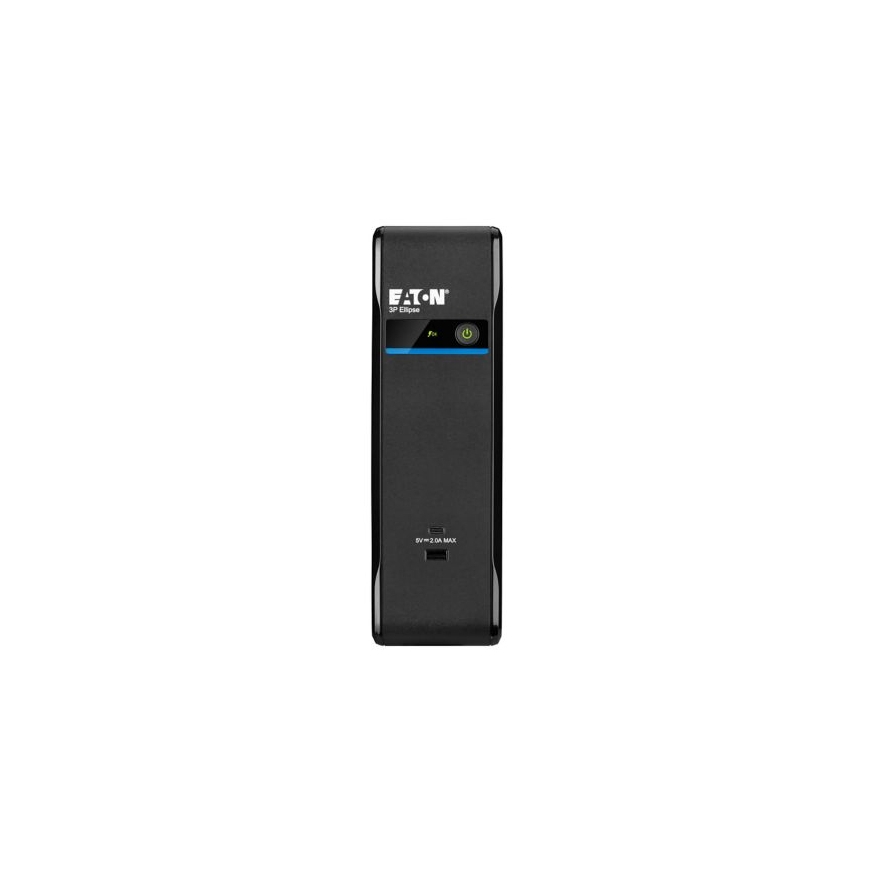

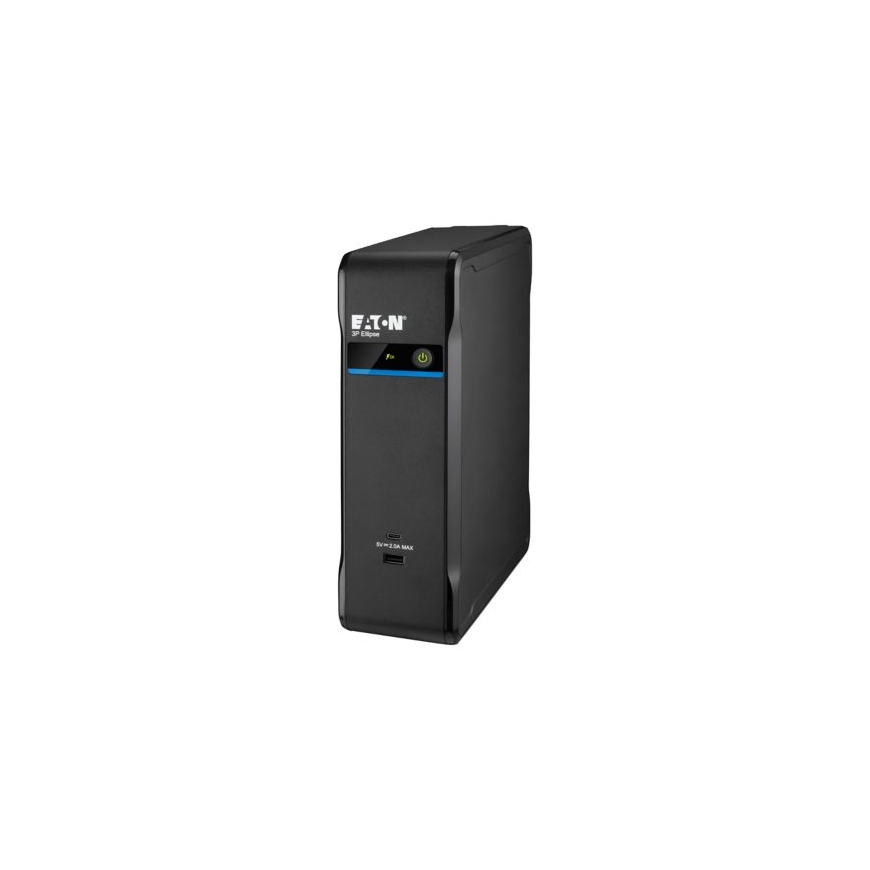

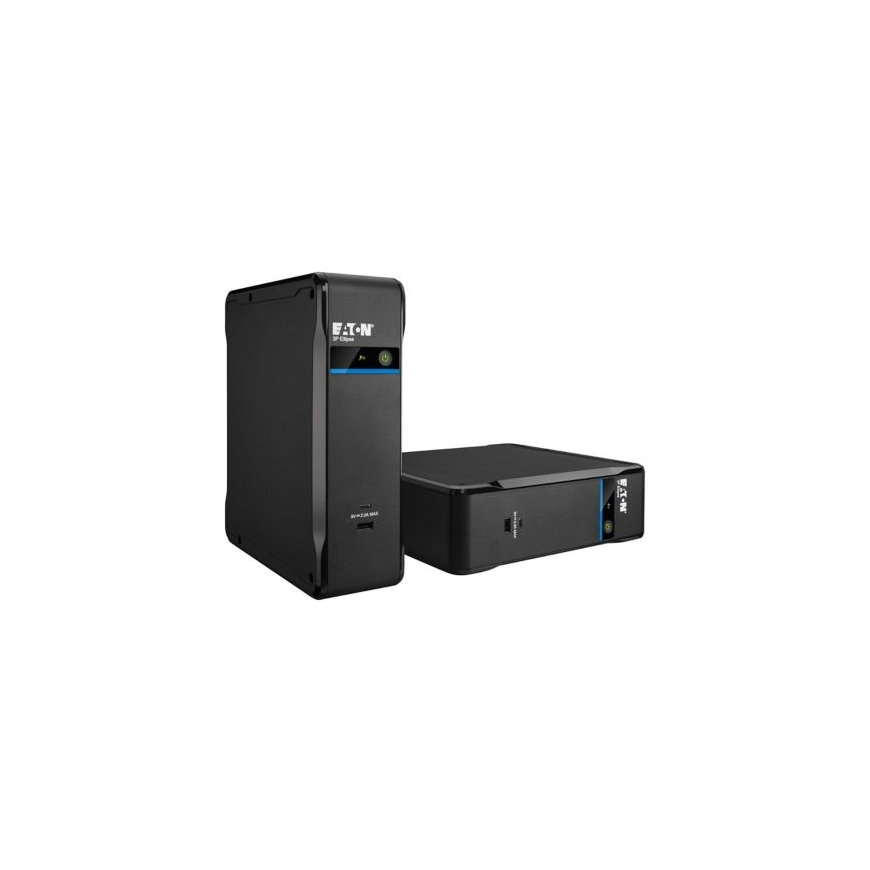

Eaton 3P Ellipse 700 uninterruptible power supply (UPS) Standby (Offline) 0.7 kVA 420 W 4 AC outlet(s)
159.01 €
Monthly payment from 4,99 €
3786359 3P700UF
3553340621307
Shipping 3-5 b.d.
You are interested in this product?
All about the product
Eaton 3P Ellipse 700. UPS topology: Standby (Offline), Output power capacity: 0.7 kVA, Output power: 420 W. AC outlet types: C1 coupler, C3 coupler, AC outlets quantity: 4 AC outlet(s), USB port type: USB Type A/USB Type-C. Battery technology: Lead-Acid, Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Cable length: 1.5 m. Compliance certificates: CB, CE, RoHS, WEEE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr CmFeatures
| Product colour | Black |
| Display type | LED |
| USB port | Yes |
| Form factor | Tower |
| Weight | 3.9 kg |
| Width | 81 mm |
| Depth | 235 mm |
| Height | 263 mm |
| Cables included | USB cable |
| Cable length | 1.5 m |
| Package type | Box |
| Number of batteries supported | 1 |
| Certification | CE; UKCA; IEC/EN 62040-1; IEC/EN 62040-2; IEC/EN 62040-3; Cm; Ukr |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery technology | Lead acid |
| Quick installation guide | Yes |
| Battery voltage | 12 V |
| Battery capacity | 7 Ah |
| Efficiency | 97% |
| Noise level | 25 dB |
| AC outlets quantity | 4 AC outlet(s) |
| USB port type | USB Type A/USB Type-C |
| Surge protection | Yes |
| Output power | 420 W |
| UPS topology | Standby (Offline) |
| Output power capacity | 0.7 kVA |
| Waveform | Stepwise |
| Input operation voltage (min) | 184 V |
| Input operation voltage (max) | 264 V |
| Input frequency | 46/70 Hz |
| Output operation voltage (min) | 184 V |
| Output operation voltage (max) | 264 V |
| AC outlet types | C3 coupler; C1 coupler |
| Automatic battery test | Yes |
| Cold start | Yes |
| Nominal input voltage | 220-240 V |
| Number of input phases | 1 |
| Input connection type | C14 |
| Number of output phases | 1 |
| Output power factor | 0.6 |
| Auto shut-off | Yes |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | CE; RoHS; WEEE; CB |
