Zamel Supla MEW-01 MRP WiFi electric energy meter
Zamel Supla MEW-01 MRP WiFi electric energy meter
Zamel Supla MEW-01 MRP WiFi electric energy meter
Zamel Supla MEW-01 MRP WiFi electric energy meter
Zamel Supla MEW-01 MRP WiFi electric energy meter
Zamel Supla MEW-01 MRP WiFi electric energy meter
Zamel Supla MEW-01 MRP WiFi electric energy meter
Zamel Supla MEW-01 MRP WiFi electric energy meter
Zamel Supla MEW-01 MRP WiFi electric energy meter
Zamel Supla MEW-01 MRP WiFi electric energy meter
Zamel Supla MEW-01 MRP WiFi electric energy meter
Zamel Supla MEW-01 MRP WiFi electric energy meter
Zamel Supla MEW-01 MRP WiFi electric energy meter
Zamel Supla MEW-01 MRP WiFi electric energy meter
Zamel Supla MEW-01 MRP WiFi electric energy meter

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Zamel Supla MEW-01 MRP WiFi electric energy meter

345,34 €
343,31 €
Monthly payment from 9.74 €
3772127

MEW-01/MRP

5903669496694

Shipping 1-14 b.d.

Quantity

You are interested in this product?
(Read terms of service)

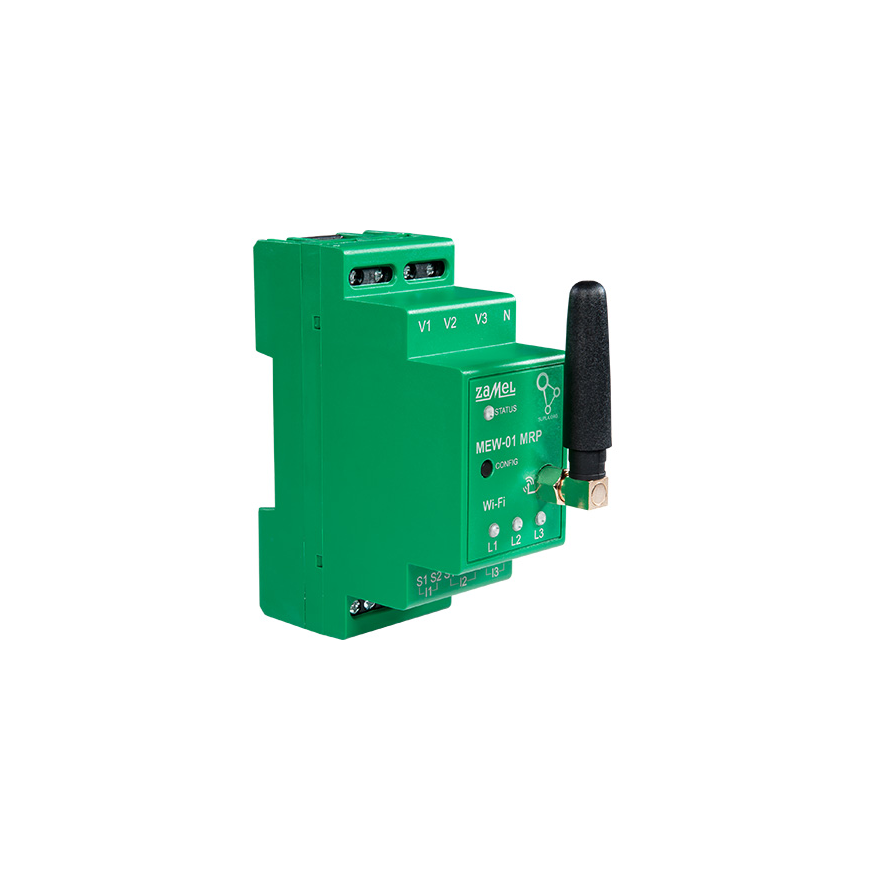

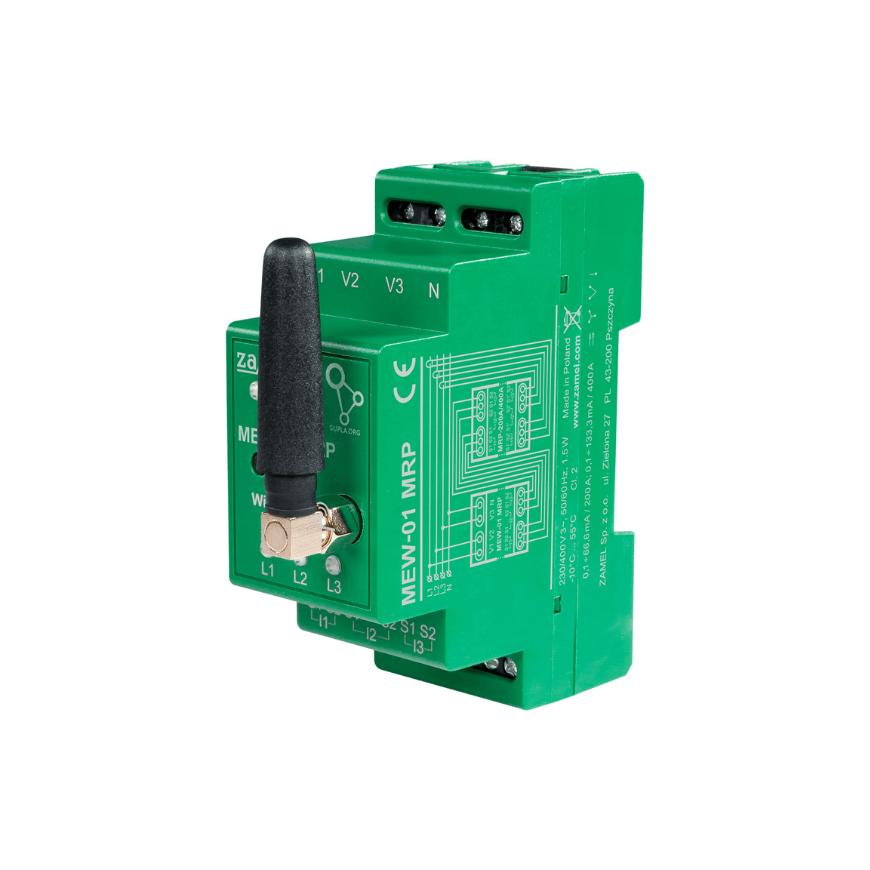

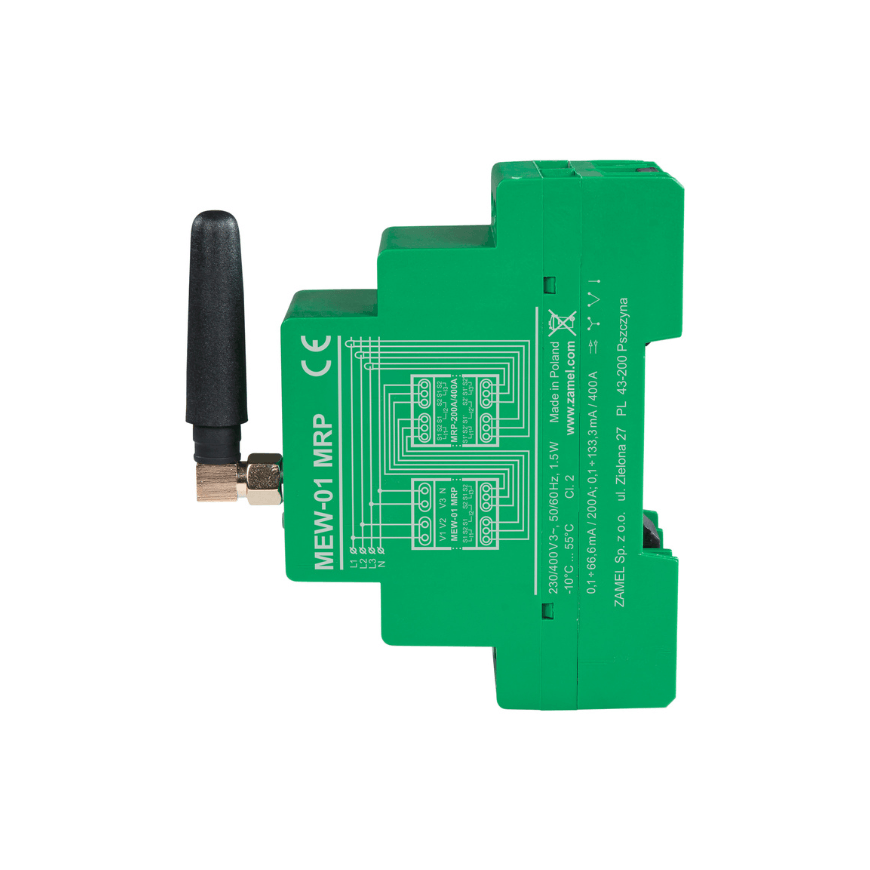

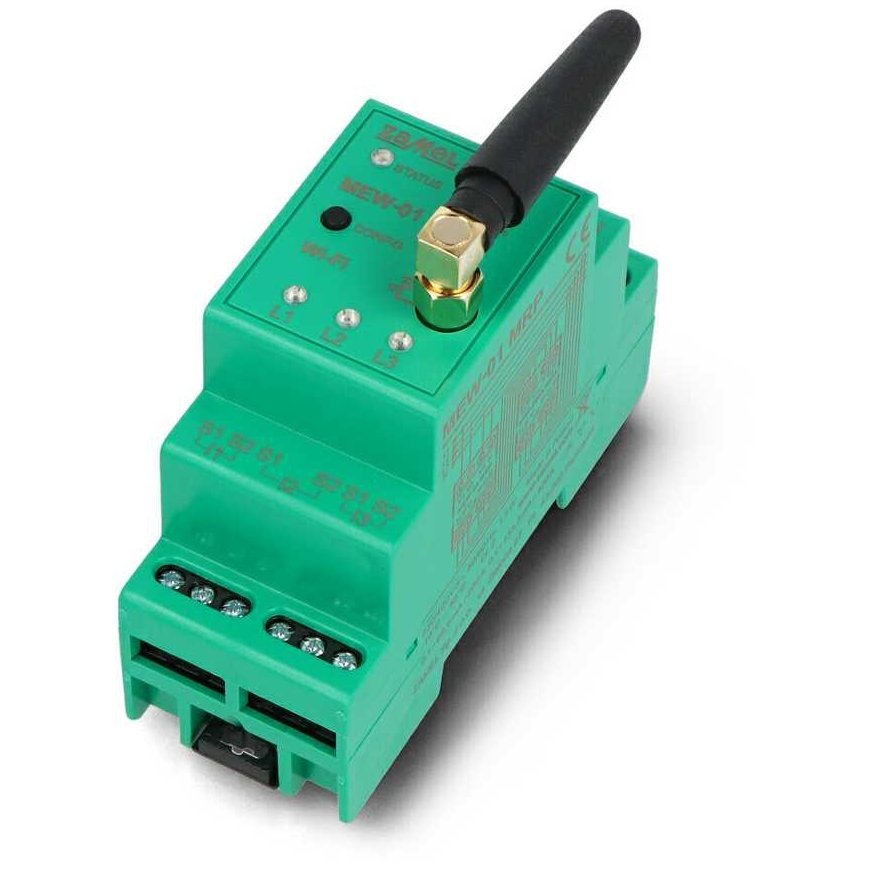

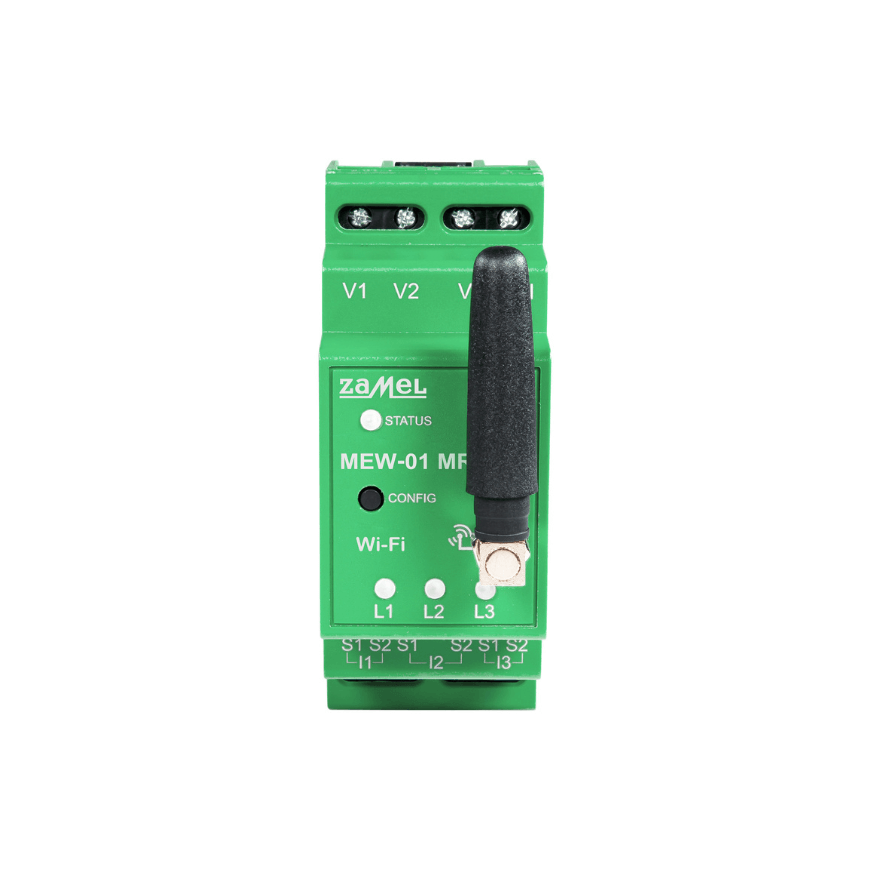

Zamel MEW-01 MRP - is the "Wi-Fi 3F+N" version of the electric meter designed for use with additional transformers MRP-200A and MRP-400A. It is used in cases where it is necessary to extend the measurement range compared to the standard 3x 100 A. The highest standard of electricity consumption monitoring accuracy and advanced data analysis tools. MEW-01 MRP - is a device designed to be mounted on a DIN rail (TH35), occupying the width of two modules and providing the ability to connect an external antenna for use both inside and outside the distribution board. MEW-01 MRP is a three-phase and bidirectional monitor. Therefore, it is suitable for monitoring both consumed and supplied energy to the electrical network. Due to the "Wi-Fi" connection, there is no need to lay new cables, and the accumulated measurement data is analyzed in the mobile application "Supla*". MEW-01 MRP - is a device designed for indoor installation, but when placed in an additional waterproof enclosure and protected from water ingress, it can also be used outdoors. There is also the possibility, using additional software, to perform multi-meter data analysis. MEW-01 MRP device is sold without current transformers. We recommend choosing MRP-200 or MRP-400 transformers.
Product features:
  • "Wi-Fi" connection - all SUPLA products support wireless network connectivity. No need to use additional access points or lay new cables
  • Wide measurement range, as transformers can be used (100 A, 200 A, and 400 A)
  • Measurement of electricity consumption and current, voltage, and power in 3 phases
  • Ability to perform multi-reading analysis in the mobile app and "Supla Cloud" panel
  • Ability to integrate with the company's ERP software using API
  • Support for MQTT communication standard
  • Ability to export measurement data to csv, xlsx, ods, and html formats
  • Ability to create custom PUSH notifications in the "Supla" app
  • Automatic reactions - ability to create automatic processes triggered, for example, by exceeding a certain voltage or power level
Technical specifications:
  • Nominal voltage: 3 x 230/400 V AC
  • Voltage tolerance: -20% to 15%
  • Nominal power consumption: 1.5 W
  • Frequency: 50/60 Hz
  • Measurement accuracy: class 2 (±2 %)
  • Operating temperature range: from -10 °C to 55 °C
  • Optical power indication: LED for each power phase
  • Safety level: IP20
  • Installation method: TH-35 rail, 2 module width
  • Transmission: Wi-Fi 2.4 GHz 802.11 b/g/n
  • Operating range: "Wi-Fi" network coverage
  • Device height: 90 mm
  • Device width: 35 mm
  • Device depth: 66 mm
  • Weight: 0.4kg
  • Voltage power terminals: V1; V2; V3; N
  • Current transformer terminals: S1 S2 - I1; S1 S2 - I2; S1 S2 - I3
zamel-supla-mew-01-mrp-wifi-elektros-energijos Instruction (English)
