Router TST ACCESS POINT PBE-M5-300 UBIQUITI
3763203 PBE-M5-300
5902887015854
Shipping 1-14 b.d.

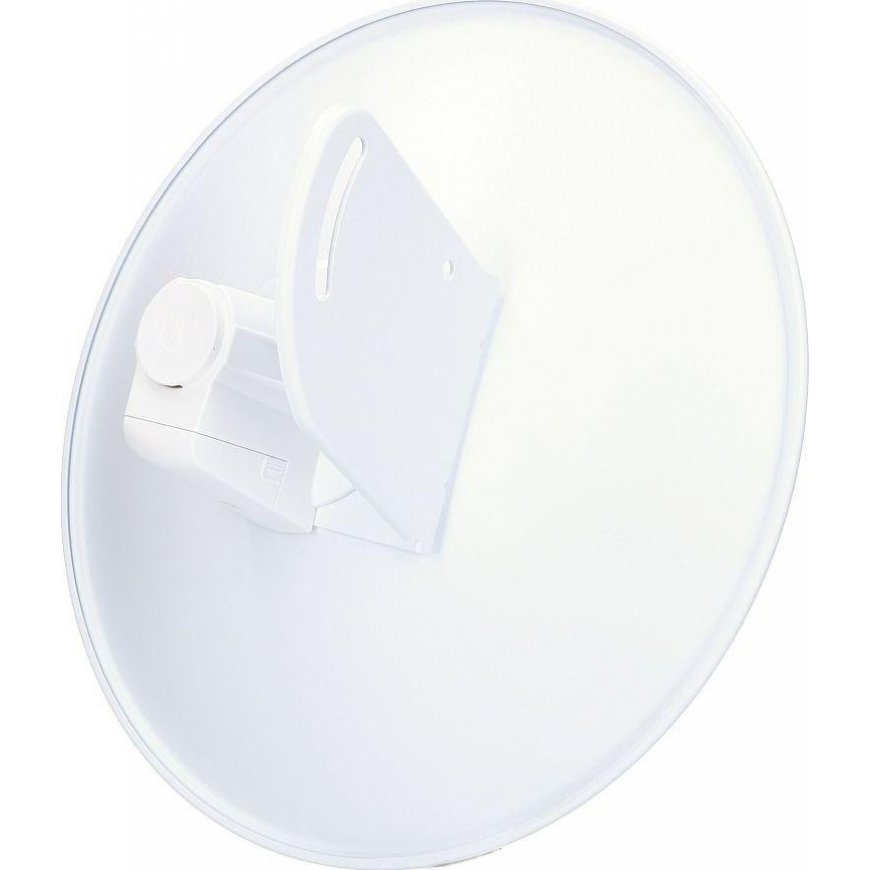

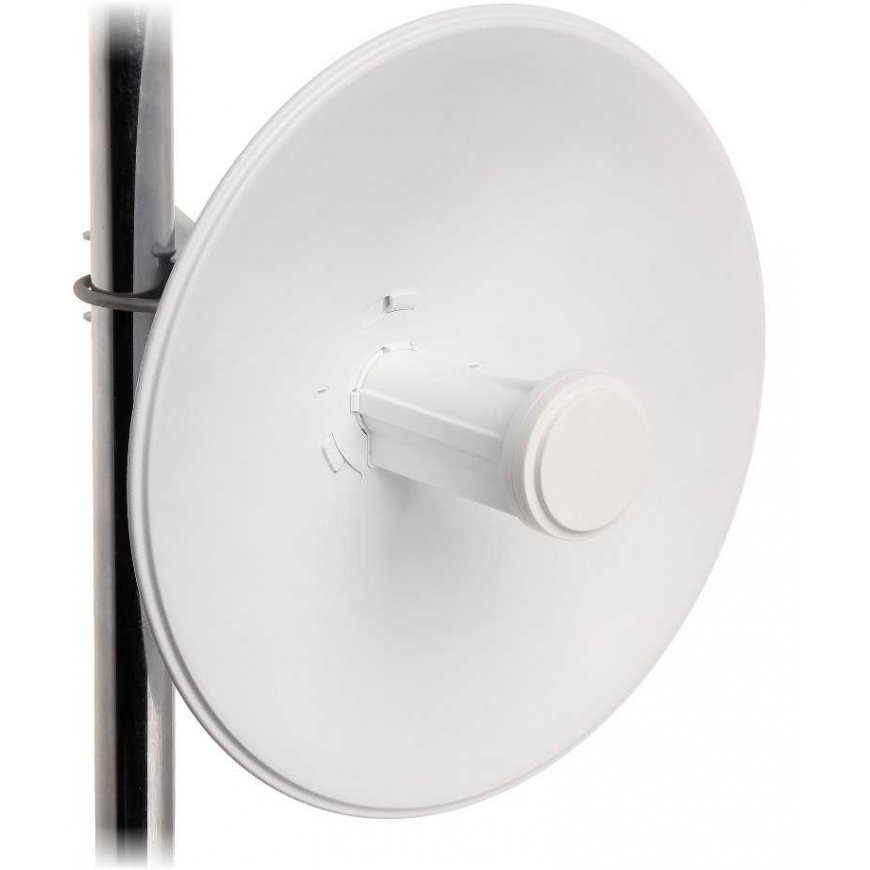

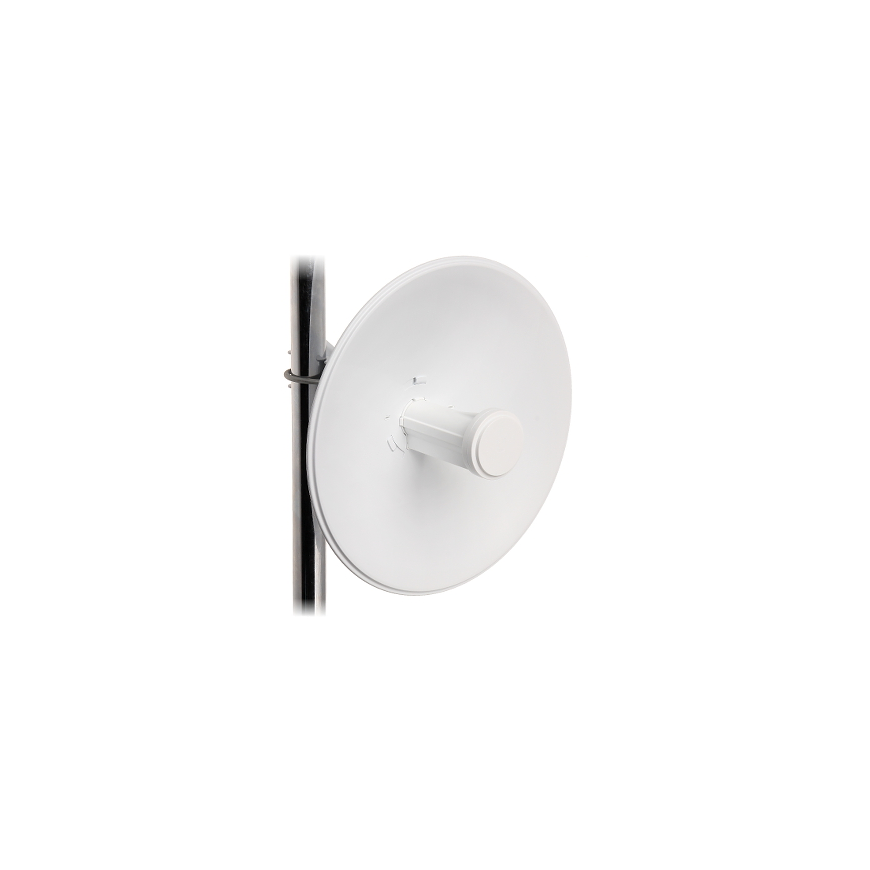

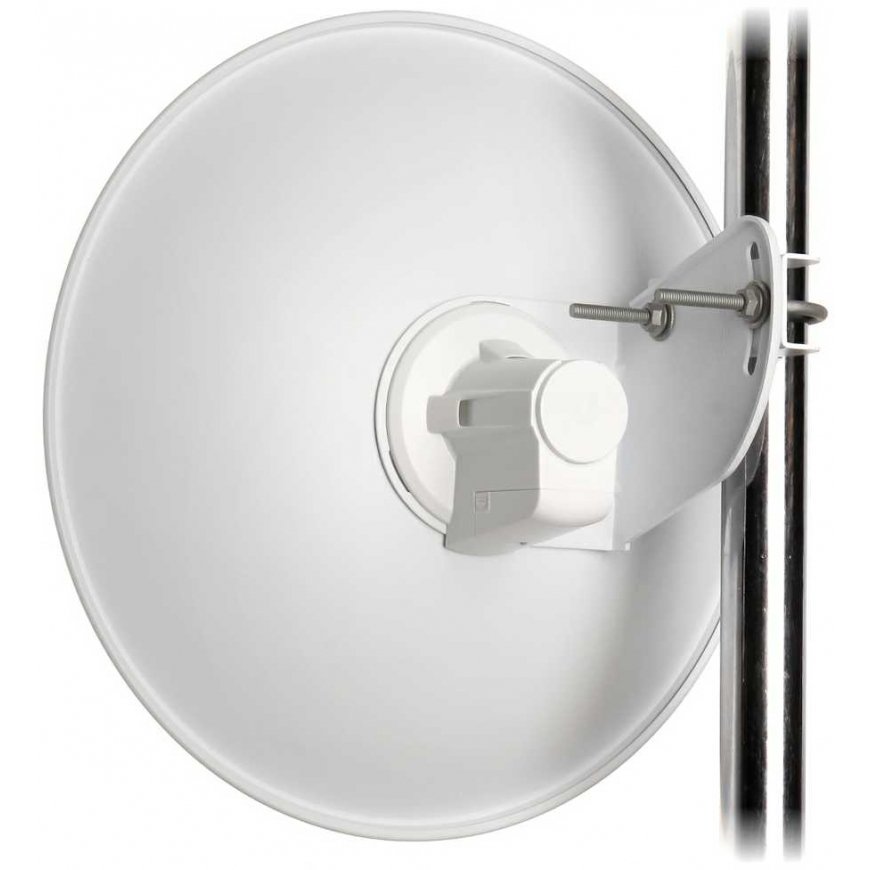

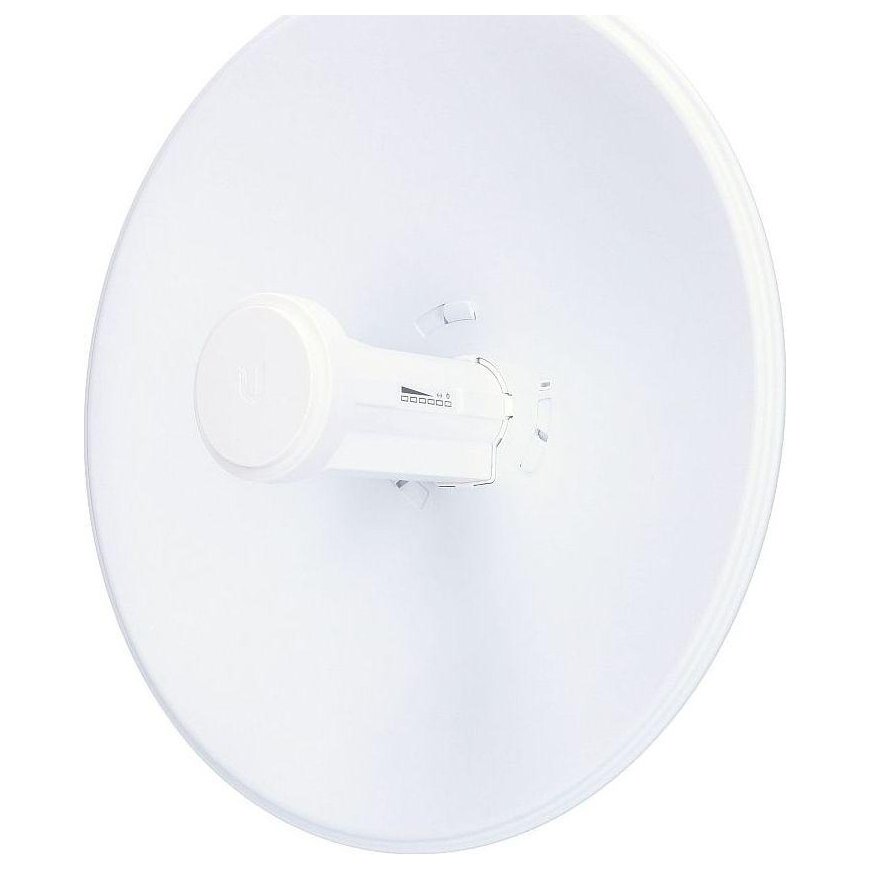

PowerBeam PBE-M5-300 is a complete solution designed for wireless bridges operating in the 5 GHz band, compatible with the 802.11n MIMO 2x2 standard.
Due to the unique solutions used, the device can offer incredible performance for such compact devices.
The improved construction allows for the accumulation of radio system power and better protects against interference from other devices and networks.
The casing, made of UV-resistant plastic, is insensitive even to the most complex atmospheric conditions.
The device operates on a platform based on the MikroTik RouterOS system.
PowerBeam PBE-M5-300 uses AirMax™ TDMA technology, allowing real throughput to reach 150 Mb/s, and the transmitter power enables connections up to 20 km away.
| Frequency range : | 5170 MHz ... 5875 MHz |
| Antenna type : | 22 dBi Integrated |
| Standards : | 802.11a/n MIMO 2x2 |
| Transmission speed : | 150 Mbps |
| LAN ports : | 1 x 10/100 Mbps |
| Operating mode : | Access Point, Access Point WDS, Client, WDS Client, Router or Bridge |
| Protection measures : | Surge protection |
| Transmitter power : | 26 dBm |
| Memory : | 64MB DDR2, 8MB Flash |
| Processor : | Atheros MIPS 74KC, 560MHz |
| Power over Ethernet : | ✔ |
| Power supply : | 24 V |
| Power consumption : | 6 W |
| Operating temperature : | -40 °C ... 70 °C |
| Allowable relative humidity : | 5 % ... 95 % |
| Weight : | 1.2 kg |
| Dimensions : | 325 x 325 x 256 mm |
| Warranty : | 2 years |
