The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

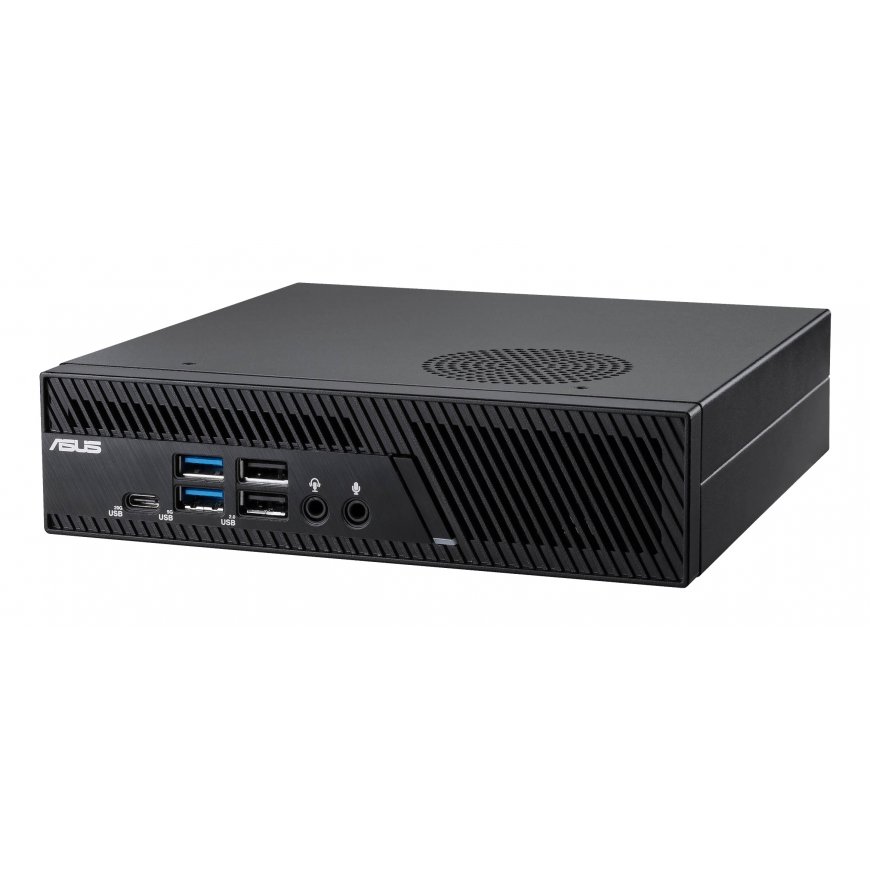

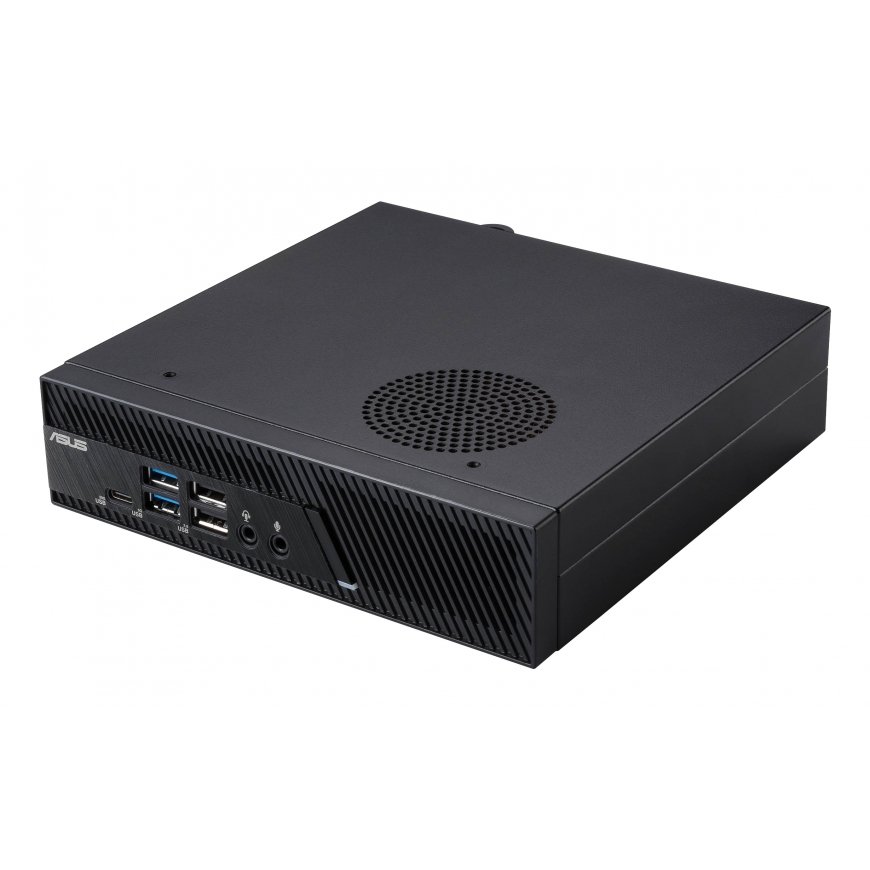

ASUS PB63-B7205AH Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
1 049,00 €
Monthly payment from 27.91 €
3748570 90MS02R1-M006E0
4711636076449
This product is no longer in stock
You are interested in this product?
Solid reliability for your business
ASUS ExpertCenter PB63 is a durable, versatile and powerful PC suited to a range of business applications, including signage, point-of-sales (POS) systems, kiosks and intelligent vending machines. Powered by the latest Intel® 13th Generation Core™ with Intel® UHD Graphics processors, PB63 delivers desktop-grade performance in a compact size, with supports the next gen memory - DDR5. To cater to diverse demands, PB63 supports a 46 to 65 watt CPU – so it's easy to spec for supreme efficiency or maximum performance. Comprehensive connectivity with eight USB ports and support for up to three 4K UHD displays means PB63 is perfect for almost any business scenario. It's also tested to the latest MIL-STD-810H military standard to ensure it's ready for harsh environments.
Design
Versatile, space-saving, secure design
With its compact size and VESA-compatible mount design, ASUS ExpertCenter PB63 is perfect for use in offices, hospitals or retail environments. And now, for the first time in the ASUS ExpertCenter PB63 is available in a choice of two colors – classic black or stunning white – so it's ready to blend into any environment. It even includes an integrated Kensington lock slot and a padlock-eye design, providing ready-made security for any situation.
Design
Innovative lockable VESA mount for instant security

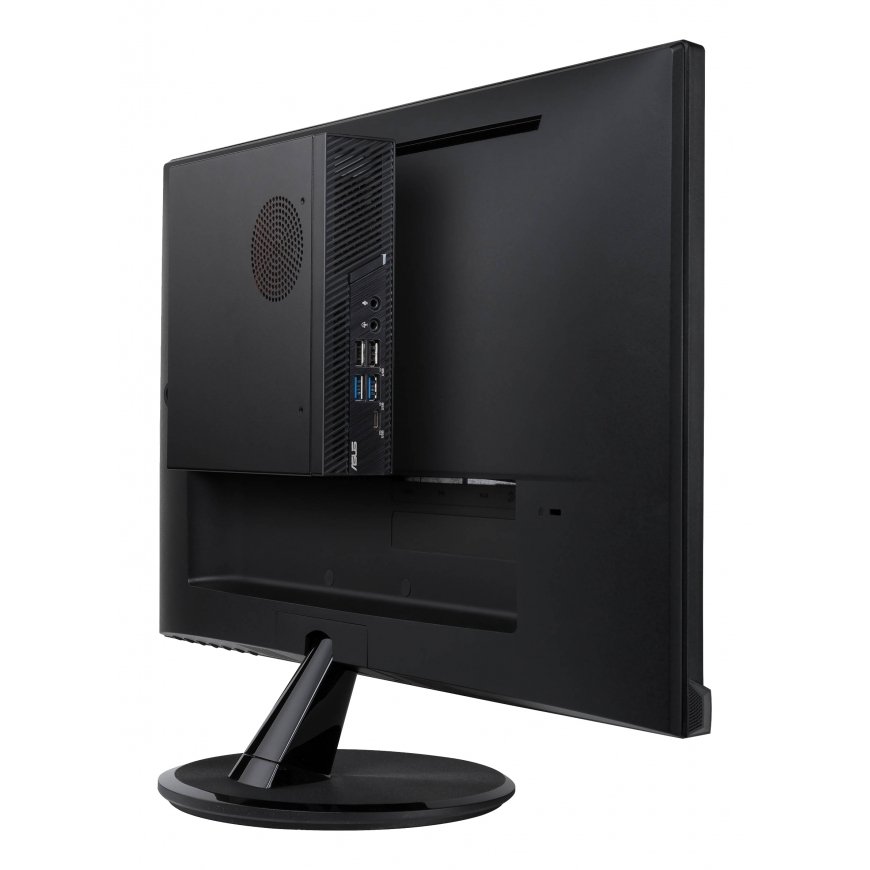

It's easy to mount ASUS Mini PC PB63 onto a standard VESA plate, and an innovative locking mechanism provides extra security. Included rubber-shrouded locking screws improve the coupling and protect the chassis surface from scratches.
Design
All-new dust filter
ASUS Mini PC PB63 features an all-new dust filter to protect it from the ingress of airborne particulates*, helping to keep internal components clean, thus improving reliability. This design also makes PB63 ideal for use in areas of high dust density, from industrial environments or high-footfall retail to arid or smoggy regions.
Connectivity
A plethora of ports

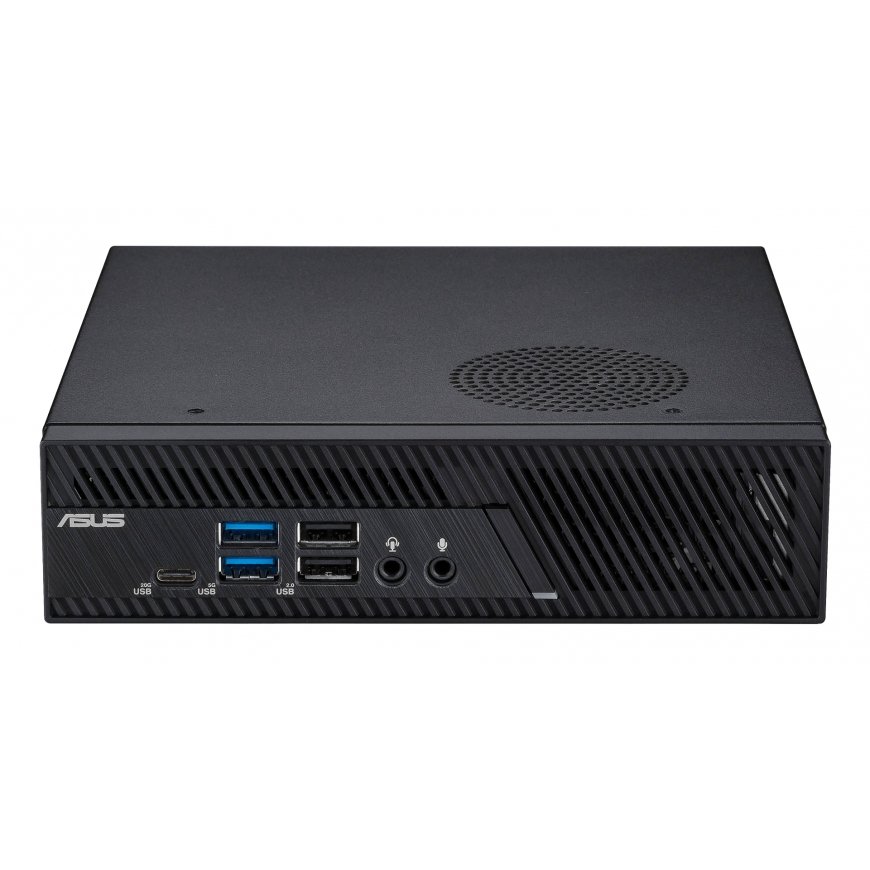

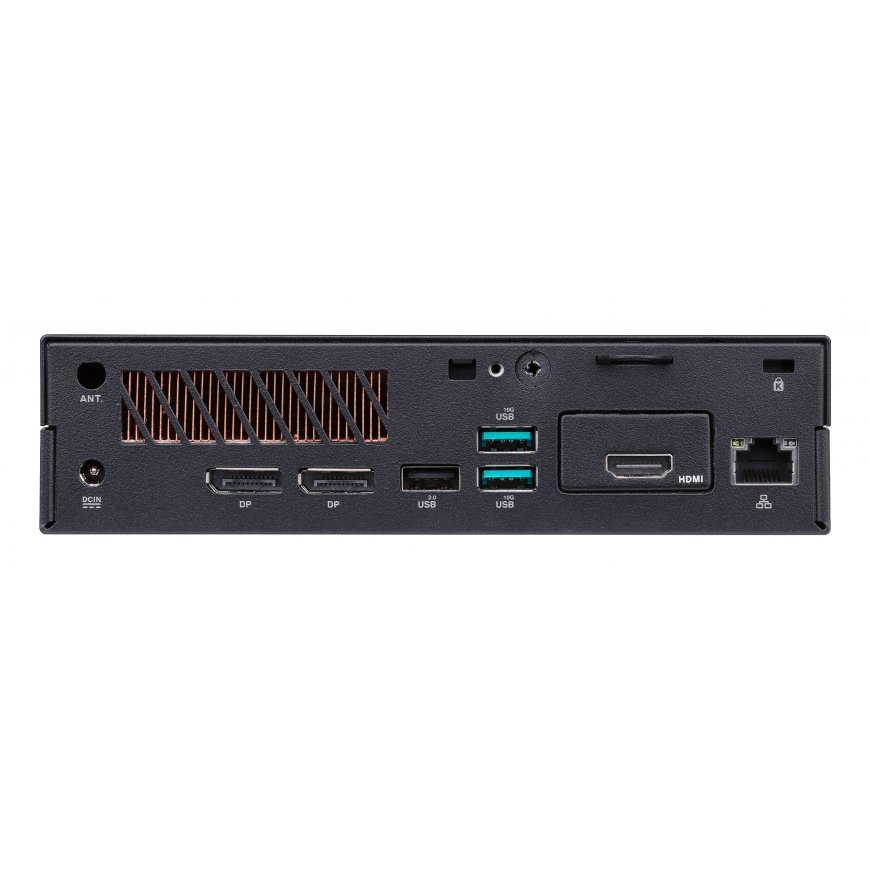

ASUS Mini PC PB63 provides fast and convenient connectivity with two USB Gen1 Type-A , two USB 2.0 ports and one 3.2 Gen 1 Type-C® on the front panel, plus one USB 2.0 and two USB Gen2 Type-A on the rear panel. Additionally, a configurable port* supports HDMI 2.0, VGA, COM, DisplayPort or LAN functionality to create the perfect fit for any need – from signage and point-of-sale systems to kiosks and intelligent vending machines.
24/7 Reliability
Mini PC is designed for modern office and business use. Geared with effortless IT-management tool to reduce maintenance cost and improve cost effectiveness.
Processor | |
| Processor model | i7-14700 |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Efficient cores | 12 |
| Performance cores | 8 |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
Memory | |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory | 16 GB |
Storage | |
| Optical drive type | No |
| Total storage capacity | 512 GB |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| Number of SSDs installed | 1 |
| Storage media | SSD |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
Graphics | |
| On-board graphics card model | Intel UHD Graphics 770 |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| Discrete graphics card | No |
| On-board GPU manufacturer | Intel |
Network | |
| Ethernet LAN data rates | 10, 100, 1000 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
Ports & interfaces | |
| USB 2.0 ports quantity | 3 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| DisplayPorts quantity | 2 |
| DC-in jack | Yes |
| HDMI version | 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Number of rear USB ports | 3 |
| Number of front USB ports | 5 |
Design | |
| Chassis type | Mini PC |
| Cable lock slot | Yes |
| Product colour | Black |
| Cable lock slot type | Kensington |
| Colour name | Black |
| Introduction year | 2023 |
Performance | |
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Weight & dimensions | |
| Depth | 175 mm |
| Height | 44.2 mm |
| Width | 175 mm |
| Weight | 1.18 kg |
Certificates | |
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
Display | |
| Display included | No |
Packaging data | |
| Package weight | 2.61 kg |
| Package width | 360 mm |
| Package depth | 240 mm |
| Package height | 68 mm |
