PHOTO ELEMENT FT01 SET VIDOS TXRX
30,55 €
30,40 €
3699167 FT01
5902887047107
Shipping 1-14 b.d.
You are interested in this product?
The photoelectric sensors are designed to work with gate automation systems.

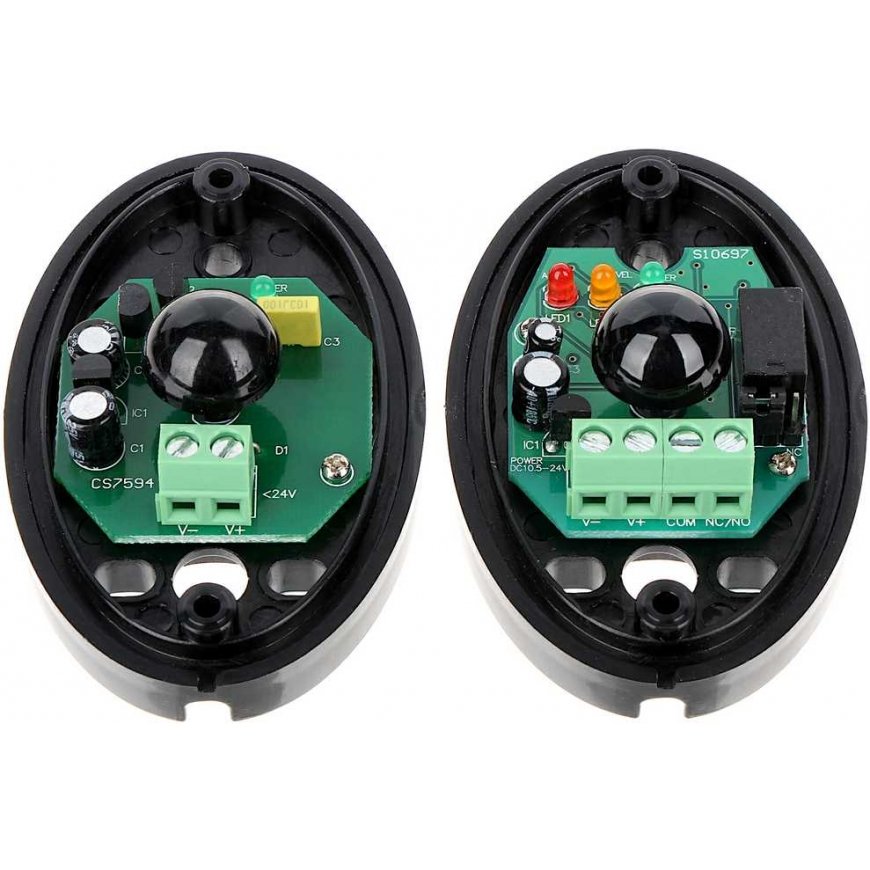

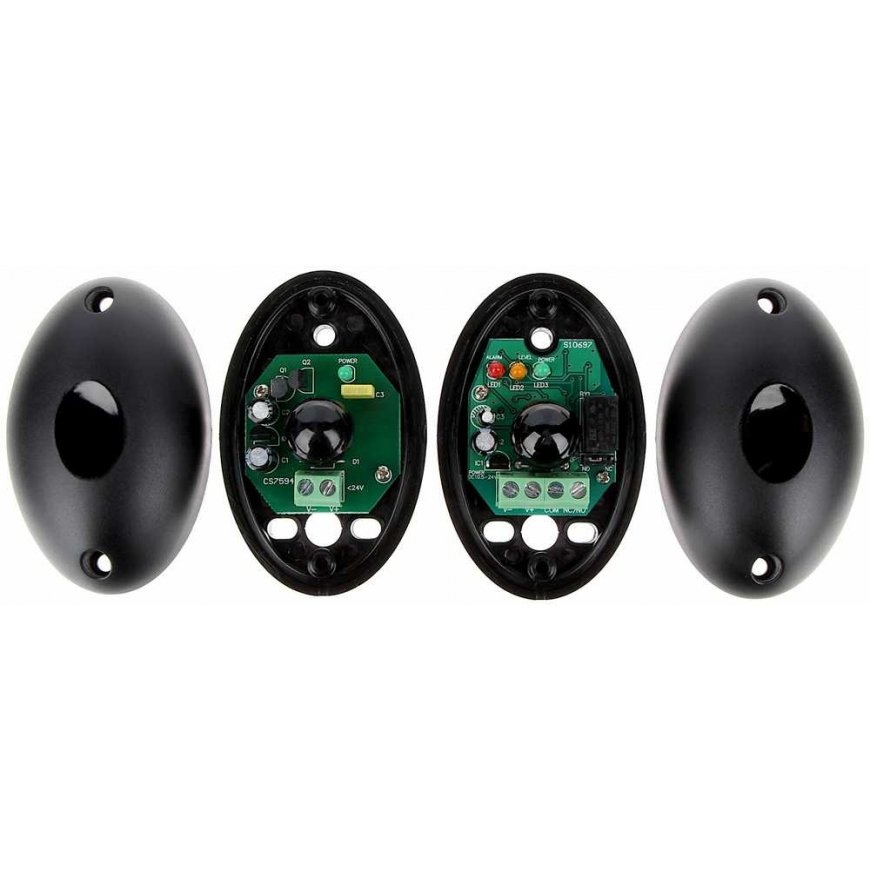

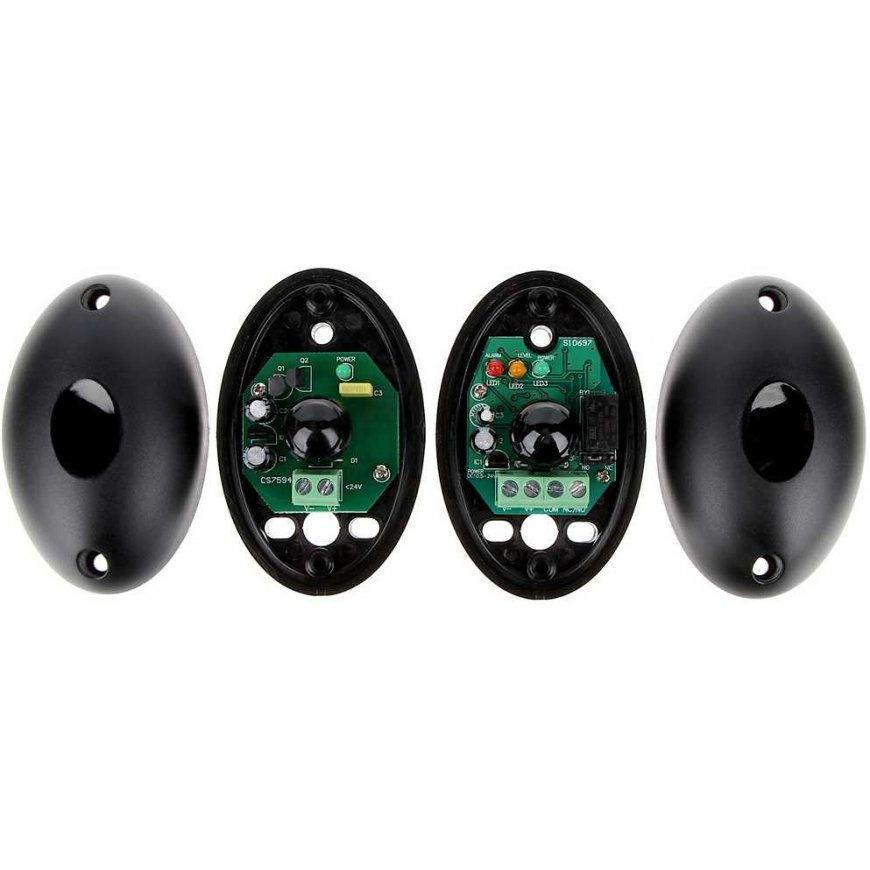

The set includes a transmitter and a receiver.
An infrared beam is sent from the transmitter to the receiver.
If an object (e.g., a car or a person) appears in the field of the created obstacle, the photoelectric sensor will react by sending a signal to change the input state of the control unit.
The devices are resistant to moisture absorption and have a housing that protects against unwanted sunlight exposure.
| Radiation angle : | ± 10 ° |
| Operating range : | 1 ... 20 m |
| Frequency range : | 1.92 kHz |
| Reaction time : | 50 ms |
| Power supply : | 10.5 ... 24 V DC / 0.5 A |
| Current consumption : | 15 mA Transmitter without housing 30 mA Receiver |
| Number of relay outputs : | 1 |
| Maximum contact load : | max. 0.5 A / 30 V AC/DC |
| Output : | 1 x NO/NC |
| Main features : | Passive IR (PIR) 940 nm Resistance to environmental condition changes |
| Operating temperature : | -25 °C ... 55 °C |
| Weight : | 0.032 kg Transmitter without housing 0.036 kg Receiver |
| Dimensions : | 76 x 48 x 30 mm Transmitter without housing / Receiver |
| Manufacturer / Brand : | VIDOS |
| Warranty : | 3 years |
