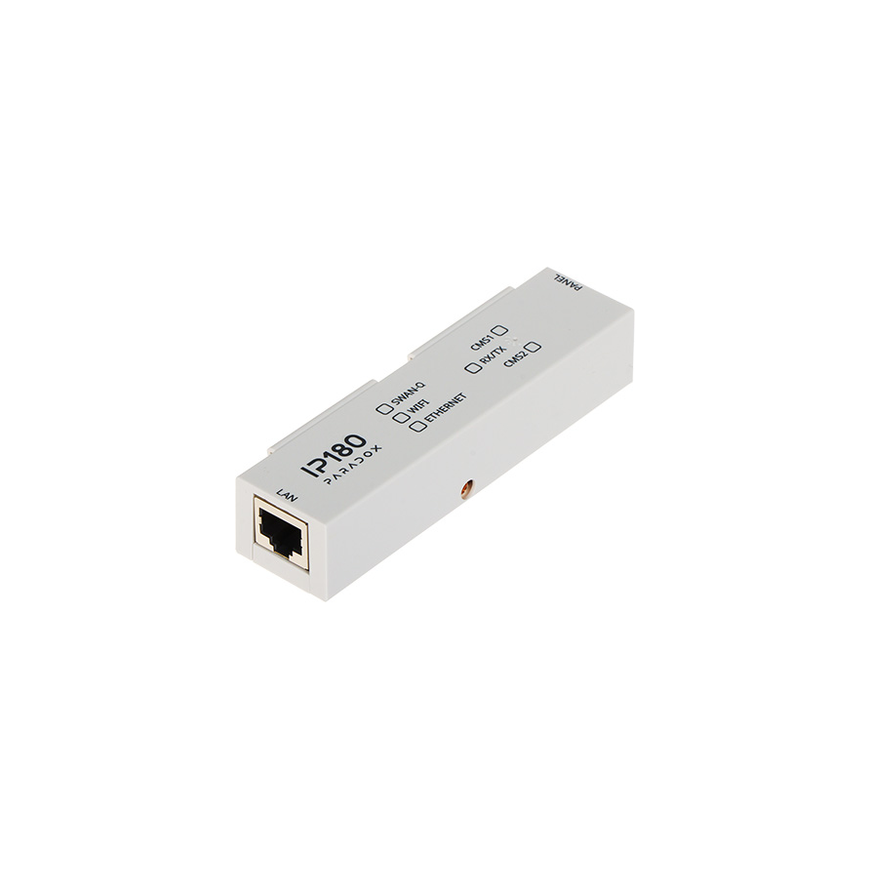

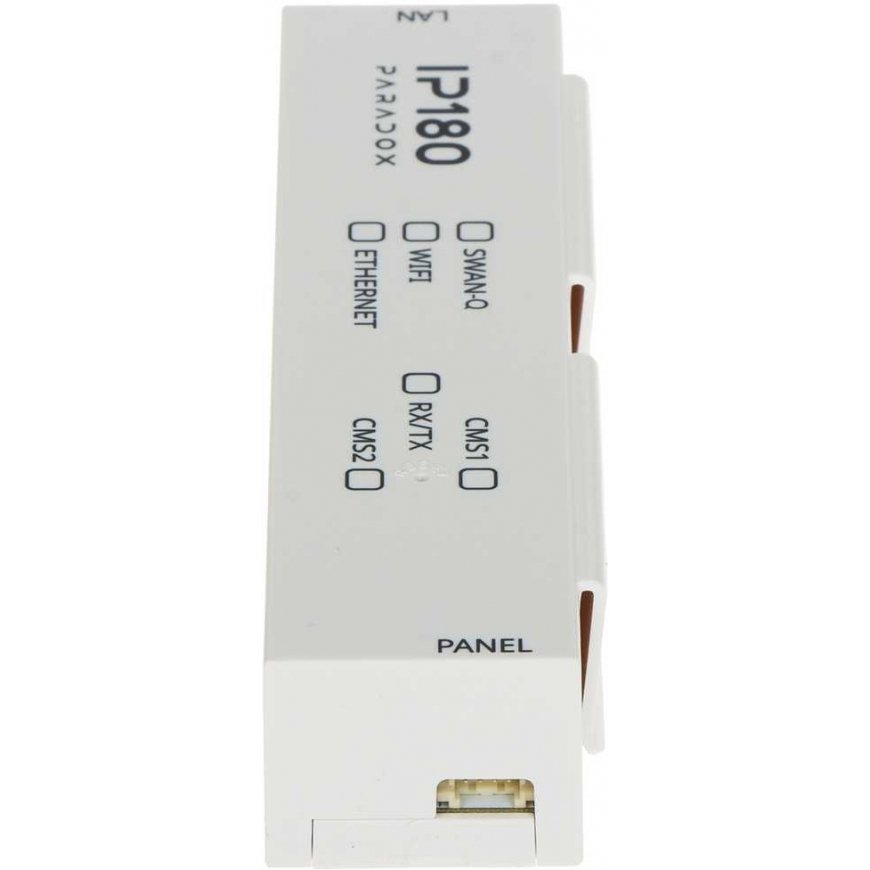

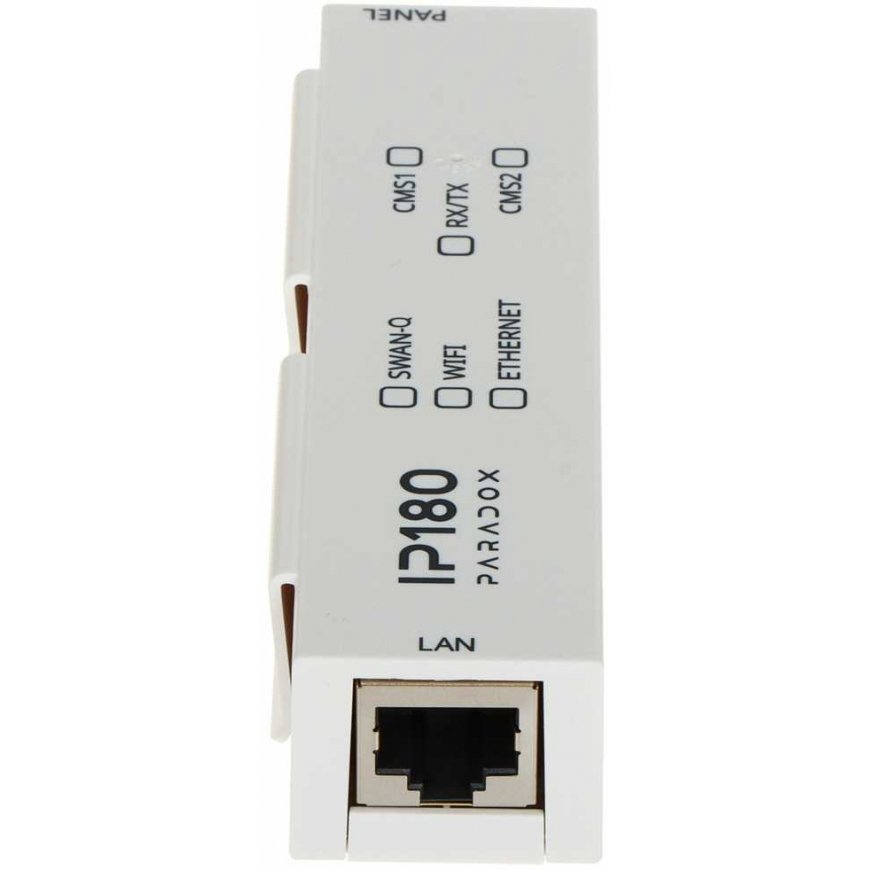

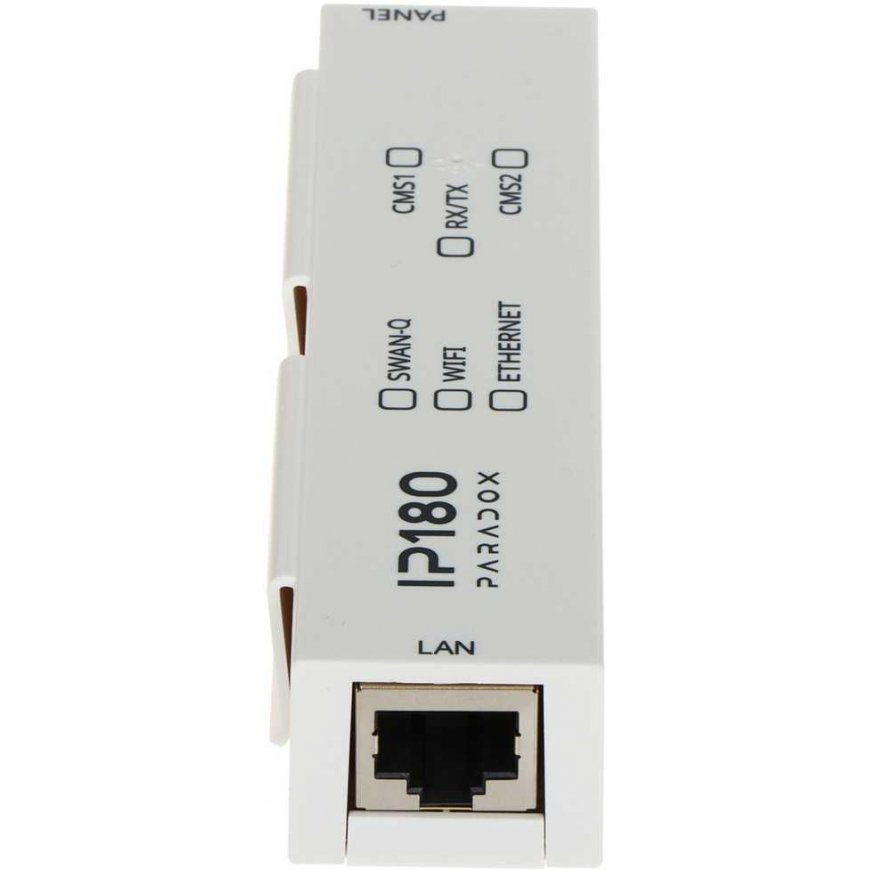

ETHERNET COMMUNICATION MODULE IP-180 PARADOX, LAN+WIFI, IP180
3698110 IP-180
5902887092749
Shipping 1-14 b.d.
The IP-180 Ethernet module is a device designed for use in intrusion alarms and monitoring purposes..
This device provides control of the PARADOX alarm system over the internet, using any chosen web browser or mobile application.
Dedicated to Digiplex EVO, Spectra SP, Magellan MG systems, it allows communication with BabyWare and the BlueEye user application.
It uses the MQTT communication protocol, which is characterized by high stability and reliability.
It is designed for communication between devices that do not require high bandwidth, and is ideal for telemetry or IoT building automation systems.
The IP-180 module can work wirelessly by connecting to a WiFi network, making installation much easier and requiring no additional wiring.

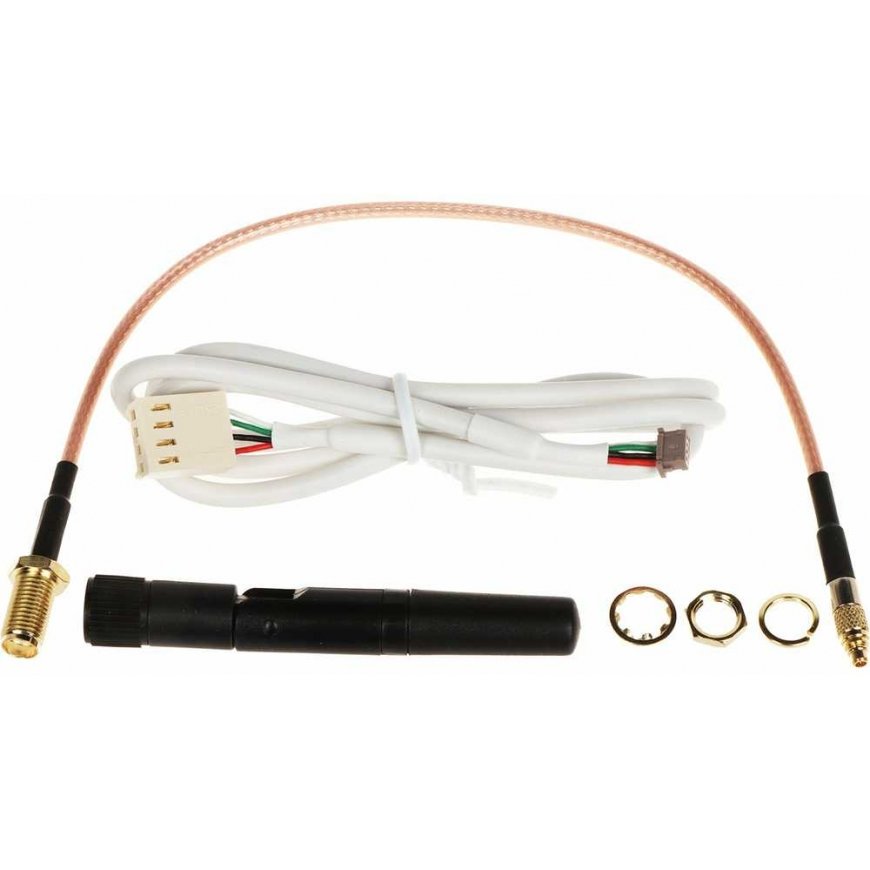

| Interface : | Ethernet 10/100 Mb/s port, 2.4 GHz WiFi IEEE 802.11 b/g/n - External antenna with SMA connector, 4-pin port |
| Selected features : | Support for Digiplex EVO HD+ / Spectra SP+ / Magellan MG+ panels > 2012, Remote system control using the BlueEye app, BabyWare 5.6.28, Infield 5.6.22, Collaboration with the SWAN server, Support for P2P connections, Compatible with the MQTT protocol, Notification to the monitoring station (for the IPC10 Paradox device), Supported formats: MLR2-DG, Ademco 685, Ability to notify BlueEye app users using push notifications, Automatic event notification via email, Email encryption support (AES 128-bit), Display of the current status of all lines and sections in the system, Ability to enable and disable system sections, Remote module firmware update |
| Power supply : | 10 ... 16.5 V DC - Powered from the alarm control panel via a serial bus |
| Current consumption : | max. 100 mA |
| Weight : | 0.04 kg |
| Dimensions : | 109 x 30 x 22 mm |
| Manufacturer / Brand : | PARADOX |
| Warranty : | 2 years |
