TST SINGLE-MODE MEDIA CONVERTER OM1-SM KIT TXRX
49,00 €
Monthly payment from 2.16 €
3686806 OM1-SM
5902887009150
Shipping 1-14 b.d.
You are interested in this product?

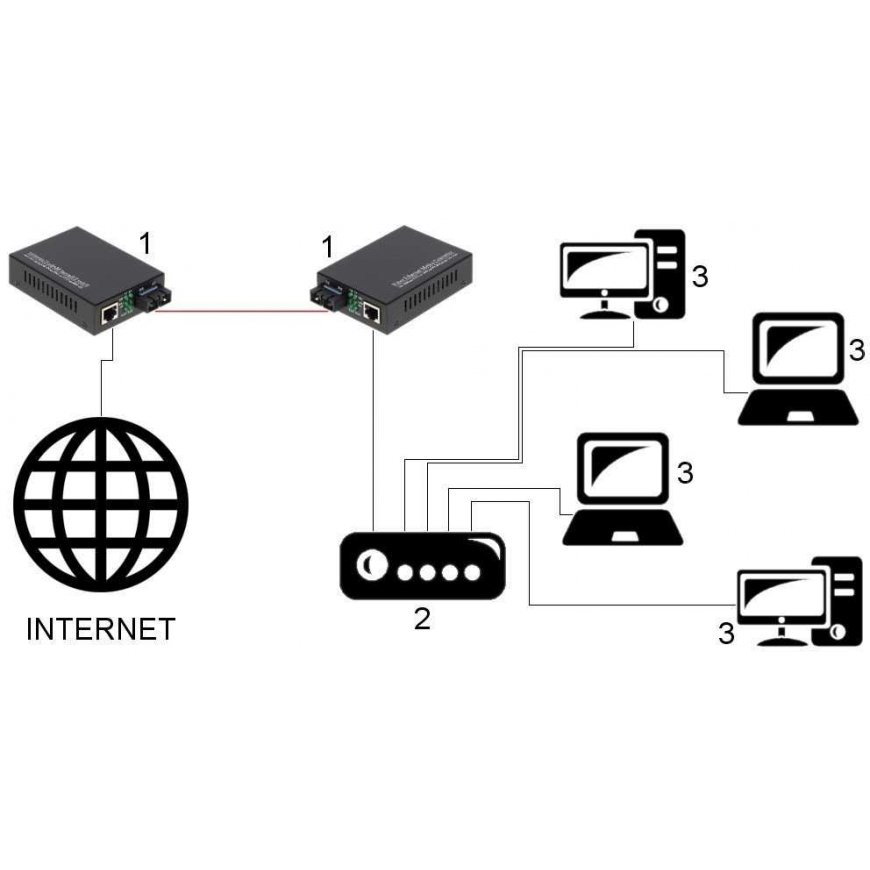

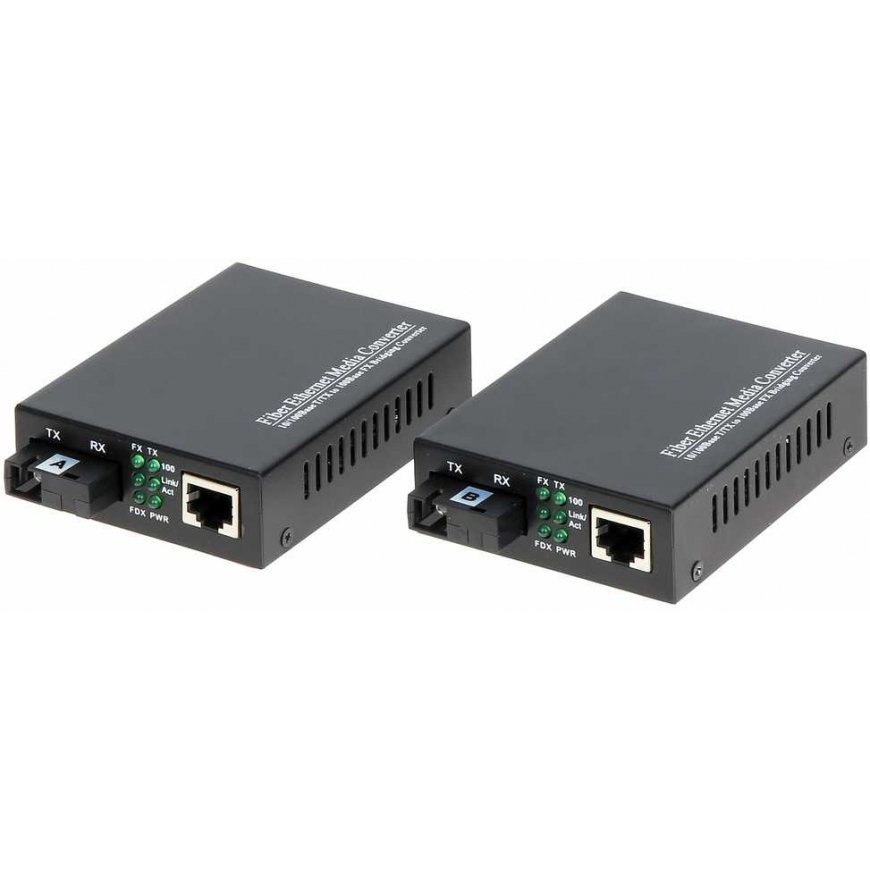

The OM1-SM converter provides data transmission conversion from standard STP/UTP wire to single-mode fiber optic cable.
The device has an SC connector, ensuring communication reliability.
The optical signal is transmitted and received in the II and III transmission windows at 1310/1550 nm.
| Optical connector type : | SC |
| Number of threads : | 1 pc. |
| Transmission distance : | 25 km - Single-mode fiber optic |
| Standards served : | IEEE 802.3, IEEE 802.3u |
| LAN port : | (RJ-45. UTP/STP) |
| Transmission speed : | 10/100Mbps |
| Optical wavelength : | 1550 / 1310nm |
| Main features : | Auto-detection MDI/MDI-X - automatically detects data transmission mode Automatic bandwidth detection Bidirectional transmission on a single fiber LED diodes indicating proper device operation WDM (Tx 1550nm / Rx 1310nm) |

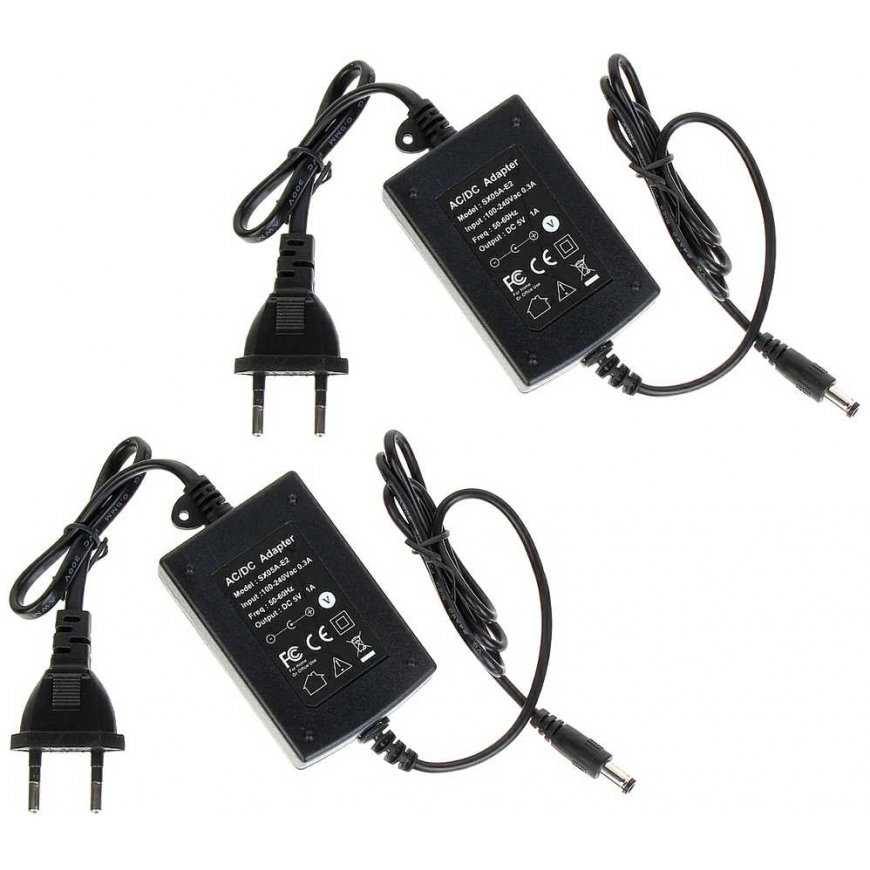

| Power supply : | 5 V DC / 1 A (power supply included) |
| Working temperature : | -10°C ... 50°C |
| Permissible relative ambient humidity : | 5% ... 95% |
| Weight : | 0.176 kg |
| Dimensions : | 120 x 72 x 27 mm |
| Warranty : | 2 years |
