The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

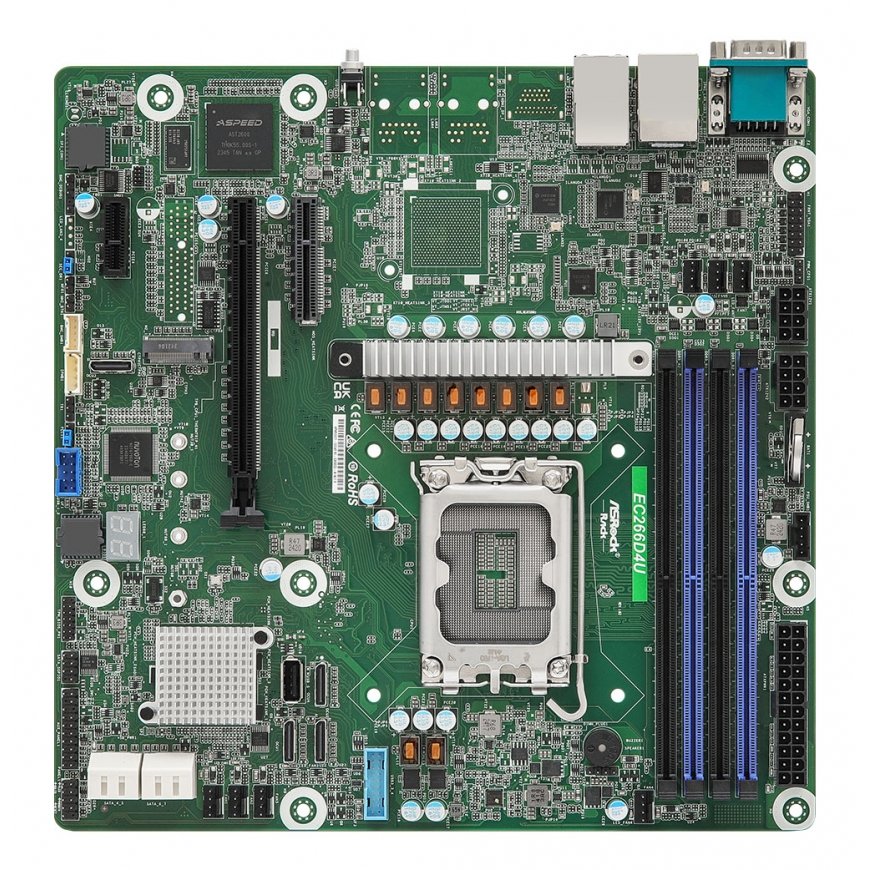

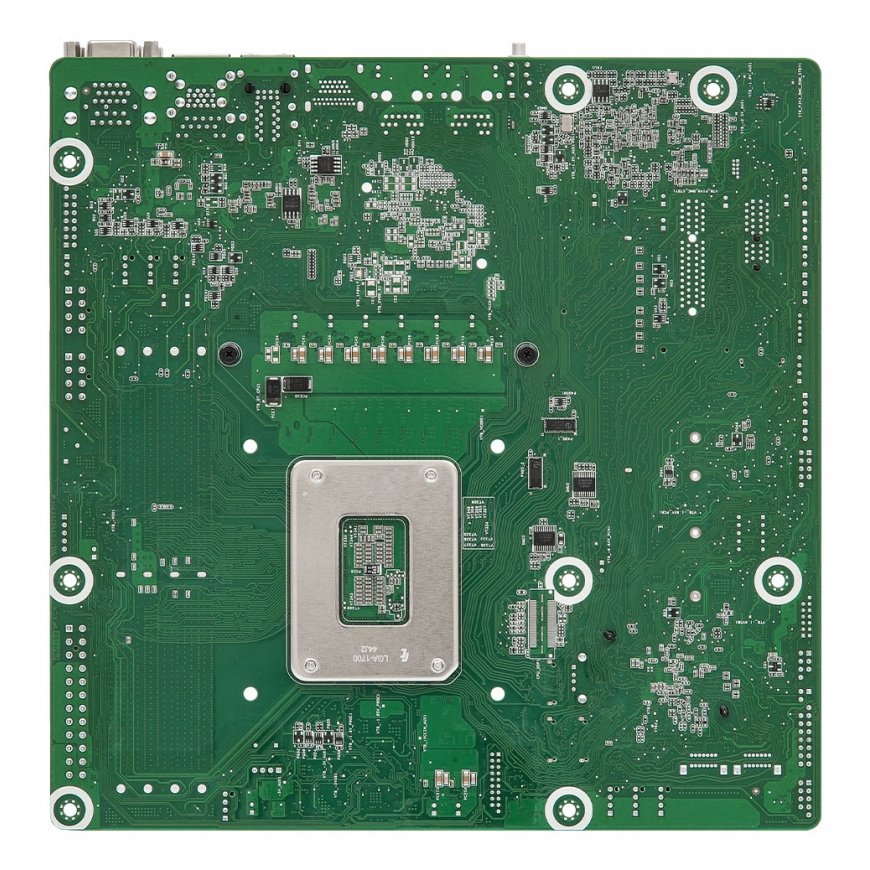

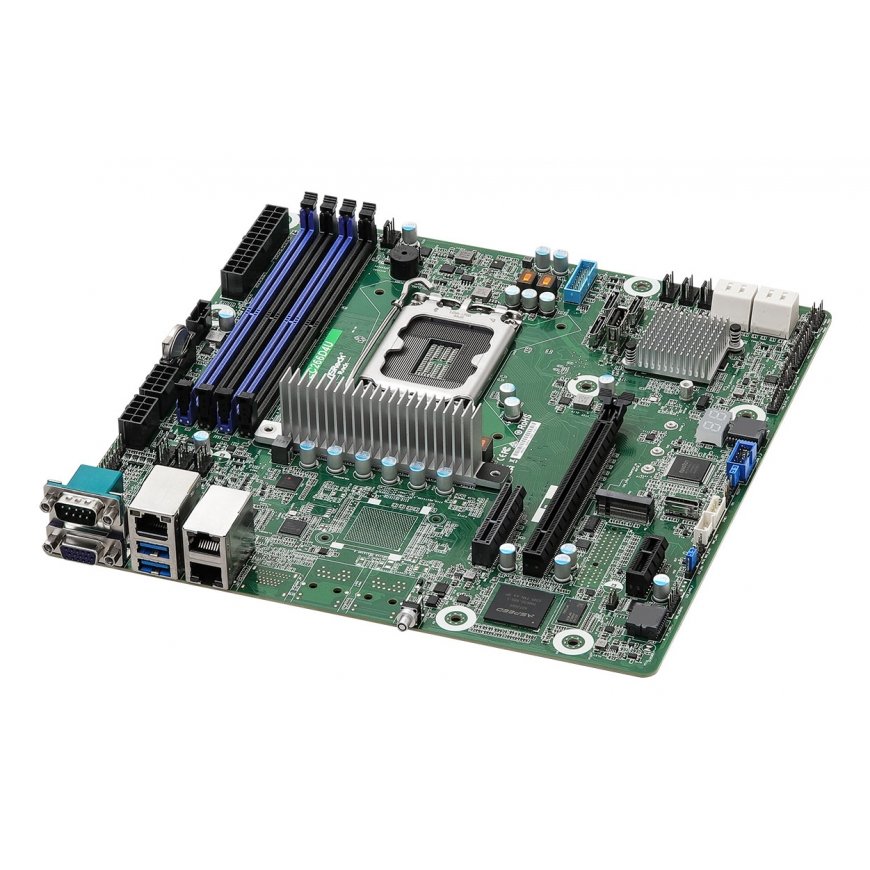

Asrock EC266D4U motherboard Intel C266 LGA 1700 micro ATX
379,01 €
369,01 €
Monthly payment from 10.40 €
3683666 EC266D4U
4711430523026
4-6 b.d.
You are interested in this product?
Processor | |
| Compatible processor series | Intel® Xeon®, Intel Xeon E, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Processor manufacturer | Intel |
Memory | |
| Maximum internal memory | 32 GB |
| Memory voltage | 1.1 V |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 4400 MHz |
| ECC сompatibility | ECC |
Graphics | |
| On-board graphics card model | Aspeed AST2600 |
Internal I/O | |
| USB 2.0 connectors | 3 |
| ATX Power connector (24-pin) | Yes |
| TPM connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 8 |

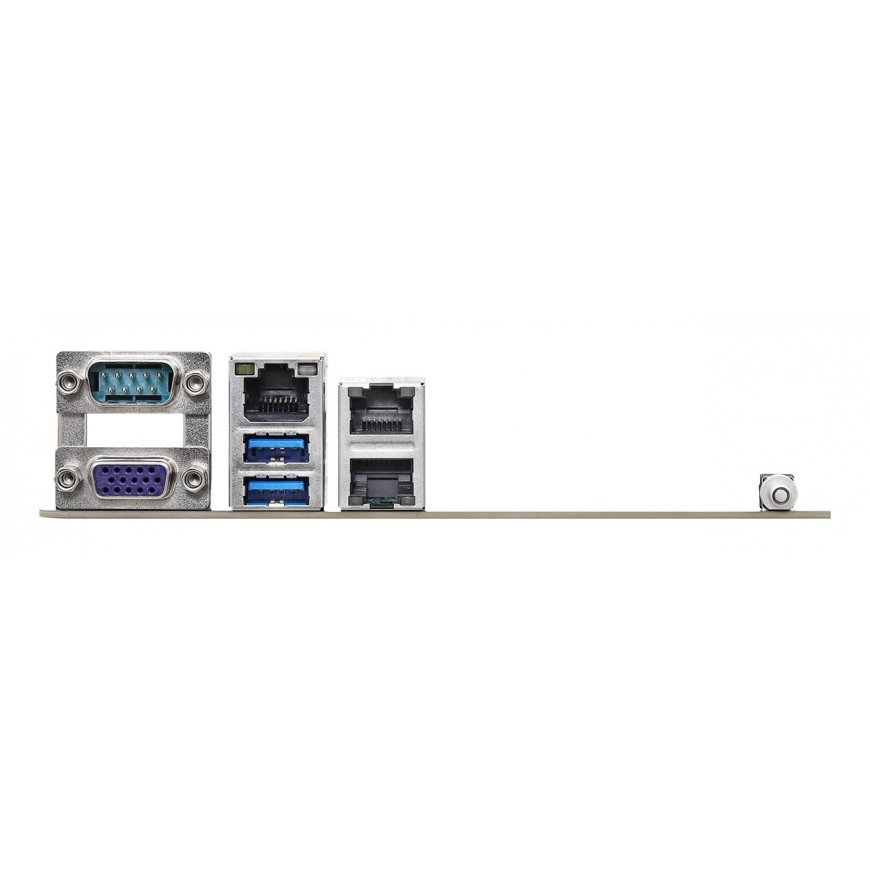

Rear panel I/O ports | |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Features | |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel C266 |
| Compatible operating systems | Microsoft® Windows:, Linux:, Hypervisor:, - Windows® Server 2022, - Azure Stack HCI, - RHEL 8.5, - SLES 15 SP3, - Ubuntu 21.04 LTS, - VMware ESXi 8.0 u1, - Linux KVM (Linux OSes), - Hyper-V (Windows® Server) |
| Motherboard chipset family | Intel |
| PC health monitoring | CPU, Fan |
Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express OCuLink connectors (NVMe support) | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
BIOS | |
| BIOS type | AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 2.8 |
Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
