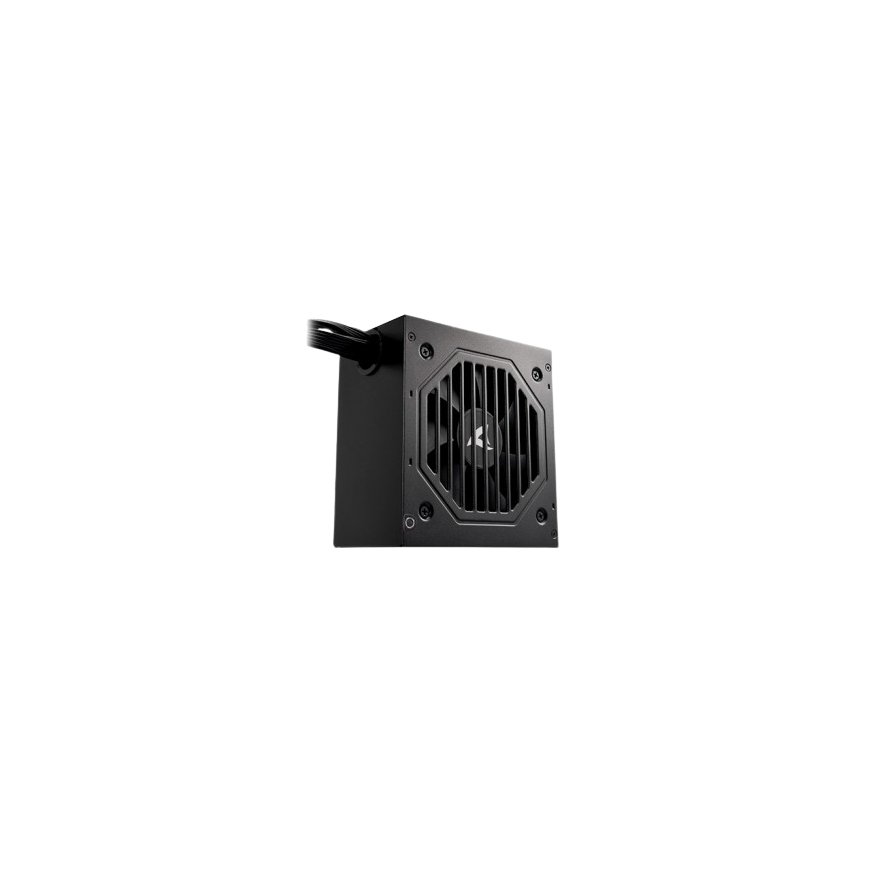

Sharkoon Rebel P10 power supply unit 750 W 24-pin ATX ATX Black

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Sharkoon Rebel P10 power supply unit 750 W 24-pin ATX ATX Black

89,53 €
Monthly payment from 3.21
3626590

4044951043750

4044951043750

This product is no longer in stock

You are interested in this product?
(Read terms of service)
Sharkoon Rebel P10. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 55 cm, Peripheral (Molex) power cable length: 480 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, Bearing technology: Sleeve. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
Power
Input current 9 / 4.5 A
Power protection features Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 750 W
Combined power (+12V) 100 W
Max output current (+3.3V) 18 A
Max output current (+5V) 18 A
Max output current (+5Vsb) 3 A
Max output current (-12V) 0.3 A
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Max output current (+12V1) 62.5 A
Total power 750 W
Number of +12V rail(s) 100
Performance
Mean time between failures (MTBF) 100000 h
ATX version 3.1
Purpose PC
80 PLUS certification No
Bearing technology Sleeve
Power supply unit (PSU) form factor ATX
Design
Product colour Black
Number of fans 1 fan(s)
Fan diameter 12 cm
Cooling type Active
On/off switch Yes
Ports & interfaces
ATX Power connector (24-pin) Yes
Number of SATA power connectors 5
CPU power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 4
Motherboard power connector 24-pin ATX
Cabling type Fully-Modular
PCI Express connector Yes
Motherboard power cable length 55 cm
Peripheral (Molex) power cable length 480 mm
PCI Express power cable length 56 cm
CPU power cable length 62 cm
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 1.66 kg
Width 140 mm
Depth 150 mm
Height 86 mm
Technical details
Sustainability certificates ErP
Packaging content
Cables included AC
Certificates
Certification CE, FCC, CB
