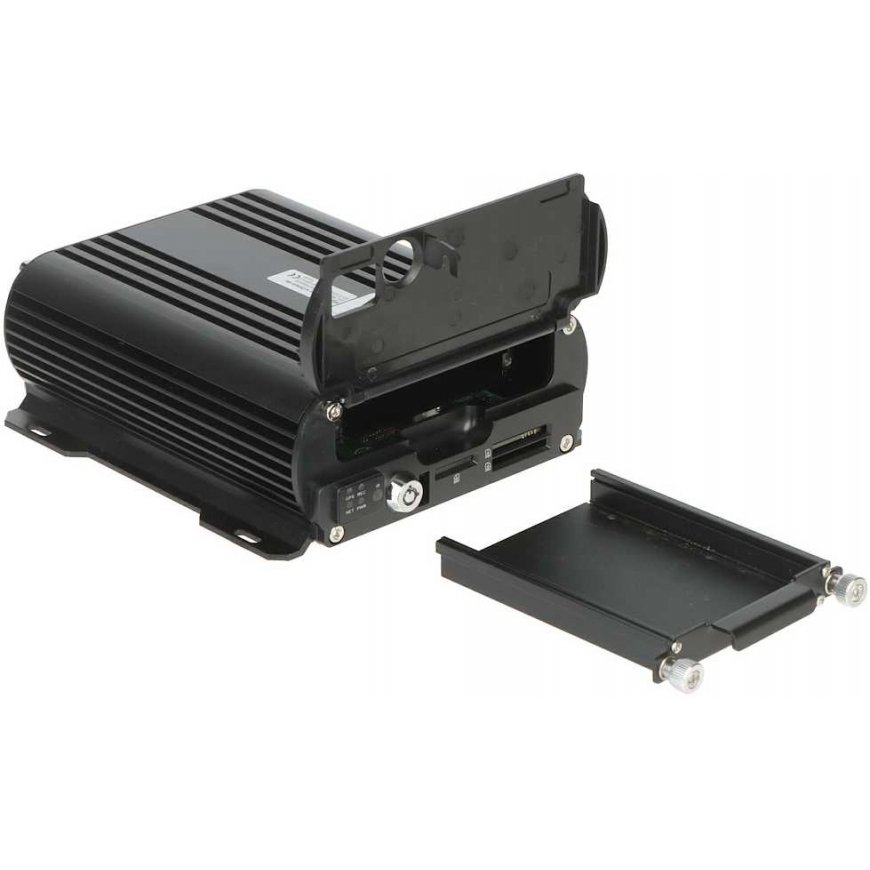

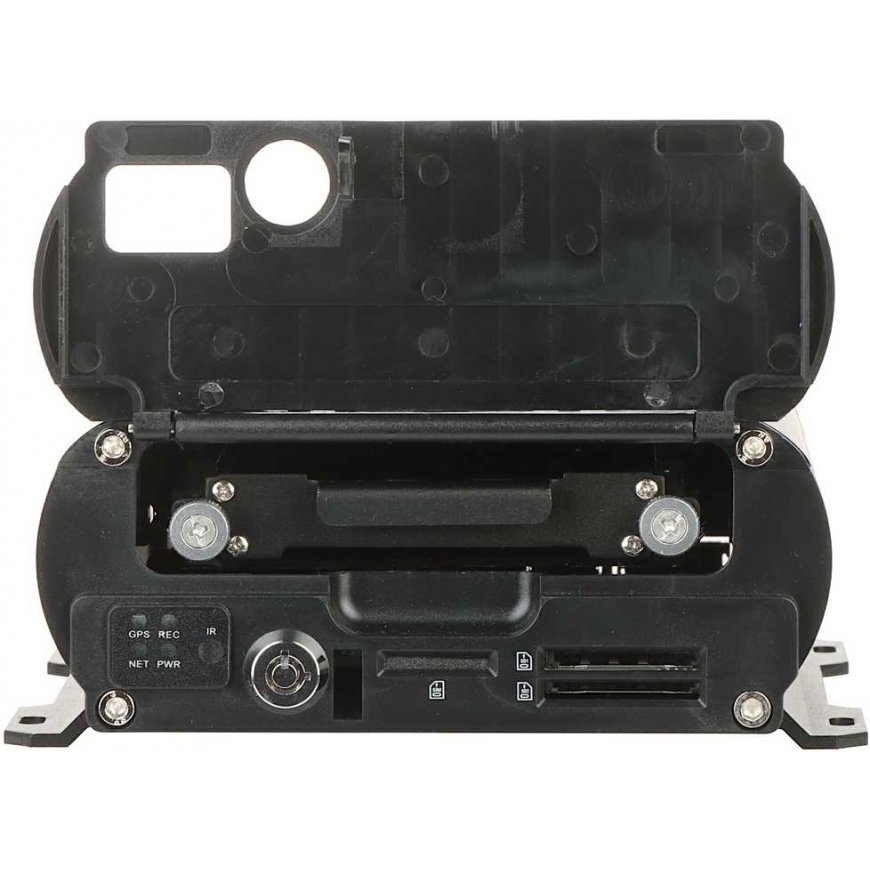

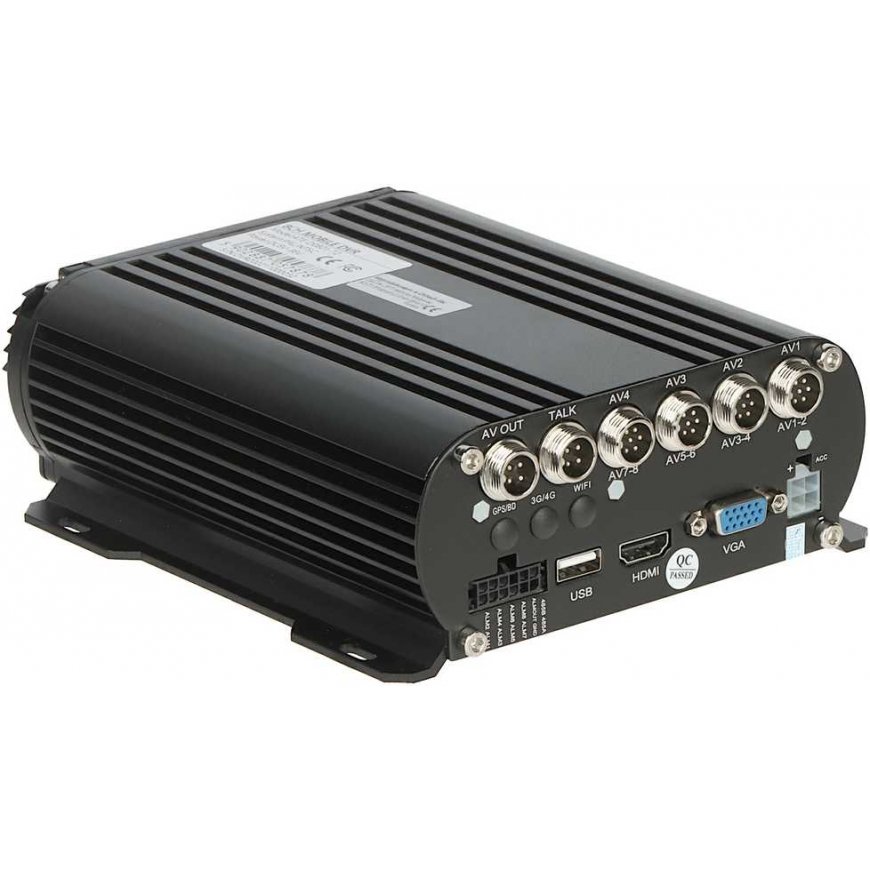

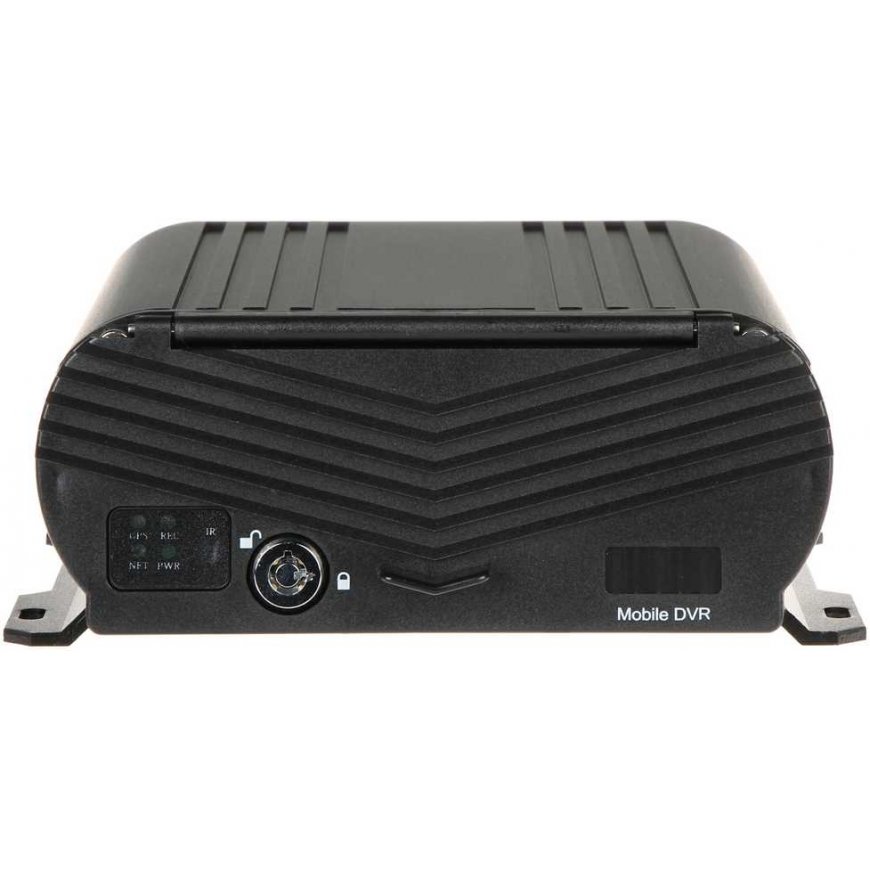

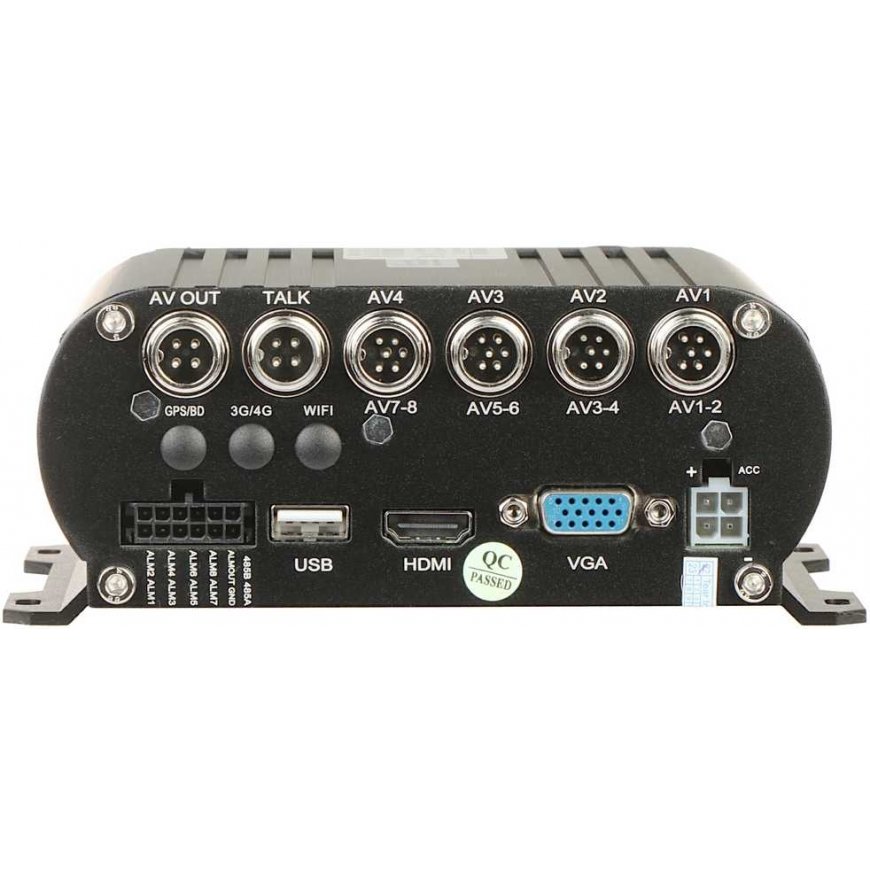

AHD MOBILE DVR ATE-D0801-T2 8 CHANNELS IN CAR
3617196 ATE-D0801-T2
5902887057878
This product is no longer in stock
ATE-D0801-T2 is a mobile recorder designed for installation in buses, city buses, coaches, trams, metro, corporate and private vehicles and special vehicles, i.e. trucks, police cars, prison or military vehicles, ambulances.
The equipment is specially designed to provide increased resistance to vibration and shock.
The recorder supports 2 SD cards with a capacity of 256 GB each.
Power cables ATE-D0801-T2 to the battery and the ignition system (analog like a radio) so that after turning the key the installation automatically starts recording audio-video.
| Standard : | AHD |
| Video inputs : | 8 pcs. M12, 4-pin plug, Code A - on cable |
| Video outputs : | 1 pc. CINCH - CVBS , 1 pc. VGA , 1 pc HDMI |
| Audio inputs : | 8 pcs. - Sound from the cameras |
| Audio outputs : | 1 pc. CINCH |
| Video recording resolution : | 960 x 1080 @ 25 fps , 1280 x 720 @ 25 fps , 720 x 576 @ 25 fps |
| Max memory card capacity : | 2 x 256GB SD/SDHC |
| Hard drives serviced : | 1 pc. 2.5 "- 2 TB SATA |
| Image compression method : | H.264 |
| Number of compression levels : | 7 |
| GPS : | - |
| Wi-Fi : | - |
| 3G/4G : | - |
| G-Sensor : | ✔ |
| SIM slot : | - |
| RS-485 : | ✔ |
| RS-232 : | - |
| Alarm inputs/outputs : | 8 / 1 |
| Power supply : | 8V ... 36V DC |
| Selected features : | Cameras are powered by 12V DC directly from the recorder Automatic recording when power is turned on Software update via USB/SD port |
| Working temperature : | -20°C ... 70°C |
| Weight : | 1.03 kg |
| Dimensions : | 183 x 149 x 59 mm |
| Manufacturer / Brand : | AUTONOMY |
| Warranty : | 2 years |
