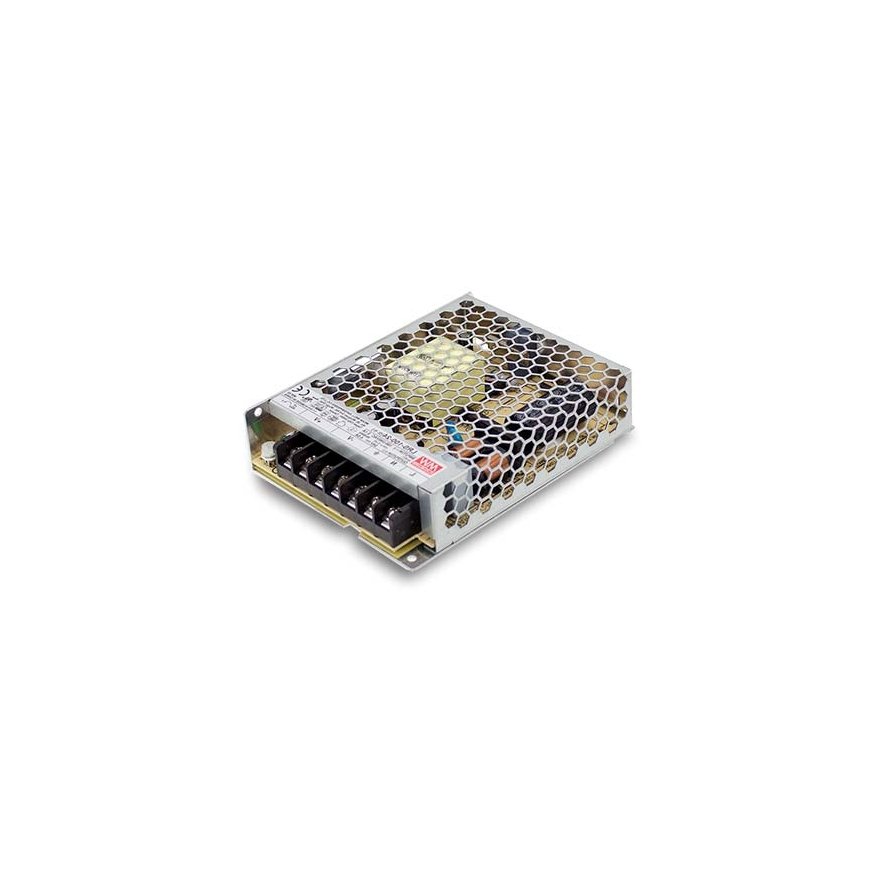

MEAN WELL LRS-100-24 power supply unit 108 W Metallic
34,45 €
34,28 €
3574183 LRS-100-24
5902887089978, 0608754595102, 1909071063459, 4021087027953, 5410329677008
Shipping 1-14 b.d.
You are interested in this product?
- Withstand 300VAC surge input for 5 second
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Miniature size and 1U low profile
- Compliance to IEC/EN 60335-1(PD3) and
- IEC/EN61558-1, 2-16 for household appliances
- Operating altitude up to 5000 meters (Note.7)
- Withstand 5G vibration test
- LED indicator for power on
- No load power consumption<0.3W
- Over voltage category III
- 100% full load burn-in test
- High operating temperature up to 70°C
- High efficiency, long life and high reliability
Power | |
| Hold time | 55 ms |
| Efficiency | 90% |
| Input current | 1.2 - 1.9 A |
| Power protection features | Overload, Over voltage |
| AC input voltage | 85 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Total power | 108 W |
Performance | |
| Mean time between failures (MTBF) | 720600 h |
Design | |
| LED indicators | Yes |
| Product colour | Metallic |
Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions | |
| Weight | 340 g |
| Width | 97 mm |
| Depth | 129 mm |
| Height | 30 mm |
Other features | |
| Rise time | 500 ms |
Safety regulation & standards | |
| Safety | UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1 /- 2 - 16 |
