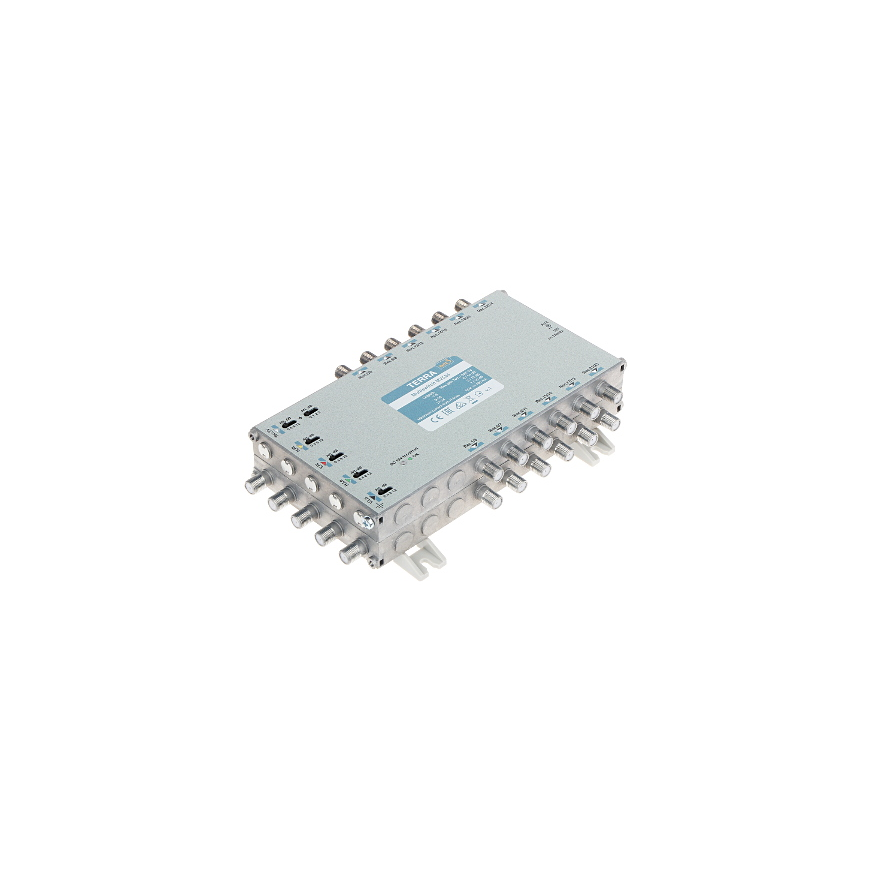

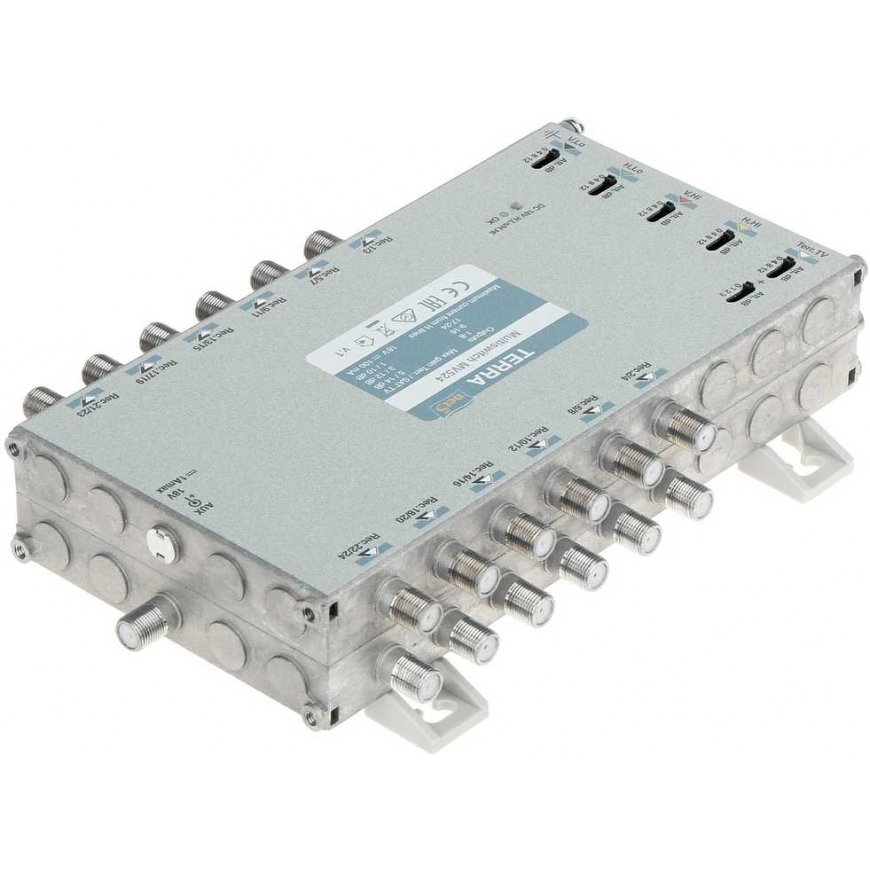

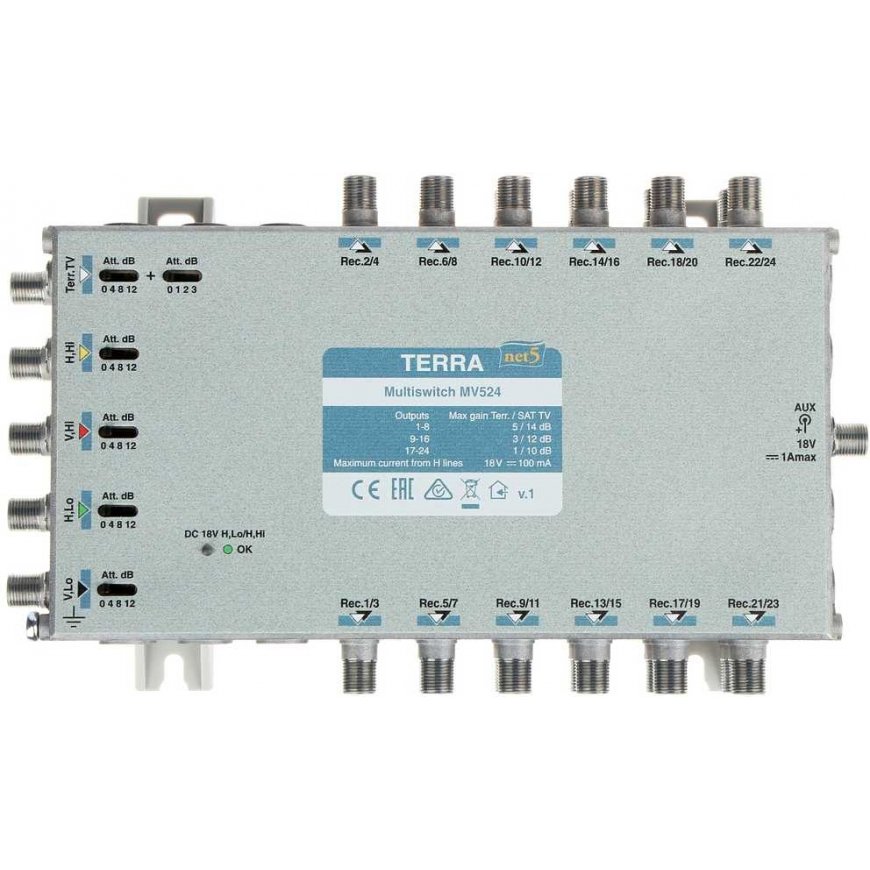

Terra MV- 524 5 UNITS / 24 EXTERNAL TERRAS
429,00 €
419,00 €
Monthly payment from 11.69 €
3569414 MV-524
5907634594651
Shipping 1-14 b.d.
You are interested in this product?
| Inputs : | 4x 950MHz ... 2400MHz, 1x 47 MHz ... 862 MHz - Active |
| Outputs : | 24x 47MHz ... 2400MHz |
| Switching signals : | 14V / 18V 0Hz / 22kHz |
| SAT amplification (cable correction) : | 3 ... 14 dB |
| TV amplification (cable pre-correction) : | -3 ... 5 dB |
| Gain adjustment SAT : | 12 dB step every (*4 dB*) |
| Gain adjustment TV : | 15 dB step every (*1 dB*) |
| Separation : | |
| Maximum output level SAT : | 105 dBµV |
| Maximum output level TV : | 82 ... 86 dBµV |
| Preamplifier power supply : |  |
| Power supply : | Inputs HL/HH Power supply 18 V DC / 1 A (not included) |
| Dimensions : | 227 x 135 x 50 mm |
| Weight : | 1.3 kg |
| Manufacturer / Brand : | TERRA |
| Warranty : | 2 years |
