SLIDING GATE DRIVE FAAC-844/KIT - STARTER KIT
2 629,00 €
2 599,00 €
Monthly payment from 67.82 €
3562296 22120
8055195003390
Shipping 1-14 b.d.
You are interested in this product?

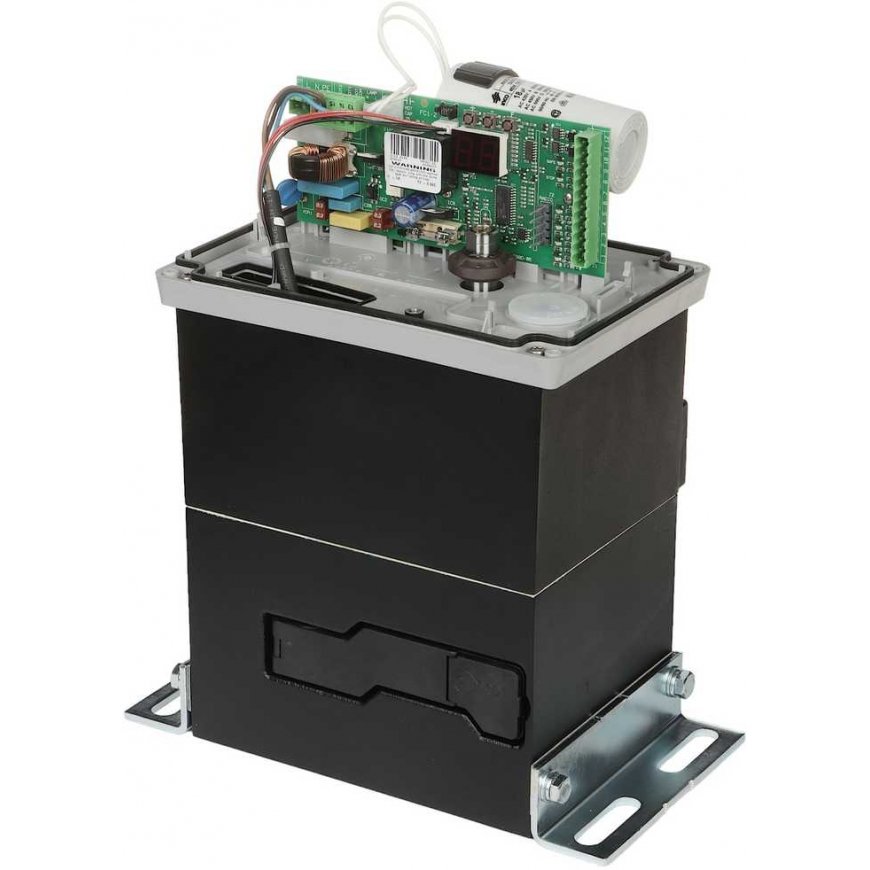

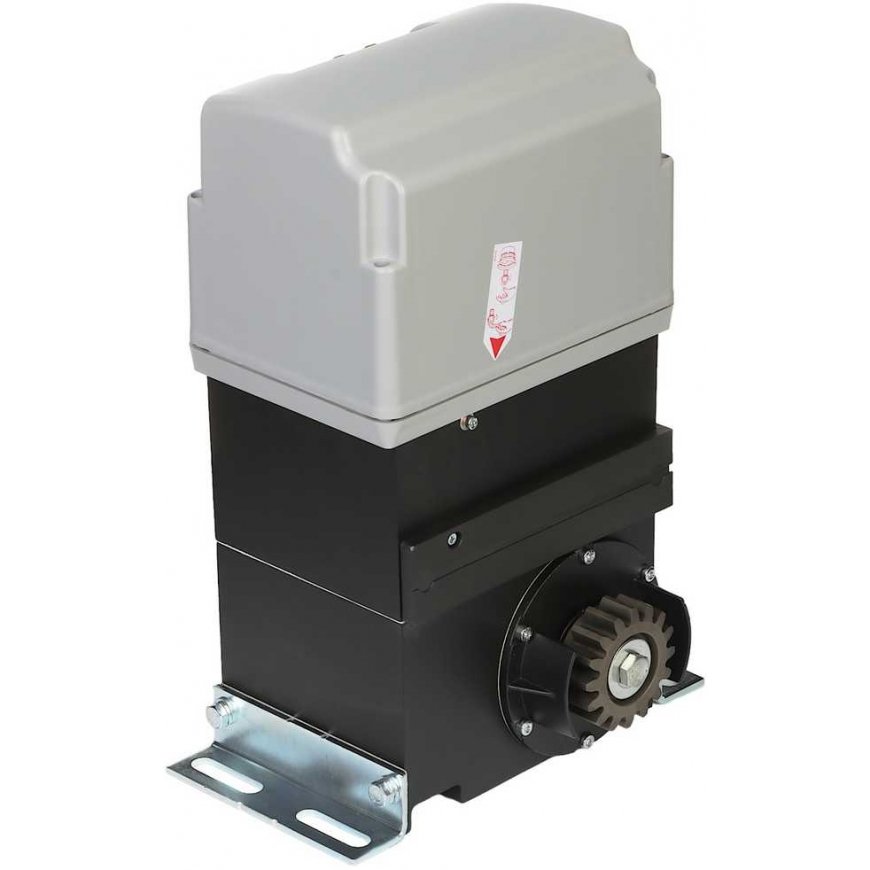

The FAAC-844/KIT electromechanical drive is designed to work with sliding gates weighing up to 1800 kg.
Thanks to many technological improvements, the device is safe and convenient to use.
The drive is maximally protected against crushing due to the use of a double-disc clutch immersed in an oil bath and an incremental magnetic encoder.
Thanks to the built-in overload protection, when a collision with an obstacle is detected during closing, the drive will immediately stop and then open the gate.
The automatic closing function allows you to set a time for full opening, after which the gate will close automatically.
In addition, the drive automatically locks when the drive is complete, preventing the gate from being opened manually.
For this reason, there is no need to use additional devices to protect the gate from opening.

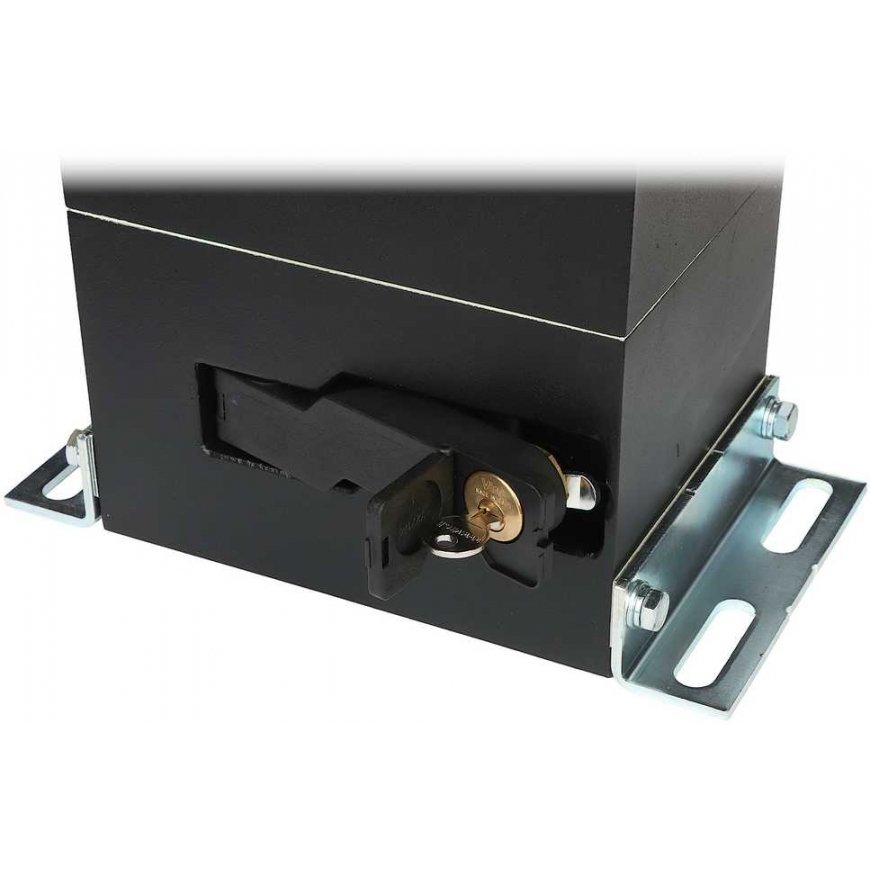

In the event of an emergency or power failure, the lock can be released manually using a key.

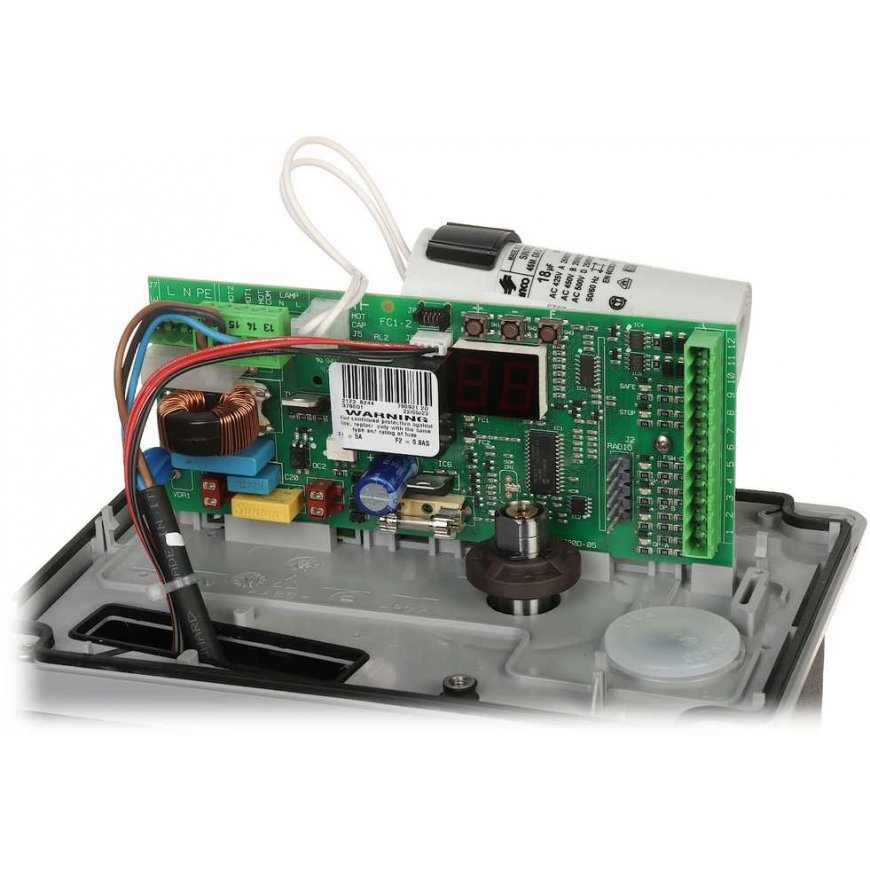

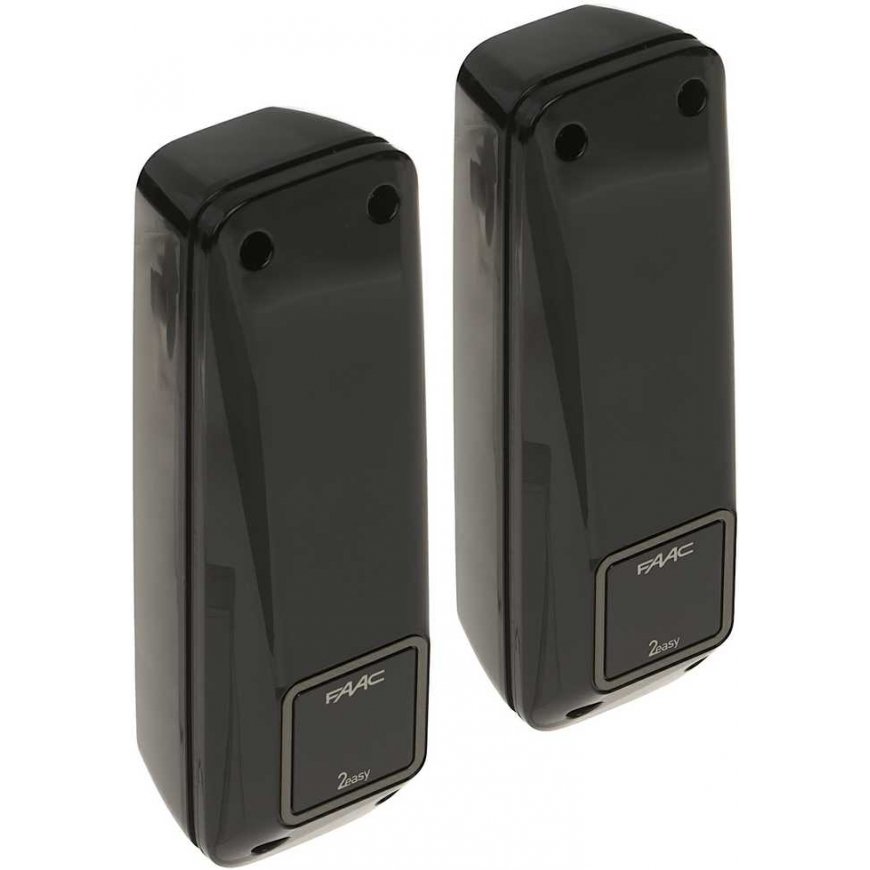

The set includes: drive - model 844 ER Z16 with built-in controller 780D, photocell set XP20D. (pair transmitter + receiver), radio communication module RP2, radio remote control XT4 and necessary accessories and covers.
| Gate drive type : | Mechanical, For sliding gates - Starter kit |
| Torque : | 37 Nm (max) |
| Maximum pulling force : | 1160 N |
| Engine type : | Asynchronous single-phase motor, 230 V AC |
| Maximum gate weight : | 1800 kg |
| Maximum gate length : | 40 years |
| Linear speed : | 9.5 m/min (max) |
| Automatic gate closing : | ✔ |
| Automatic drive lock : | ✔ |
| Limit switch : | ✔ |
| It is possible to connect a photocell : | ✔ |
| It is possible to connect a signal lamp : | ✔ |
| Maximum number of programmed pilots : | 250 Channels |
| Wireless transmission distance : | ≥ 50 m (in open space) |
| Frequency band of working systems : | 868.35 MHz |
| Main features : | Power adjustment via double-disc clutch immersed in oil bath and control unit (50 levels) Gear Z16 M4 |
| Power supply : | 220 ... 240 V AC , 50 / 60 Hz |
| Body : | Plastic |
| Tightness class : | IP44 |
| Color : | Light gray + Black |
| Working temperature : | -20°C ... 55°C |
| Weight : | 15.8 kg |
| Dimensions : | 277 x 155 x 388 mm |
| Manufacturer / Brand : | FAAC |
| Warranty : | 2 years |
