Schneider Electric ELECTROMAGNETIC LOCK DT-1200AZ
3562137 DT-1200AZ
5902887074189
Shipping 1-14 b.d.
Inlet solenoid single valve.
Due to its simple design and modern production technologies, it is a reliable device for blocking doors and gates.
Forcing a barrier locked with a blocker requires > 1200 kg of force.
Operation is reversible - open in the absence of supply voltage.

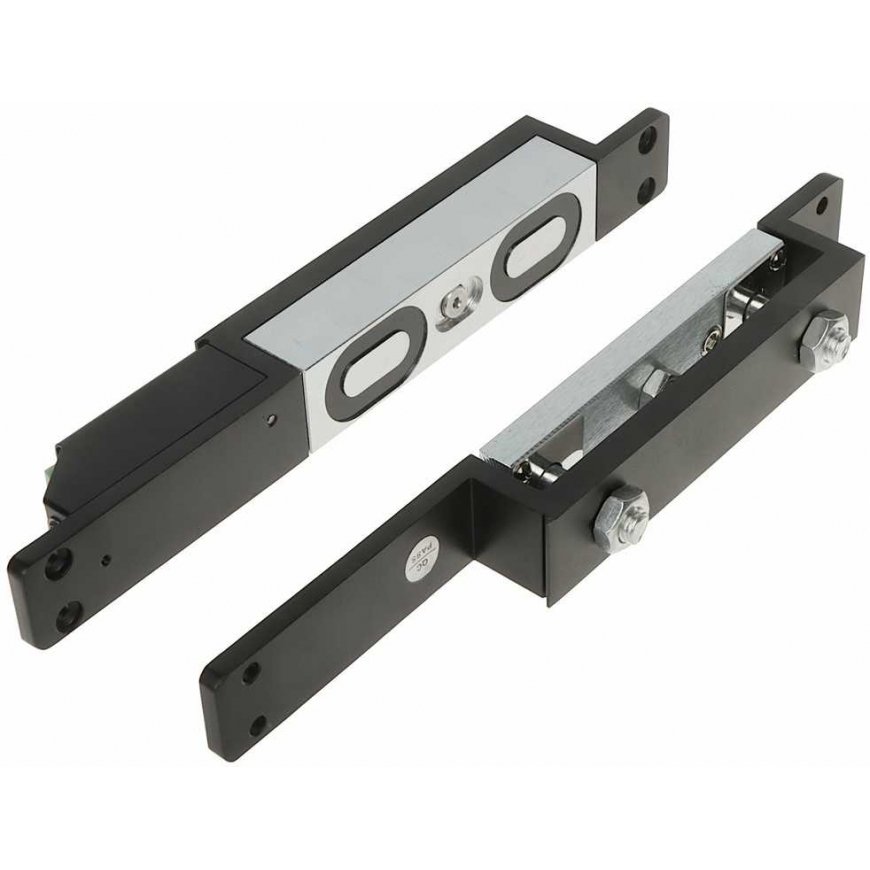

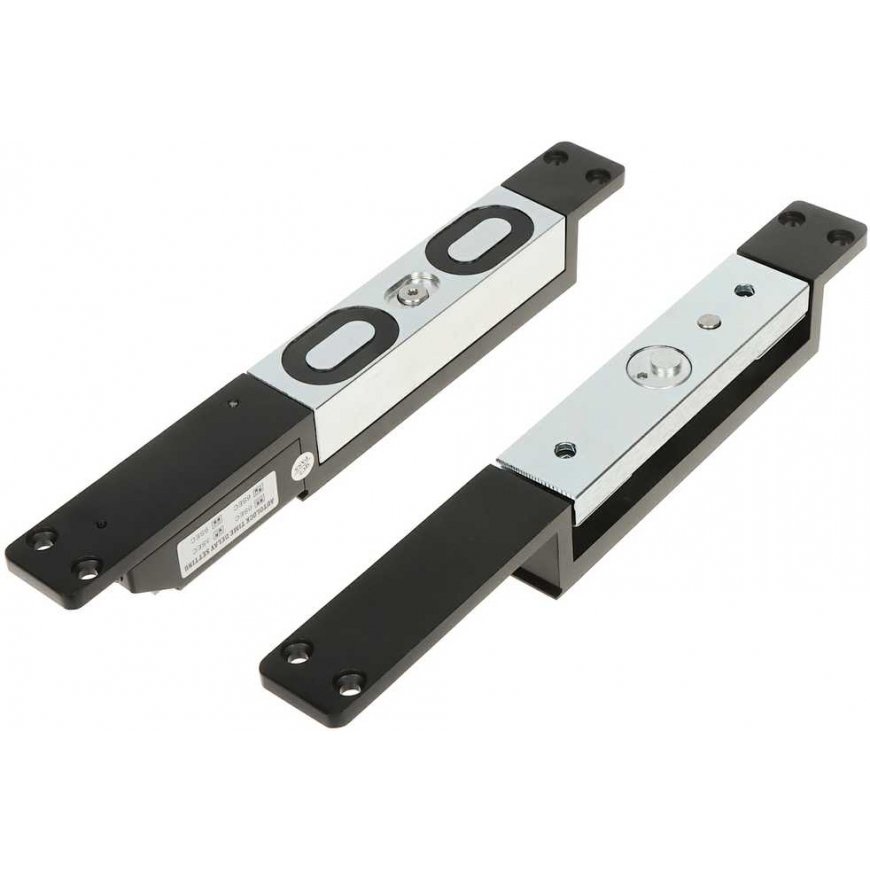

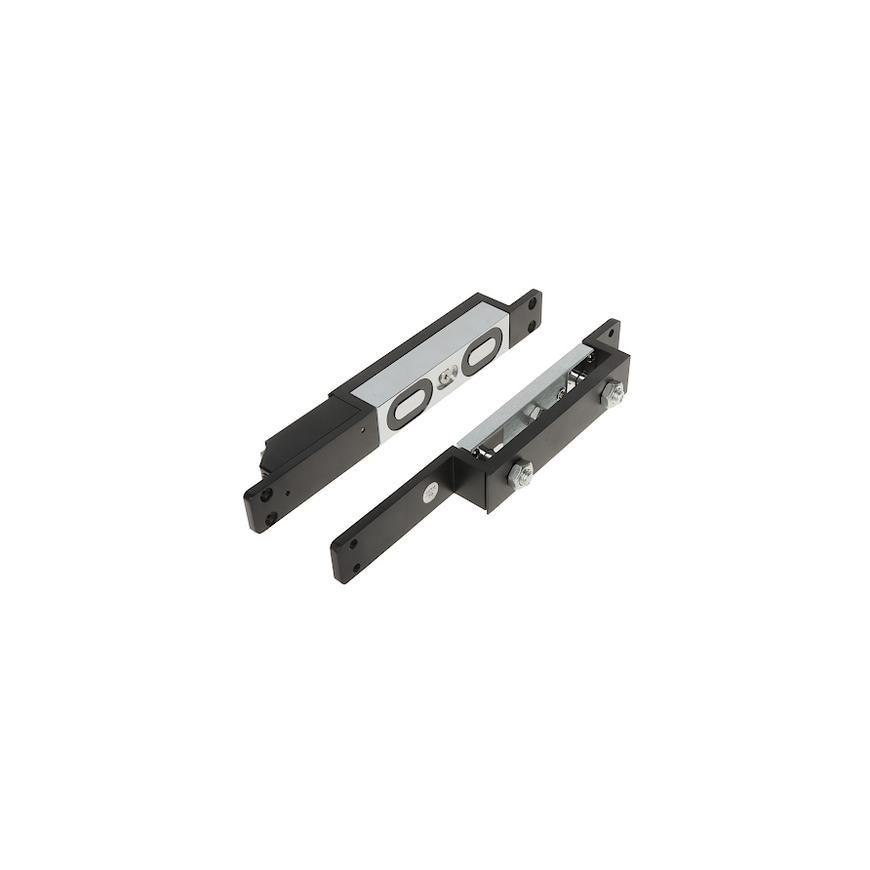

The lock consists of two elements: an electromagnet and a lock plate.
Both the electromagnet and the lock plate should be inserted into the door structure - after installation they are invisible.
The trouble-free operation of the blocker is ensured by the absence of mechanical parts that wear out after a certain period of time.
The device is intended for outdoor use.
| Holding power : | 1200 kg |
| Nominal voltage : | 12V DC / 24V DC |
| Current consumption : | 1.8 A / 0.9 A - initial 450 mA / 225 mA - continuous |
| Main features : | Internal flush mounting Configurable opening delay : 0 / 3 / 6 / 9 s - Set by DIP switches NO/NC output signaling door opening Maximum distance between the electromagnet and the lock plate : 3 mm |
| Weight : | 1.39 kg (total) |

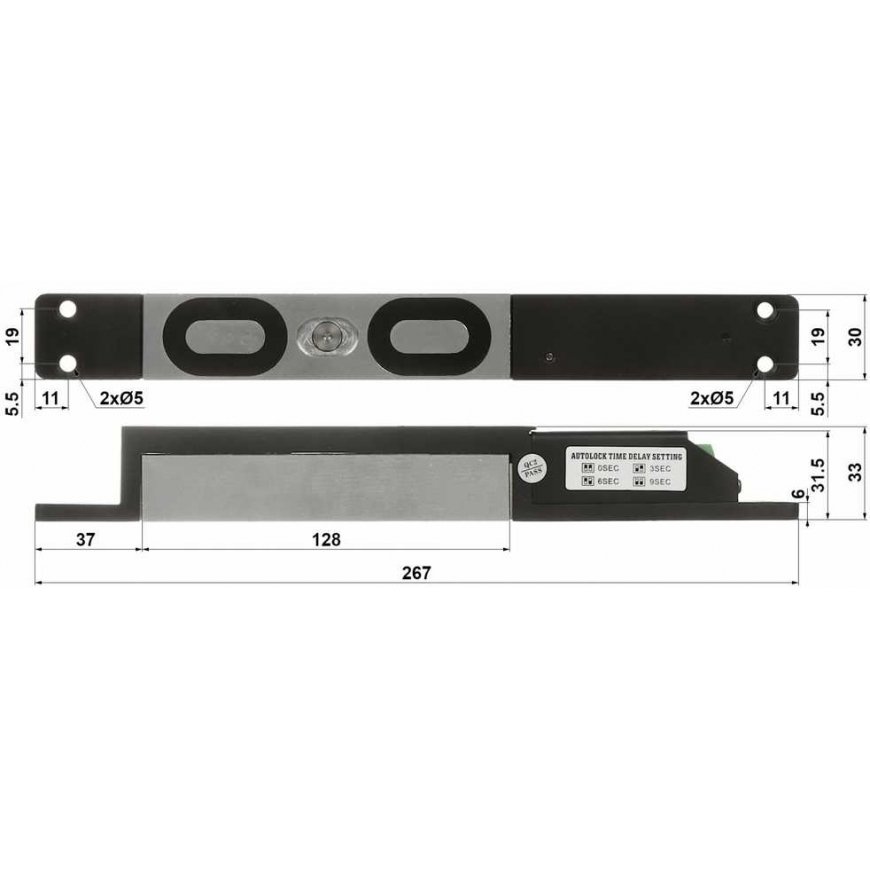

| Dimensions : | 268 x 35 x 31 mm (ELECTROMAGNETIC LOCK) 268 x 35 x 31 mm (Metal plate) |
| Warranty : | 2 years |
