IP CAMERA IPC3618SB-ADF28KMC-I0 - 8.3 Mpx 4K UHD 2.8 mm UNIVIEW
IP CAMERA IPC3618SB-ADF28KMC-I0 - 8.3 Mpx 4K UHD 2.8 mm UNIVIEW
IP CAMERA IPC3618SB-ADF28KMC-I0 - 8.3 Mpx 4K UHD 2.8 mm UNIVIEW
IP CAMERA IPC3618SB-ADF28KMC-I0 - 8.3 Mpx 4K UHD 2.8 mm UNIVIEW
IP CAMERA IPC3618SB-ADF28KMC-I0 - 8.3 Mpx 4K UHD 2.8 mm UNIVIEW

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

IP CAMERA IPC3618SB-ADF28KMC-I0 - 8.3 Mpx 4K UHD 2.8 mm UNIVIEW

379,01 €
Monthly payment from 10.66
3561241

IPC3618SB-ADF28KMC-I0

6970333409525

This product is no longer in stock

You are interested in this product?
(Read terms of service)

IP camera with efficient Ultra 265 video compression algorithm, ensuring clean and smoother video transmission with maximum 3840 x 2160 - 4K resolution.

Thanks to the PoE power supply capability according to the 802.3af standard, the device is even more versatile and easier to install.

The coverage of the illuminator specified by the manufacturer depends on environmental conditions (air transparency, environment, wall color, i.e., the so-called scene reflection coefficient).

The camera features Tri-Guard technology, which provides bright, color images even at night, and also has an active audio-visual deterrent function with AL artificial intelligence functions.

Standard : TCP/IP
Sensor : 1/2.8 " Progressive Scan CMOS
Matrix size : 8.3 Mpx
Resolution : 3840 x 2160 - 8.3 Mpx 4K UHD ,
3072 x 1728 - 5.3 Mpx ,
2560 x 1440 - 3.7 Mpx ,
1920x1080 - 1080p
Lens : 2.8 mm
Viewing angle : 107 ° (manufacturer's data)
93° (our tests)
IR illuminator coverage : 30 years
White LED illuminator coverage : 30 years
Signal/noise ratio (S/N) : > 56 dB

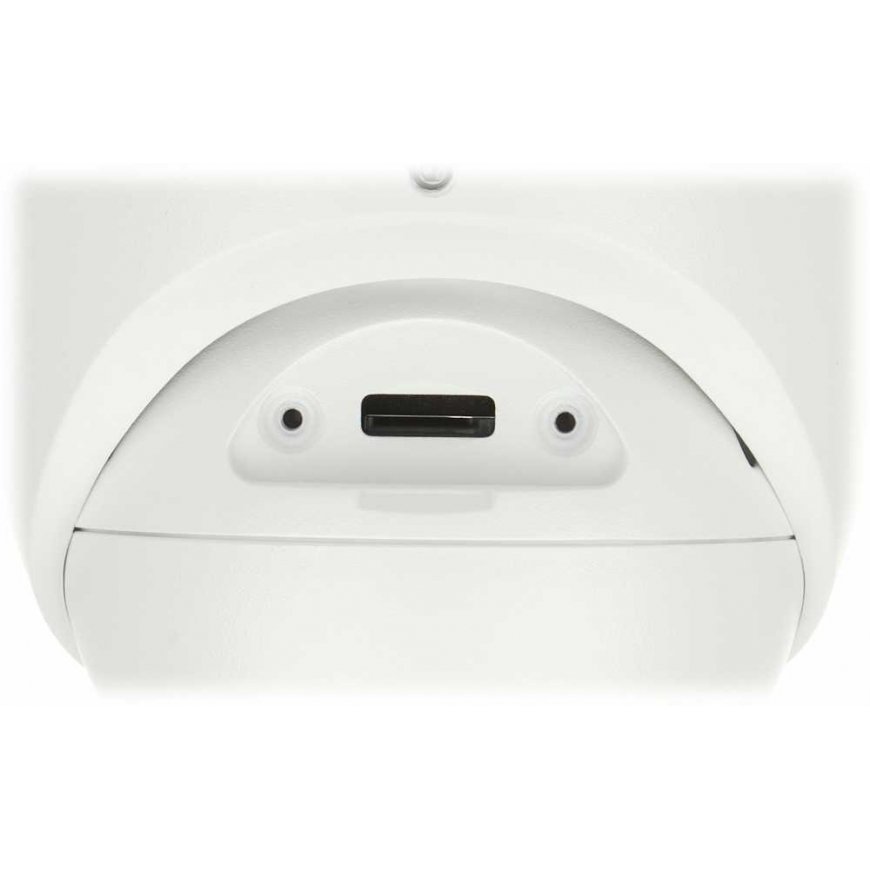

Memory card slot : Support for Micro SD cards up to 256GB (local recording possible)
Image compression method : Ultra 265 / H.265 / H.264 / MJPEG
Alarm inputs/outputs : -
Audio : Integrated microphone,
Integrated speaker,
Audio transmission over the network,
Support for bidirectional audio streaming,
Sound detection
Main stream transmission speed : 20 fps @ 8.3 Mpx
25 fps @ 5.3 Mpx
Network interface : 10/100 Base-T (RJ-45)
WEB Server : Integrated
Max. number of online users : 32
ONVIF :
Access from mobile phone : Cloud access (P2P)
Android: Free app EZView
iOS (iPhone): Free app
Default IP address : DHCP or 192.168.1.13
Default user image/admin password : admin / 123456
Access ports via www : 80, 554
Access port via program to PC : Port: 80 or cloud access - PC: Free program
Access ports via mobile app : 80
ONVIF port : 80
RTSP URL : rtsp://192.168.1.13:554/unicast/c1/s0/live - Main stream
rtsp://192.168.1.13:554/unicast/c1/s1/live - Auxiliary stream
Selected features : WDR - 120 dB - Wide Dynamic Range
2D-DNR, 3D-DNR - Digital image noise reduction
F-DNR (Defog) - Reduction of noise associated with atmospheric precipitation
ROI – improving the quality of selected fragments of an image
ANR - saving video to the card when there is no connection to the player (network crash) and later synchronization
NAS - Network Attached Storage Service
BLC/HLC - Backlight/Highlight Compensation
Ability to change resolution, quality and bandwidth
Mirror - mirror image
Privacy zones - max. 4
Motion detection with human silhouette/vehicle recognition
Sharpness - sharpening image contours
Corridor mode - useful for monitoring corridors, entrance gates and narrow spaces
Advanced video analytics: line crossing , intrusion , area entry/exit detection, face detection , people counting , crowd size estimation
Power supply : PoE (802.3af) ,
12V DC / 660mA
Power consumption : ≤ 8W
Body : Dome, Metal
Color : White
Tightness class : IP67
Anti-vandal : -
Working temperature : -30°C ... 60°C
Weight : 0.49 kg

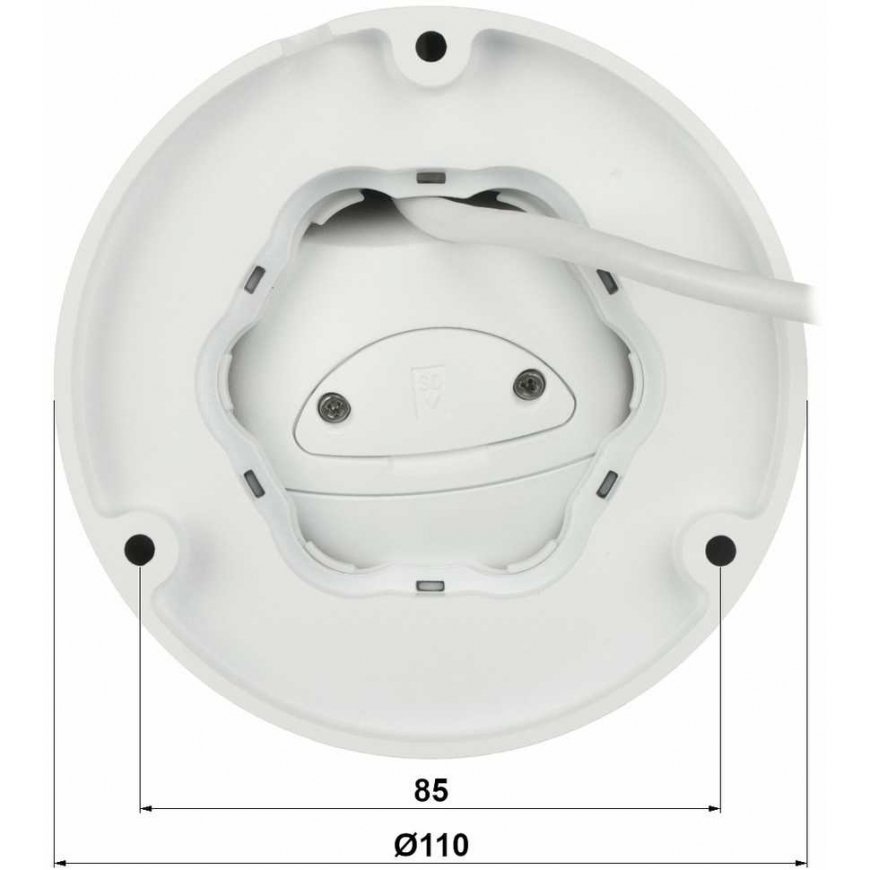

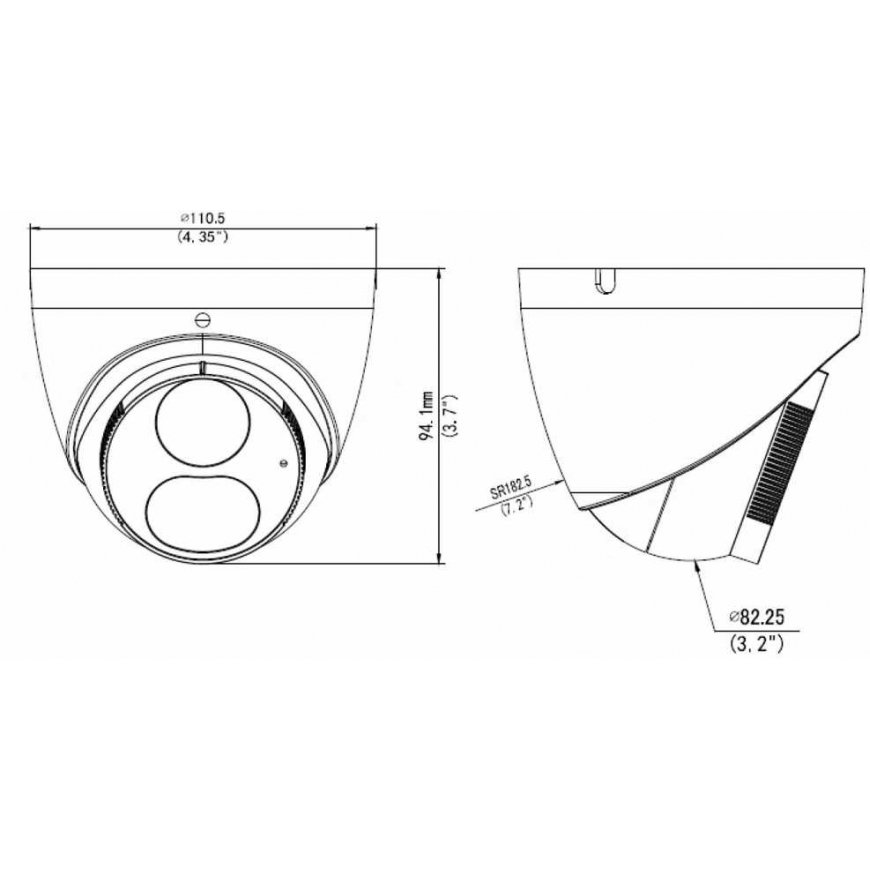

Dimensions : Ø 111 x 95 mm
Languages supported : Polish, English, Czech, Spanish, Dutch, French, German, Portuguese, Slovak, Hungarian, Italian
Manufacturer / Brand : UNIVIEW
Warranty : 3 years

Camera image under artificial lighting (approx. 30 Lux)

ip-camera-ipc3618sb-adf28kmc-i0-83-mpx

Camera view at night with integrated LED light

ip-camera-ipc3618sb-adf28kmc-i0-83-mpx

Camera image at night with integrated IR illuminator

ip-camera-ipc3618sb-adf28kmc-i0-83-mpx

Image from the camera with strong light shining directly at it

ip-camera-ipc3618sb-adf28kmc-i0-83-mpx

Data sheet EN

Quick Start Guide EN

Instruction EN
