BUFFERED PULSE POWER ADAPTER AWZ-637 FOR ACCESS CONTROLLERS DAHUA ASC PULSAR
339,00 €
189,00 €
Monthly payment from 5.77 €
3555566 AWZ-637
5902135316443
Shipping 1-14 b.d.
You are interested in this product?

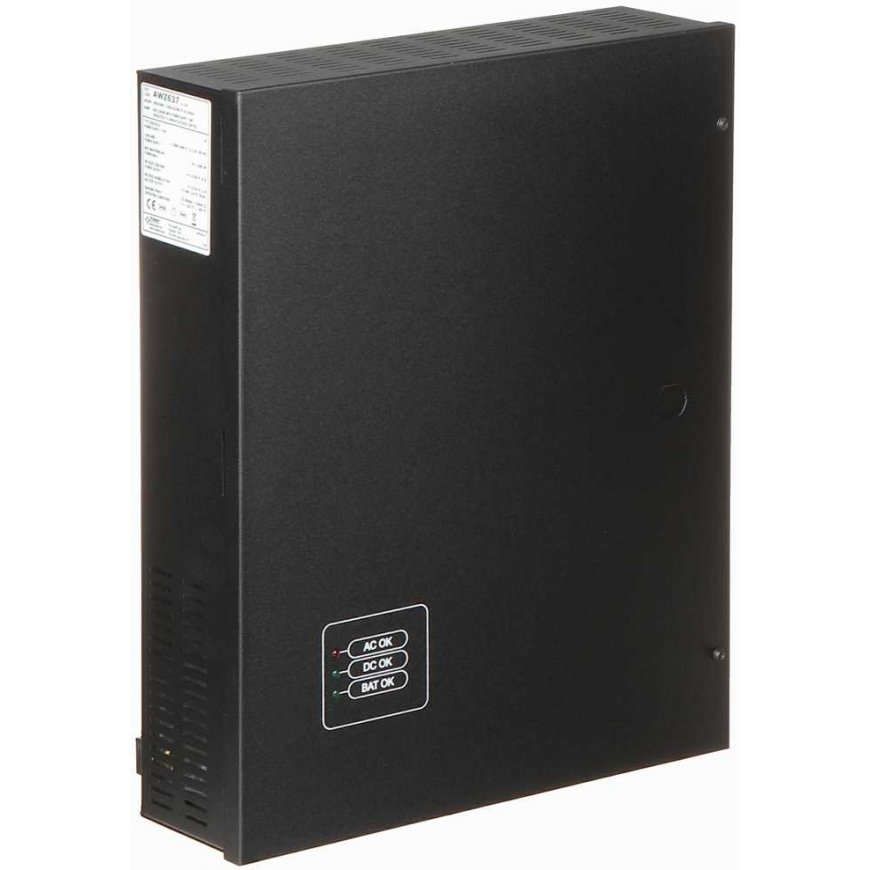

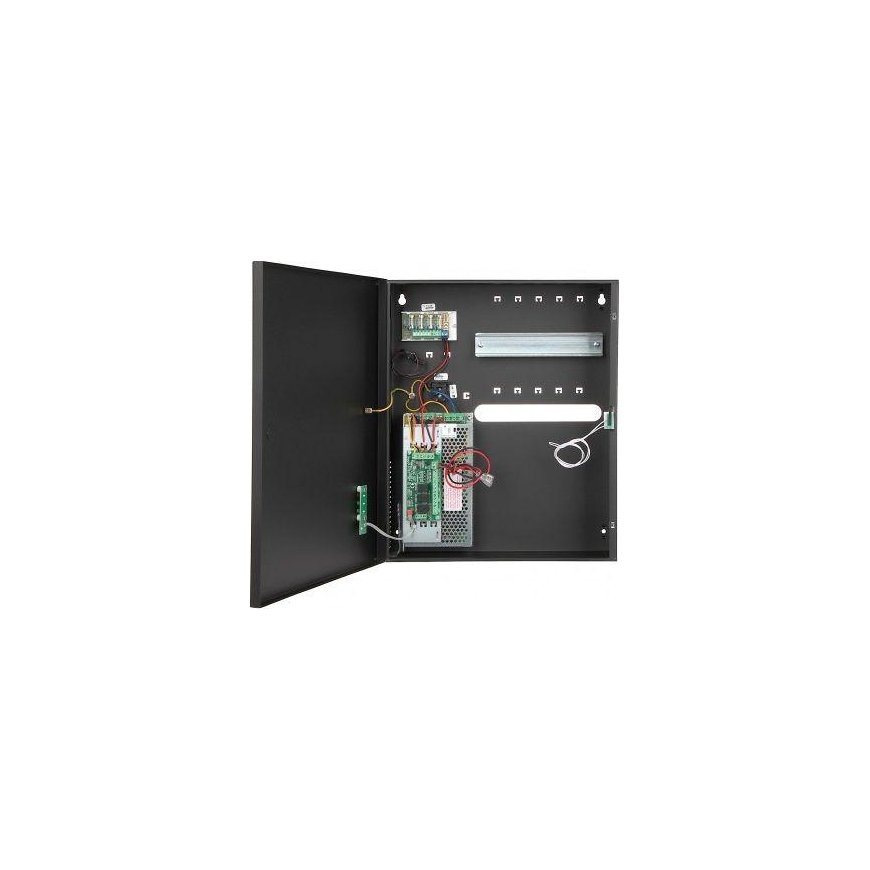

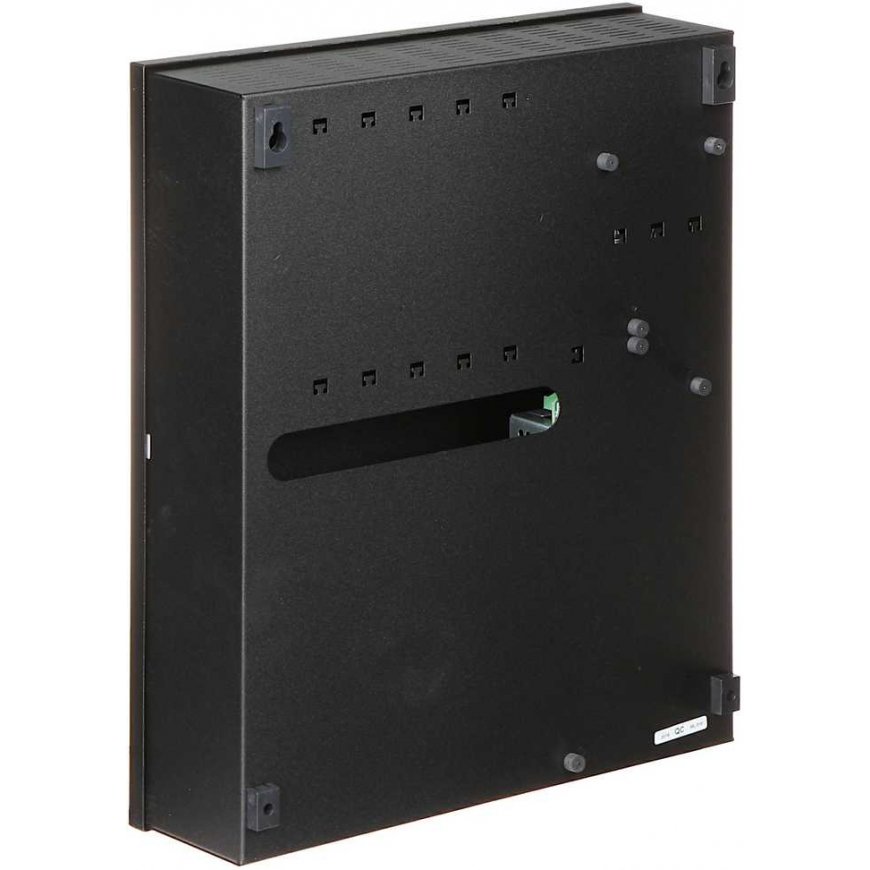

Metal housing with buffered switching power supply 13.8VDC/6A and DIN TS-35 mounting rail.
The product is designed to work with DAHUA access controllers from the ASC21xxB, ASC12xxB series.
| Input voltage : | 230V AC / 50Hz |
| Output voltage : | 11 V ... 13.8 V DC (buffer operation) |
| Maximum output current (total) : | 7 A |
| Battery charging current : | 1A / 2A |
| Power : | 100W |
| Number of outputs : | 4 |
| Anti-tamper contact : | 50V DC / 0.5A |

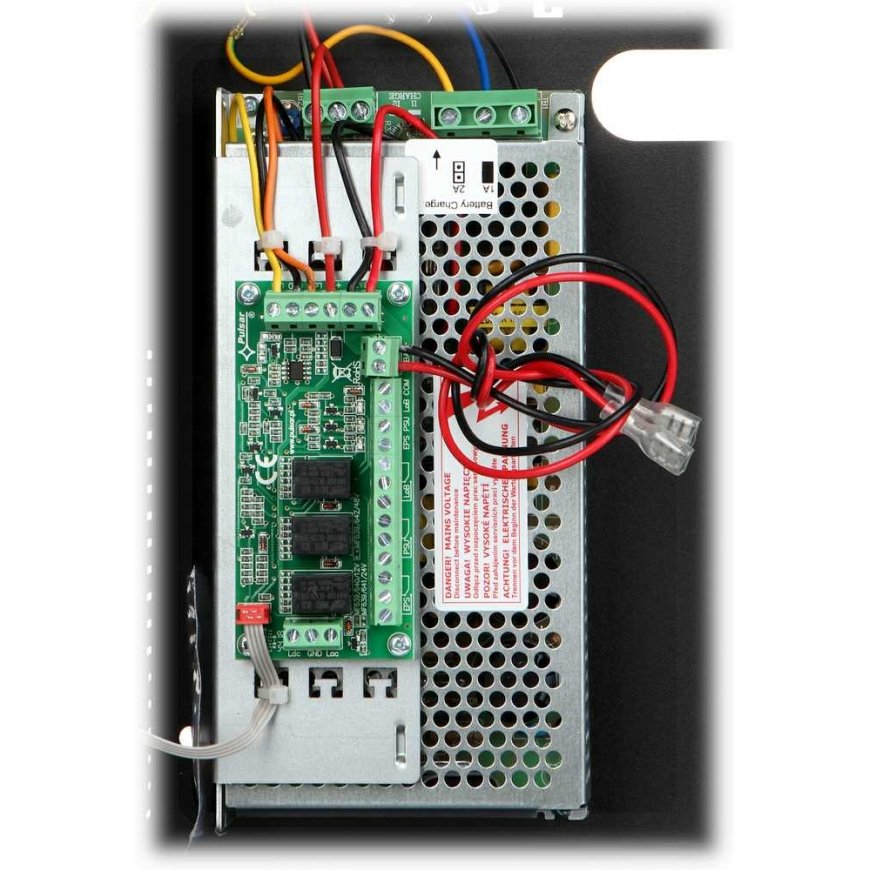

| Main features : | Built-in buffer power supply with battery status monitoring function and AC network Voltage distribution module, 4 circuits protected by a 1.5A fuse DIN TS-35 rail, Length: 185 mm LED indication Technical outputs relay type and OC Battery location - 12 V / 17 Ah |
| Protective measures : | From short circuit From overloads From overvoltages Anti-sabotage Reverse connection From excessive discharge |
| Adapter operation control : | AC mains power presence signaling DC output voltage presence signaling EPS FLT input - signals AC power failure PSU output signals DC voltage shortage or power supply failure LoB output - Low battery voltage level |
| Working temperature : | -10°C ... 40°C |
| Weight : | 3.26 kg |
| Dimensions : | 403 x 326 x 100 mm |
| Manufacturer / Brand : | PULSAR |
| Warranty : | 2 years |
