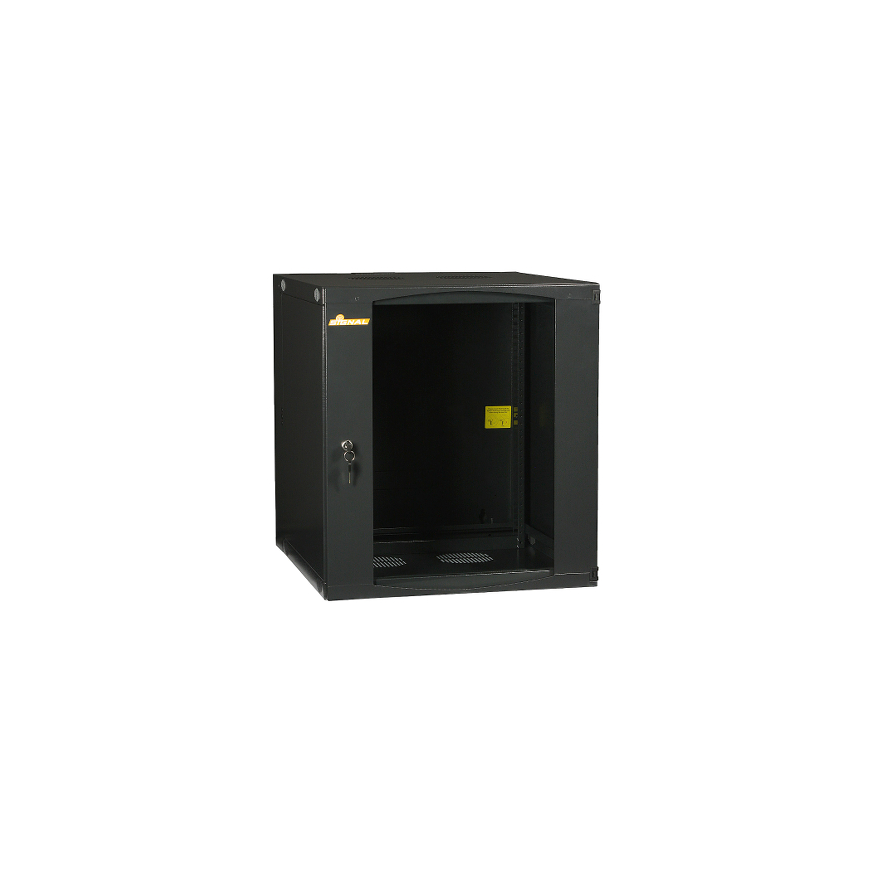

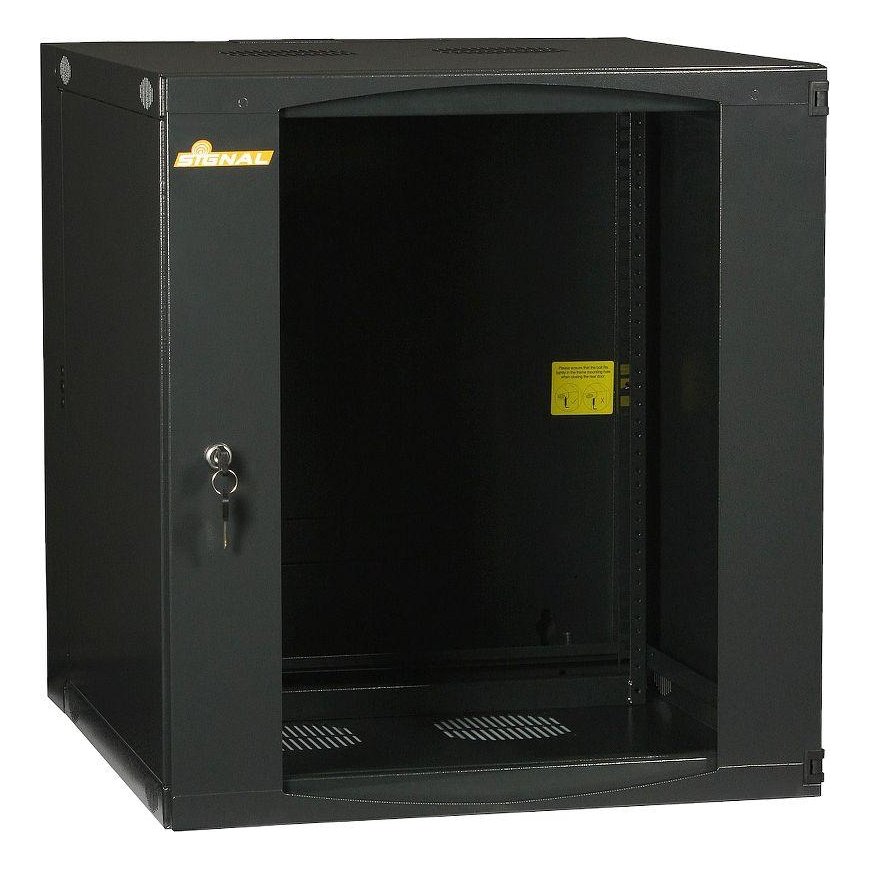

TST RACK HANGING, TWO-SECTION CABINET R19-12U/600/2S
3555124 R19-12U/600/2S
5907634597928
2026-07-31
Increasingly, devices for home LAN, RTV, and CCTV installations are selected by evaluating the RACK system, in order to make the installation look aesthetically pleasing and protect the devices from accidental mechanical damage.

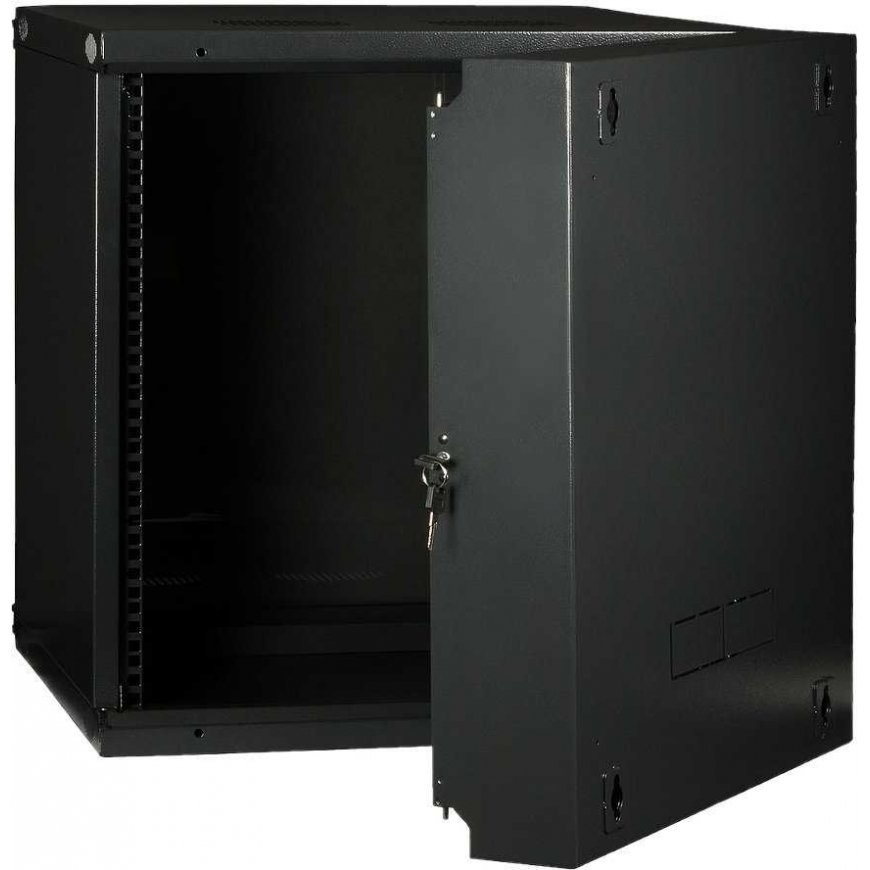

Two-section wall-mounted hanging cabinets will ensure access to equipment from both the front and the back.
The R19-12U/600/2S cabinet is designed for mounting devices with a 19" standard housing.
An ideal solution for installing recorders, power supplies, distributors, head end stations, network devices, etc. The housing can also accommodate devices that do not meet the RACK-19" standard, such as recorders, multiswitches, RTV-SAT amplifiers, modulators.
This requires the use of shelves installed in the RACK cabinet.
The RACK cabinet has many ventilation holes that ensure proper air circulation.
Additionally, there is the option of installing fans to ensure proper cooling of the cabinet.
| Internal width : | 19 " |
| Internal height : | 12 U |
| Internal depth : | 505mm |
| External width : | 540mm |
| External height : | 630mm |
| External depth : | 600mm |
| Ventilator openings : | 105 x 105 mm (2 places) |
| Color : | Dark graphite |

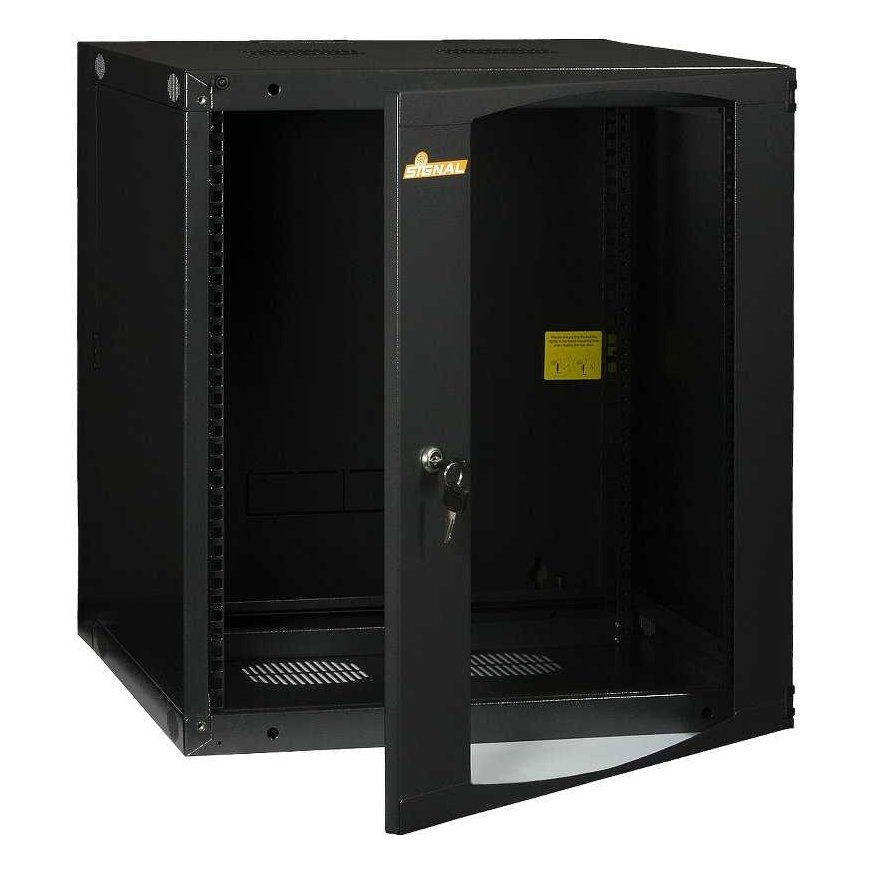

| Doors : | Front: glazed Rear: metal, stationary Both the front and rear doors can be installed as left or right-hand doors |
| Main features : | Cable holes from top to bottom 2 keys included 4 pcs. Rack rails for equipment mounting |
| Weight : | 23.6 kg |
| Warranty : | 2 years |
