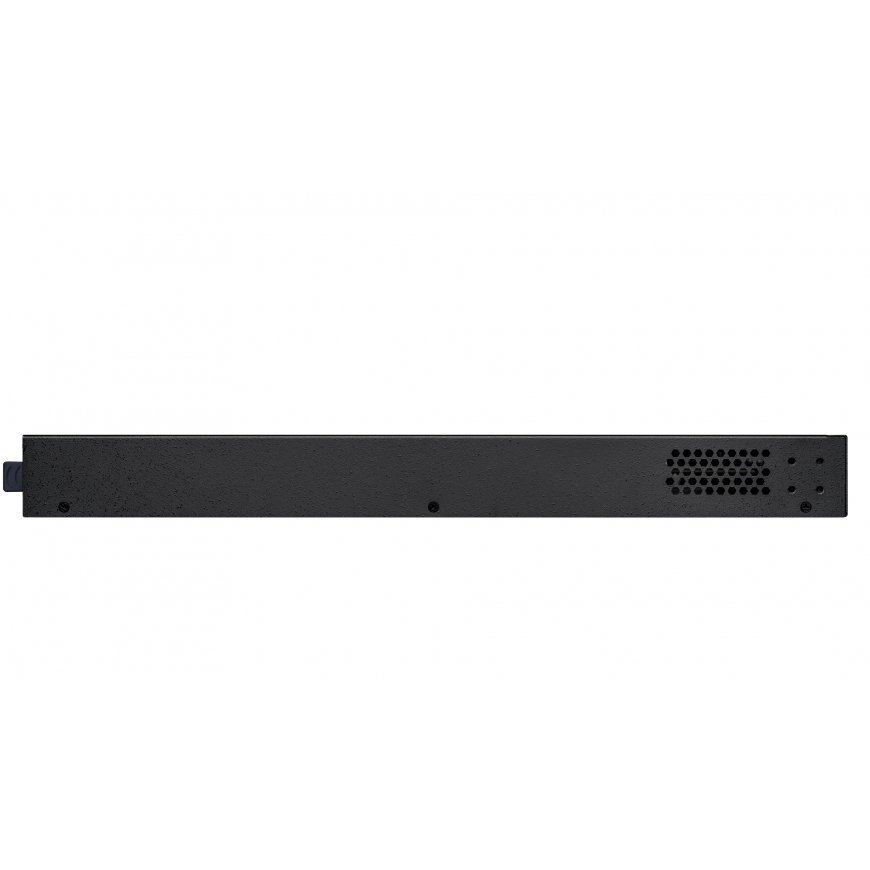

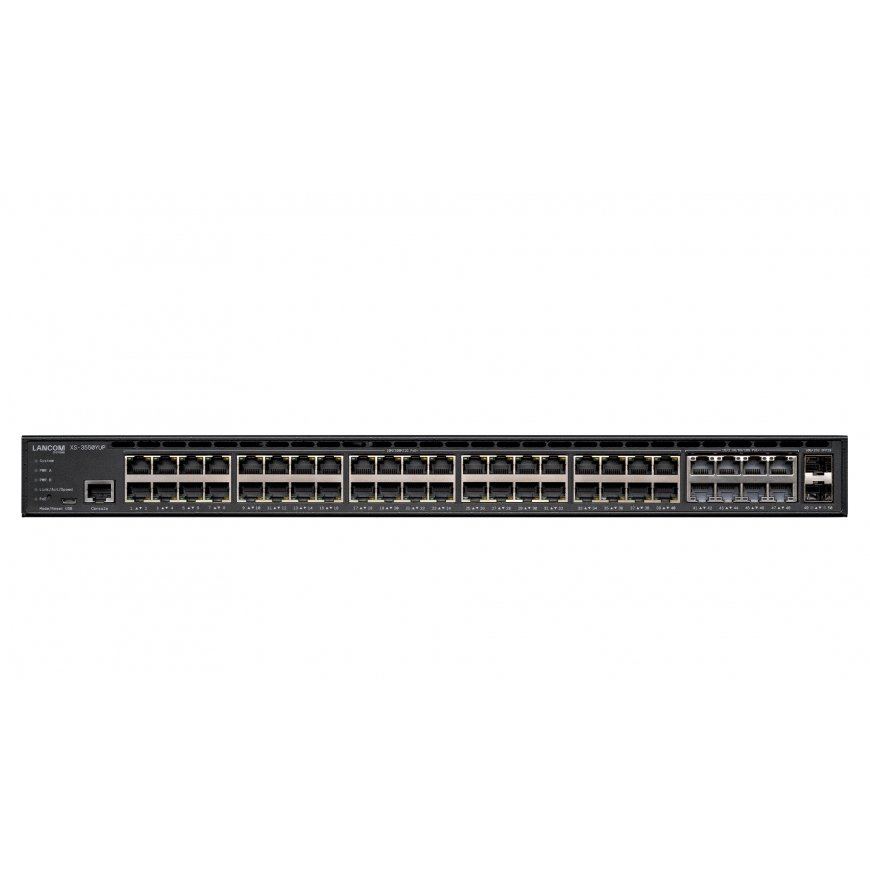

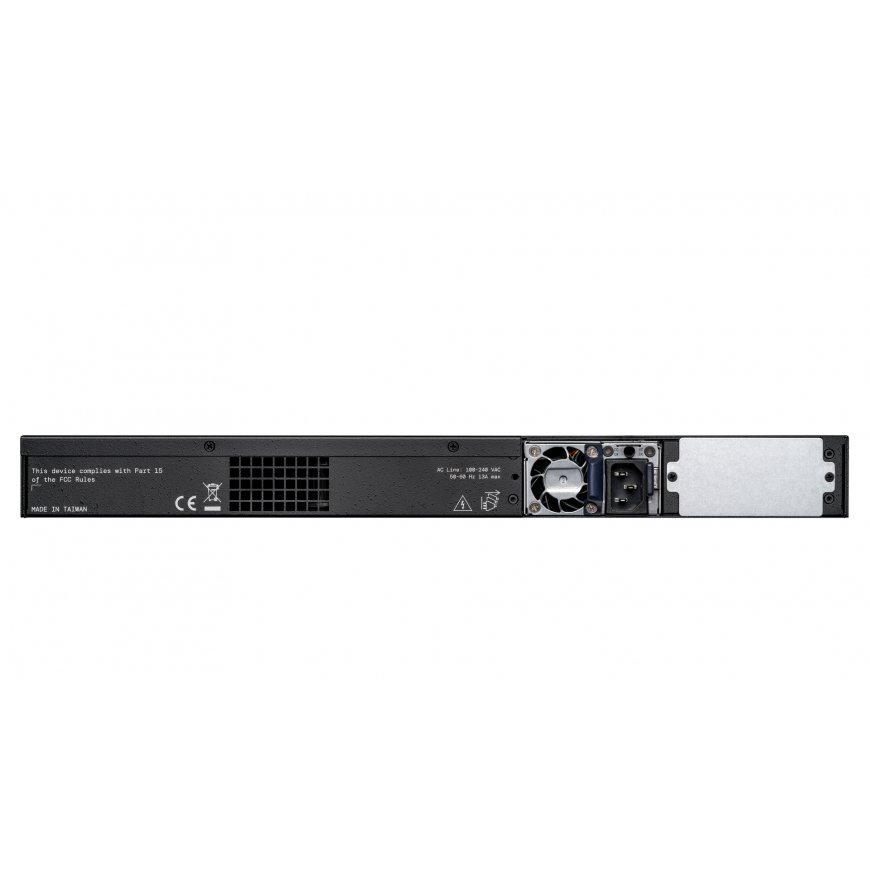

LANCOM XS-3550YUP
5 969,00 €
Monthly payment from 154.60 €
3540959 61891
4044144618918, 4043619618910
2026-08-03
You are interested in this product?
The integration of Wi-Fi 7 into modern infrastructures requires powerful LAN components. With its eight 10G multi-Gigabit Ethernet ports and support of the Power over Ethernet standard IEEE 802.3bt (PoE++), the 50-port access switch LANCOM XS-3550YUP offers the ideal technical prerequisites. This allows you to connect PoE end devices with high performance requirements to the layer 3 lite switch without additional electrical installation. With the two SFP28 fiber-optic ports, you benefit from 25 Gbps uplink speeds while continuing to use your existing fiber optics infrastructure with higher bandwidths per port. Redundant, hot-swappable power supply units enable either increased reliability or the doubling of PoE performance. Centralized network management with the LANCOM Management Cloud (LMC) accelerates and automates the device rollout of the LANCOM XS-3550YUP, for example, and saves valuable resources and thus costs.
Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3bt |
| Flow control support | Yes |
| Multicast support | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10240 |
| Port mirroring | Yes |
| Number of VLANs | 4093 |
Management features | |
| Quality of Service (QoS) support | Yes |
Security | |
| MAC address filtering | Yes |
| MAC address table | 32000 entries |
| System event log | Yes |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Design | |
| LED indicators | Yes |
| Product colour | Black |
Features | |
| Heat dissipation | 683 BTU/h |
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
| Width | 442 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 6.3 kg |
Packaging data | |
| Package width | 480 mm |
| Package depth | 570 mm |
| Package height | 100 mm |
| Package weight | 5.7 kg |
System requirements | |
| Mac compatibility | Yes |
Other features | |
| Compatible operating systems | Windows XP/Vista/Vista-64/7/7-64, Mac OS 10.5, 10.6, Linux ex Kernel 2.6 |
| Minimum system requirements | Express Card Slot |
| Form factor | 1U |
| Bandwidth | 6 Gbit/s |
| Rack mounting | Yes |
Logistics data | |
| Country of origin | Taiwan |
| Customs product code (TARIC) | 85176200 |
Packaging content | |
| Manual | Yes |
| Bundled software | Driver CD |
