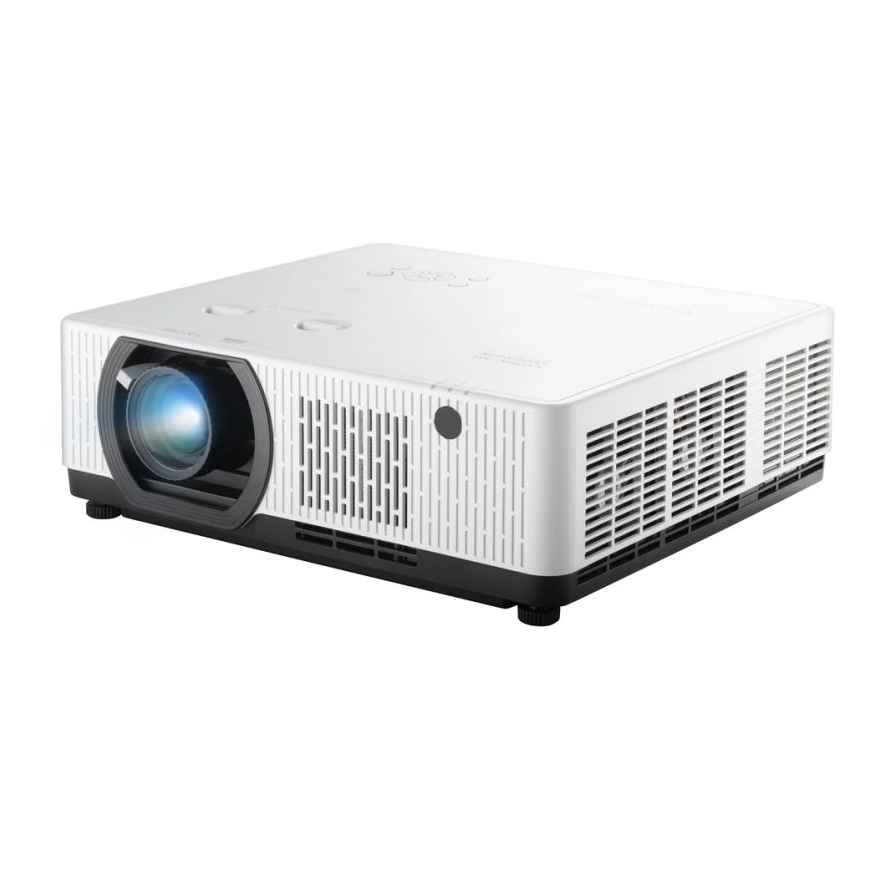

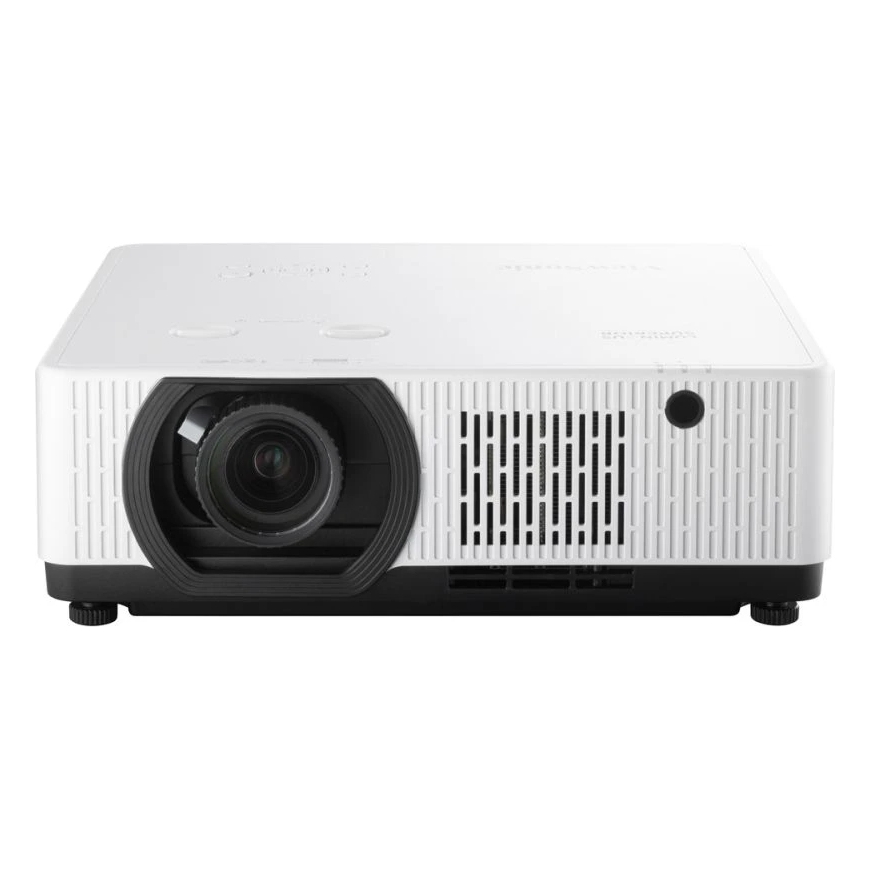

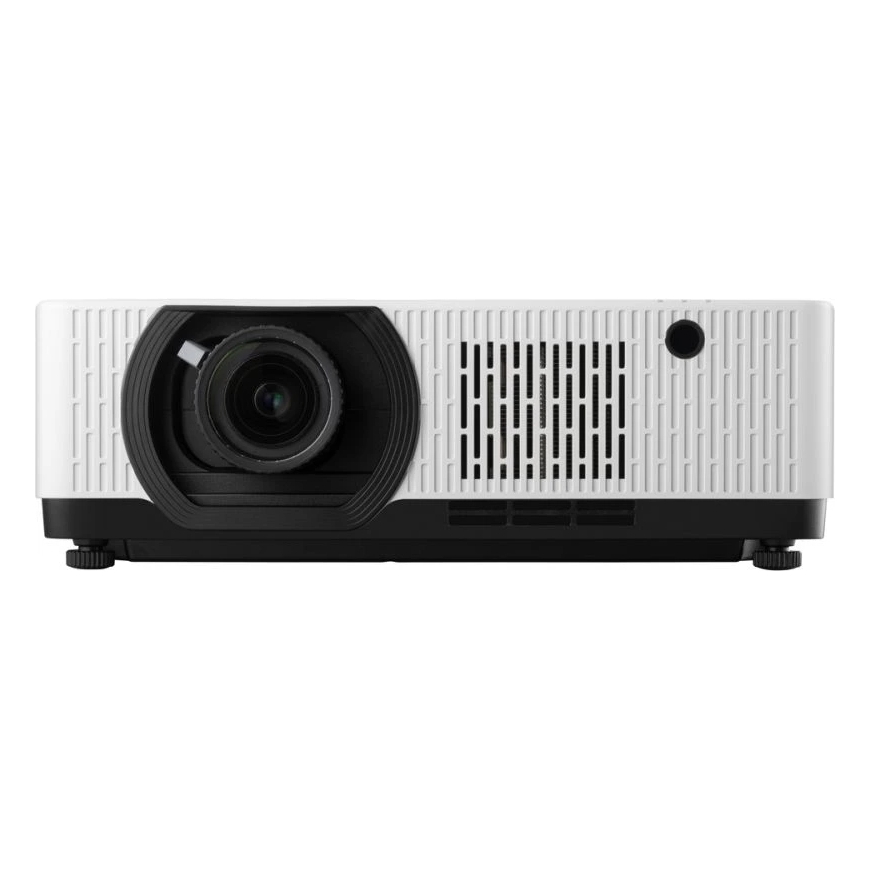

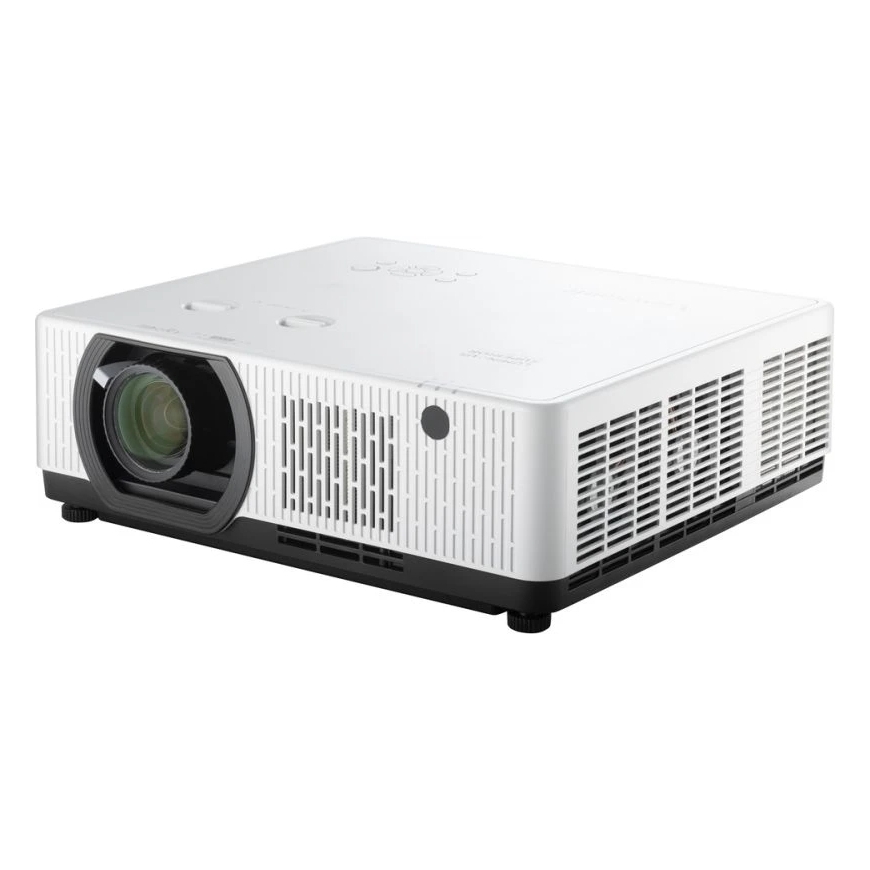

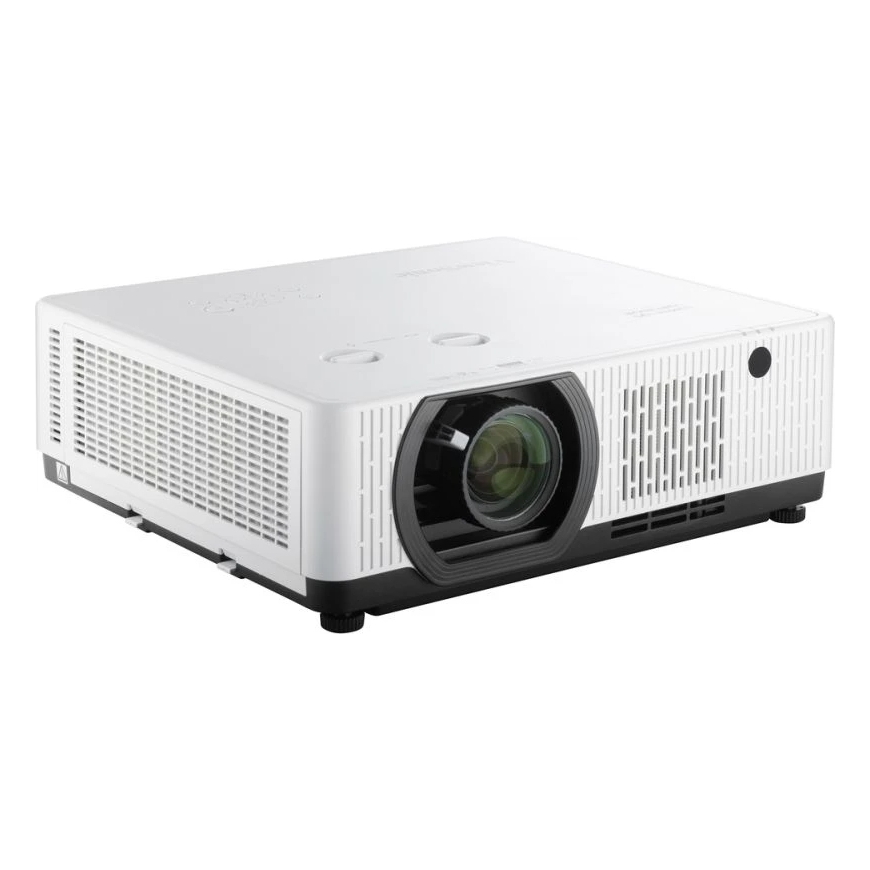

Viewsonic LSC731WU data projector Standard throw projector 7300 ANSI lumens 3LCD WUXGA (1920x1200) Black, White

4 079,00 €
Monthly payment from 105.93
3360400

LSC731WU

0766907029376

This product is no longer in stock

You are interested in this product?
(Read terms of service)
The LSC731WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 7,300 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC731WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

Bright Images for Large Venues
Delivering 7,300 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.

Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​

Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.

Adaptable to Any Environment
Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.

2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.

Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.
Projector
Projection distance 0.78 - 12.99 m
Projection technology 3LCD
Projector brightness 7300 ANSI lumens
Contrast ratio (typical) 3000000:1
Horizontal scan range 15 - 100 kHz
Vertical scan range 23 - 85 Hz
Keystone correction, horizontal -25 - 25°
Keystone correction, vertical -30 - 30°
Screen size compatibility 762 - 7620 mm (30 - 300")
Native aspect ratio 16:10
Supported aspect ratios 16:10
Projector native resolution WUXGA (1920x1200)
Number of colours 1.07 billion colours
Zoom capability Yes
Focal length range 17.2 - 27.7 mm
Light source
Light source type Lamp
Service life of light source 20000 h
Service life of light source (economic mode) 30000 h
Lens system
Offset 5%
Throw ratio 1.2 - 2
Aperture range (F-F) 1.5 - 2.08
Horizontal lens shift range 0 - 60%
Vertical lens shift range -29 - 29%
Video
Full HD Yes
Technical details
Serial interface type RS-232
Ports & interfaces
Audio (L/R) in 1
Audio (L/R) out 1
HDMI ports quantity 2
VGA (D-Sub) ports quantity 1
AC (power) in Yes
Storage
Card reader integrated No
Features
Noise level 37 dB
Air filter Yes
Noise level (economic mode) 27 dB
Design
LED indicators Yes
Product type Standard throw projector
Market positioning Education
Placement Ceiling
Colour
Product colour Black, White
Operational conditions
Power consumption (typical) 375 W
Operating temperature (T-T) 0 - 40 °C
Power
Power source AC
Power consumption (standby) 0.5 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Packaging data
Package weight 10.9 kg
Package width 510 mm
Package depth 498 mm
Package height 260 mm
Quantity per pack 1 pc(s)
Weight & dimensions
Weight 7.9 kg
Height 137 mm
Depth 358 mm
Width 405 mm
Packaging content
Remote control included Yes
Manual Yes
Network
Ethernet LAN (RJ-45) ports 1
Ethernet LAN Yes
Logistics data
Pallet gross length 100 cm
Pallet gross width 120 cm
Pallet gross height 170 cm
Products per master (outer) case 1 pc(s)
Harmonized System (HS) code 8528620000
