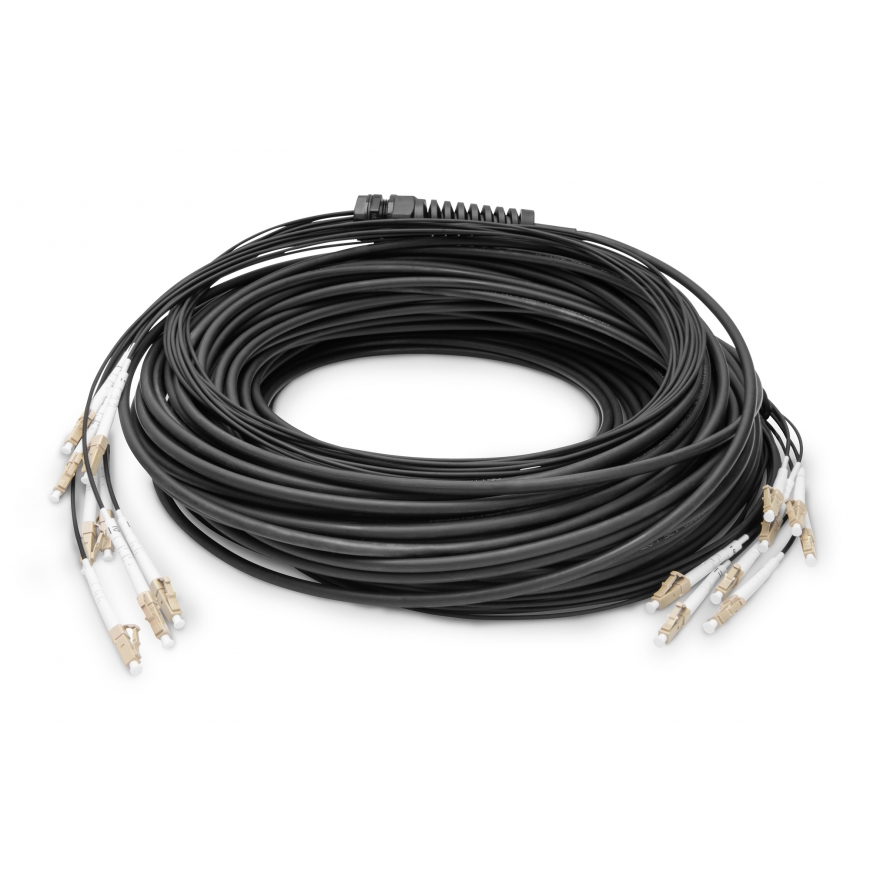

Digitus Pre-assembled Fiberglass Universal Breakout Cable, Multi Mode OM4, 8 Fibers, LC/UPC - LC/UPC
361,40 €
Monthly payment from 10.21 €
3190439 DK-24338U075BK-BBB
4016032485155
2026-07-31
You are interested in this product?
- Pre-assembled
- High-quality connectors fitted ex works
- Ready for immediate use, without additional splicing work
- Standard lengths available from stock
- High-quality components and construction
- Applications Applicable for indoor and outdoor use
- Connection of network cabinets without potential differences
- Individual mechanically protected fibers
- Robust cable construction
- Pull-in aid on both sides for secure installation
This pre-terminated breakout fiber optic cable is ideal for installations that require an extremely robust and reliable fiber optic cable design where maximum mechanical protection is required. It offers a secure plug & play solution for installations through the pre-terminated connectors. It is easy to install on partially assembled patch panels, for example. The supplied measurement protocol eliminates the need for time-consuming follow-up checks.
Features | |
| Cable type | U-DQ(ZN) BH |
| Cable length | 75 m |
| Connector 1 | LC |
| Connector 2 | LC |
| Jacket material | Low smoke zero halogen (LSZH) |
| Plug and Play | Yes |
| Product colour | Black |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Fiber mode structure | Multi-mode |
| Fibre optic type | OM4 |
| Return loss | 30 dB |
| Connector polish type | UPC |
Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 85447000 |
Packaging data | |
| Package width | 350 mm |
| Package weight | 6.42 kg |
| Package depth | 350 mm |
| Package volume | 30625 cm³ |
| Quantity per pack | 1 pc(s) |
Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Other features | |
| Number of optical fibres | 8 |
