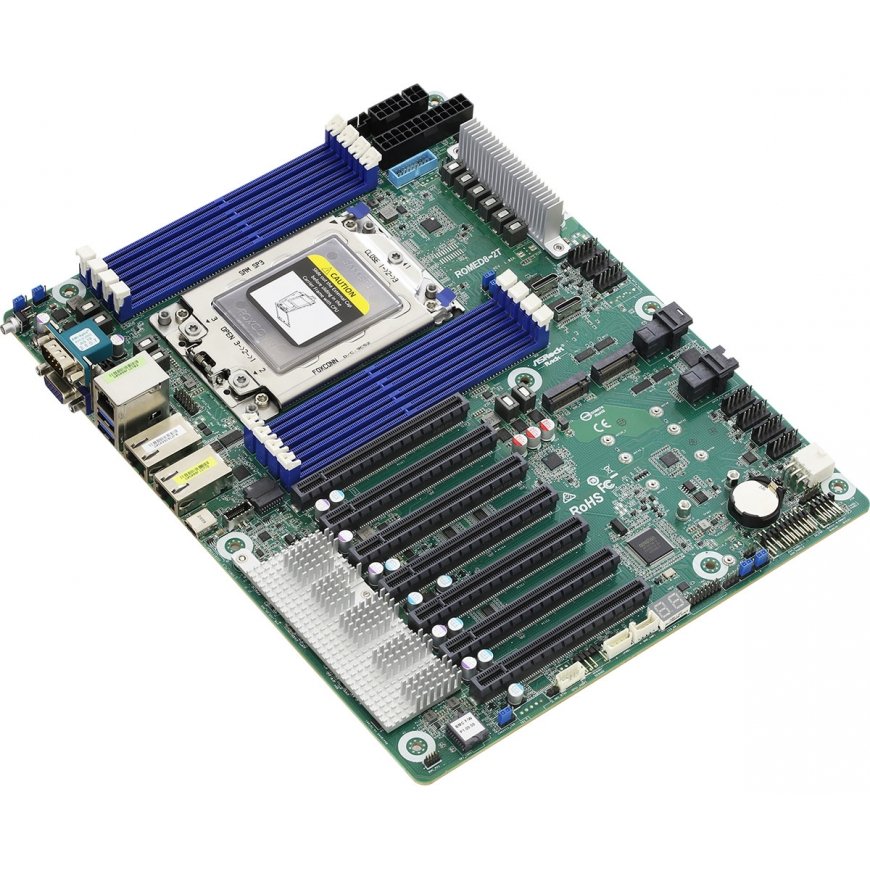

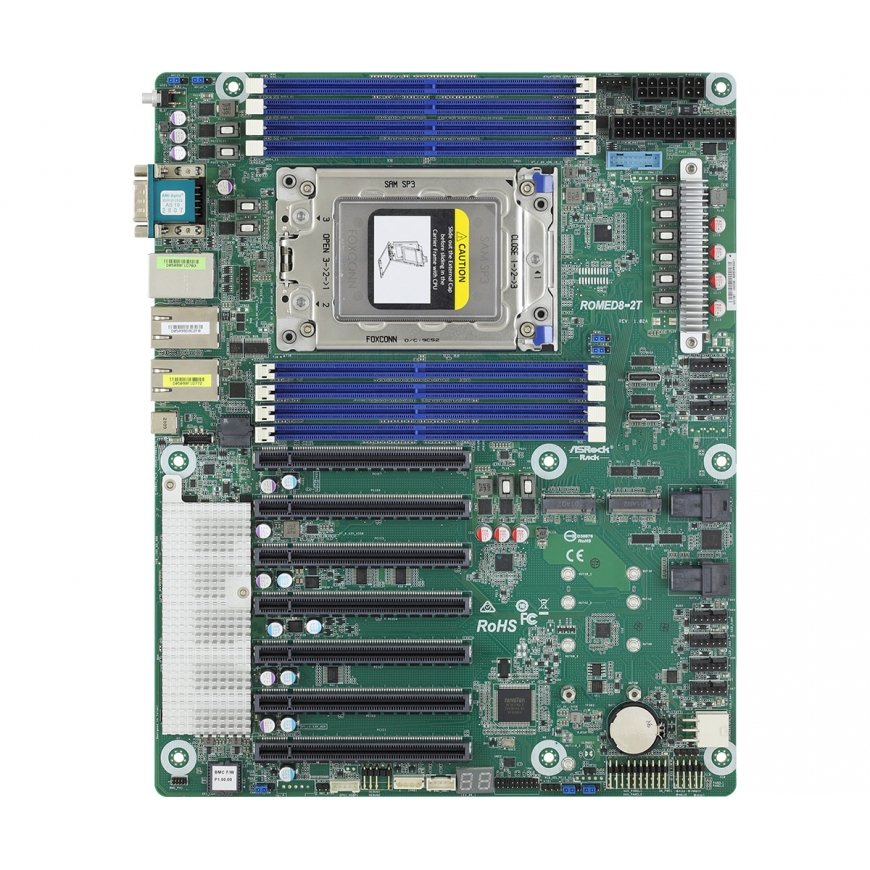

Asrock ROMED8-2T motherboard LGA 4094 ATX
949,00 €
Monthly payment from 25.34 €
3152885 ROMED8-2T
4710483931130
4-10 b.d.
You are interested in this product?
Processor | |
| Compatible processor series | AMD EPYC |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 4094 |
| Processor manufacturer | AMD |
Memory | |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2400, 2666, 2933, 3200 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Octa-channel |
| Supported memory module capacities | 8GB, 16GB, 32GB, 64GB, 128MB, 256MB |
| Memory slots type | DIMM |
| Number of memory slots | 8 |
Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
Graphics | |
| Graphics card | AST2500 |
Internal I/O | |
| USB 2.0 connectors | 0 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 7 |
| Number of Parallel ATA connectors | 0 |
| Power fan connector | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA II connectors | 0 |
| Number of SATA III connectors | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |

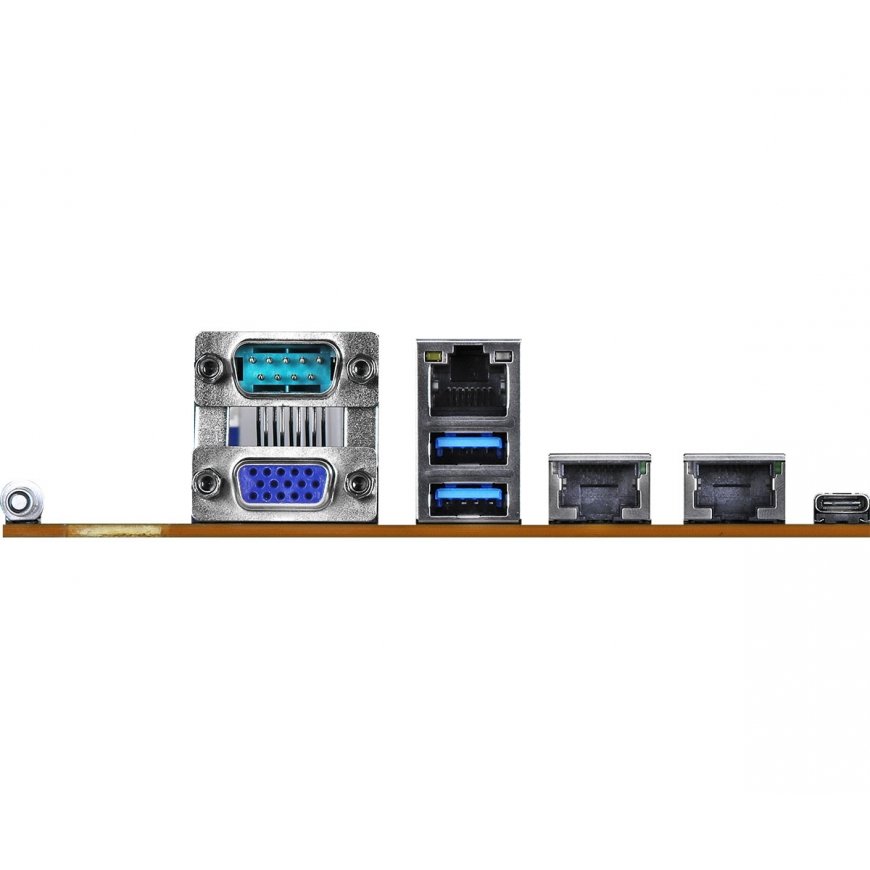

Rear panel I/O ports | |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| eSATA ports quantity | 0 |
| COM ports quantity | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Network | |
| LAN controller | Realtek RTL8211E |
| Wake-on-LAN ready | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | ATX |
| Compatible operating systems | Linux, - Server 2016 (64 bit), Virtual, Microsoft® Windows®, - Server 2019 (64 bit), - RedHat Enterprise Linux Server 8.0 (64 bit) / 7.6 (64 bit), - CentOs 8.0 (64 bit) / 7.6 ( 64 bit), - SUSE SLES 15.1 (64 bit) / 12.4 (64 bit), - UBuntu 18.04.3 (64 bit) / 16.04.6 (64 bit), - CITRIX Hypervisor 8.1, - VMWare® ESXi 6.5 u3 / 6.7 u3, - vSphere 6.5 u3/ / 6.7 u3 |
Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 7 |
BIOS | |
| BIOS type | AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 2.0 |
| System Management BIOS (SMBIOS) version | 2.8 |
Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 70 mm |
Other features | |
| Weight | 1.69 kg |
Technical details | |
| Compliance certificates | RoHS |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
