Blow 2624 Antenna amplifier lna-169-5g 32db hfo original

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

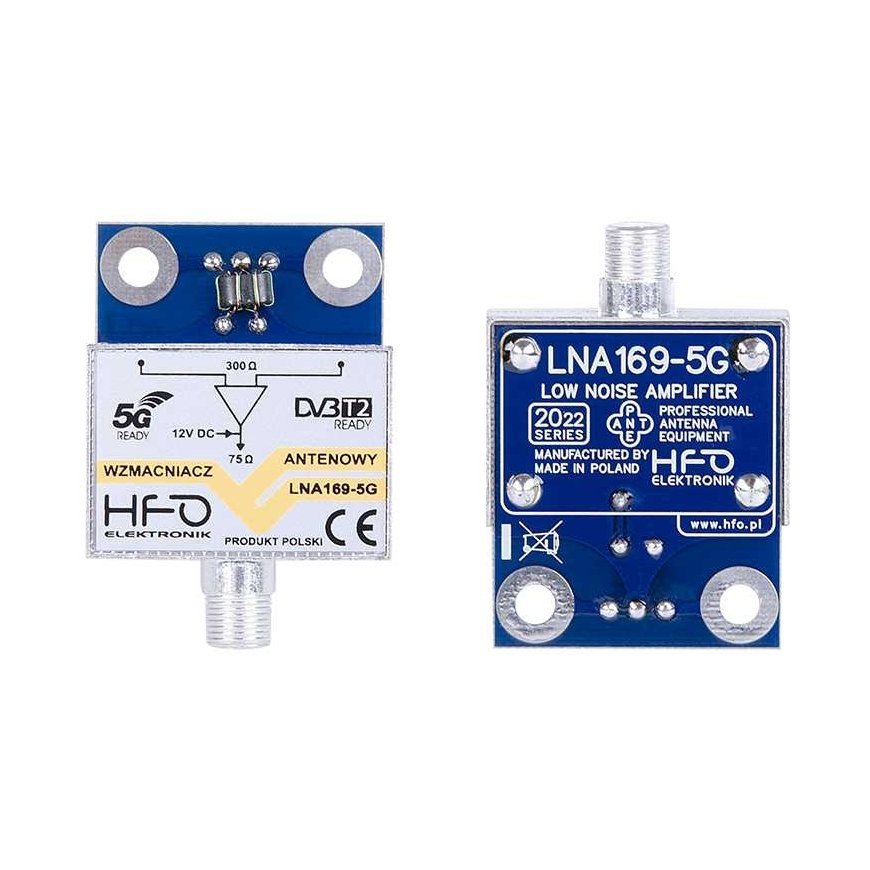

Blow 2624 Antenna amplifier lna-169-5g 32db hfo original

21,02 €
20,92 €
3098863

2624#

5905289670010

Shipping 1-14 b.d.

Quantity
You are interested in this product?
(Read terms of service)

Key Features:

  • Light metal alloy body for high resistance to interference and weather conditions
  • High-quality F socket - ensures good connection and convenient and easy installation
  • LNA series amplifiers are suitable for network antennas and can be installed in place of a traditional plate amplifier
  • Amplification band corresponding to the TV signal broadcast in Poland
  • High resistance to signals interfering with the DVB-T2 digital TV signal: CB, FM, LTE700 (5G), LTE800 (4G), GSM900, Wi-Fi, Bluetooth
  • Low noise figure
  • Gain characteristics to compensate for coaxial cable attenuation
  • The LNA169-5G model is recommended for use at a distance of 15-60 km from the transmitter, depending on the terrain and the power of the transmitter.

Specification:

  • Gain: 32dB
  • Gain range: UHF and VHF
  • Supply voltage: 12V DC, 55 mA, powered by coaxial cable
  • Connections: F-type connector for connecting the cable, connectors for connecting the amplifier to the antenna terminals
  • Includes transmission band: MUX 1, MUX 2, MUX 3, MUX 8 and local multiplexes
  • Dimensions: 14mm x 40mm x 44mm (without F connector) - 54mm (with F connector)
