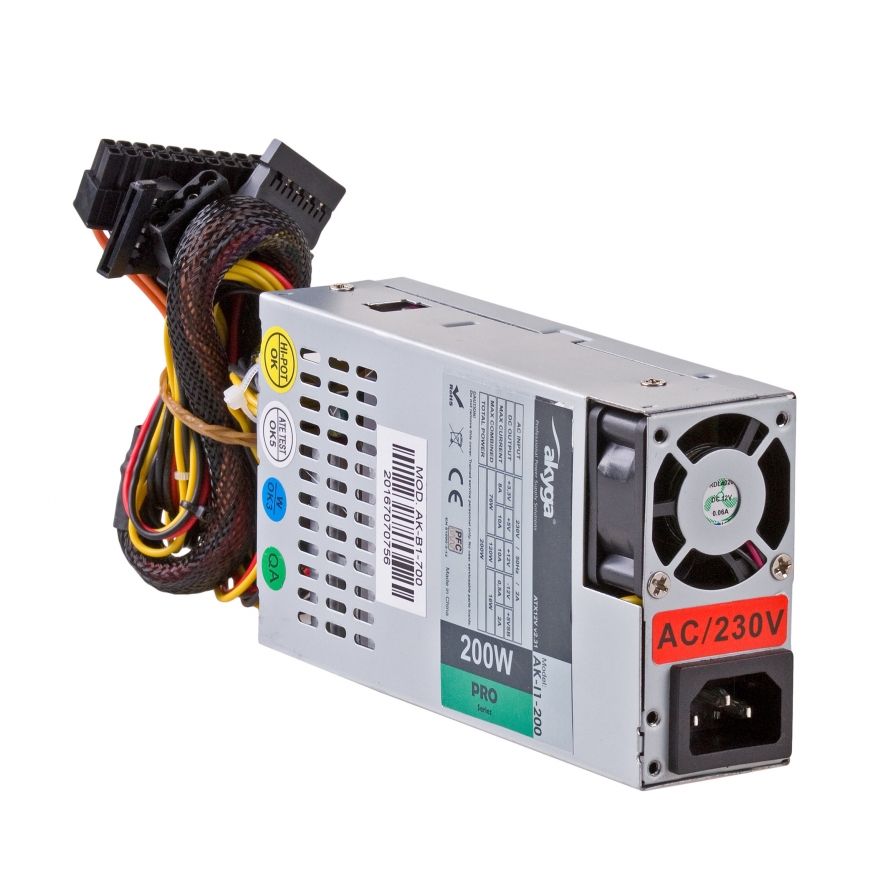

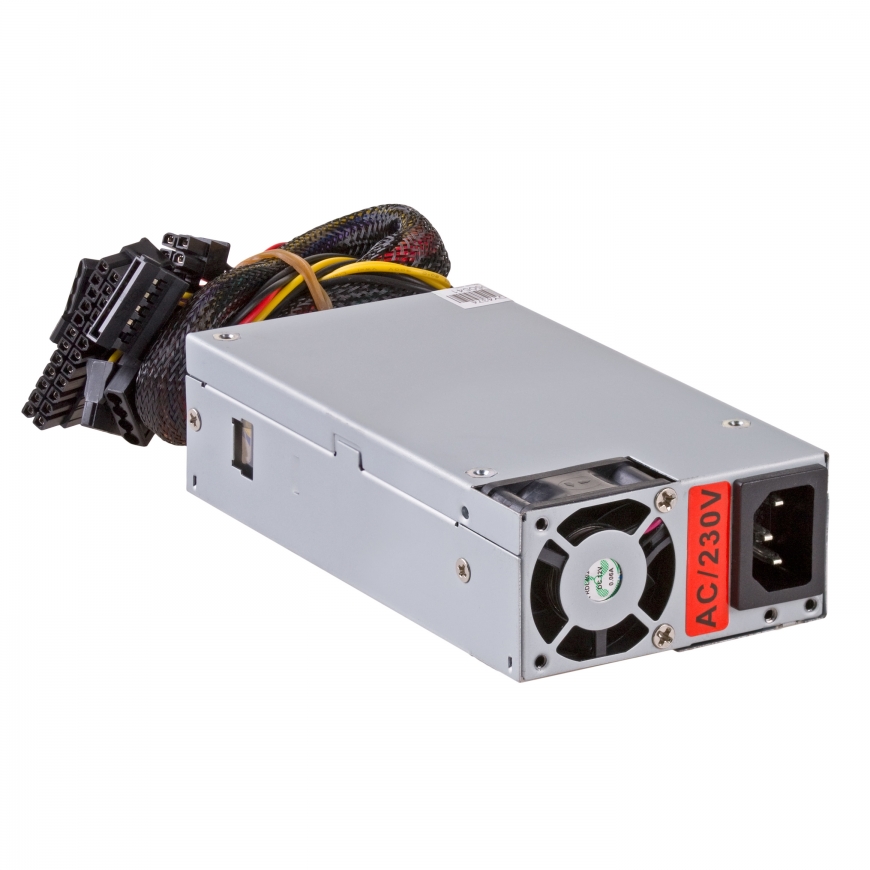

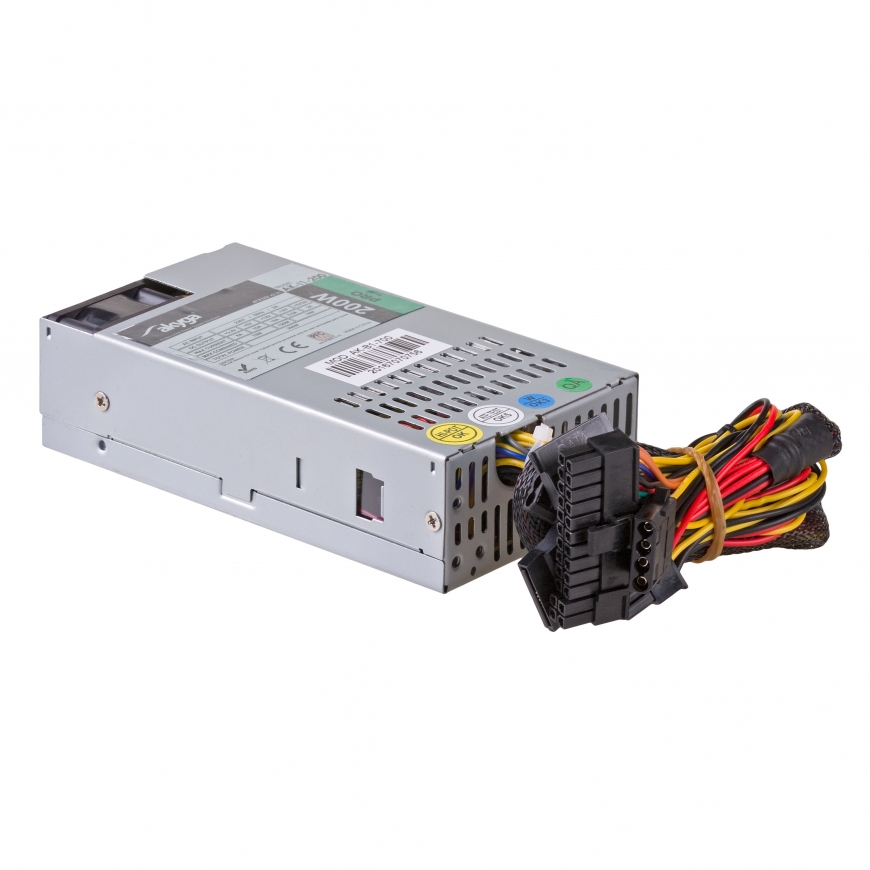

Akyga AK-I1-200 power supply unit 200 W 24-pin ATX ATX Grey
32,43 €
3084133 AK-I1-200
5901720132147
This product is no longer in stock
You are interested in this product?

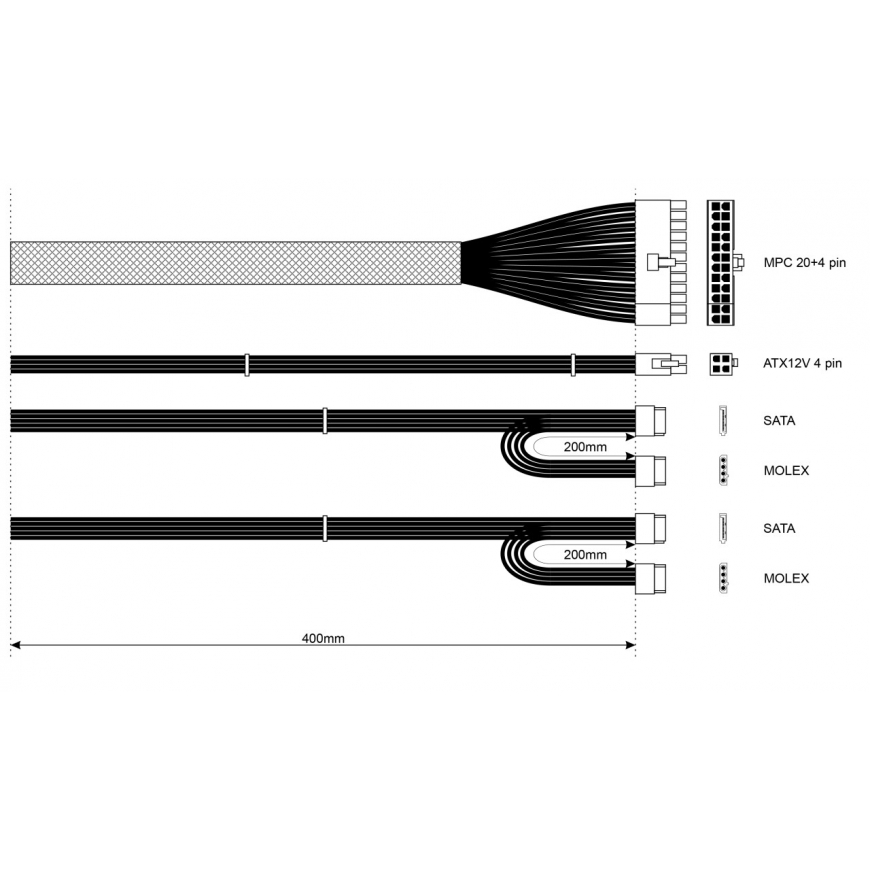

The power supply is equipped with P4 4-pin connector, 2 x MOLEX connectors, 2 x SATA connectors and a universal 24-pin motherboard connector. Effective cooling is provided by efficient, silent fan of 4 cm diameter with automatic speed control. High efficiency above 70% allows effective supplying and so the stable operation of the power supply affects the reliability of all components of the computer.
An important aspect is the presence of several important protectors (OVP, OCP, OPP, OTP, SCP, UVP) and PFC filter that protects and prevents motherboard, processor and other parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference.
Sold with the power cord.
Power | |
| Efficiency | 70% |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 76 W |
| Combined power (+12V) | 120 W |
| Combined power (+5V) | 76 W |
| Combined power (-12V) | 120 W |
| Combined power (+5Vsb) | 76 W |
| Max output current (+3.3V) | 8 A |
| Max output current (+12V) | 10 A |
| Max output current (+5V) | 8 A |
| Max output current (+5Vsb) | 8 A |
| Max output current (-12V) | 10 A |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 200 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Grey |
| Number of fans | 1 fan(s) |
| Fan diameter | 4 cm |
| Cooling type | Active |
Ports & interfaces | |
| Number of SATA power connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Non-Modular |
Operational conditions | |
| Operating temperature (T-T) | 5 - 50 °C |
Weight & dimensions | |
| Weight | 580 g |
| Width | 81.5 mm |
| Depth | 150 mm |
| Height | 40 mm |
Packaging data | |
| Package weight | 587 g |
| Manual | Yes |
| Package height | 41 mm |
| Package width | 101 mm |
| Package depth | 211 mm |
Packaging content | |
| Cables included | AC |
Certificates | |
| Certification | OVP, OCP, OPP, OTP, SCP, REACH, RoHS, CE |
