The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.
Distribution Panel Tibox 585x750x115mm 4x24mod., Ip54, Overhead
79,00 €
Monthly payment from 2.93 €
3058044 AS424
9990000992690
Shipping 2-4 days
You are interested in this product?

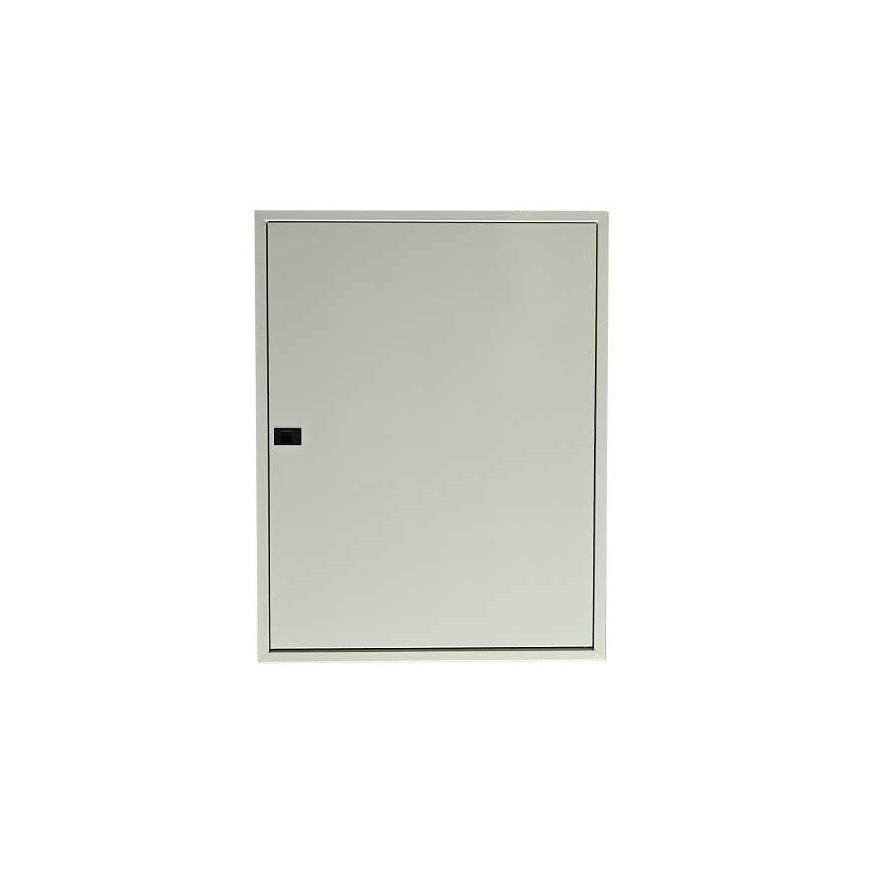

Distribution panel 585x750x115mm, 4 DIN x24P, mesh, metal, IP54. Surface mount metal distribution box with 4 DIN rails specially designed for the installation of circuit breakers.
Features:
- The metal distribution box is intended for the installation of electrical switches in residential or industrial premises. One DIN rail accommodates up to 24 contacts, the frame with cutouts on all sides allows neatly hiding cables.
- Safety class IP54 (resistance to moisture and dust).
- The package includes a box body, a door with a tongue, DIN rails and a front frame with cutouts.
- The body is covered with epoxy coating with polyester powder texture, color RAL 7035 - light gray.

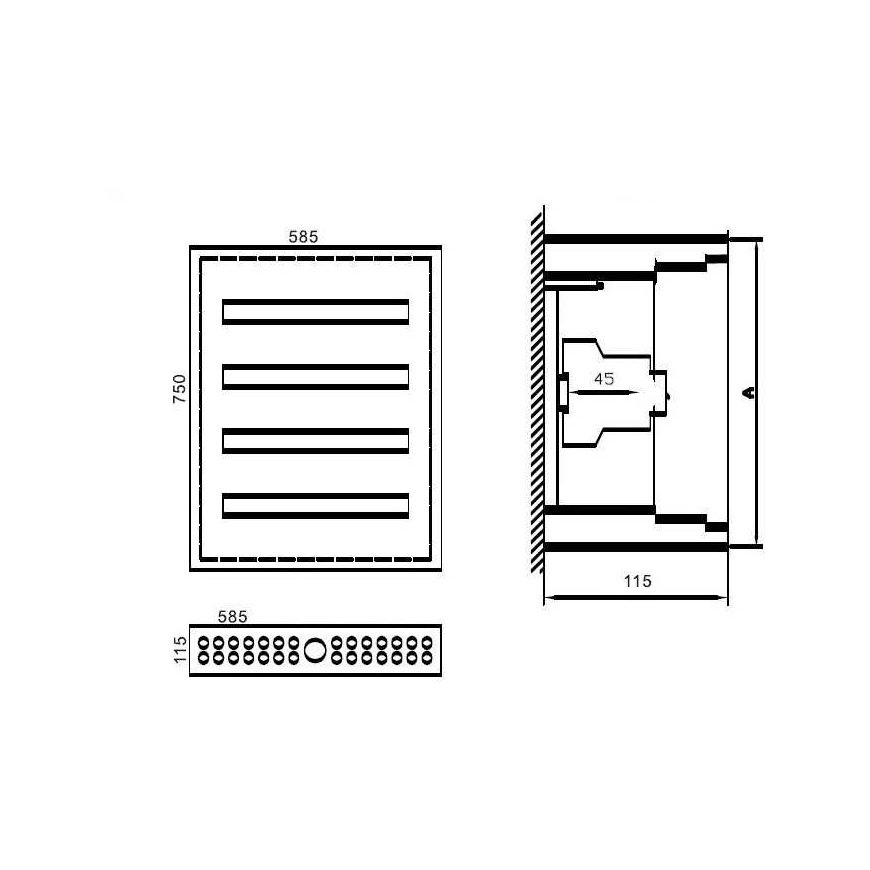

Technical data:
- Number of modules: 4 rows x 24 modules.
- Body material: sheet steel.
- Installation: supratentorial.
- Safety class: IP54.
- Color: RAL 7035 light gray.
- Height: 750mm.
- Width: 585mm
- Depth: 115mm.
- Wall and door thickness: 1.2mm.
