The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

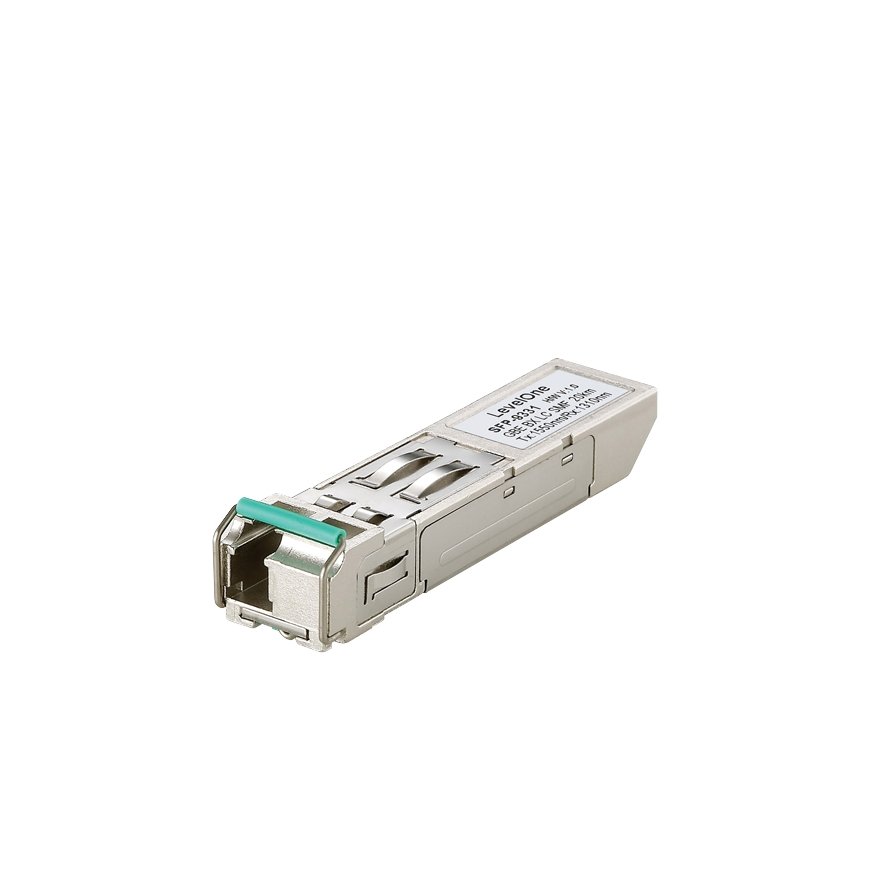

LevelOne 1.25Gbps Single-mode BIDI SFP Transceiver, 20km, TX 1550nm / RX 1310nm
50,28 €
Monthly payment from 2.19 €
3053611 SFP-9331
4015867154809, 0878742008741, 4015867240656, 5050914832506
This product is no longer in stock
You are interested in this product?

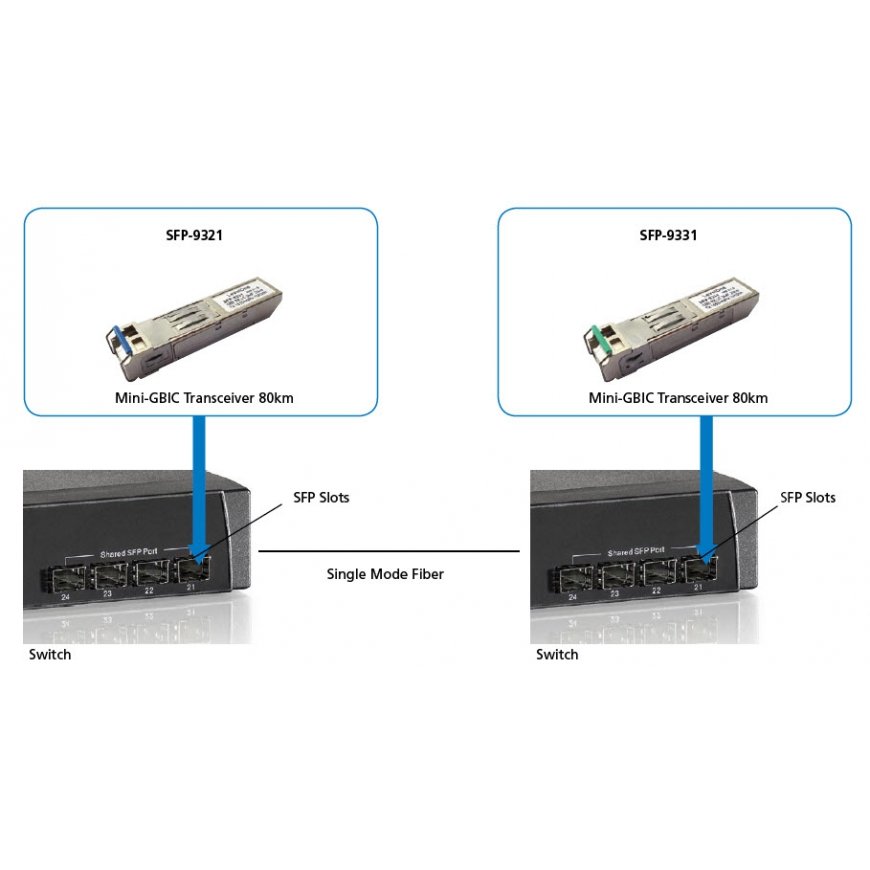

The SFP-9331 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-9321 transceiver which transmits at and receives at the opposite rates (1550nm TX and 1310nm RX) you get bi-direction data communication on a single fiber core.
- 1550nm DFP LD
- Multi Data Rate: from 125M to 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement(MSA)
- Simplex LC Connector
- Compliance with specifications for IEEE802.3z Gigabit Ethernet at 1.25Gbps
- Compliance with ANSI specifications for Fiber Channel applications at 1.06bps
- No configuration or installation software required
- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1
| Weight | 22 g |
| Width | 57 mm |
| Depth | 12 mm |
| Height | 13.7 mm |
| Quantity per pack | 1 pc(s) |
| Package width | 106 mm |
| Package depth | 20 mm |
| Package height | 65 mm |
| Plug and Play | Yes |
| Package weight | 35 g |
| Certification | CE, FCC |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Networking standards | IEEE 802.3ah |
| Maximum data transfer rate | 1250 Mbit/s |
| Input voltage | 3.3 V |
| Maximum current | 0.3 A |
| Hot-swap | Yes |
| Interface type | SFP |
| Harmonized System (HS) code | 85369010 |
| Safety | EN 60825-1 |
| Maximum transfer distance | 20000 m |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Maximum voltage | 6 V |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Compliance certificates | RoHS |
