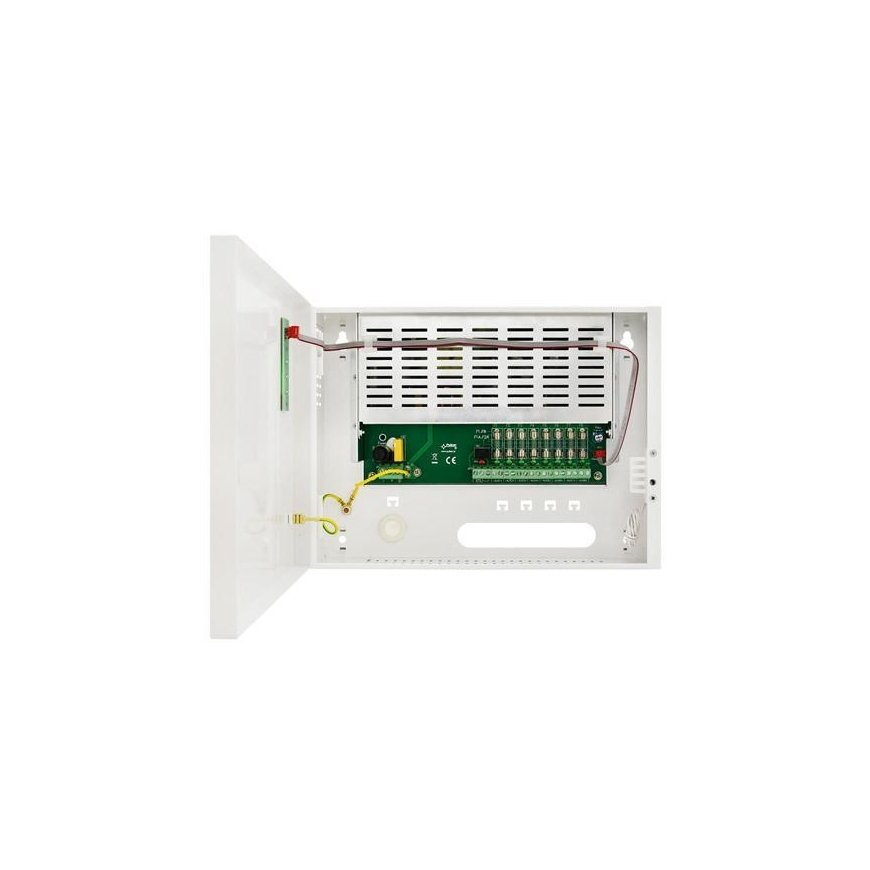

SWITCHED-MODE POWER SUPPLY STABILIZED FOR 8 HD CAMERAS Pulsar HPSDC-12V8X1A 12V/8A/8×1A/TOPIC

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

SWITCHED-MODE POWER SUPPLY STABILIZED FOR 8 HD CAMERAS Pulsar HPSDC-12V8X1A 12V/8A/8×1A/TOPIC

69,01 €
Monthly payment from 2.68
2998166

40427

5902135321843

Shipping 1-14 b.d.

Quantity
You are interested in this product?
(Read terms of service)
Power supply type : Impulsive
Output voltage : 12V DC
Output voltage regulation : 12 V ... 15 V - Potentiometer
Maximum output current (total) : 7 A
Single output max. output current : 1 A
Output protection : 1 A Fuse blown
LED indication :
Protection :
  • From short circuit
  • From overvoltages
  • From overvoltages
  • From overloads
  • Input voltage : 200 ... 240 V, 50 / 60 Hz
    Power : 84 W (max)
    Number of outputs : 8
    Connection type : Cable clamps
    Main features :
  • Efficiency : 86%
  • LED indication
  • FPS output - determines the operating state of the power supply: normal or emergency
  • Tamper detection - case opening
  • Protection class EN 62368-1 : I
  • Sealing class : IP20
  • Packaging type : Metal, fixed to the wall
    Lockable with a key :
    Operating temperature / relative humidity : -10 °C ... 40 °C / 20 ... 90 %
    Weight : 1.73 kg
    Dimensions : 275 x 205 x 75 mm
    Manufacturer / Brand : PULSAR
    Warranty : 2 years
