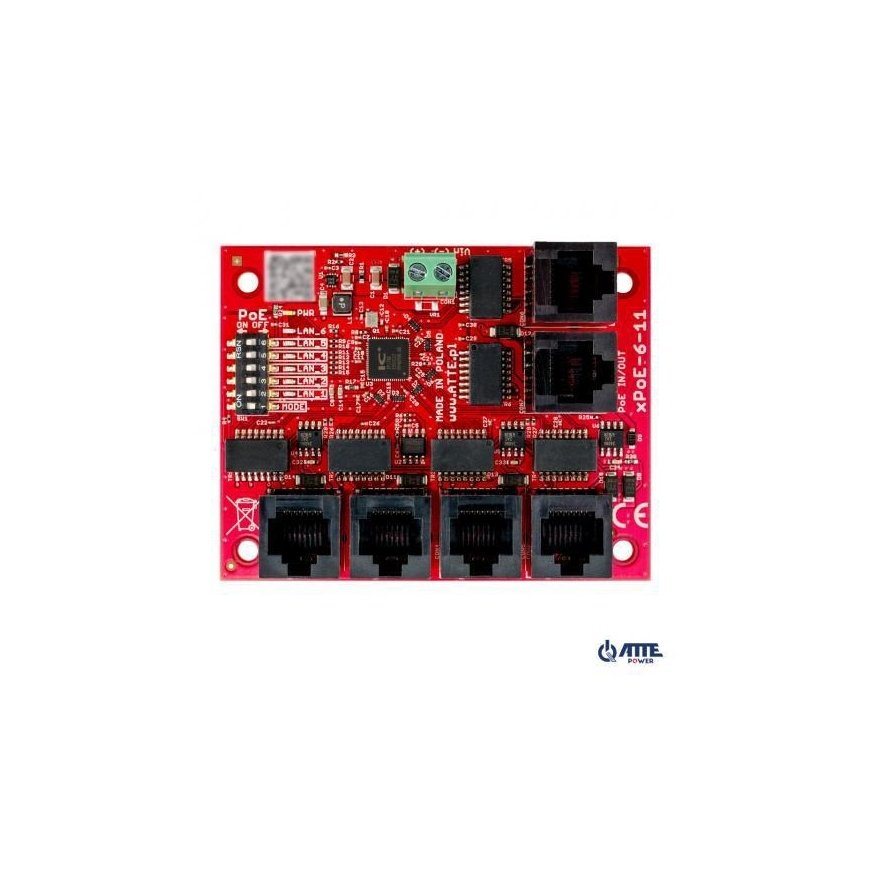

SWITCH 5-PORTOWY POE ATTE xPoE-6-11-OF
59,00 €
Monthly payment from 2.42 €
2994535 18917
5902143690481
Shipping 1-14 b.d.
You are interested in this product?
Thanks to the possibility of PoE power supply according to the 802.3at standard, the device is even more universal and easier to install.
5 ports support Power over Ethernet (PoE) function.
The LONG RANGE operating mode allows you to increase the power and data transmission range of LAN 1 ... LAN 4 ports up to 280m while limiting the network bandwidth of these ports to 10Mbps.
Attention!
Powering the switch through the LAN 5 port is only possible from Passive PoE devices from the ATTE company.
| LAN ports : | 1 x RJ45 10/100 Base-T - Uplink 5 x RJ45 10/100 Base-T , PoE 802.3af/at / Passive PoE |
| Management via WWW/console : | - |
| LEDs : | Power, LAN |
| Transmission speed : | 10 / 100 Mbps : 1 LAN port + 5 LAN & PoE ports |
| Maximum output power : | 40 W @ Passive PoE - 1 ... 4 ports, 70 W @ Passive PoE - Port 5, 30 W @ PoE (802.3af/at) - 1 ... 5 ports |
| Maximum total power : | 70 W @ Power PoE, 230 W @ Power 48V DC |
| Working mode : | Standard : 100 m @ 10/100 Mb/s - 1 ... 6 ports Long Range: 280 m @ 10 Mb/s - 1 ... 4 ports; 100 m @ 10/100 Mb/s - 5, 6 ports |
| Main features : | Possibility of power supply via Passive PoE via port LAN 5 Device cascading possible (power transfer between devices using Passive PoE via LAN port 5) The LAN 5 (PoE IN/OUT) port can be used to power PoE devices as well as draw power from other devices. The output voltage of PoE is equal to the input voltage Independent power on and off PoE power capability for each port LAN 1 ... LAN 5 |
| Meals : | 10 ... 56 V DC (cable terminals) 10 ... 56 V DC (Passive PoE) |
| Weight : | 0.05 kg |
| Dimensions : | 88 x 68 x 20 mm |
| Manufacturer / Brand : | ATTE |
| Warranty : | 3 years |
