5-PORT POE SWITCH WITH BUFFER POWER ATTE IPUPS-5-11-XL2
2978801 18426
5902143690429
2026-07-29
5-port PoE switch in an external enclosure with buffer power supply.
5 ports support Power over Ethernet (PoE) function.

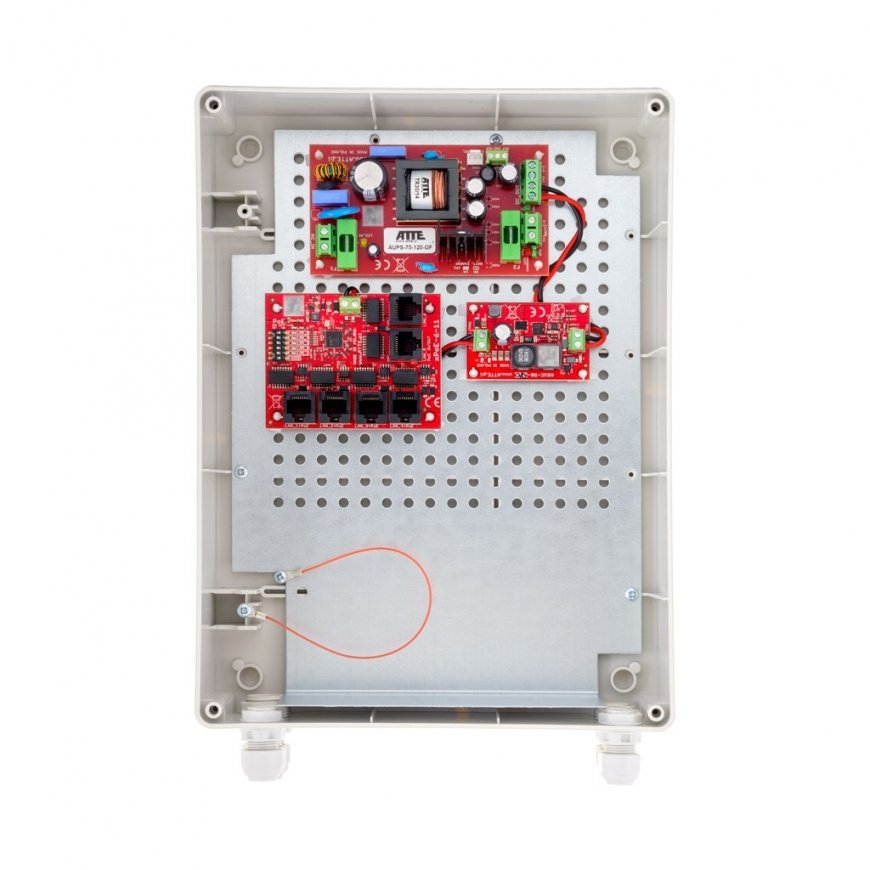

The set IPUPS-5-11-XL2 consists of a switch module XPOE-6-11-OF, a buffer power supply module AUPS‑70‑120‑OF and a voltage converter module ASUC-50-480-OF enclosed in an external housing ABOX-XL2 with space for 7Ah for the battery.
The housing meets IP56 sealing and has cable outlets with glands in a 5 x M16 + 1 x M20 system.
The buffer power supply is adapted to work with maintenance-free batteries (gel or AGM) with a nominal voltage of 12V.
The LONG RANGE operating mode allows you to increase the power and data transmission range of LAN 1 ... LAN 4 ports up to 280m while limiting the network bandwidth of these ports to 10Mbps.
| LAN ports : | 1 x RJ45 10/100 Base-T - Uplink 5 x RJ45 10/100 Base-T , PoE 802.3af/at / Passive PoE |
| Management via WWW/console : | - |
| LEDs : | Power, LAN |
| Transmission speed : | 10 / 100 Mbps : 1 LAN port + 5 LAN & PoE ports |
| Maximum output power : | 40 W @ Passive PoE - 1 ... 4 ports, 50 W @ Passive PoE - Port 5, 30 W @ PoE (802.3af/at) - 1 ... 5 ports |
| Maximum total power : | 50W |
| Working mode : | Standard : 100 m @ 10/100 Mb/s - 1 ... 6 ports Long Range: 280 m @ 10 Mb/s - 1 ... 4 ports; 100 m @ 10/100 Mb/s - 5, 6 ports |
| Main features : | Independent power on and off PoE power capability for each port LAN 1 ... LAN 5 The modular design simplifies the maintenance task and helps to expand the system quickly and easily The raster module assembly system facilitates the expansion of the device with other subsequent modules Place for the battery: 12 V / 7 Ah Battery charging current: 1 A / 2 A - (set by switch JP1) OC type technical outputs signaling voltage loss at the power supply output (OUF) and voltage loss in the 230V network (ACF) Protection against deep battery discharge The mounting housing ABOX-XL2 has 6 cable entries with glands in 5 x M16 + 1 x M20 system |
| Meals : | 230 V AC |
| Weight : | 1.53 kg |
| Dimensions : | 333 x 227 x 130 mm |
| Manufacturer / Brand : | ATTE |
| Warranty : | 2 years |
