The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

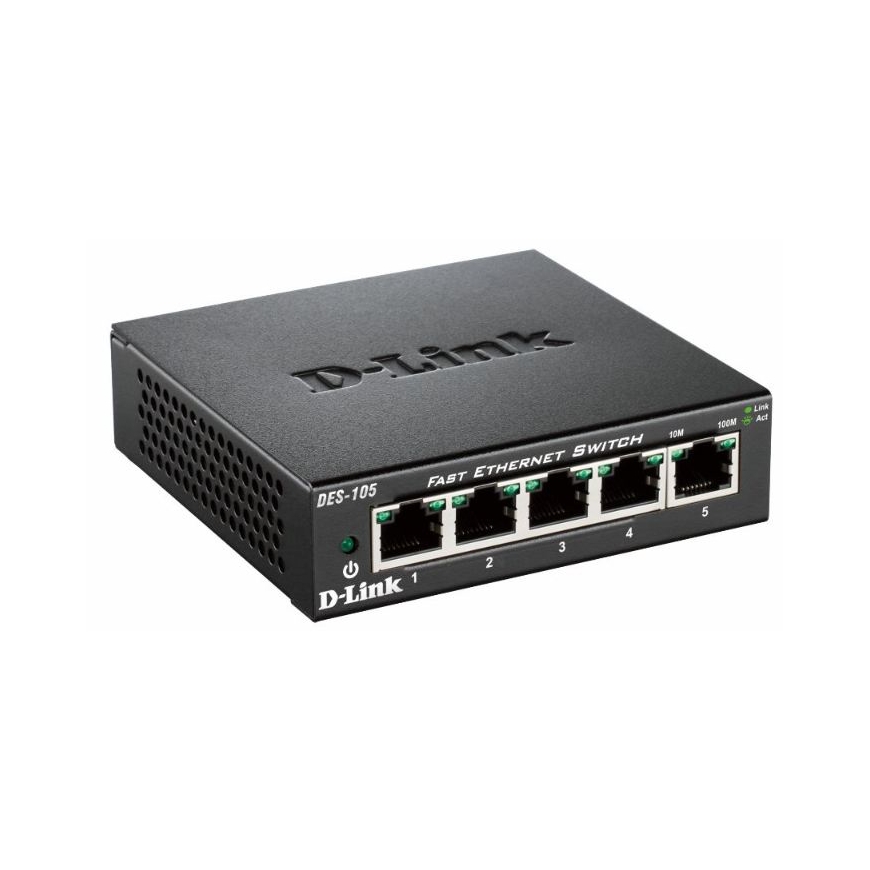

D-Link DES-105 Unmanaged L2 Black
34.76 €
296835 DES-105/E
0790069368189, 4055895266532
Shipping 5-7 days
You are interested in this product?
All about the product
- Plug and Play operation- 5 Fast Ethernet ports
- Non-blocking architecture: simultaneous full speed on all ports
- Fanless, silent operation to fit in any environment
- Quality of Service (QoS) queues for traffic prioritisation
- Solidly built with metal housing
- D-Link Green™ technology, saves energy and increases the product’s lifespan
D-Link’s DES-105 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 5 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes this switch completely silent, ideal for offices, libraries or meeting rooms.
Robust design
The DES-105 are designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, this switch comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.
QoS (Quality of Service)
Despite being an unmanaged, Plug and Play switch, the DES-105 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.
Power-saving technology
The DES-105 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implement the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.3x, IEEE 802.1p |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
Management features | |
| Quality of Service (QoS) support | Yes |
Security | |
| MAC address filtering | Yes |
| MAC address table | 2000 entries |
Design | |
| LED indicators | Power, Link |
| Product colour | Black |
| Housing material | Metal |
Features | |
| Mean time between failures (MTBF) | 495709 h |
Power | |
| Power consumption (typical) | 1.9 W |
| Power over Ethernet (PoE) | No |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
| Weight | 265 g |
Packaging data | |
| Package width | 170 mm |
| Package depth | 220 mm |
| Package height | 62 mm |
| Package weight | 450 g |
Other features | |
| Dimensions (WxDxH) | 100 x 98 x 28 mm |
| Supported data transfer rates | 10/100 Mbps |
| Maximum data transfer rate | 0.1 Gbit/s |
| Input current | 1 A |
| Input voltage | 5 V |
| Data transfer rate | 200 Mbit/s |
| Rack mounting | No |
Certificates | |
| Certification | RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB |
Logistics data | |
| Shipping (inner) case height | 36.6 cm |
| Shipping (inner) case width | 23 cm |
| Shipping (inner) case length | 33.5 cm |
| Shipping (inner) case net weight | 4.5 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 434 kg |
| Master (outer) cases per pallet (air) | 75 pc(s) |
| Products per pallet (air) | 750 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 2.04 m |
| Pallet gross weight (sea) | 434 kg |
| Master (outer) cases per pallet (sea) | 75 pc(s) |
| Products per pallet (sea) | 750 pc(s) |
| Pallet height (sea) | 2.04 m |
| Shipping (inner) case gross weight | 5.5 kg |
| Harmonized System (HS) code | 85176990 |
