Hismart Electric vehicle socket Type 2 (Male), 16A, 1-phase
2906601 EV200627
9990000200627
Shipping 2-4 days

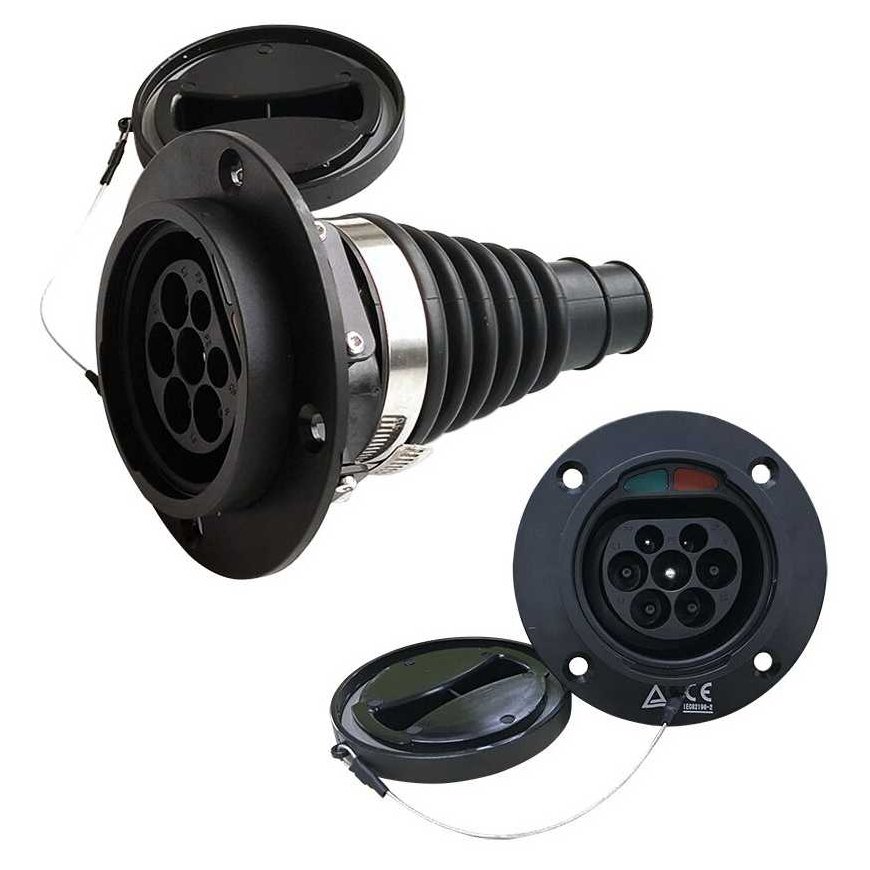

Electric car charging socket Type 2 Male, 16A, 240V, 1-phase.
Made with a high-quality insulating thermoplastic coating that provides IP54 level protection against dust and water ingress from all sides, and has a water drain hole. The socket is ready for 4-point mounting and the screw end is of the wire type.
The socket has resistance sensors that measure the temperature very accurately and when it rises above a safe limit, it automatically reduces the charging power or turns off the charging completely.
The charging socket meets all safety requirements and is resistant to vibrations, moisture and dust. It has a UL94 V-0 certified flammability insulator that stops the spread of fire within 10 seconds.
Features:
- The outlet has resistance sensors that automatically turn off when the temperature rises above a safe limit.
- Mounted on the side of the vehicle.
- Excellent protection properties, protection class IP44, resistance to vibrations, moisture, dust.
- Mechanical life: no load on/off >10000 times.
Technical data:
- EV connector type: Type 2 (European), Male, IEC 62196-2.
- Number of contacts 7.
- Nominal current: 16A.
- Operating voltage: 250V.
- Operating temperature: -30°C to +50°C.
- Insulation resistance: >1000M?(DC500V).
- Voltage resistance: 2000V.
- Contact resistance: 0.5m? Max.
- Connectors: copper alloy, silver + thermoplastic coating.
- Certificates: CE, TUV.
- Color black.
