The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

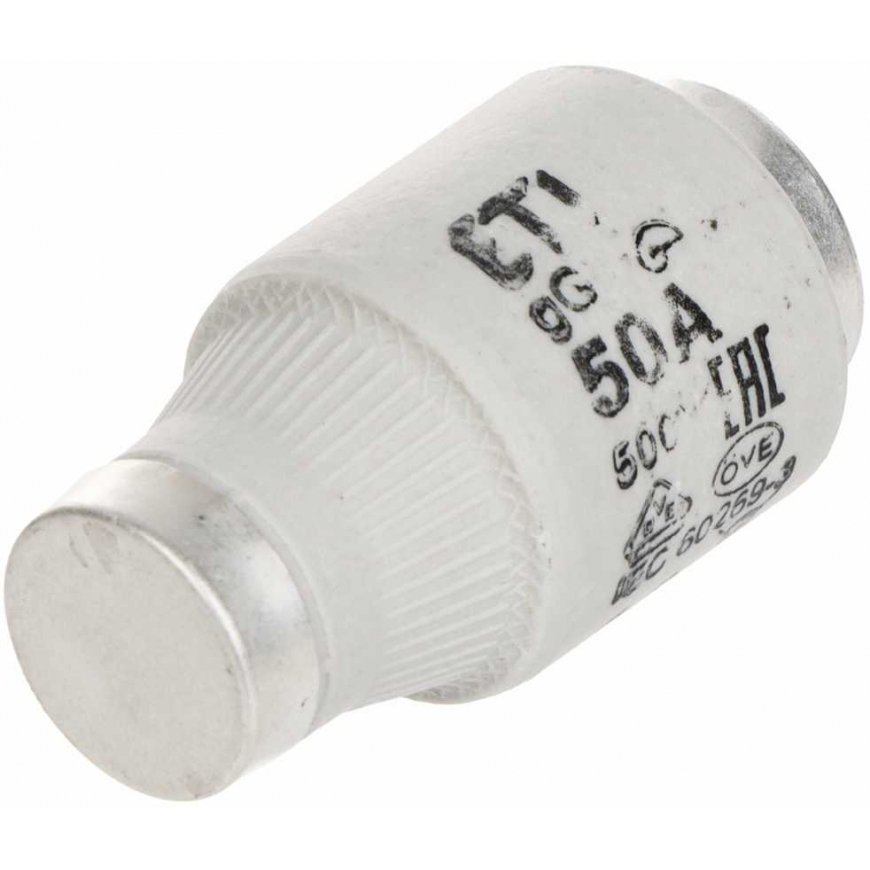

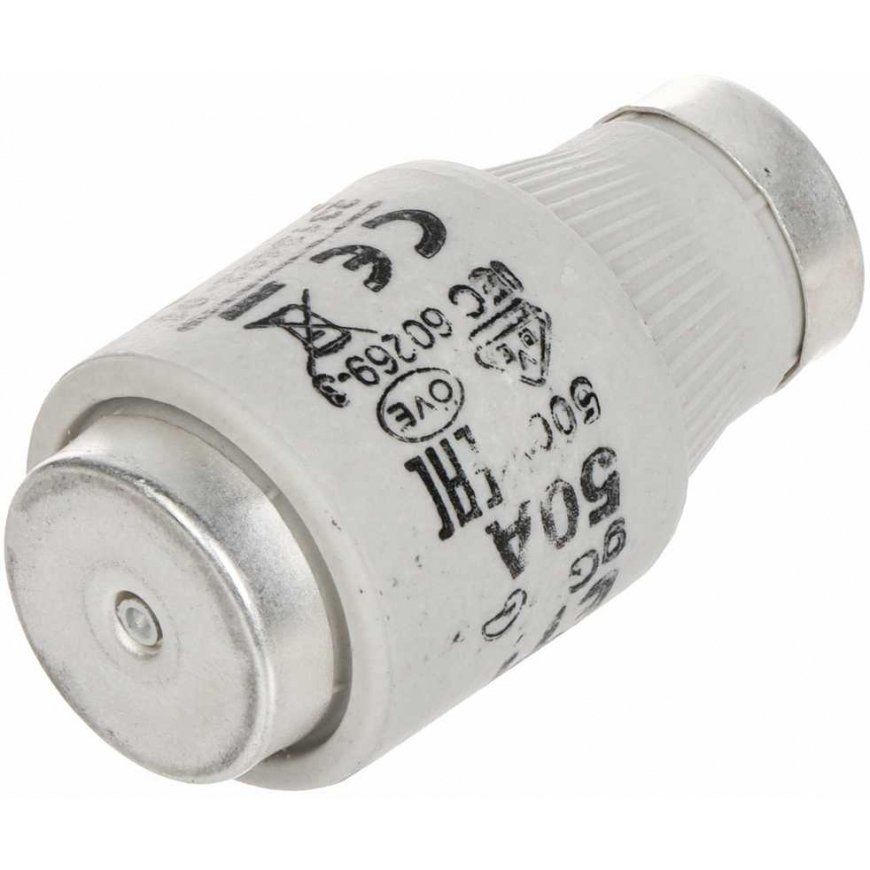

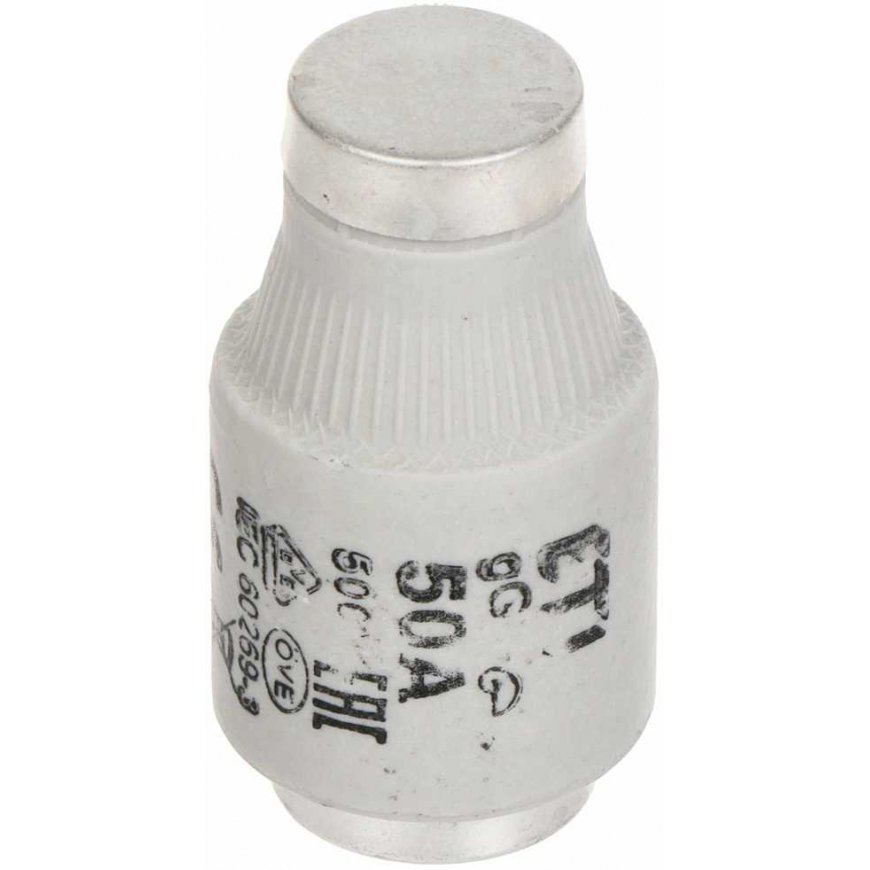

FUSE INSERT ETI-D3/50A 50 A 500 V gG E33 ETI
14,37 €
14,36 €
2734479 2313402
3838895000181
Shipping 1-14 b.d.
You are interested in this product?
Fuse inserts are used to protect electromagnetic installations from overloading or short-circuiting.
All fuse inserts have fuse blow indicators which are visible through the nut after installation.
| Nominal current : | 50 A |
| Nominal voltage : | 250 V DC , 500 V AC |
| Description of fuse : | gG |
| Fuse socket : | E33 |
| Type : | D |
| Size : | D3 |
| Rated short-circuit duration : | 50 kA AC , 8 kA DC |
| Main features : | Low power and energy loss Low temperature rise High current short circuit limitation Stability of current-time characteristics and full selectivity of operation Selective cooperation with overcurrent circuit breakers |
| Body : | Ceramic |
| Weight : | 0.05 kg |

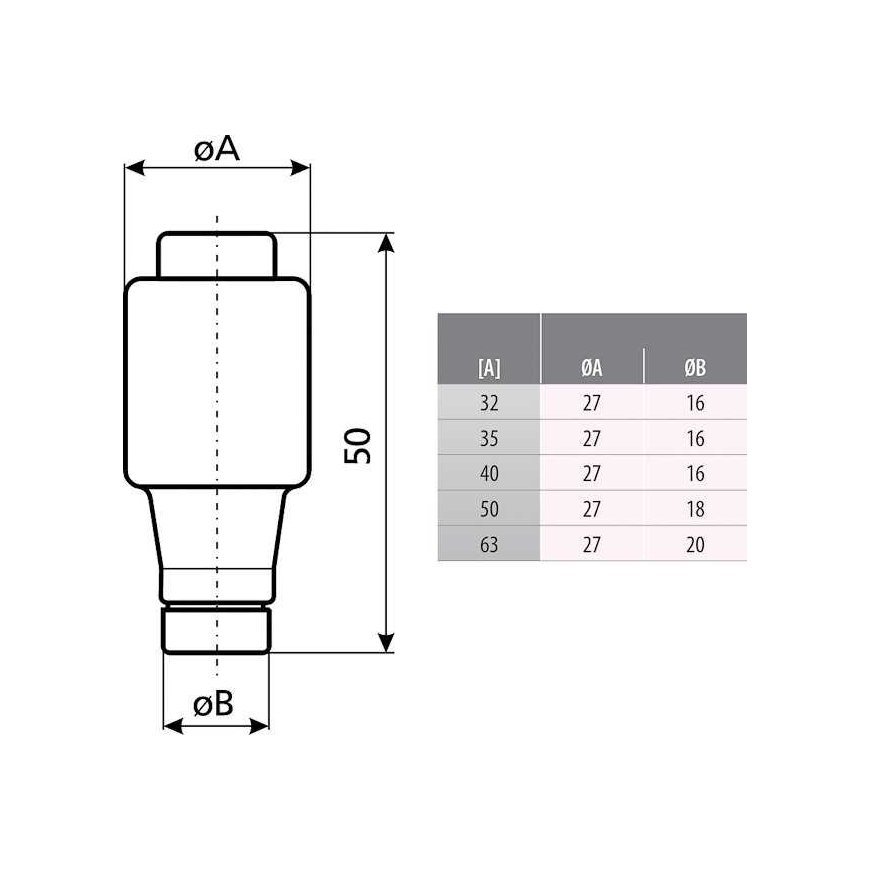

| Dimensions : | Ø 27 x 50 mm |
| Manufacturer / Brand : | ETI |
| Warranty : | 2 years |
