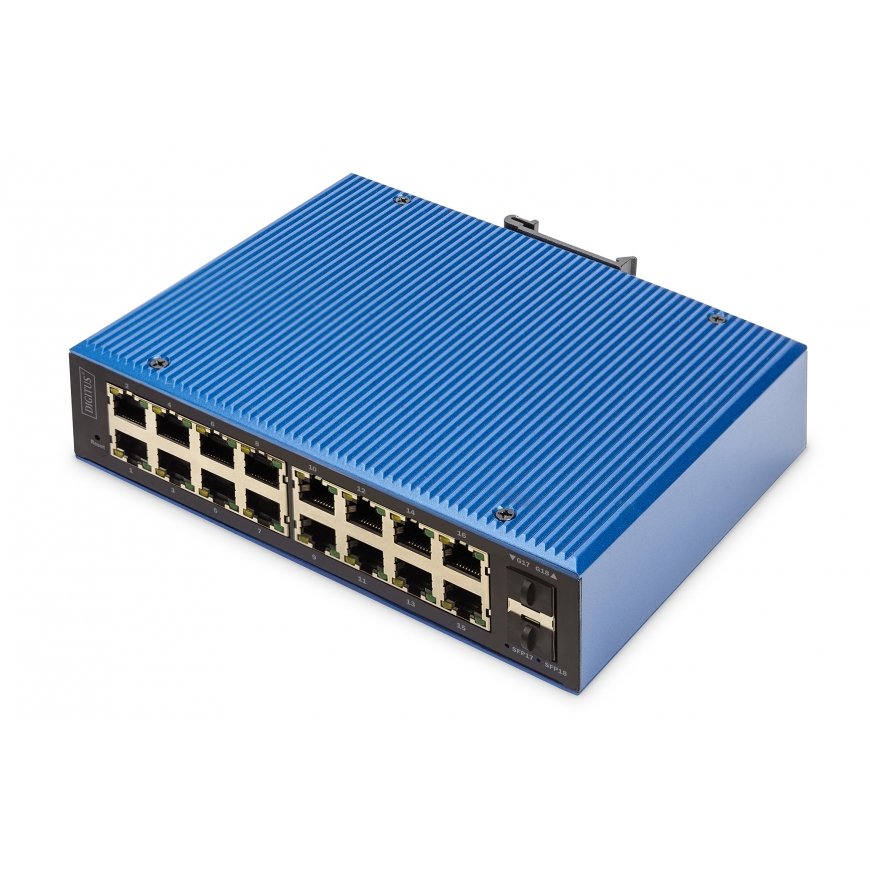

Digitus Industrial 16+2 -Port L2 managed Gigabit Ethernet Switch

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Digitus Industrial 16+2 -Port L2 managed Gigabit Ethernet Switch

422,15 €
Monthly payment from 11.77
2541391

DN-651158

4016032490227

This product is no longer in stock

You are interested in this product?
(Read terms of service)
16x 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports, L2 Management functions. The IP40 housing with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

- 16 port GE RJ45, 2 SFP GE ports
- 16 x 10/100/1000 Mbit (RJ45)
- 2 x 10/100/1000 Mbit (SFP)
- Redundant power supply 12-48 V (DC)
- Metal housing according to IP40 standard
- Easy mounting on a top hat rail
- Operating temperature from - 40° up to 80° C
- Numerous L2 management features
- ESD & EFT protection up to 6 kV (DC)
- Optimal for the connection of camera systems

The Digitus DN-651158 Ethernet switch with 16 x RJ45 interfaces and 2 x SFP uplinks offers numerous Layer 2 port functions for optimum network performance. It supports flow control, link aggregation and various routing strategies. The switch enables VLAN management, supports spanning tree protocols and ensures fast recovery in case of failures. Optimise multicast traffic with IGMP and MLD snooping. The switch offers advanced security features such as ACLs and supports QoS for traffic prioritisation. Stay in control with comprehensive management options such as SNMP and CLI. Our switch is a reliable network solution with advanced features for your needs.
Network
Networking standards IEEE 802.3x
Flow control support Yes
Ethernet LAN data rates 10, 100, 1000
Full duplex Yes
Jumbo frames support Yes
Jumbo frames 10240
Port mirroring Yes
Number of VLANs 4094
Ports & interfaces
Fiber optic connector SFP
Management features
Quality of Service (QoS) support Yes
Security
MAC address filtering Yes
MAC address table 8000 entries
Access Control List (ACL) Yes
IGMP snooping Yes
Design
Product colour Black, Blue
Housing material Metal
International Protection (IP) code IP40
Features
Mean time between failures (MTBF) 300000 h
Power
Power consumption (typical) 15 W
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) -40 - 80 °C
Storage temperature (T-T) -40 - 80 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 175.6 mm
Depth 135 mm
Height 45.5 mm
Weight 1.1 kg
Packaging data
Package width 186 mm
Package depth 72.5 mm
Package height 298 mm
Package weight 685 g
Package volume 4018.53 cm³
Other features
Bandwidth 56 Gbit/s
Rack mounting No
Logistics data
Country of origin China
UK Trade Tariff code 85176200
Packaging content
Quick start guide Yes
