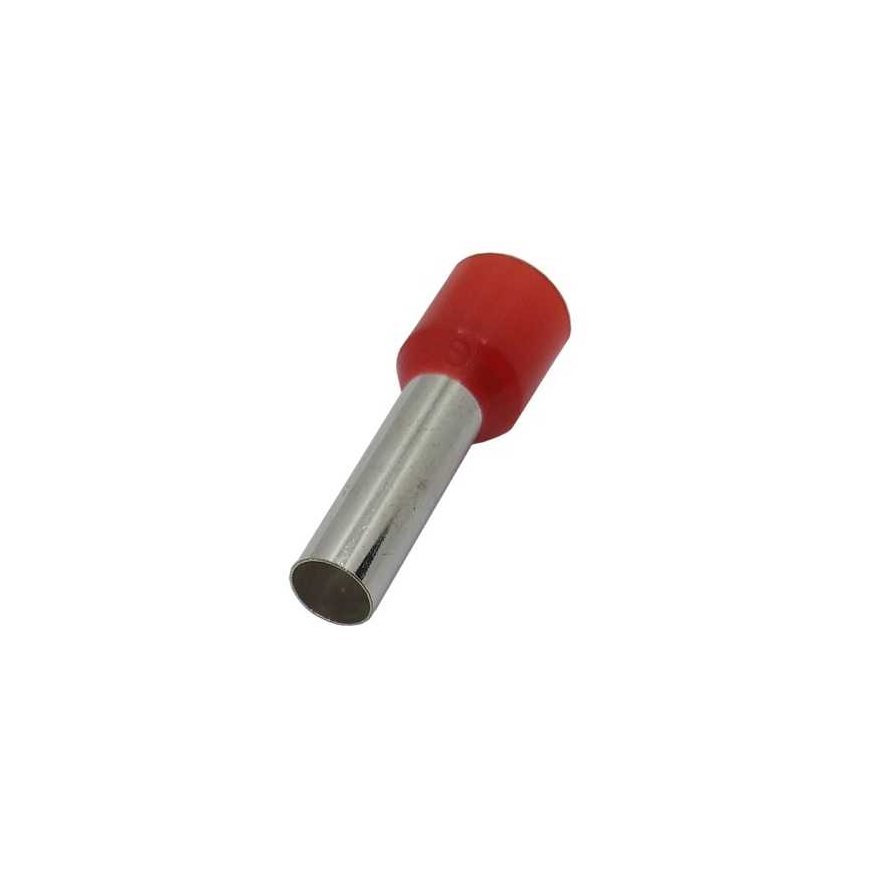

Hismart Pressed insulated tip for 16mm2/5AWG wire, copper, red, 100 pcs.

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Hismart Pressed insulated tip for 16mm2/5AWG wire, copper, red, 100 pcs.

14,88 €
2525771

NV822034

9990000822034

Shipping 2-4 days

Quantity
You are interested in this product?
(Read terms of service)
Pressed insulated tip for 16.0mm² / 5AWG cable, copper, red, 100 pcs.

Features:
Cylindrical insulated ferrule for soft wire, crimped, red vinyl.
The tube is made of pure copper with a tinned finish to improve electrical contact.
Designed for connecting copper wires to electrical devices or to other wires or surfaces.

Technical data:
Cable cross-sectional area: 16.0mm² / 5AWG.
Material: copper.
Surface treatment: Tin plated.
Insulation material: vinyl.
Connection angle: 180° (horizontal).
Total tip length: 29mm.
Tube length: 18mm.
Inner diameter: 5.8mm.
Outer diameter: 6.2mm.
Insulated tip diameter: 9.0mm.
Color of insulation: red.
The set consists of: 100 pcs.
