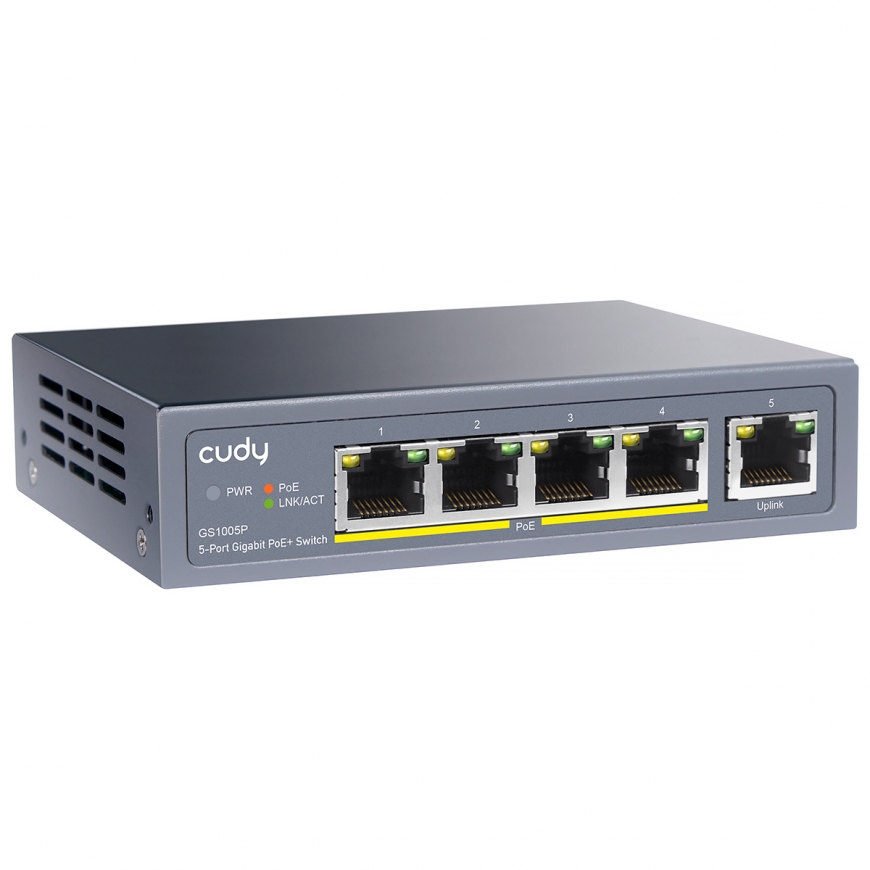

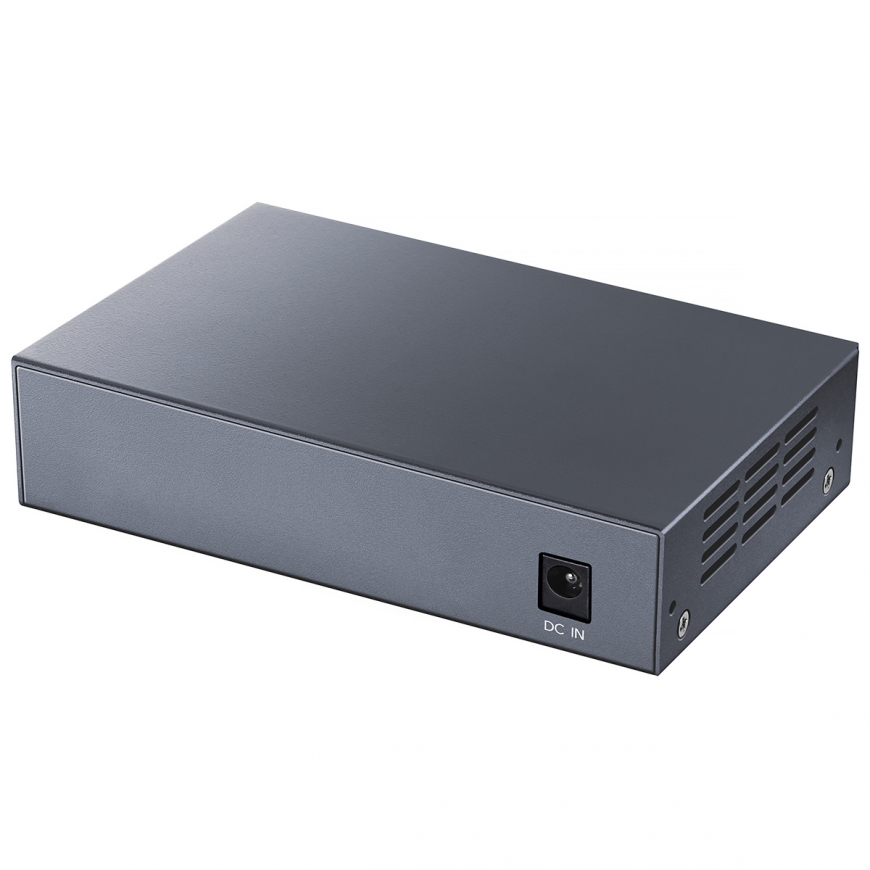

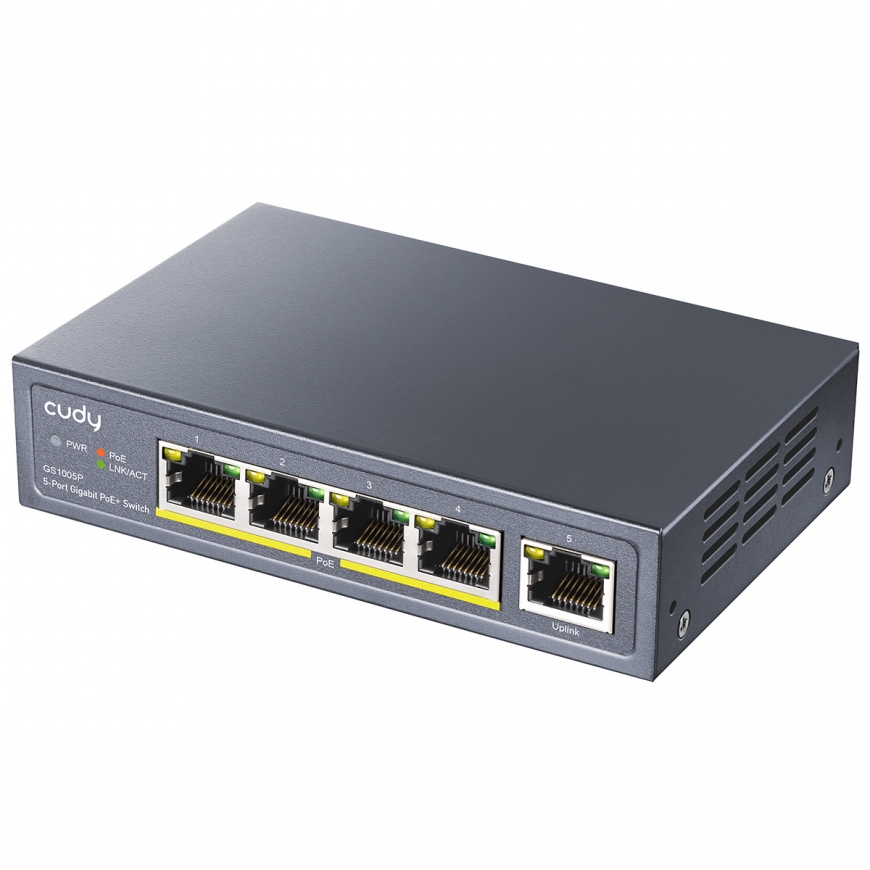

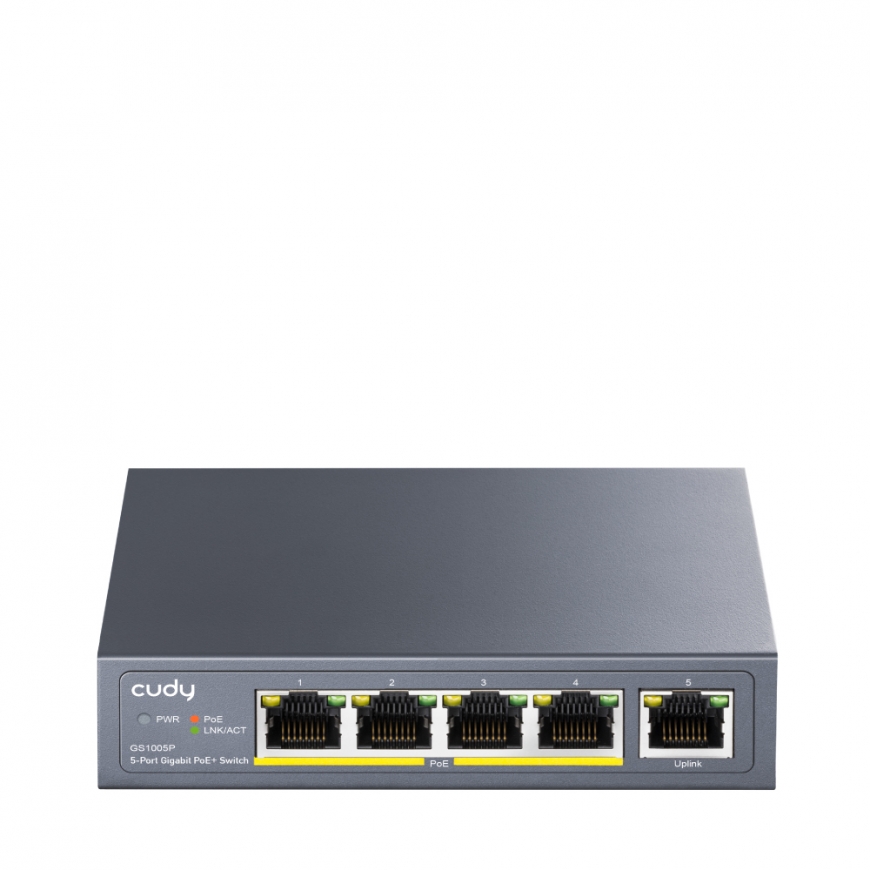

Cudy GS1005P network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Cudy GS1005P network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Cudy GS1005P network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Cudy GS1005P network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Cudy GS1005P network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Cudy GS1005P network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

39,00 €
Monthly payment from 1.90
2444049

GS1005P

6971690790998

2026-07-29

Quantity
You are interested in this product?
(Read terms of service)
60W Power budget & 30W Maximum One Port
Supports 60W total PoE power and up to 30W for one PoE port.Auto detect power device; will not burned non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard

Gigabit Switching Performance
The switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, each cudy switch supports up to 5 Gbps with a switching capacity of 10 Gbps

Plug&Play, Fanless design
Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

Surveillance
Works with IP Cameras for home and office, small business

VoIP Conference Call
Works with VoIP phones for business conference

Wi-Fi Coverage
Works with WiFi APs for office and business
Product colourGrey
Width119 mm
Depth85 mm
Height28 mm
Cables includedAC; DC
Package typeBox
Plug and PlayYes
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 90%
Ethernet LAN data rates10; 100; 1000
Networking standardsIEEE 802.3; IEEE 802.3ab; IEEE 802.3u; IEEE 802.3af; IEEE 802.3at
LED indicatorsPower; Activity; Link; PoE
Housing materialMetal
Power consumption (typical)5 W
Power sourceAC/DC
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Total Power over Ethernet (PoE) budget60 W
User guideYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Flow control supportYes
MAC address table2000 entries
Switching capacity10 Gbit/s
Rack mountingYes
DC input voltage48 - 57 V
Power over Ethernet (PoE) power per port30 W
Power supply includedYes
Power over Ethernet plus (PoE+) ports quantity1
Packet forwarding rate (1 Gbps)1488000 pps
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148800 pps
Rack mount kitYes
FanlessYes
Uplink ports quantity1
