SINGLE MODE MEDIA CONVERTER KIT TXRX M-207G ULTIMODE
79,16 €
79,00 €
Monthly payment from 2.93 €
2319856 M-207G
5907634546537
2026-07-29
You are interested in this product?

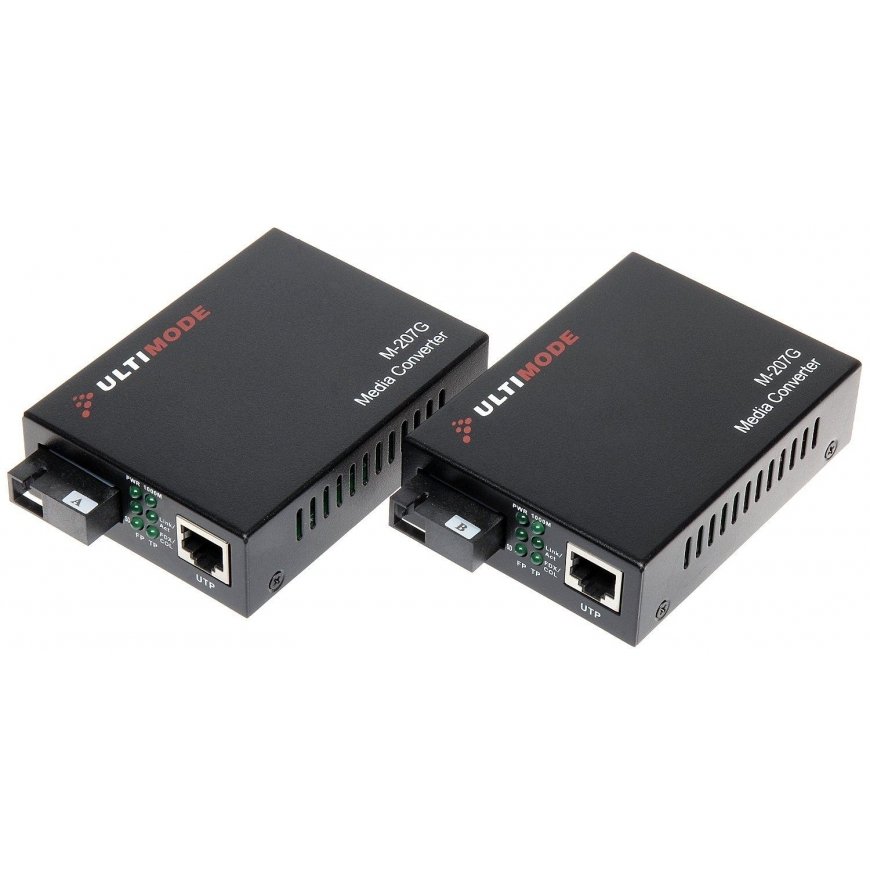

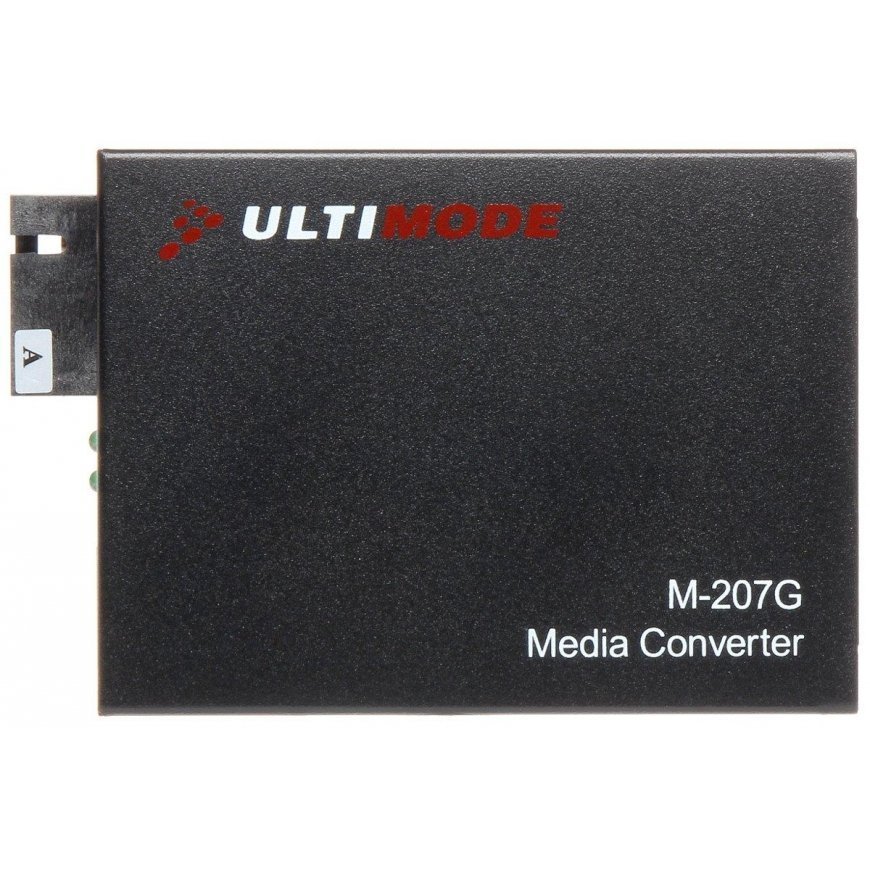

The M-207G converter provides a change in transmission of data traffic from standard wire STP/UTP to fiber-optic, single-mode cable.

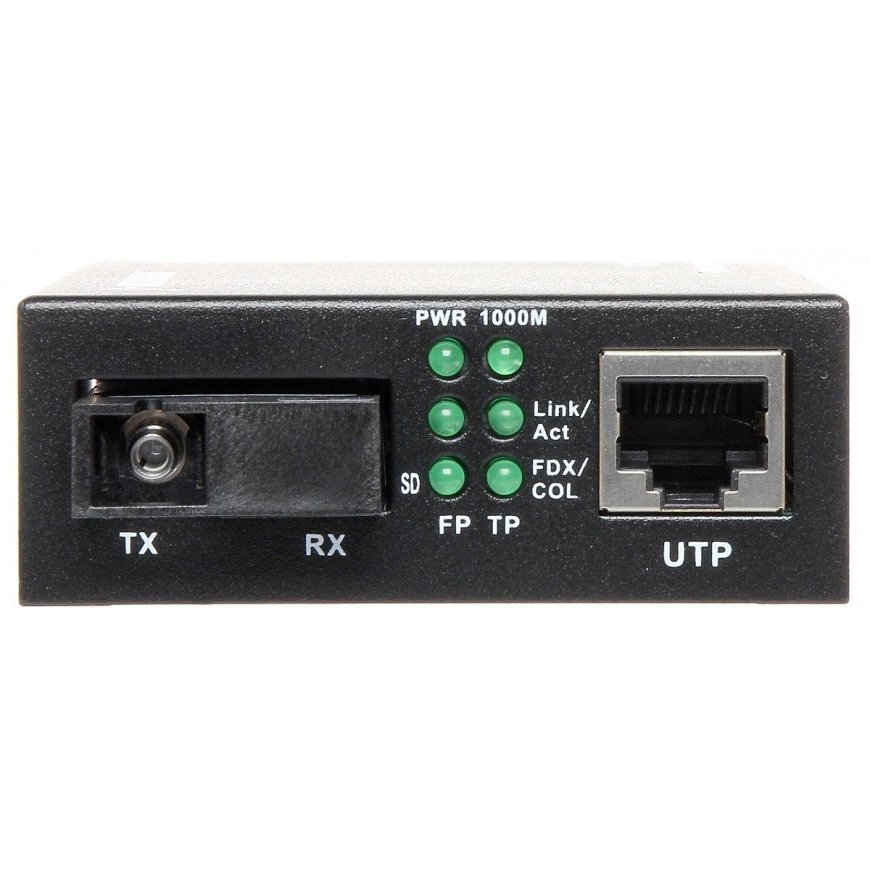

The device has an SC connector that ensures reliable connections.
The optical signal is transmitted and received in II i III transmission window 1310/1550 nm.
| Type of optical connection : | SC |
| Number of Threads : | 1 pc. |
| Transmission distance : | 20 km - Single-mode fiber |
| Standards served : | IEEE 802.3, IEEE 802.3u |
| LAN Port : | 1 pc. (RJ-45. UTP/STP) |
| Transmission speed : | 10 / 100 / 1000 Mbps |
| Optical wavelength : | 1550 / 1310 nm |
| Main features : | Automatic detection MDI/MDI-X - automatically detects the data transmission mode Automatic detection of bandwidth Bidirectional transmission on a single optical fiber LED diodes indicating the proper operation of the device Spectral channel multiplexing technology WDM (Tx 1550nm / Rx 1310nm) |

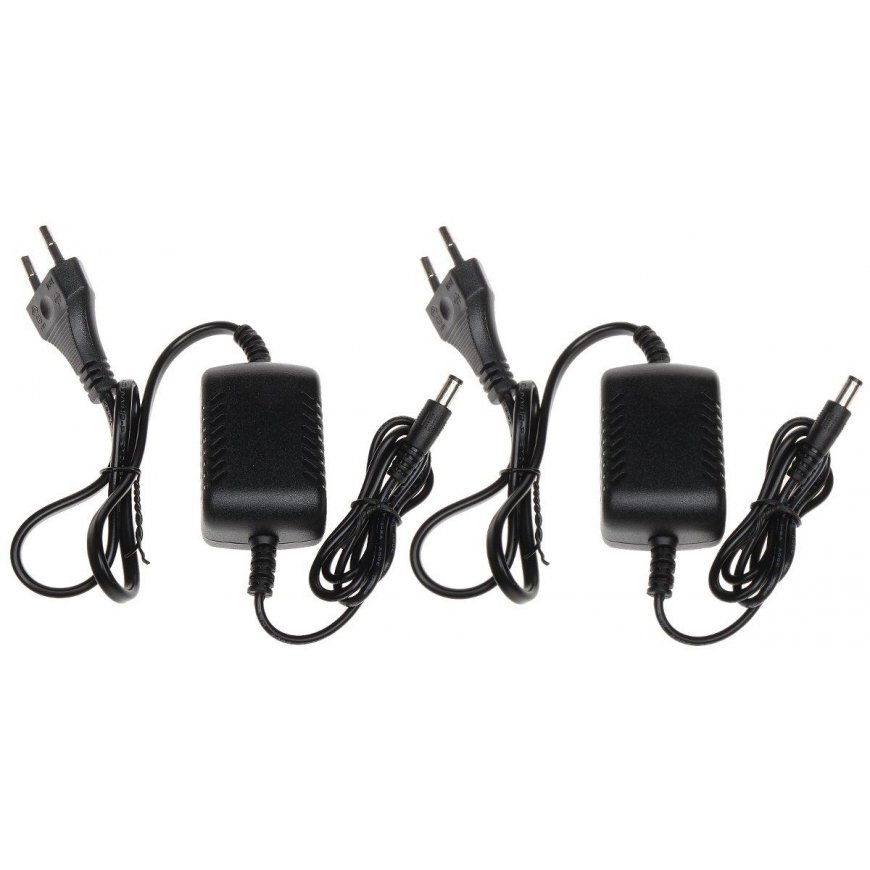

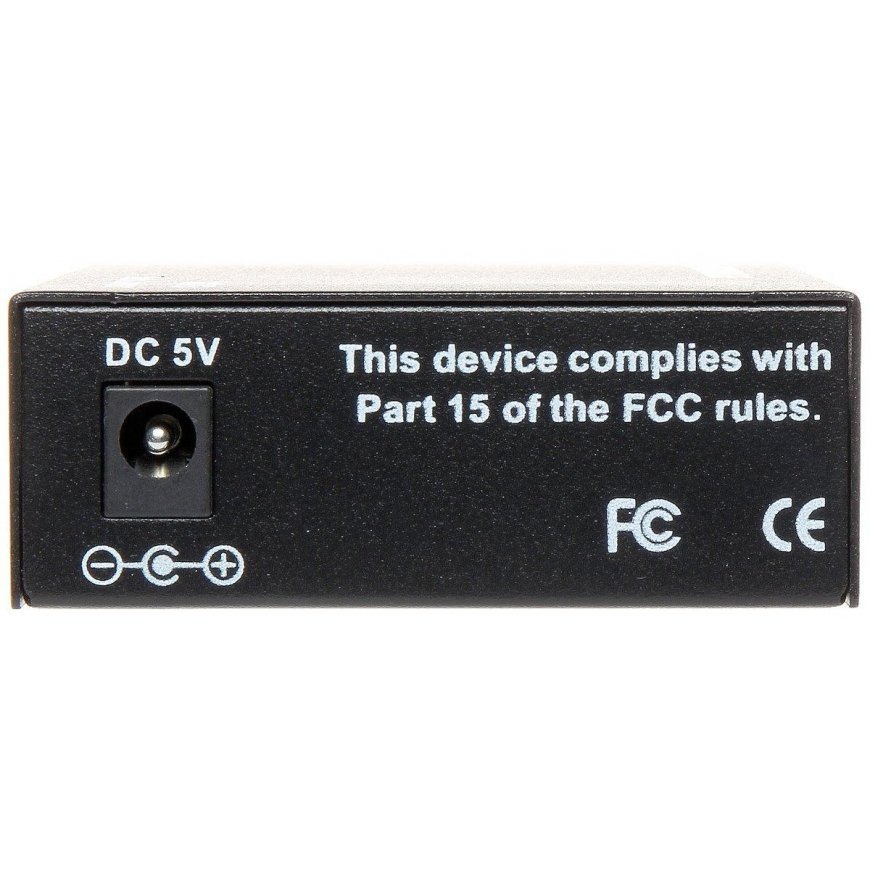

| Meals : | 5 V DC / 1.2 A (power supply included) |
| Working temperature : | 0 °C ... 50 °C |
| Weight : | 0.176 kg |
| Dimensions : | 105 x 70 x 26 mm - Dimensions of the transmitter or receiver |
| Manufacturer / Brand : | ULTIMATE |
| Warranty : | 2 years |
