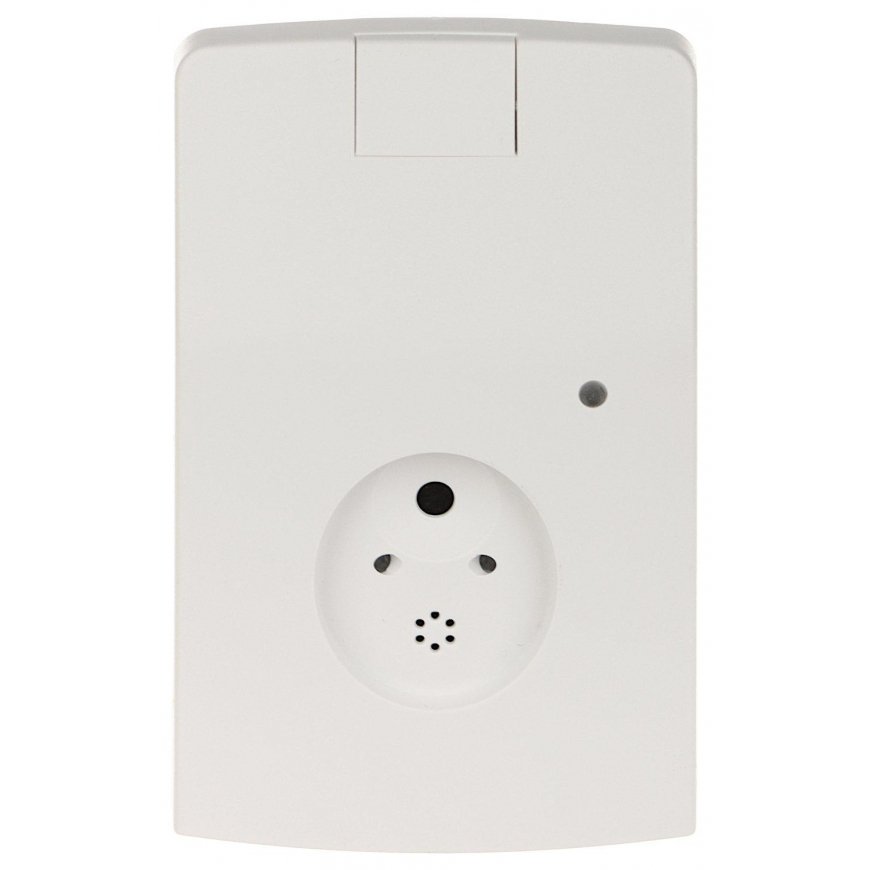

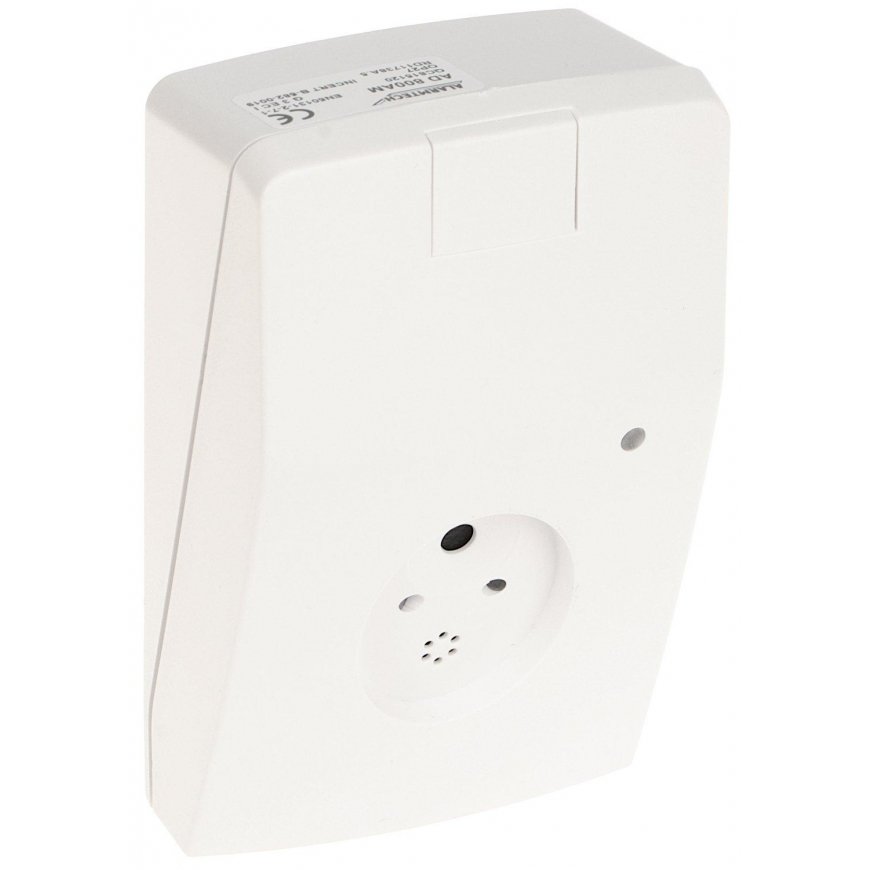

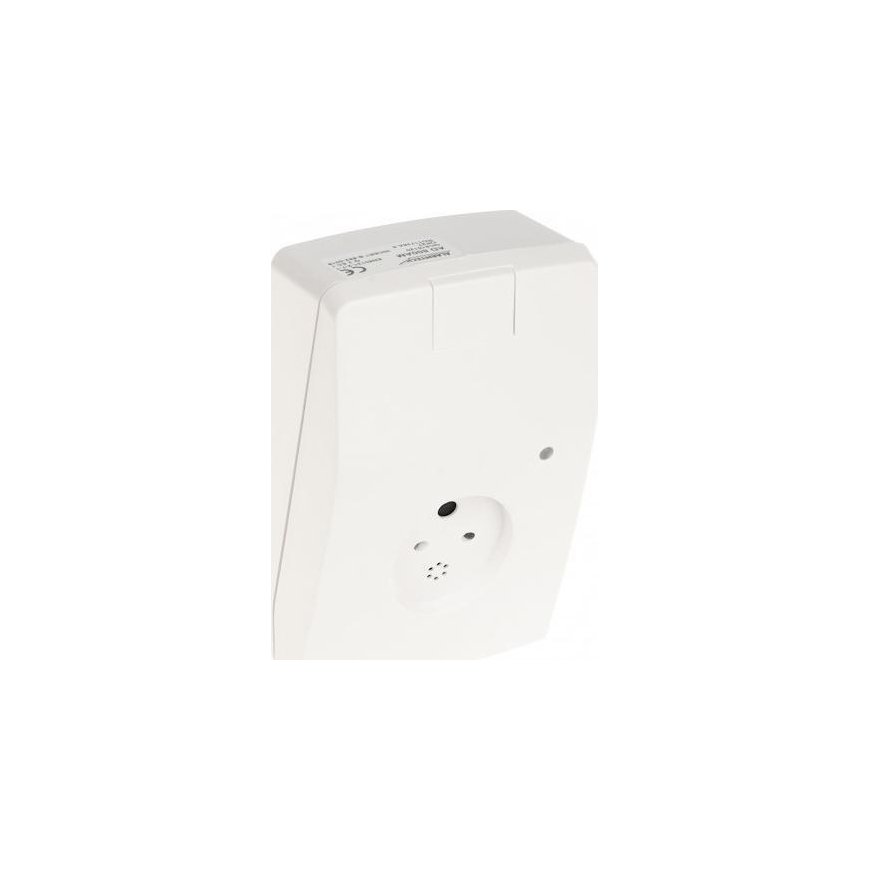

ACOUSTIC BREAKING GLASS DETECTOR AD800-AM ALARMTECH
2284281 5901508451903
Shipping 1-14 b.d.
The AD800-AM is a modern detector with an active anti-camouflage function that detects any attempts to break in through windows or glazed wall and door elements.
The detector is based on the latest technologies in the field of microcontrollers with software that takes into account many factors related to room acoustics (digital compensation of room acoustics DRC), which allows you to accurately distinguish glass breaks from other sounds.
It has two independent relays indicating glass breaking (intrusion) and signaling microphone sabotage (fault).
It has a two-channel microphone tamper detection system: an AM acoustic channel that operates at frequencies completely inaudible to humans, and an IR infrared channel that detects objects close to the microphone.
| Detection : | Broken glass detector |
| Distance : | 9 m / 165 ° |
| Sensitivity adjustment : | - |
| Alarm : | LED diode, Signal to the signaling center |
| Permissible load (resistive) of relay contacts : | 50 mA / 50 V DC |
| Main features : | detection of breakage of plain, tempered and laminated glass - Glass thickness: max. 4 mm, laminated P2, P4: 4 + 4 mm, Glass sheet thickness max. 6 x 6 years DRC - digital compensation of room acoustics Patented active "Anti-Masking" technology |
| Meals : | 7 ... 30 V DC |
| Current consumption : | 12mA @ 12V DC 7.3 mA @ 24 V DC |
| Environmental class : | I |
| Security class : | EN 50131-2-7-1:2013 Grade 3 |
| Sealing class : | IP31 |
| Body : | Plastic (ABS) |
| Color : | White |
| Working temperature : | 5 °C ... 40 °C |
| Weight : | 0.1 kg |
| Dimensions : | 68 x 109 x 40 mm |
| Manufacturer / Brand : | ALARMTECH |
| Warranty : | 2 years |
